Description

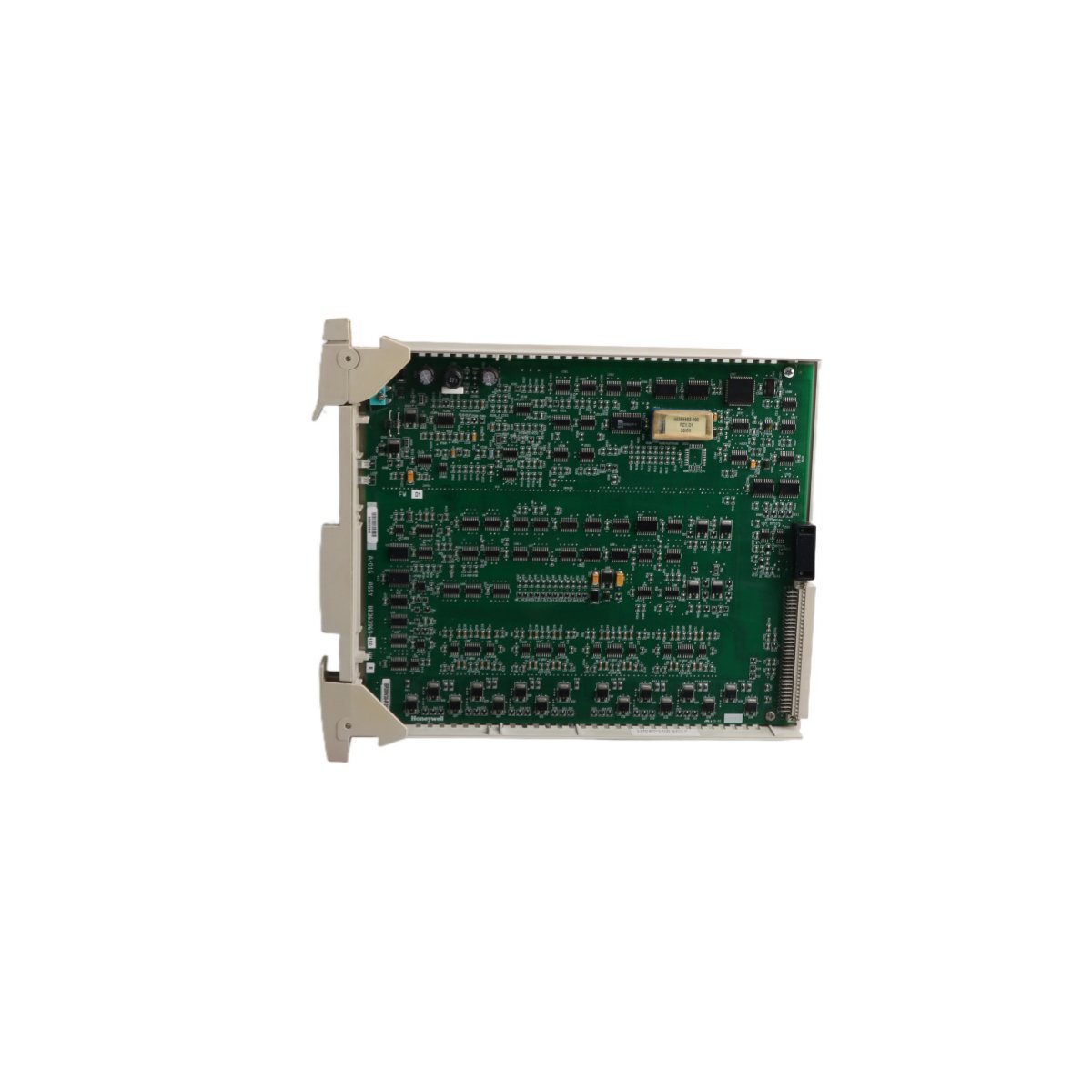

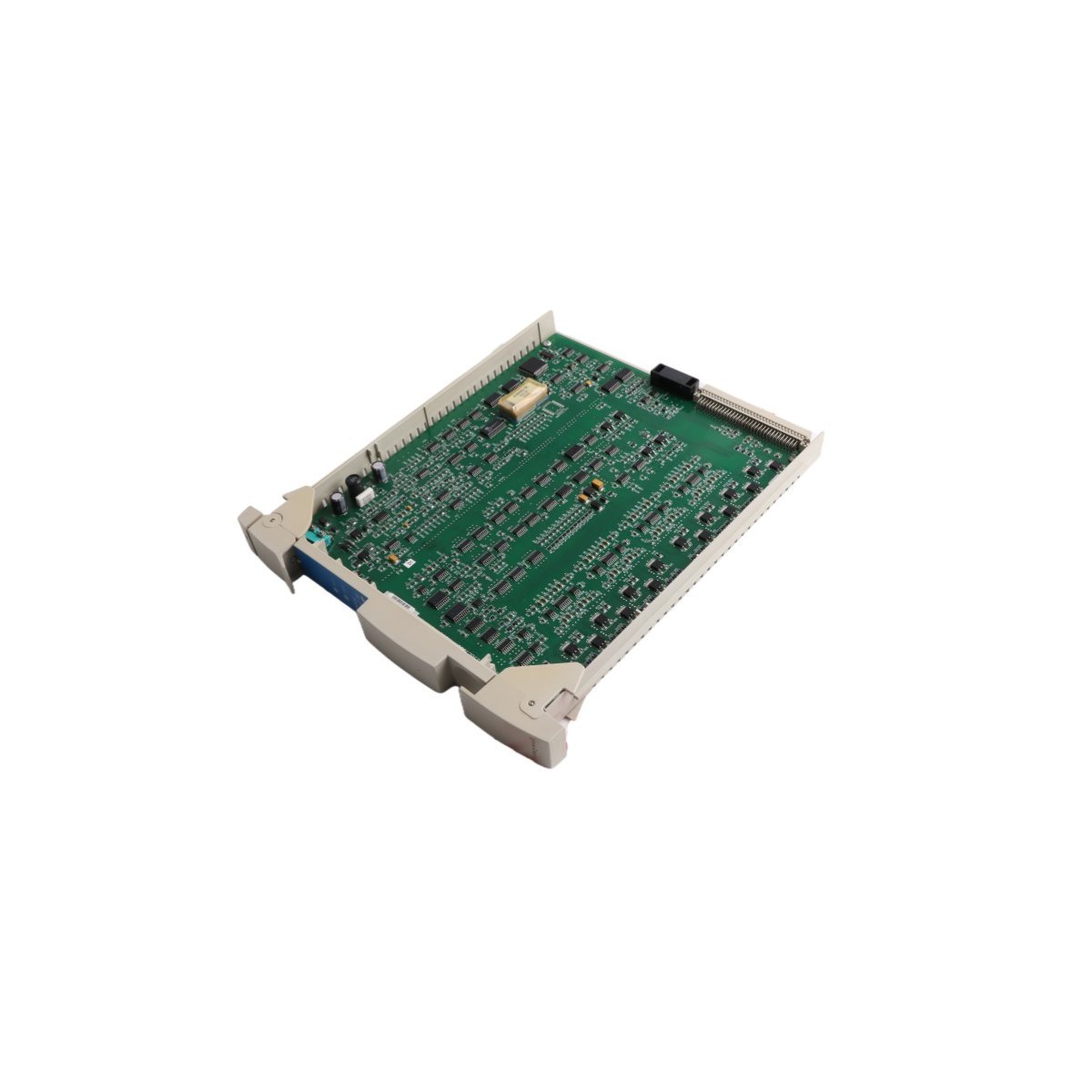

The Honeywell MC-PAOY22 functions as a high-density analog interface for Distributed Control Systems (DCS). This 16-channel processor card converts digital commands into precise physical signals for field equipment. It enables accurate modulation of control valves, variable speed drives, and industrial actuators. Consequently, operators maintain tighter control over process variables like flow, pressure, and temperature. The module utilizes an advanced architecture to ensure consistent performance in 24/7 industrial operations.

High-Performance Technical Attributes

This module delivers exceptional signal clarity with a minimal output noise of 10 μVrms. It supports industry-standard ranges including 4–20 mA current loops and 0–10 VDC voltage outputs. Furthermore, the 0.05% accuracy rating guarantees high-fidelity control for sensitive manufacturing stages. The hardware incorporates field-configurable settings to match specific site requirements. Low output ripple and high linearity prevent signal distortion during transmission. These features collectively enhance the reliability of the entire automation network.

Rugged Design for Industrial Environments

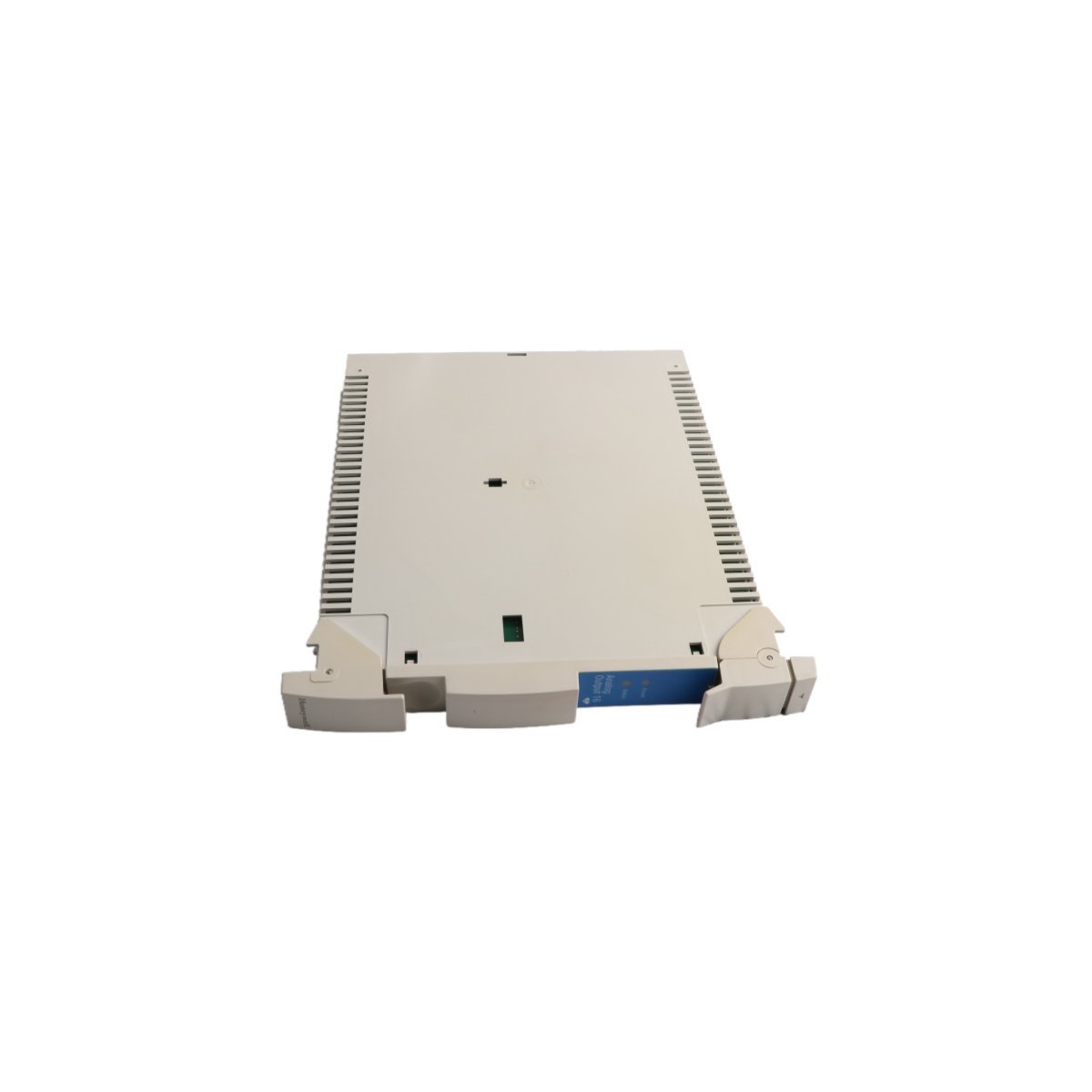

Honeywell engineers the 80363969-176 hardware to withstand the rigors of heavy industry. The compact form factor allows for efficient installation in crowded electrical cabinets. Each output channel features electrical isolation to protect the system from field-side interference. Moreover, the robust internal circuitry manages heat dissipation effectively to prevent thermal drift. This durability makes the module ideal for chemical plants, refineries, and power generation facilities. It provides a long service life even in areas with significant electromagnetic noise.

Technical Specifications

System Integration and Maintenance

The MC-PAOY22 integrates seamlessly with existing Honeywell PLC and DCS architectures. It features a straightforward configuration process to reduce commissioning time. Additionally, the module includes readback accuracy functions for real-time diagnostic verification. This allows maintenance teams to identify potential loop failures before they impact production. The unit is currently active and supports modern industrial communication services via Ethernet routers.
