Description

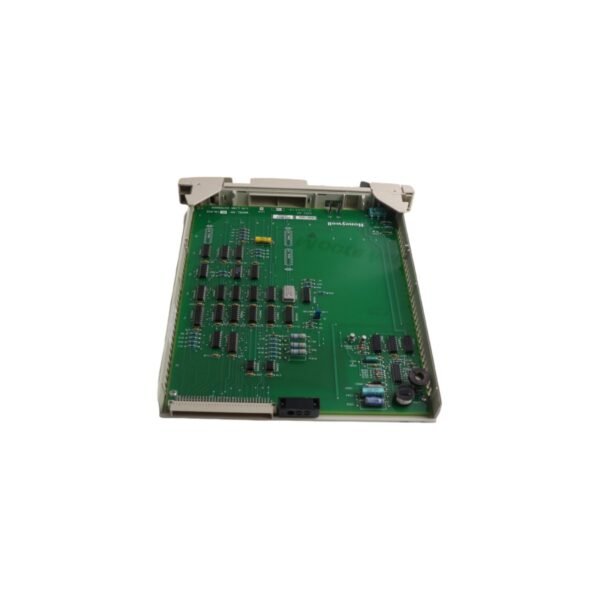

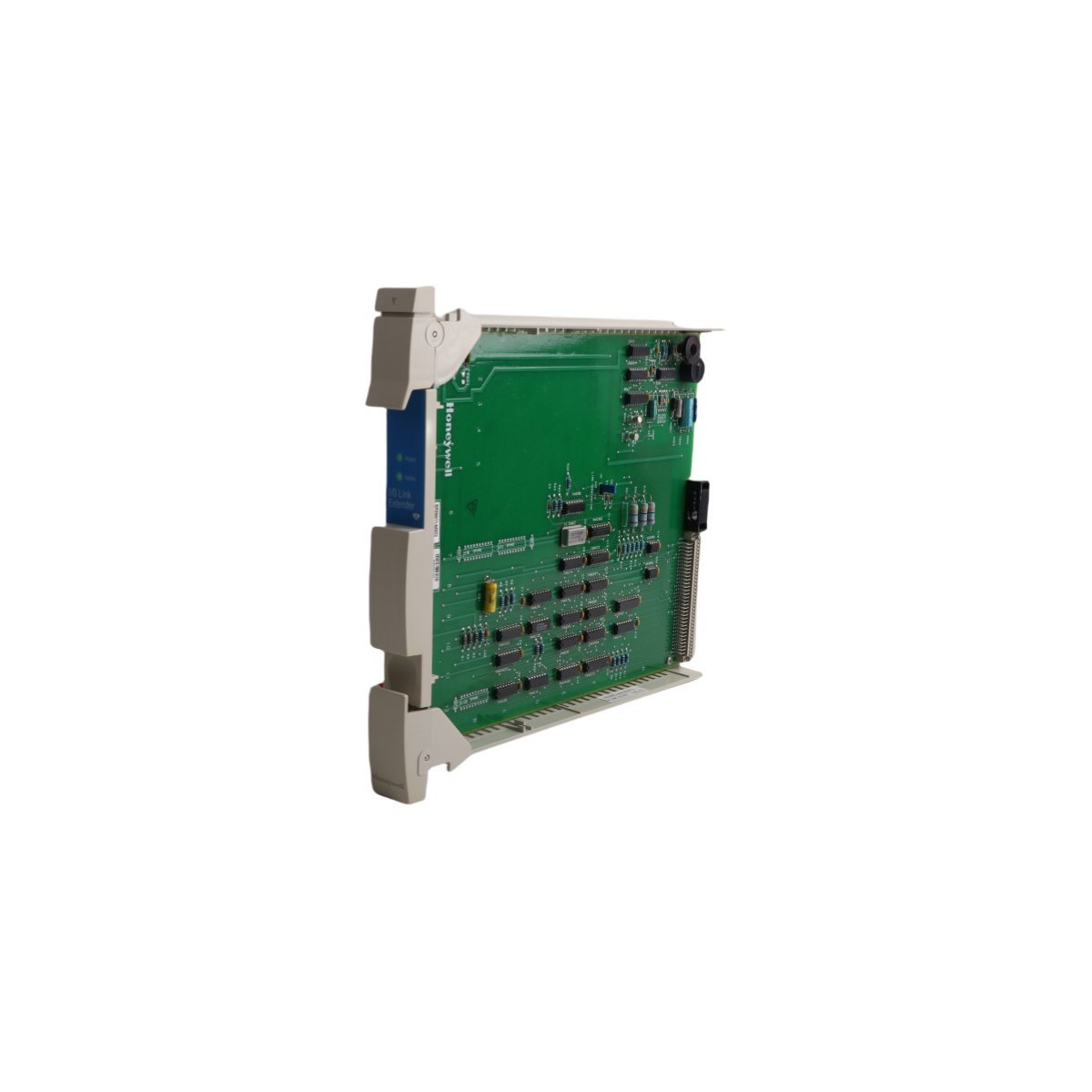

The Honeywell MC-IOLX02 51304419-150, also cataloged as the MC-IOLX02 51304419-150 I/O Link Extender Card, operates as a dedicated hardware component for signal extension and data transmission within distributed control system (DCS) architectures.

Hardware Specifications

Process Control & Connectivity

The module utilizes channel-to-channel isolation to prevent signal cross-talk and preserve data integrity across the backplane bus. In high-density DCS environments, the interface supports 4-20 mA HART loop protocol compatibility, ensuring seamless integration with field instrumentation. The hardware architecture facilitates robust electrical isolation to protect the central processing unit from transients originating in the field loop.

Frequently Asked Questions

Q: Does the MC-IOLX02 51304419-150 support hot-swapping during active system operation?

A: The module is designed for replacement within an energized rack assembly, provided the backplane power remains stable and the system firmware supports dynamic I/O discovery.

Q: How does the module handle signal isolation between channels?

A: Integrated galvanic isolation circuits are employed per channel to prevent common-mode voltage interference and maintain loop integrity during ground fault conditions.

Field Installation Guidelines

• Static Discharge Prevention: Before physically handling the module, prioritize the protection of internal circuitry by utilizing an ESD-safe wrist strap; furthermore, ensure this strap is connected to a verified ground point to neutralize potential electrostatic discharge.
• Backplane Alignment: During the insertion process, carefully align the module with the MU-T series chassis backplane guides. Consequently, apply firm, even pressure to ensure the primary and secondary connectors engage correctly without mechanical binding.
• Shielding and Grounding: To maintain signal integrity, ensure all incoming cabling is appropriately shielded; in addition, verify that these shields are grounded according to site-specific standards to effectively minimize the impact of electromagnetic interference (EMI) on the link performance.
• Firmware Verification: Finally, prior to proceeding with the commissioning phase, you must verify the module firmware version via the Engineering Workstation (EWS). Ultimately, this validation step is necessary to ensure strict alignment with the site-wide DCS software version, thereby preventing potential communication lockout.
