Description

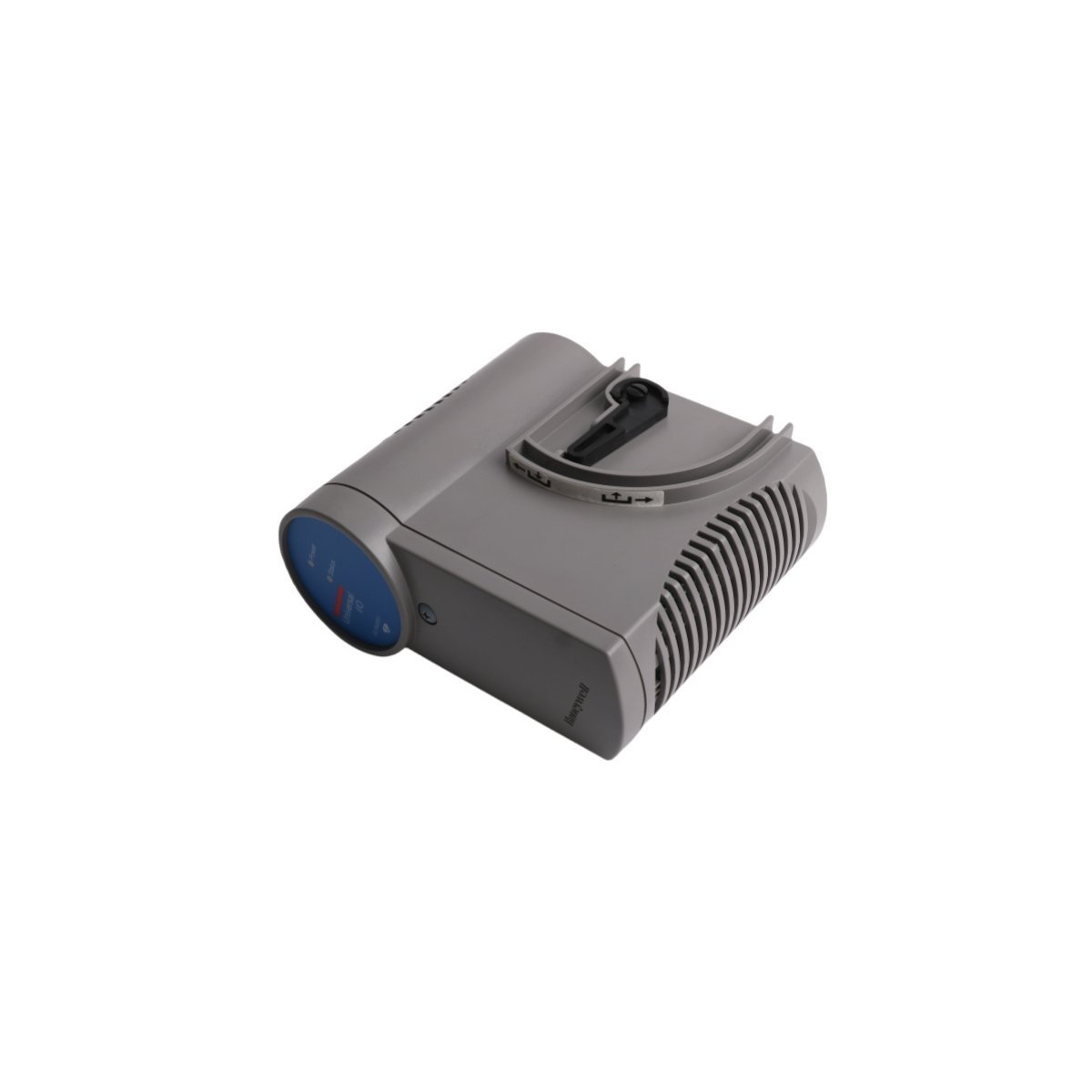

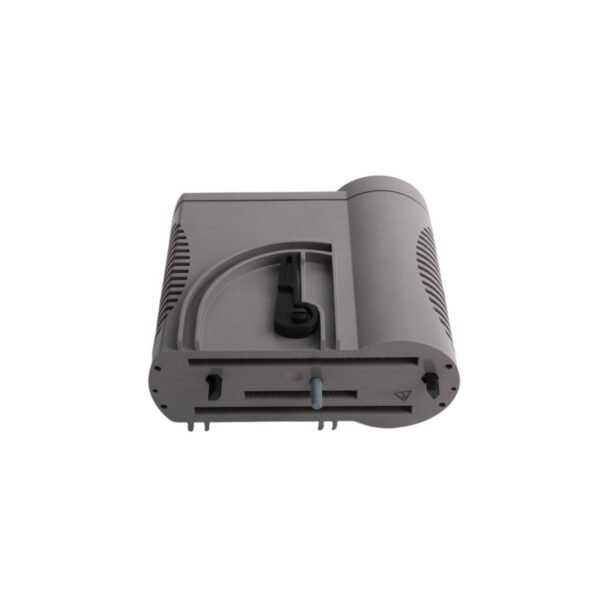

Configured for high-density signal integration in Experion PKS platforms, the Honeywell CC-PUIO01 (CC-PUIO01 Universal Input (I/O) Module) provides direct physical and electrical execution of multi-format field device interfacing.

Hardware Specifications

Process Control & Connectivity

The CC-PUIO01 module facilitates 4-20 mA HART loop protocol connectivity, enabling intelligent communication with field instrumentation. Each channel utilizes independent channel-to-channel isolation to prevent ground loop interference and electrical transients from propagating through the I/O backplane. Furthermore, the module includes automatic cold junction compensation (CJC) circuitry, supporting precise temperature measurement across thermocouple input channels.

Frequently Asked Questions

Q: Does the CC-PUIO01 support channel-level configuration for different signal types?

A: Yes, each individual channel is software-configurable to operate as either an analog or digital input/output, allowing for dynamic infrastructure allocation without requiring physical module replacement.

Q: Is this module compatible with redundant controller configurations?

A: The hardware supports integration within redundant DCS architectures to ensure uninterrupted process control during a primary controller failover event.

Field Installation Guidelines

• Static Discharge Prevention: Before physically handling the module, prioritize the protection of internal circuitry by utilizing an ESD-safe wrist strap; furthermore, ensure this strap is connected to a verified ground point to neutralize potential electrostatic discharge.
• Backplane Alignment: During the insertion process, carefully align the module with the Experion PKS chassis backplane guides. Consequently, apply firm, even pressure to ensure the primary and secondary connectors engage correctly without mechanical binding.
• Shielding and Grounding: To maintain signal integrity, ensure all incoming cabling is appropriately shielded; in addition, verify that these shields are grounded according to site-specific standards to effectively minimize the impact of electromagnetic interference (EMI) on the loop performance.
• Firmware Verification: Finally, prior to proceeding with the commissioning phase, you must verify the module firmware version via the Engineering Workstation (EWS). Ultimately, this validation step is necessary to ensure strict alignment with the site-wide DCS software version, thereby preventing potential communication lockout.
