Description

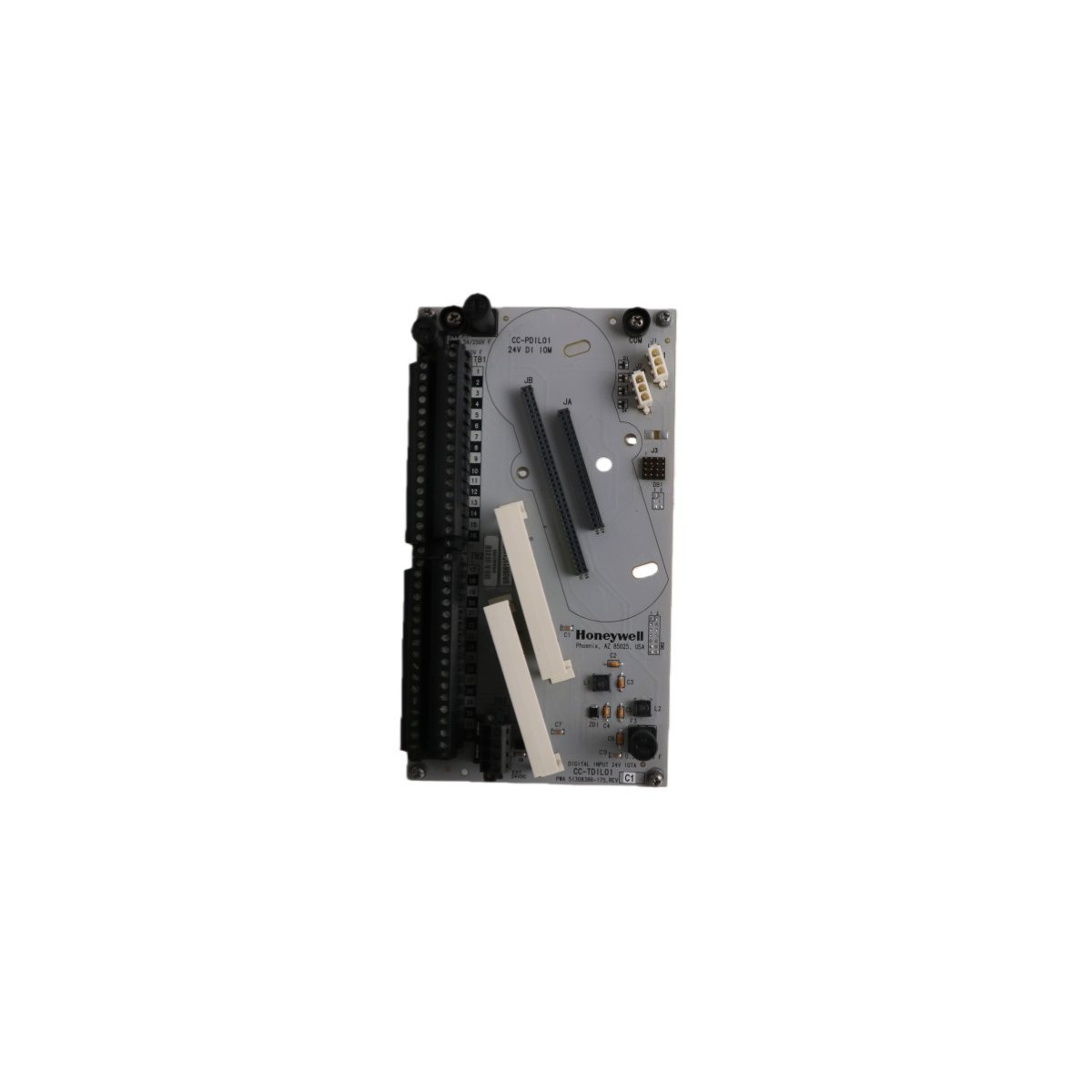

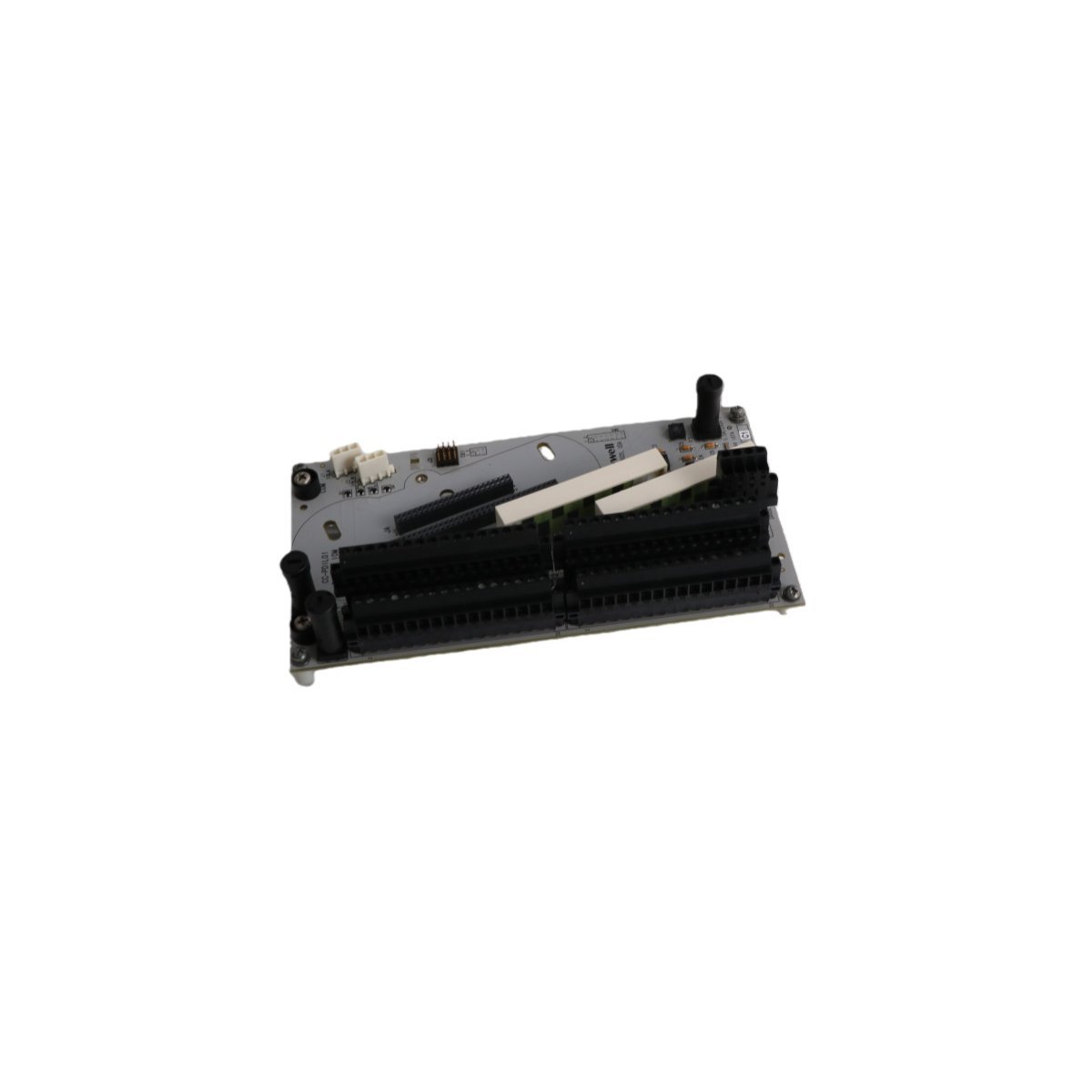

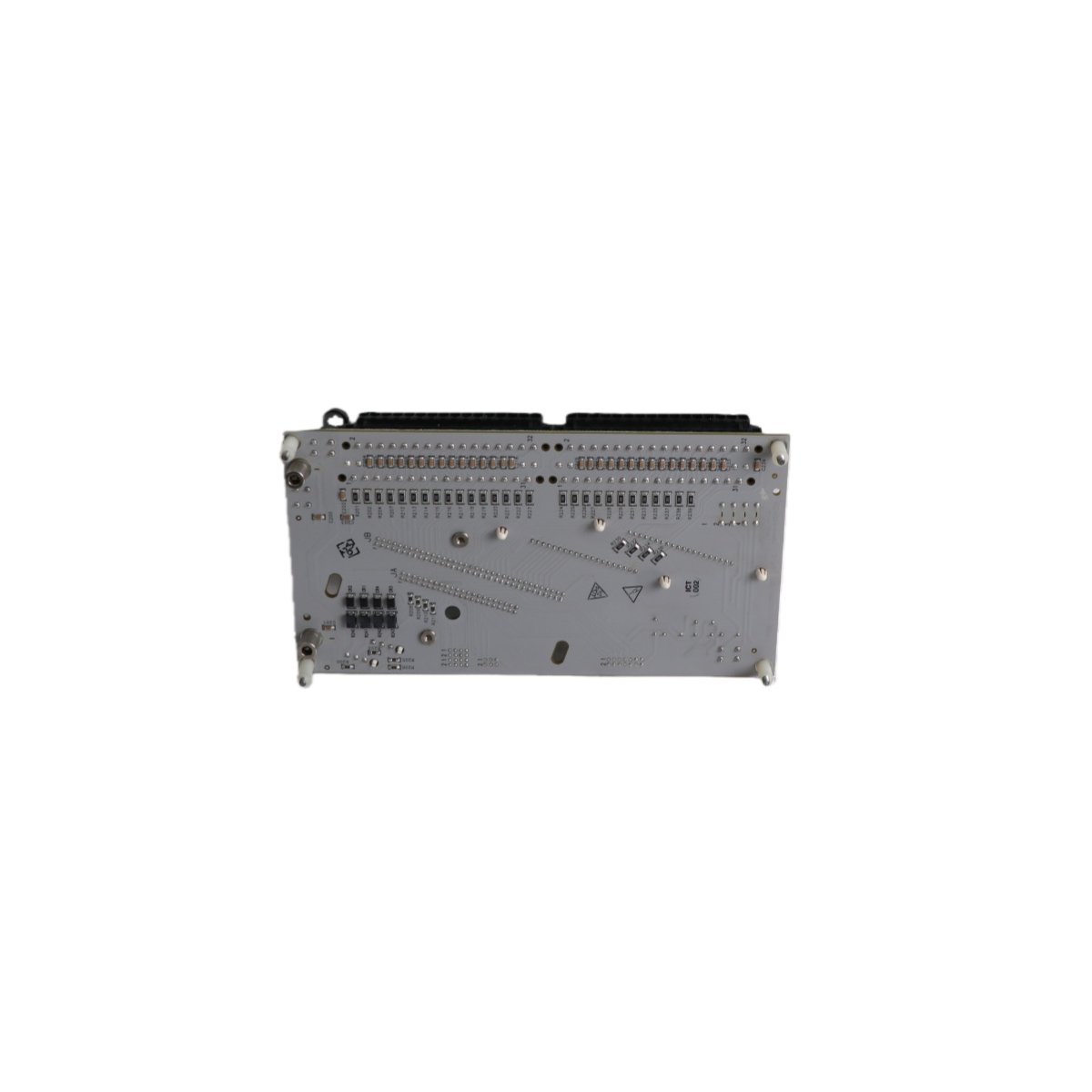

The Honeywell CC-TDI120 serves as a high-performance digital input interface for the Experion C Series Distributed Control System. This module captures discrete signals from field devices to provide real-time status updates to the C300 controller. It excels in monitoring critical equipment such as limit switches, motor starters, and pushbuttons. Because the hardware supports both 120V AC and 125V DC signals, it adapts easily to diverse plant infrastructures. Engineers typically deploy this unit in heavy industrial environments where electrical noise and high voltages are common.

Signal Integrity and Isolation

This I/O module features 16 individual channels with robust electrical separation. Every input path operates independently to prevent interference between different field circuits. Furthermore, the design incorporates 1500V AC RMS galvanic isolation between field wiring and the internal logic. This protective barrier shields sensitive control electronics from voltage surges and ground loops. Optical coupling technology further ensures that data remains accurate while blocking high-frequency electrical interference. Consequently, the system maintains high operational availability in electrically “noisy” settings.

Diagnostics and Redundancy

Maintenance teams can perform rapid troubleshooting via the integrated LED status indicators on the front panel. These lights provide immediate visual confirmation for the active state of each input channel. Additionally, the CC-TDI120 supports optional redundancy configurations to eliminate single points of failure. This capability proves essential for critical process loops where downtime causes significant safety or financial risks. The module also performs continuous self-diagnostics to detect internal hardware faults early.

Advanced Technical Characteristics

• Channel Density: 16 Isolated Input Channels
• AC Input Range: 90V to 132V AC RMS (50/60 Hz)
• DC Input Range: 100V to 138V DC
• Isolation Voltage: 1500V AC RMS (Field-to-Logic)
• System Series: Experion C Series / C300
• Status Monitoring: Per-channel LED indicators
• Configuration: Supports Non-redundant and Redundant modes
• Heat Dissipation: Optimized for low-power consumption
