Description

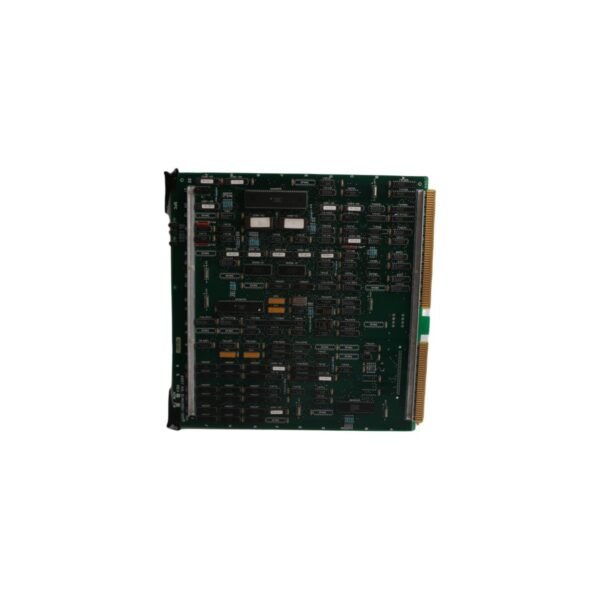

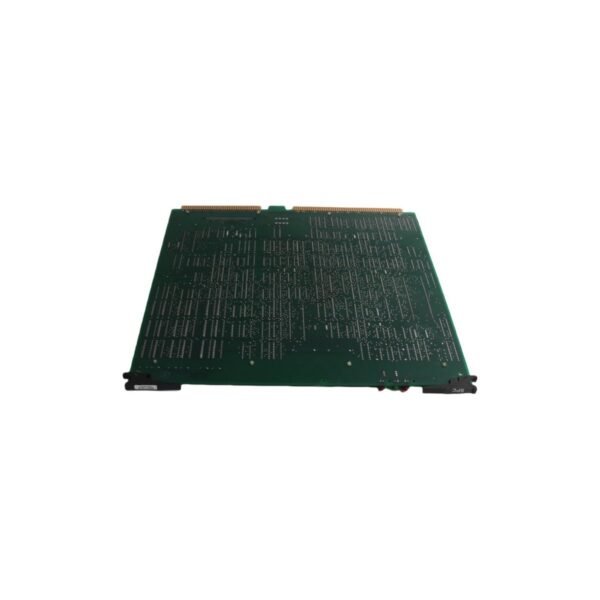

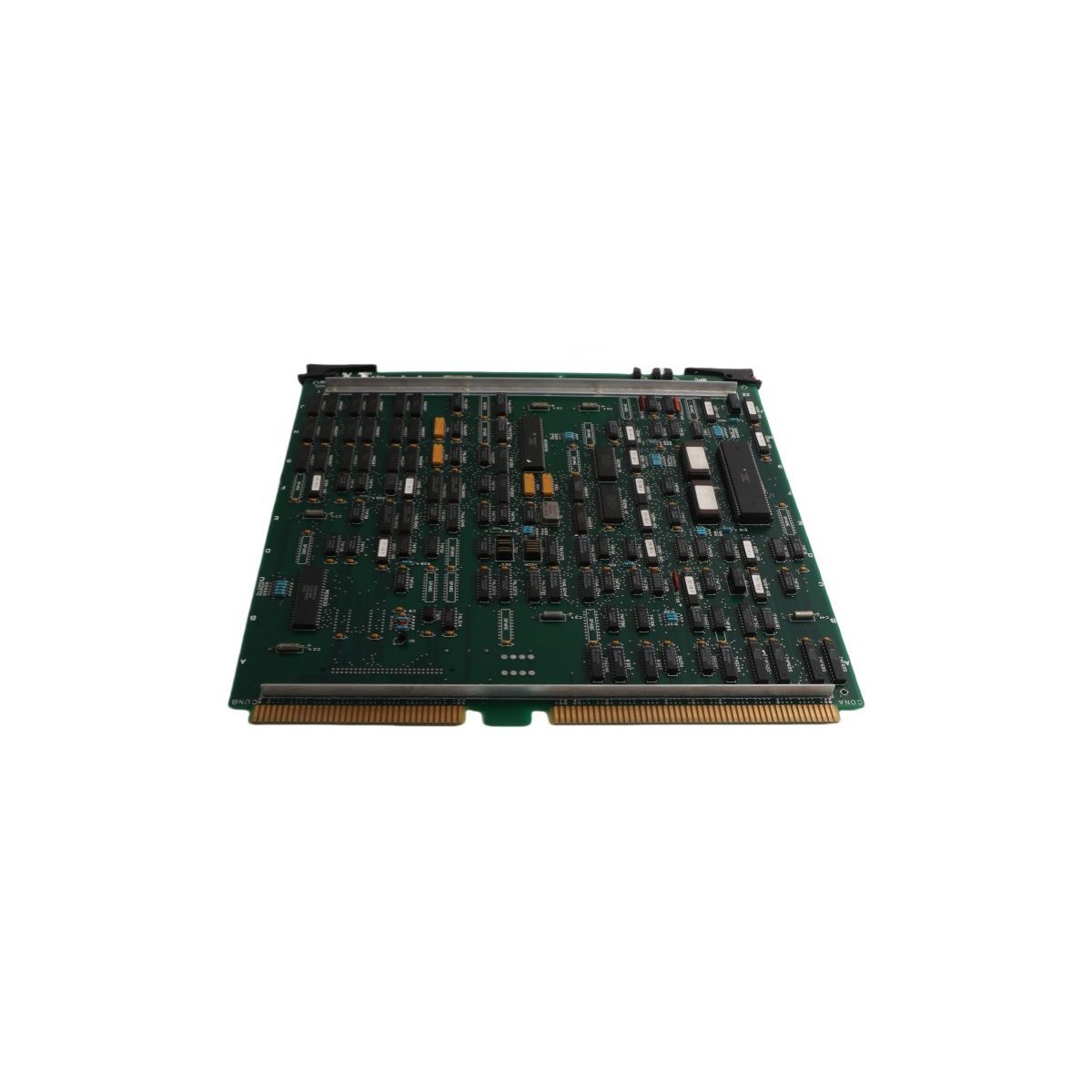

The Honeywell 51401052-100, also cataloged as the 51401052-100 Control Board, operates as a dedicated hardware component for signal processing and I/O management within Experion PKS platforms.

Suffix Breakdown & Model Matrix

The 51401052-100 is a specific control board assembly used within the Honeywell Experion PKS system architecture. It serves as a localized controller for peripheral device communication and data coordination. No sub-models or variable suffixes are identified for this specific assembly; the provided number represents the complete hardware unit as manufactured.

Hardware Specifications

Honeywell DCS Process Control Integration

The 51401052-100 board supports standard 4-20 mA HART loop protocols to facilitate bidirectional communication between field instrumentation and the DCS control environment. The circuit layout incorporates channel-to-channel isolation to suppress electromagnetic interference (EMI) and common-mode noise, which are frequent in industrial signal loops. Cold junction compensation (CJC) circuitry is embedded for precise thermocouple signal conditioning, ensuring accurate temperature process variables. The board maintains deterministic bus communication timing to prevent data packet collisions during high-traffic load conditions within the Experion PKS control network.

Frequently Asked Questions

Q: Is this control board capable of hot-swapping while the DCS chassis is powered?

A: The 51401052-100 is designed for integration within the Experion PKS I/O cabinet. Hot-swapping is generally supported provided that the system configuration software is in the appropriate maintenance mode to prevent bus errors or I/O signal loss.

Q: What are the grounding requirements for this board during installation?

A: The board must be securely fastened to the chassis using the provided hardware to establish a reliable chassis ground. Ensure that the cabinet grounding bus is connected to a low-impedance earth ground to maintain signal integrity and meet electromagnetic compatibility standards.

Q: How is firmware compatibility verified for this control board?

A: Firmware versions are managed through the Experion PKS engineering station. The board identifies its internal revision level upon power-up, which is compared against the system project database to ensure version synchronization before the module transitions to operational status.

Field Installation Guidelines

• Verify that the slot in the Experion PKS I/O rack is clean and free of conductive debris before insertion.
• Align the board precisely with the backplane connectors to prevent pin misalignment or damage.
• Secure the board using the front-panel captive screws to ensure proper electrical contact with the cabinet chassis.
• Route field wiring through the designated cable trays, maintaining separation between low-voltage signal lines and high-voltage power lines to reduce interference.
• Perform a visual inspection of the status LEDs after initialization to confirm correct board health and communication link establishment.
