Description

Brief Product Description

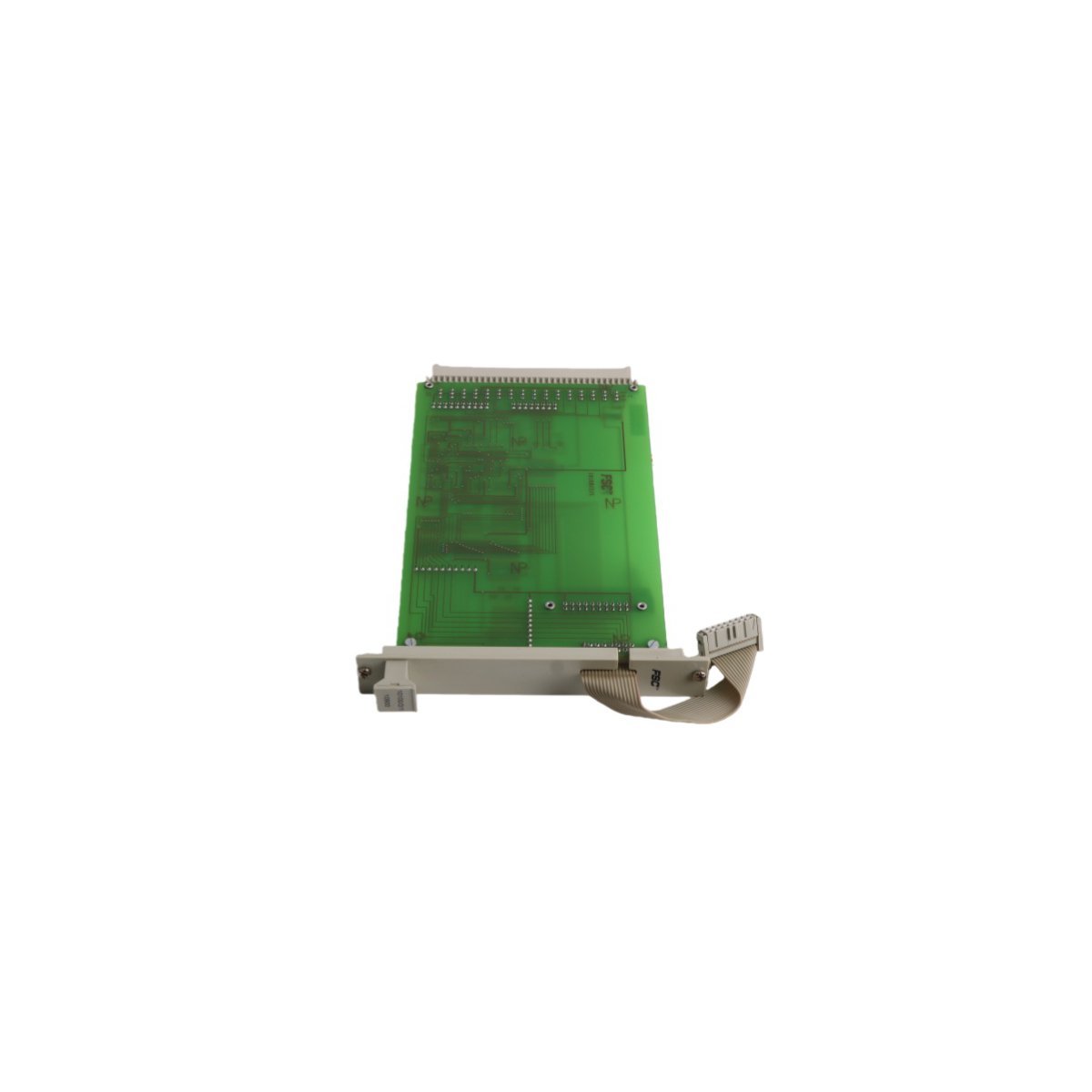

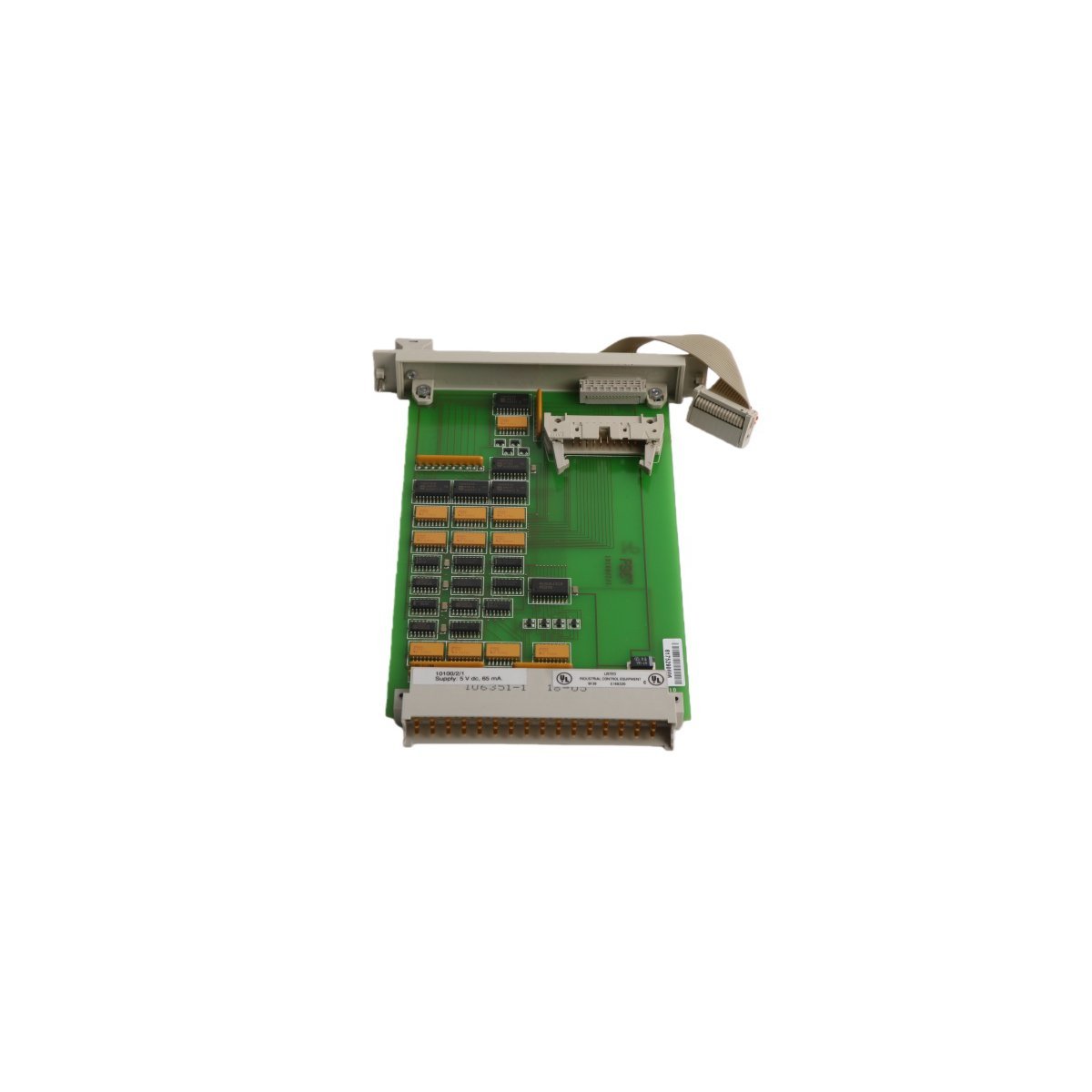

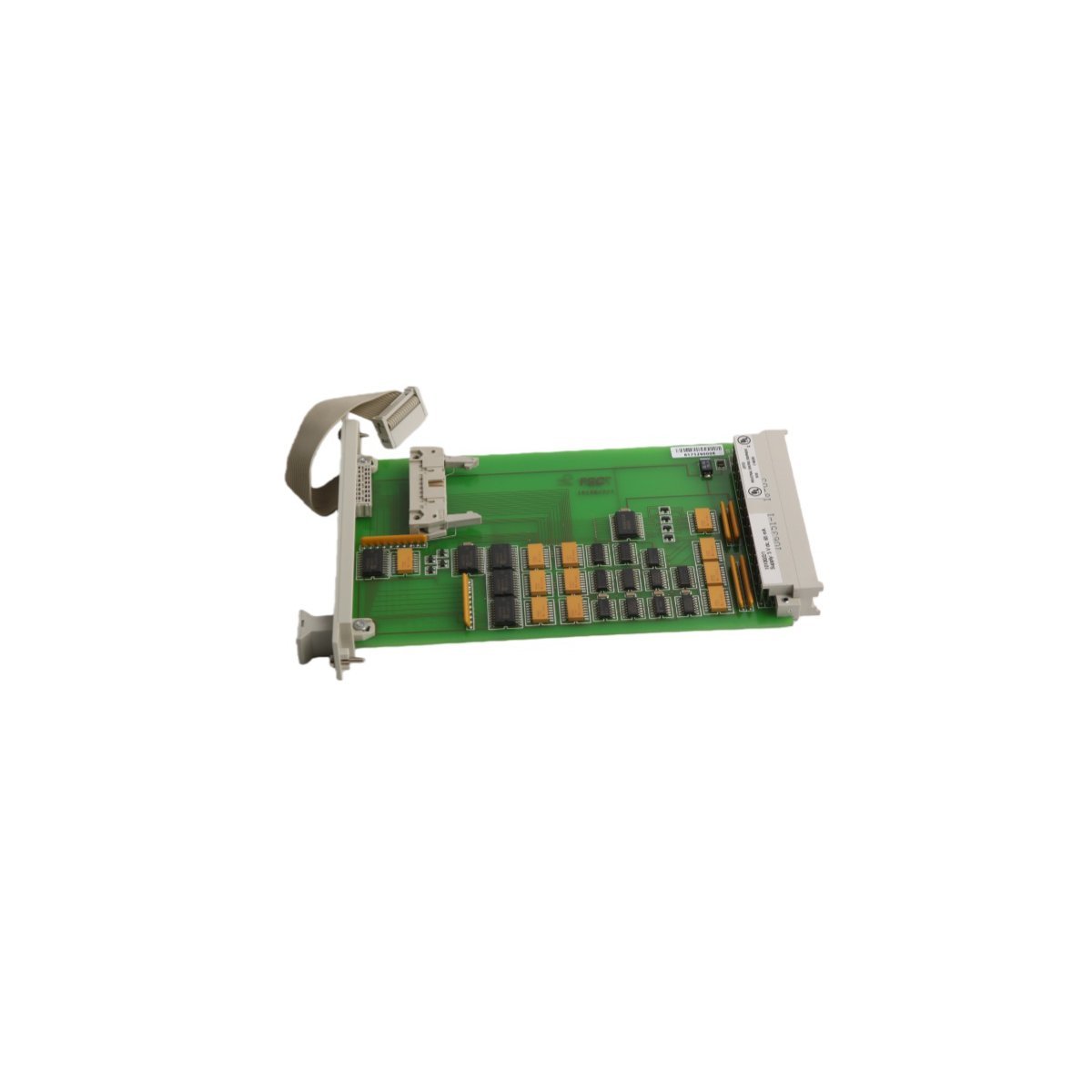

The Honeywell 10205/2/1 is a high-integrity, fail-safe analog output module featuring two isolated channels for safety-critical actuator control. This 12-bit resolution module supports standard 0-20 mA and 4-20 mA current loops, ensuring precise signal delivery in Safety Instrumented Systems (SIS).

​Product Description

The Honeywell 10205/2/1 operates as a primary control interface within Fail-Safe Controller (FSC) systems, specifically designed for safety-critical process automation. This module provides two independent, galvanically isolated channels that translate digital control logic into precise analog signals. By utilizing a 12-bit resolution architecture, the 10205/2/1 ensures that final control elements, such as modulating valves and variable frequency drives, receive highly accurate positioning commands. Its fail-safe design guarantees that output behavior remains predictable and secure during system faults, protecting both personnel and plant assets.

Signal Configuration and Electrical Performance

This module demonstrates significant versatility by supporting both active and passive loop configurations. Technicians can deploy the 10205/2/1 for standard 0-20 mA or 4-20 mA current signals, accommodating a maximum loop resistance of up to 1kΩ. To maintain peak performance, the hardware requires a dual-voltage supply: 5 VDC for the internal logic bus and 24 VDC for the field-side output circuitry. Furthermore, the module allows for the integration of external power sources up to 40 VDC, which provides engineers with the flexibility needed for long-distance cable runs or specialized field device requirements.

Calibration and Space-Efficient Design

Maintenance efficiency serves as a core feature of the 10205/2/1 architecture. The front panel includes integrated P2 and P3 potentiometers, which allow for manual field calibration to counteract signal drift without the need for specialized software tools. Physically, the module adheres to a compact 4 TE (4HP) width standard, enabling high-density installation within FSC racks. This space-saving form factor, combined with a lightweight 0.3 kg build, makes it an ideal choice for both new installations and the modernization of legacy control cabinets.

Application in Safety Systems

Because the 10205/2/1 adheres to strict safety standards, it excels in high-risk environments such as offshore oil platforms, chemical refineries, and power generation facilities. The module actively monitors signal integrity and provides robust protection against overvoltage and electrical interference. By bridging the gap between sophisticated safety logic and field-level actuators, the Honeywell 10205/2/1 maintains the rigorous reliability required for Emergency Shutdown (ESD) and Fire and Gas (F&G) systems.
