Description

Brief Product Description

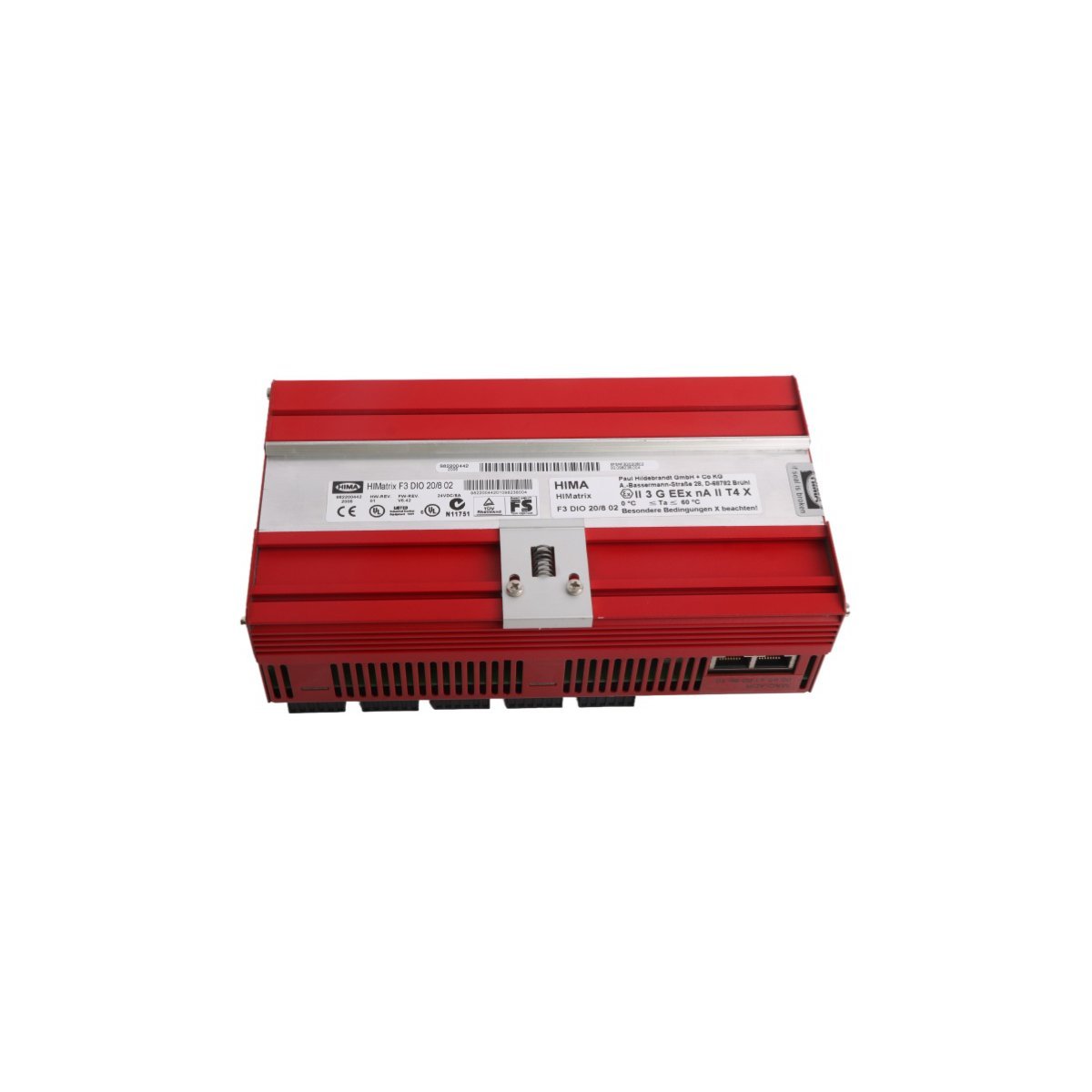

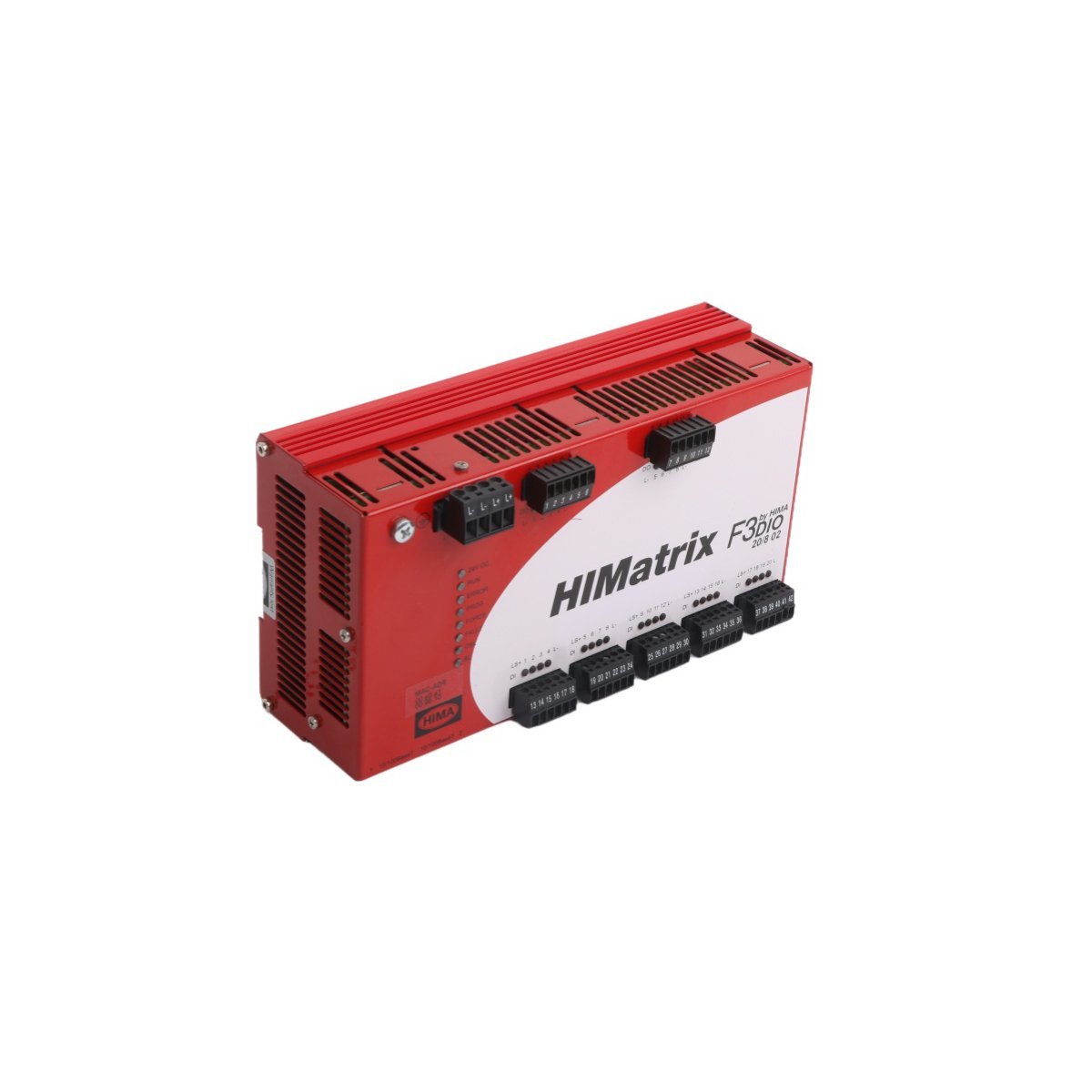

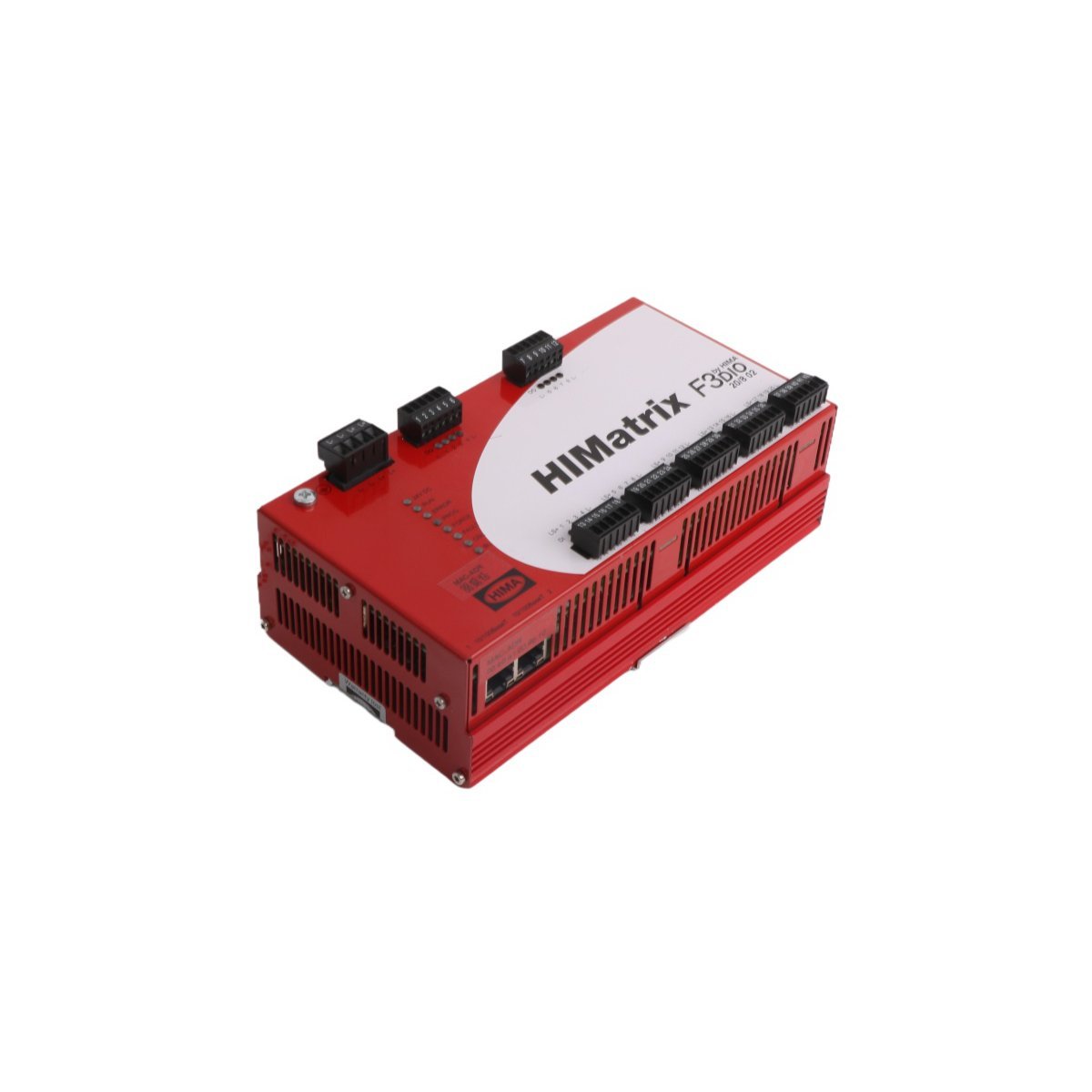

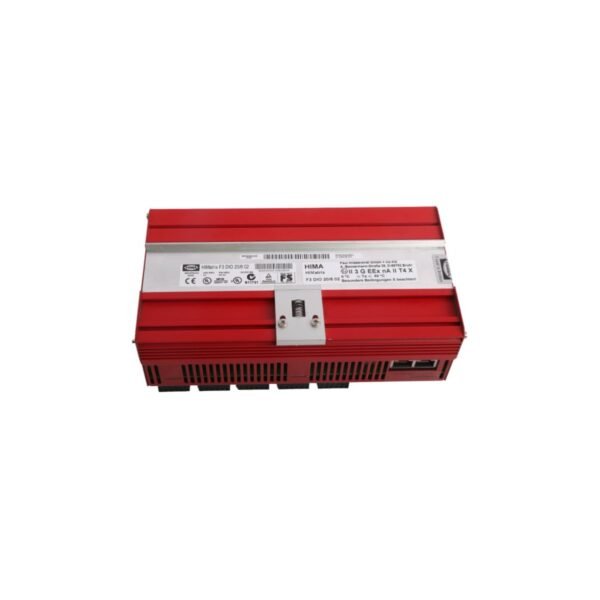

The HIMA F3DIO20/802 is a high-integrity remote I/O module engineered for the HIMatrix safety system, providing 20 digital inputs and 8 digital outputs. Certified for SIL 3 applications, this module facilitates secure, decentralized signal processing in safety-critical industrial automation.

​Product Description

Safety-Critical Distributed Control

The F3DIO20/802 functions as a fundamental component of the HIMA HIMatrix series, specifically designed to extend safety-related control to decentralized locations. This remote I/O module enables engineers to bridge the gap between field sensors and the central logic solver without compromising safety integrity. By utilizing this module, operators achieve a Safety Integrity Level (SIL) 3 rating and PL e (Category 4) compliance, ensuring that even the most hazardous industrial processes remain under rigorous protection.

High-Density I/O Architecture

HIMA engineered this module with a robust 20/8 configuration, featuring 20 isolated digital inputs and 8 isolated digital outputs. The isolated nature of these channels prevents electrical interference from propagating through the system, which significantly enhances overall plant availability. Furthermore, the inputs maintain TTL compatibility, allowing for seamless communication with a wide variety of industrial field devices. This high-density layout reduces the footprint required in control cabinets while maximizing the number of safety points managed by a single node.

Reliable Operation and Integration

The F3DIO20/802 excels in demanding environments, maintaining stable performance in ambient temperatures up to +60 °C. It operates on a standard 24 VDC power supply, making it compatible with most industrial power infrastructures. To streamline the engineering phase, HIMA fully integrates this hardware with the SILworX and ELOP II Factory programming tools. These software environments provide a transparent platform for configuration, diagnostic monitoring, and rapid fault identification. Consequently, the module simplifies the commissioning process and lowers the total cost of ownership for safety-instrumented systems (SIS).

Technical Specification Table
