Description

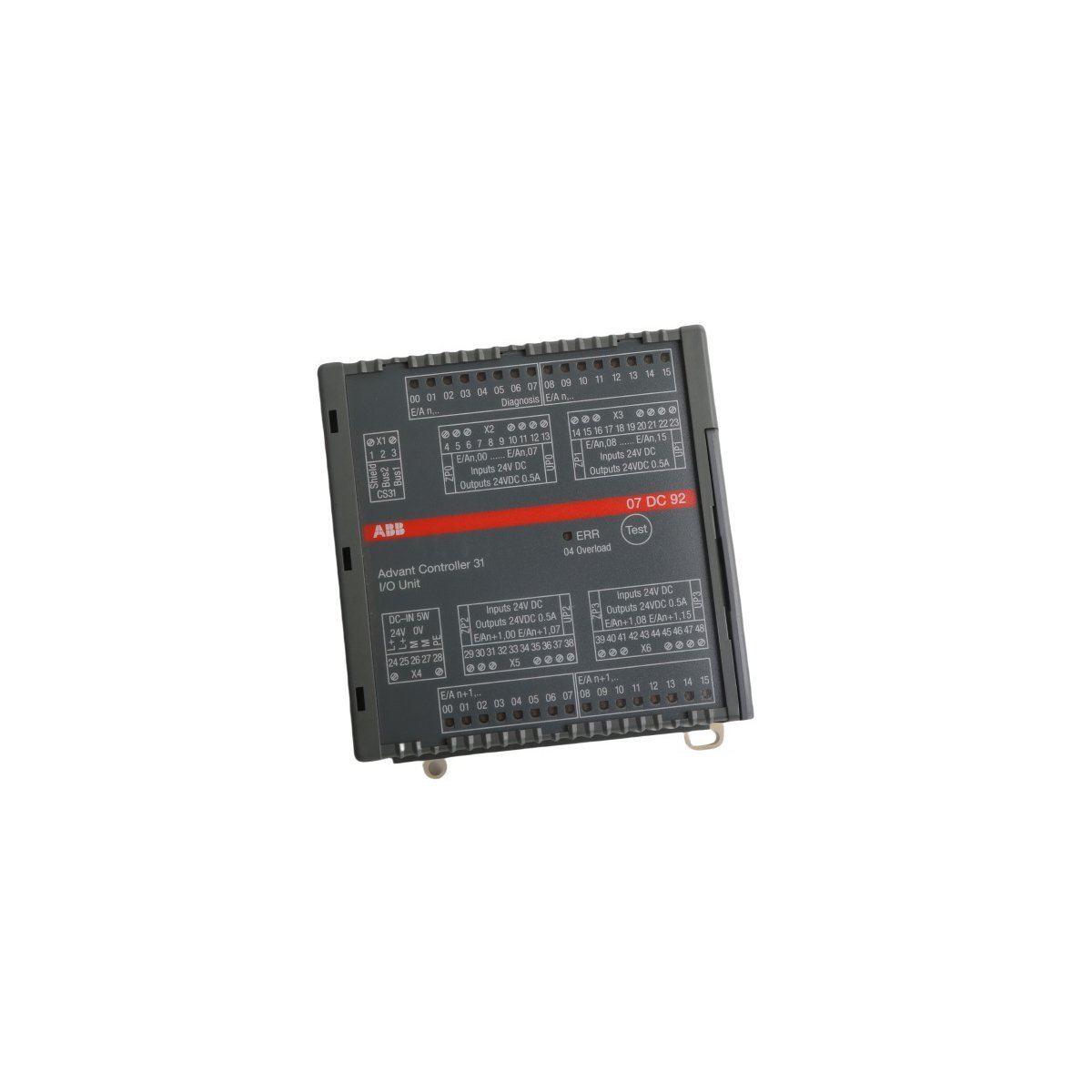

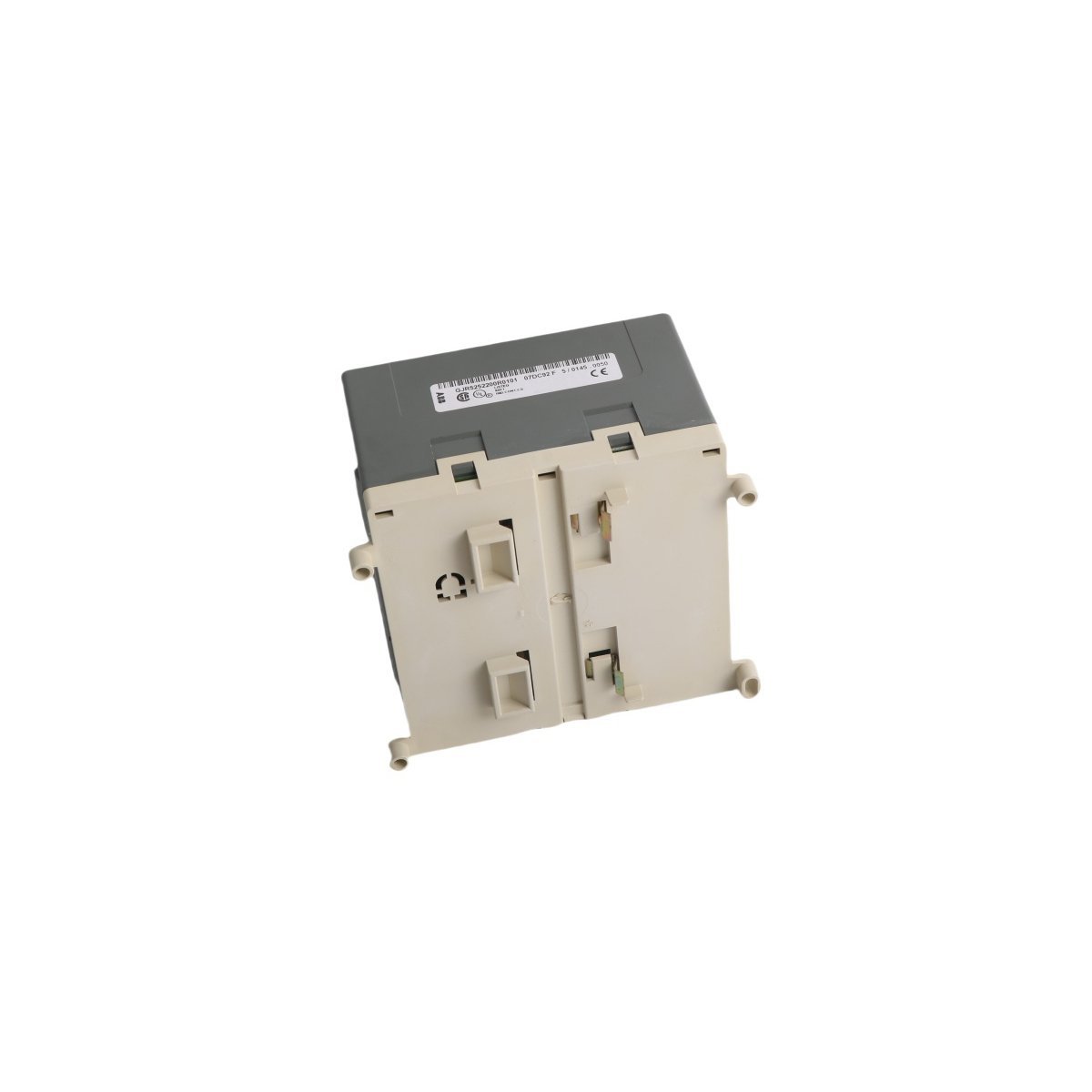

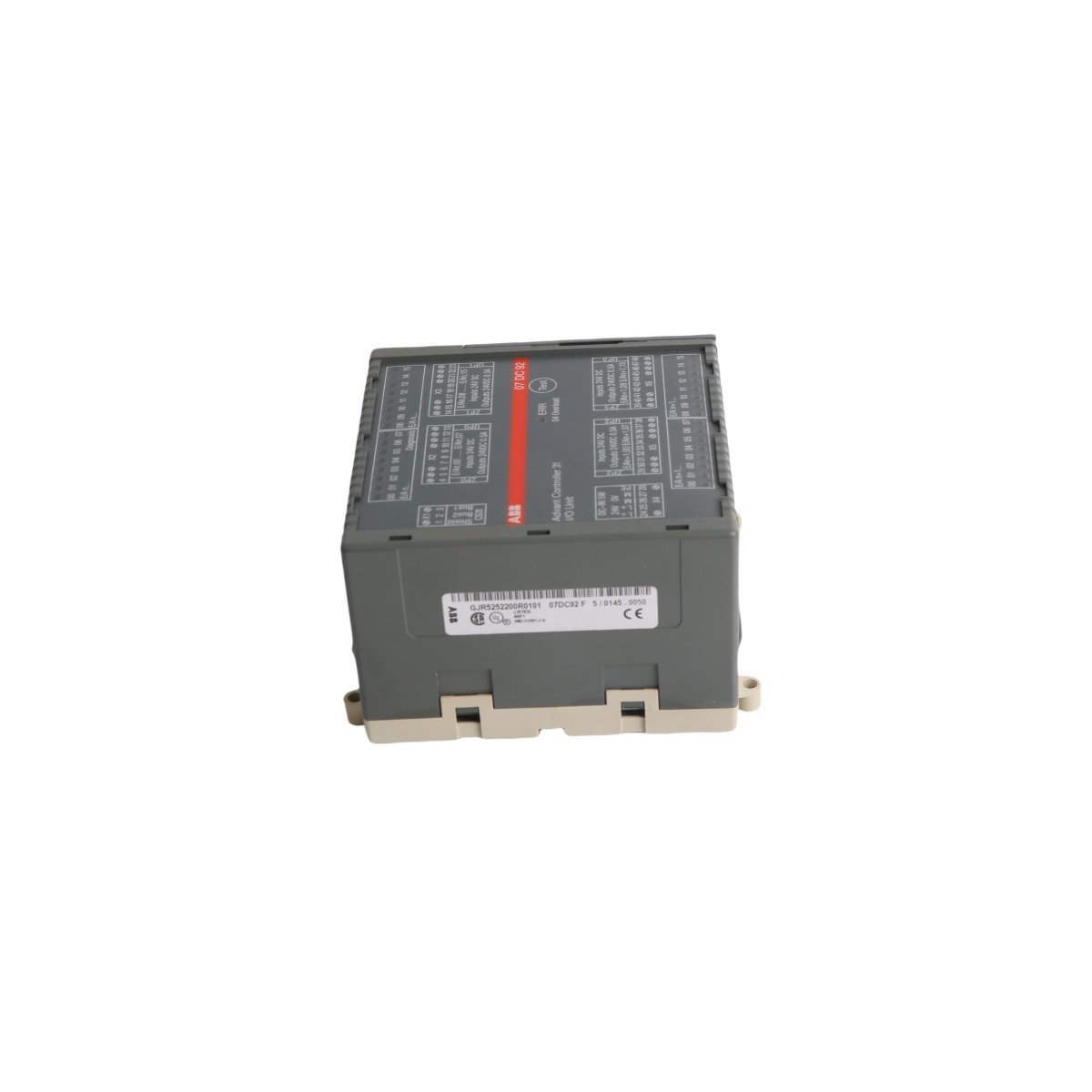

ABB 07DC92 GJR5252200R0101 Digital Configurable I/O Module

The 07DC92 GJR5252200R0101 is a high-density, versatile remote I/O unit for the ABB Advant Controller 31 system, providing 32 channels of user-defined digital signals.

Technical Operational Overview

The 07DC92 (Order Number: GJR5252200R0101) serves as an advanced peripheral device within the AC31 (Advant Controller 31) ecosystem.² Engineers primarily utilize this module as a remote station on the CS31 system bus to facilitate distributed automation. Because the hardware features 32 fully configurable channels, users can assign each terminal as a digital input, a digital output, or a combined re-readable output. This flexibility significantly reduces the need for multiple specialized modules and simplifies spare parts inventory.

Operating on a 24 V DC power supply, the module organizes its I/O into four distinct groups.³ Every group maintains electrical isolation from the internal electronics and the other signal blocks, which ensures that local electrical faults do not propagate through the entire control system. Furthermore, the 07DC92 relies on the host controller’s user program for its configuration; it does not retain local data, allowing for rapid hot-swapping and simplified system commissioning.

Key Technical Characteristics

• CS31 Bus Integration: Communicates as a slave device on the CS31 bus, occupying two digital addresses for comprehensive data exchange.
• Transistorized Outputs: Features 0.5 A rated transistor outputs equipped with integrated short-circuit and thermal overload protection.⁴
• Re-readable Functionality: Allows the control system to verify the actual state of an output terminal by reading it back as an input.
• Diagnostics and Indicators: The front panel hosts 32 status LEDs for I/O tracking, a dedicated system error LED, and a physical test button for hardware verification.
• Four-Way Isolation: Enhances system reliability through galvanic separation between power, bus, and I/O sections.
• Flexible Logic: Supports “output-only” configuration modes to optimize bus address consumption when inputs are unnecessary.

Product Specifications

Industrial Applications

Automation professionals deploy the 07DC92 in diverse distributed control scenarios. It excels in:

• Machine Tool Control: Managing high-density sensor feedback and actuator signals on large CNC frames.
• Process Plant Skids: Providing localized I/O for remote pumps, valves, and status indicators in chemical or water treatment plants.
• Material Handling: Interfacing with conveyor systems where a high concentration of discrete signals is required over a long-distance bus.⁵
