Description

The GE IS200IGPAG2AED serves as a vital Gate Drive Power Supply within the Mark VIe control ecosystem. This board specifically supports the EX2100 Excitation Control system. It provides the regulated energy necessary for switching power semiconductors. Because it belongs to the advanced Mark VIe series, it ensures high reliability for turbine applications. The unit effectively manages power distribution to gate driver circuits. This ensures stable performance for large-scale industrial excitation tasks.

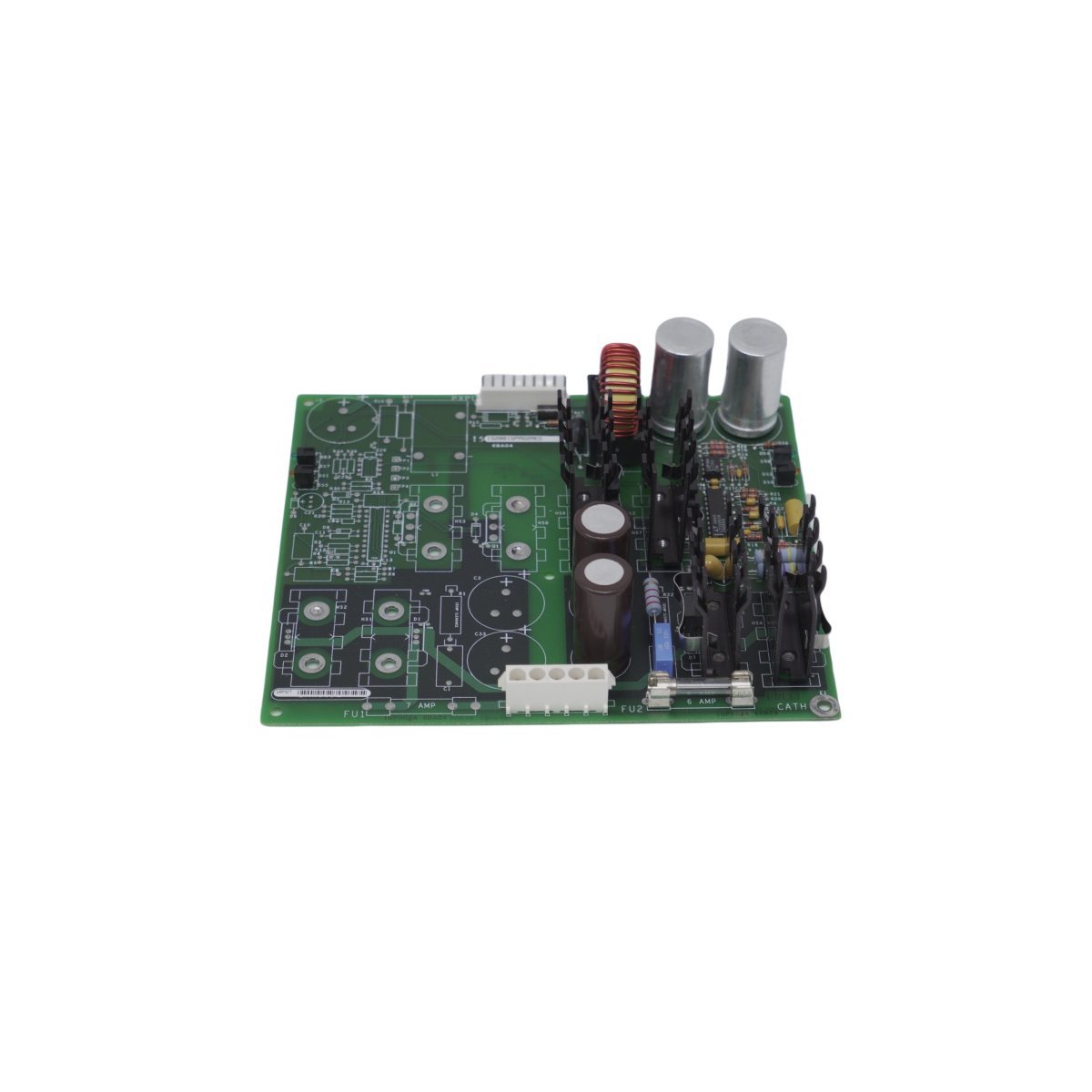

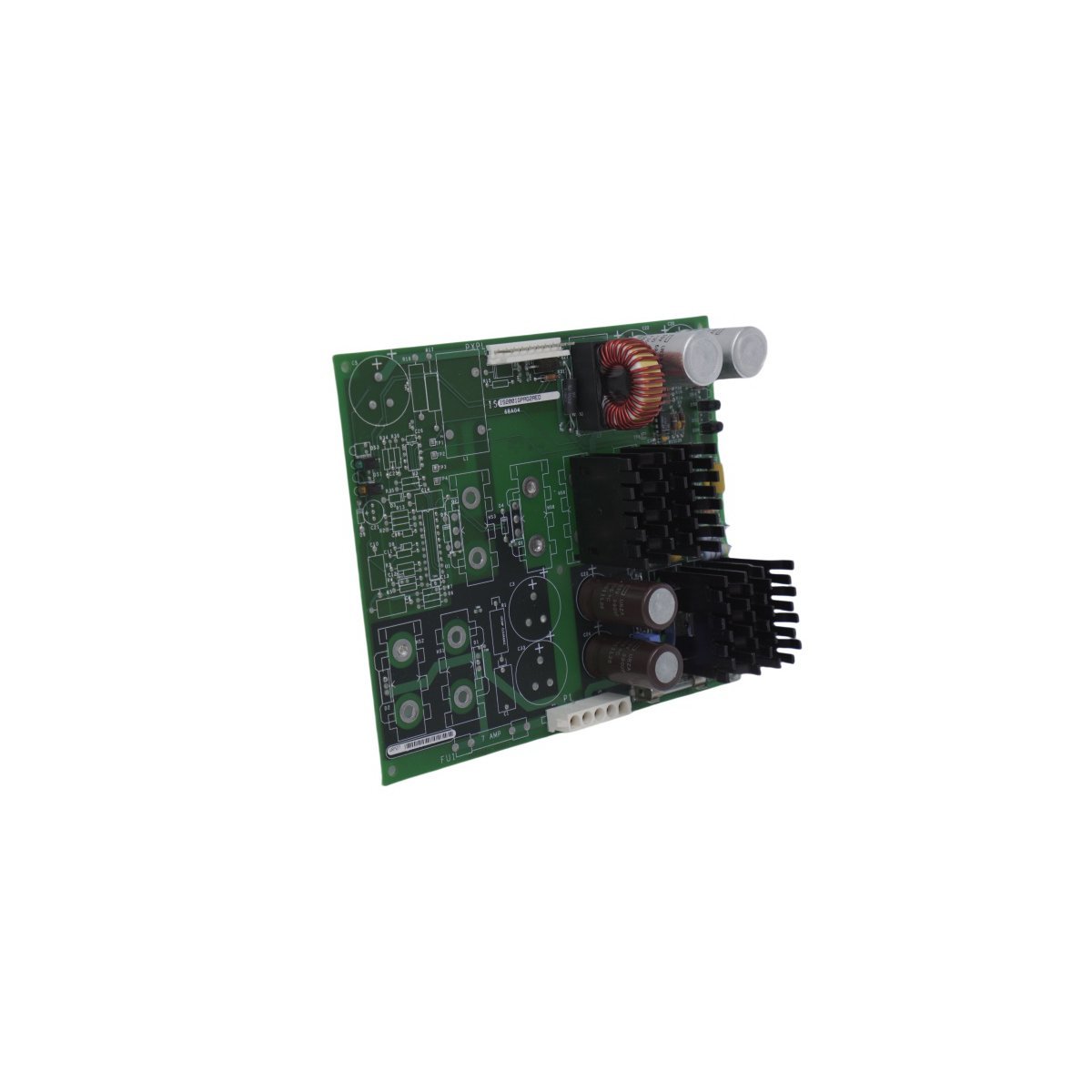

Hardware Layout and Thermal Management

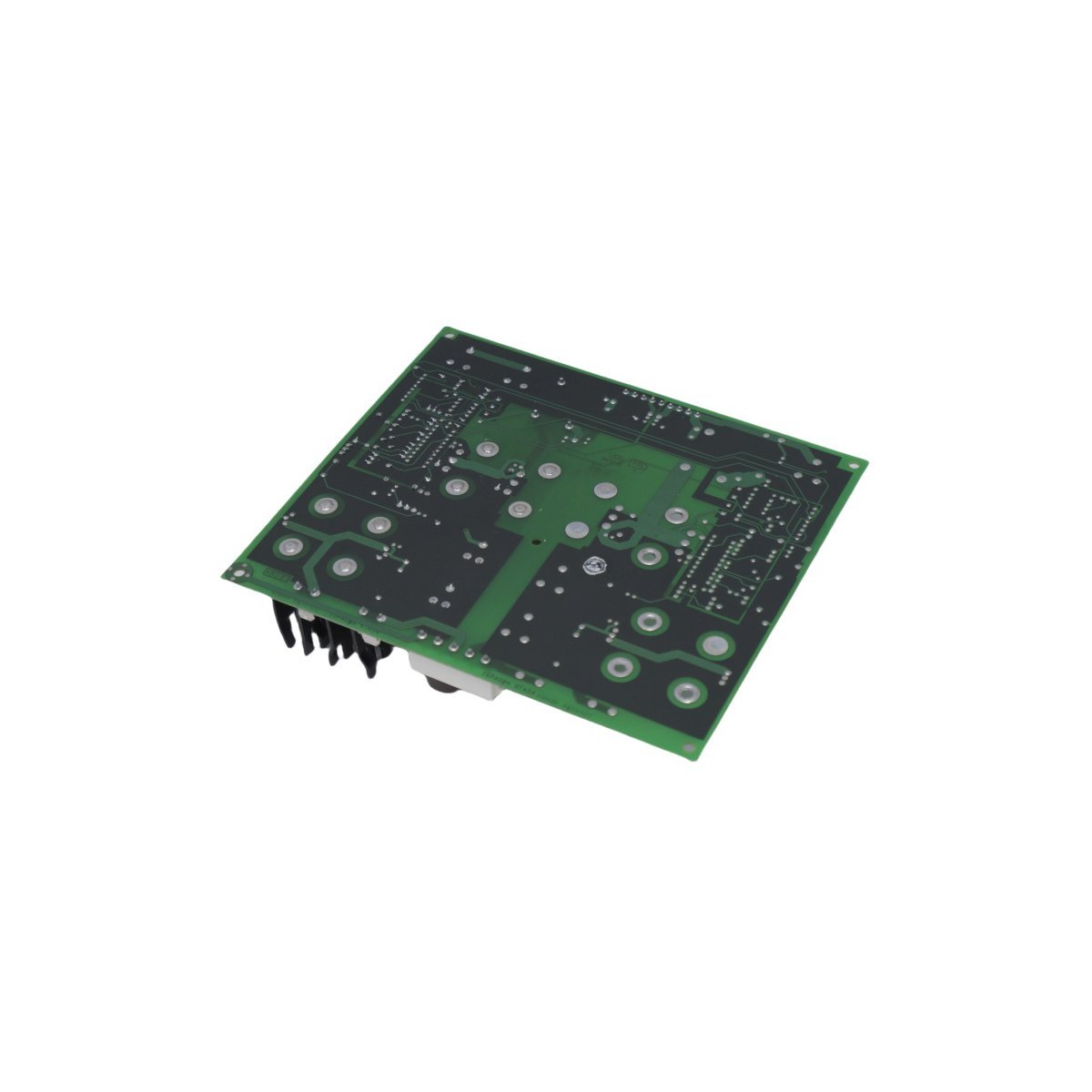

This printed circuit board features a unique asymmetrical component distribution. One side contains the primary electronic infrastructure. In contrast, the reverse side remains relatively open for better airflow. The hardware includes a high-capacity inductor coil and various capacitor types. Specifically, it utilizes electrolytic, ceramic, and polyester vinyl capacitors. Six integrated heat sinks prevent thermal buildup during peak operation. These components allow the board to maintain consistent output under heavy electrical loads.

Connectivity and Status Monitoring

The IS200IGPAG2AED provides clear visual feedback through dual-sided LED indicators. These green and amber lights signal the current operational state. Consequently, technicians can verify board health from multiple angles. A 9-pin vertical male header facilitates secure communication with the backplane. Furthermore, drilled terminal connectors provide robust points for field wiring. The use of metal film resistors further enhances the board’s durability. These features combine to simplify both installation and long-term maintenance.

Revision and Coating Standards

The functional numbering of this board indicates its specific revision history. The “AED” suffix identifies the latest engineering enhancements for this model. Additionally, GE applies a protective conformal coating to the PCB surface. This layer shields sensitive electronics from moisture and industrial contaminants. These standards ensure the board survives harsh power plant environments. Therefore, it remains a dependable choice for critical excitation control upgrades.
