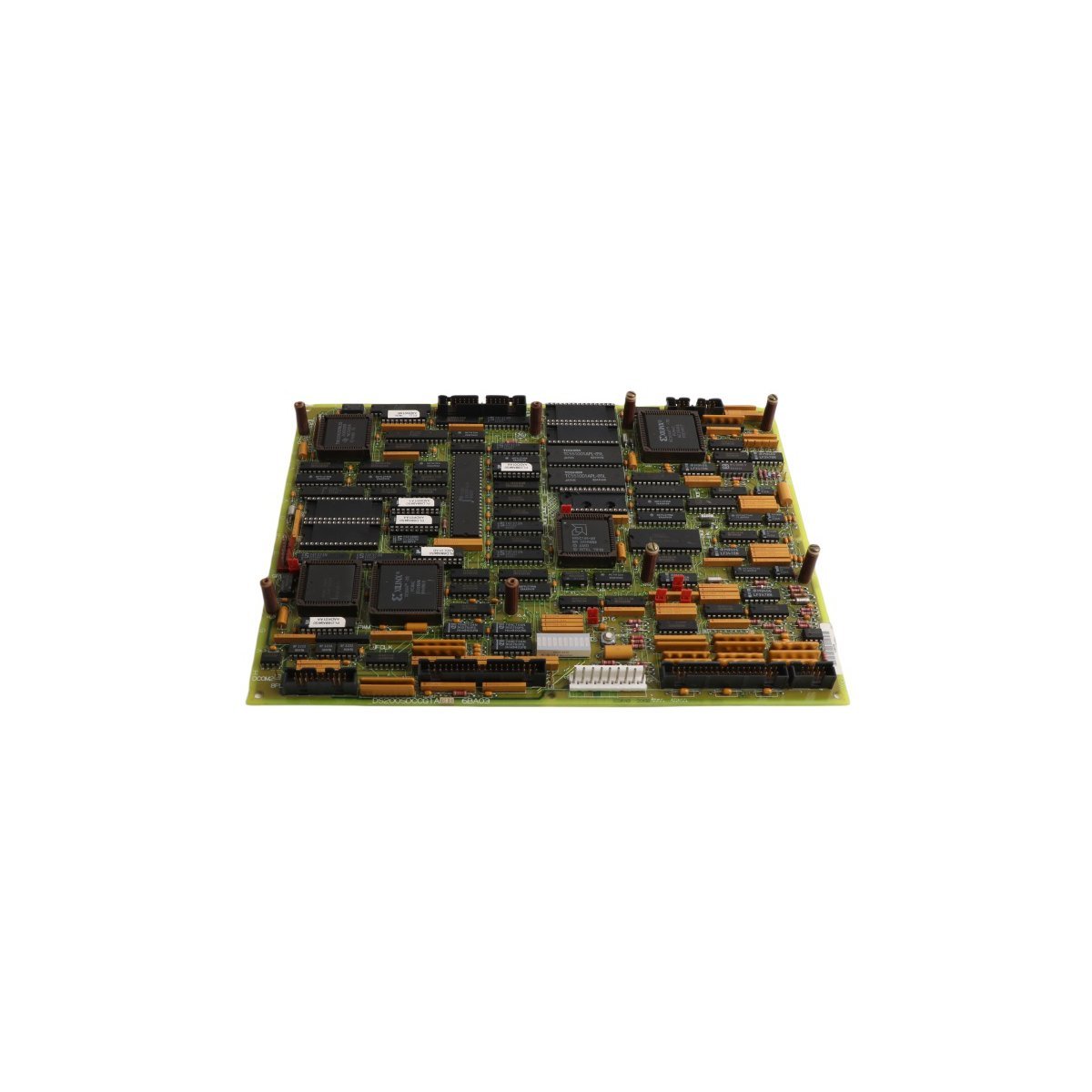

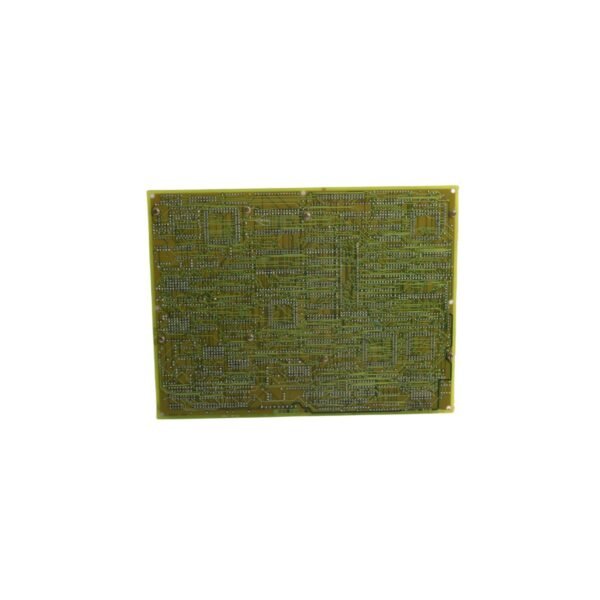

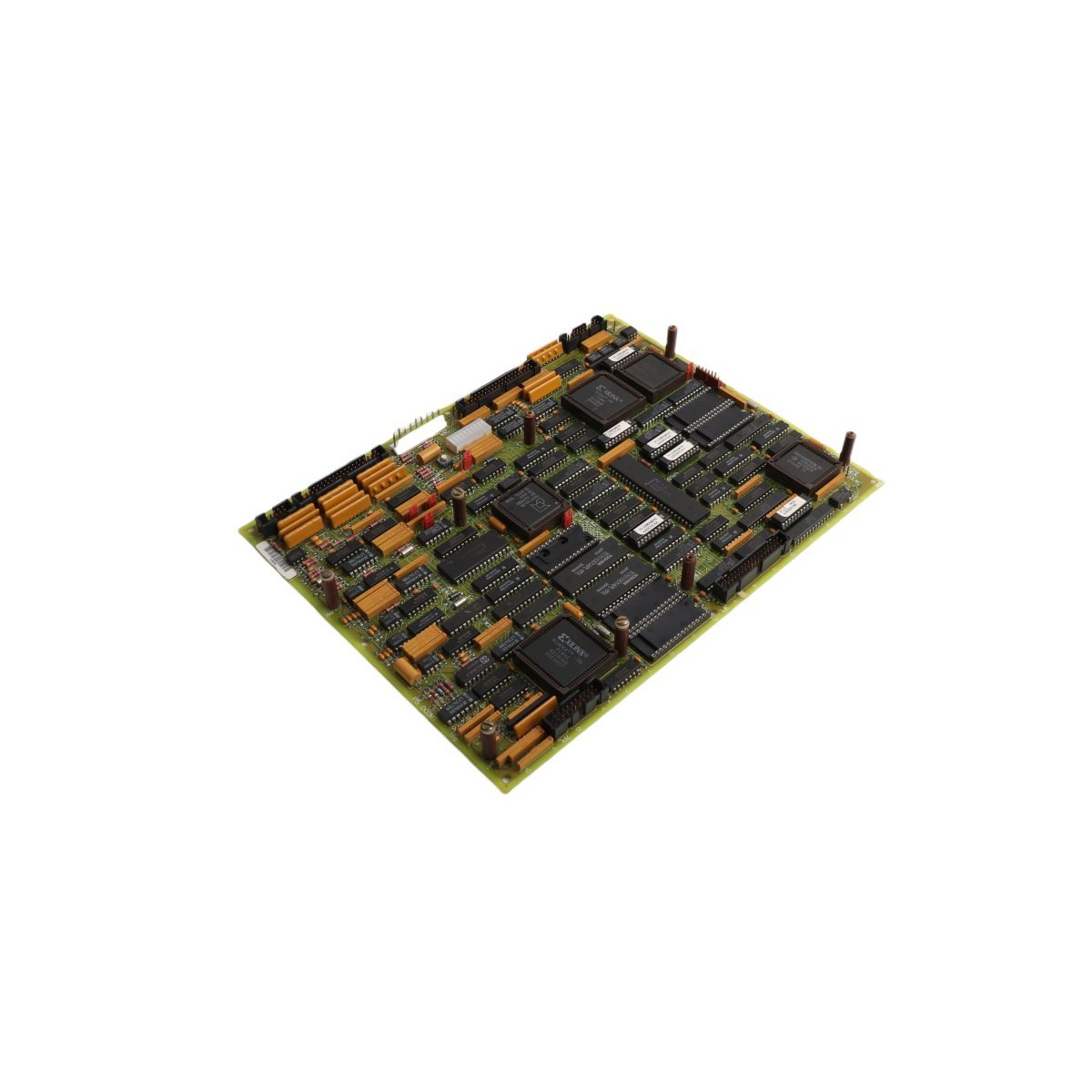

The General Electric DS200SDCCG1AEB is the primary Drive Control Board for the Speedtronic Mark V and EX2100 systems. It acts as the central processing hub for analog-to-digital signal conversion and motor drive logic execution across gas, steam, and wind turbine applications.

Central Processing and Signal Conversion

The DS200SDCCG1AEB functions as a high-precision computational bridge within the GE industrial ecosystem. It primarily manages the conversion of real-time analog field data into digital formats suitable for the control processor. By consolidating multiple analog inputs, outputs, and digital I/O points onto a single assembly, the board facilitates the high-speed calculations required for precise turbine speed and torque regulation. This integrated approach ensures that the drive system responds instantaneously to load changes, maintaining overall mechanical stability and operational safety.

System Interfacing and Memory Architecture

A core technical feature of this board is its seamless integration with the DPSC power supply and processor modules. The assembly utilizes a Programmable Logic Device (PLD) to manage complex system-level interfacing, reducing the computational burden on the primary controller. Furthermore, the inclusion of onboard Static RAM (SRAM) enables high-speed data buffering between the daughterboard and the DPSC processor buses. This specific memory architecture prevents data bottlenecks, ensuring that critical control commands reach the drive actuators without latency.

Real-Time Diagnostics and Monitoring

To assist maintenance personnel, the DS200SDCCG1AEB incorporates specialized visual diagnostic tools. The board features an “IMOK” green LED, which indicates that the internal self-test and power-on routines have successfully completed. Conversely, a red “FAIL” LED provides immediate notification of hardware malfunctions or logic errors. These indicators, combined with the board’s modular design, allow technicians to perform rapid health checks and minimize downtime in power generation environments. Even as a legacy Speedtronic component, the G1AEB revision represents a high-reliability solution for maintaining complex turbine management infrastructure.
