Description

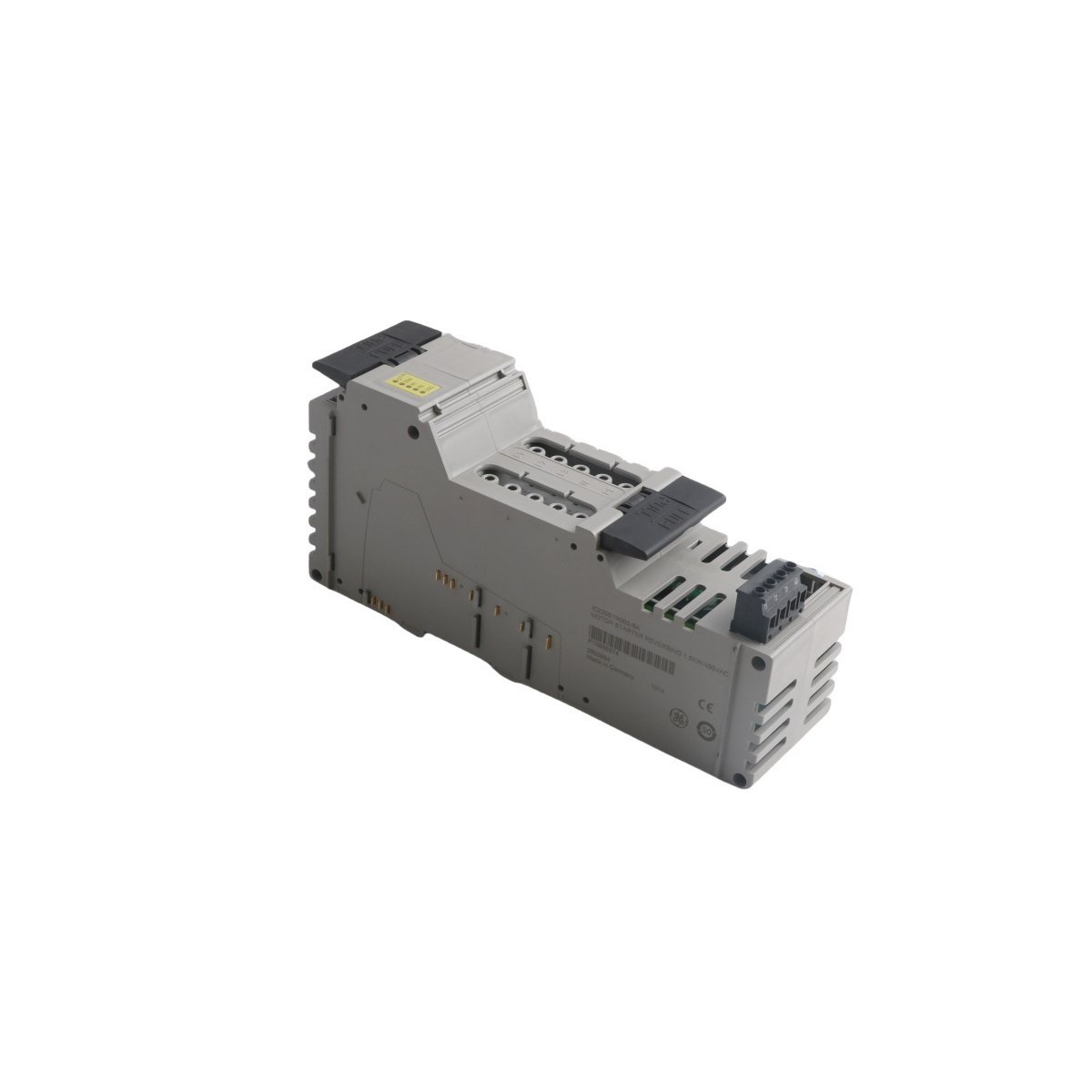

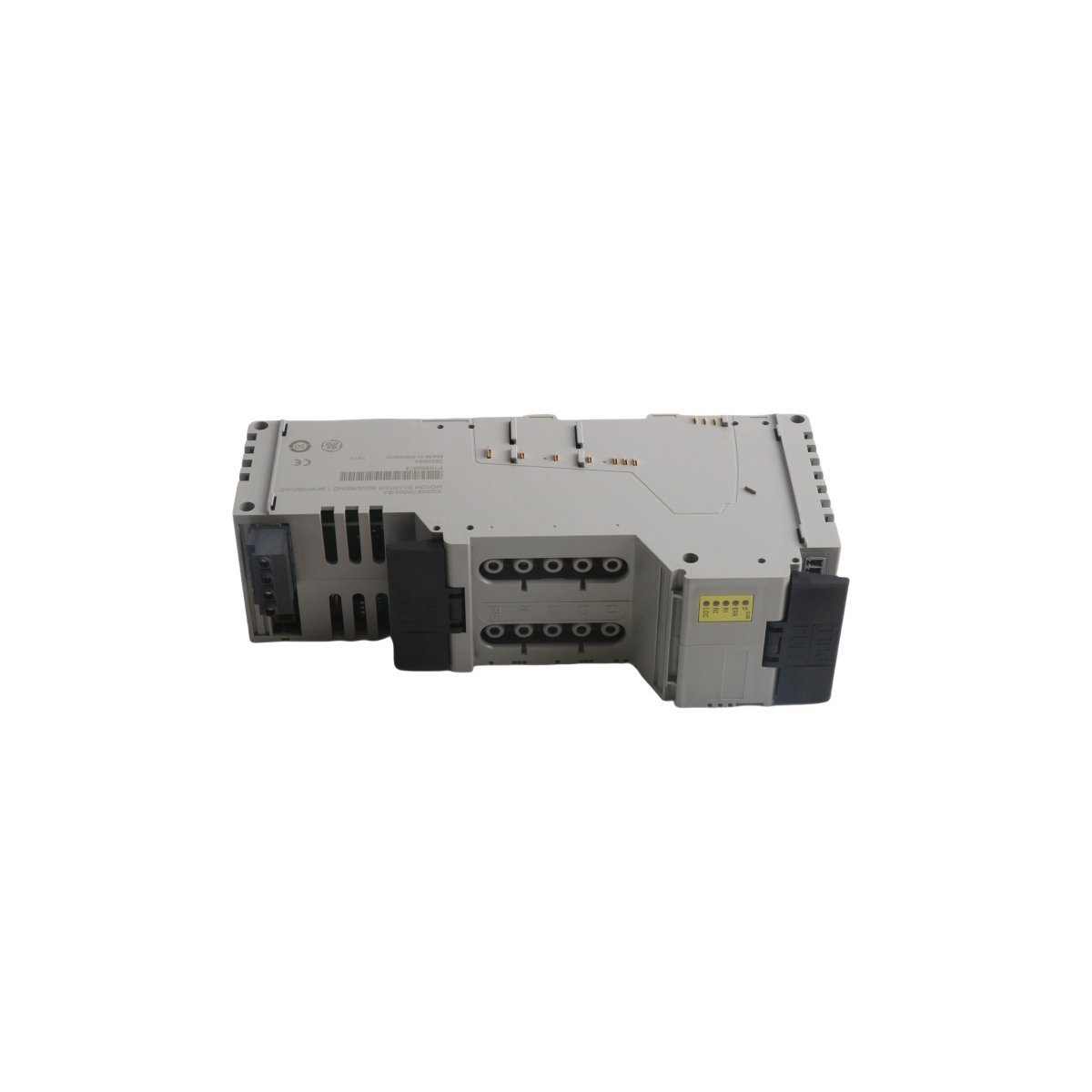

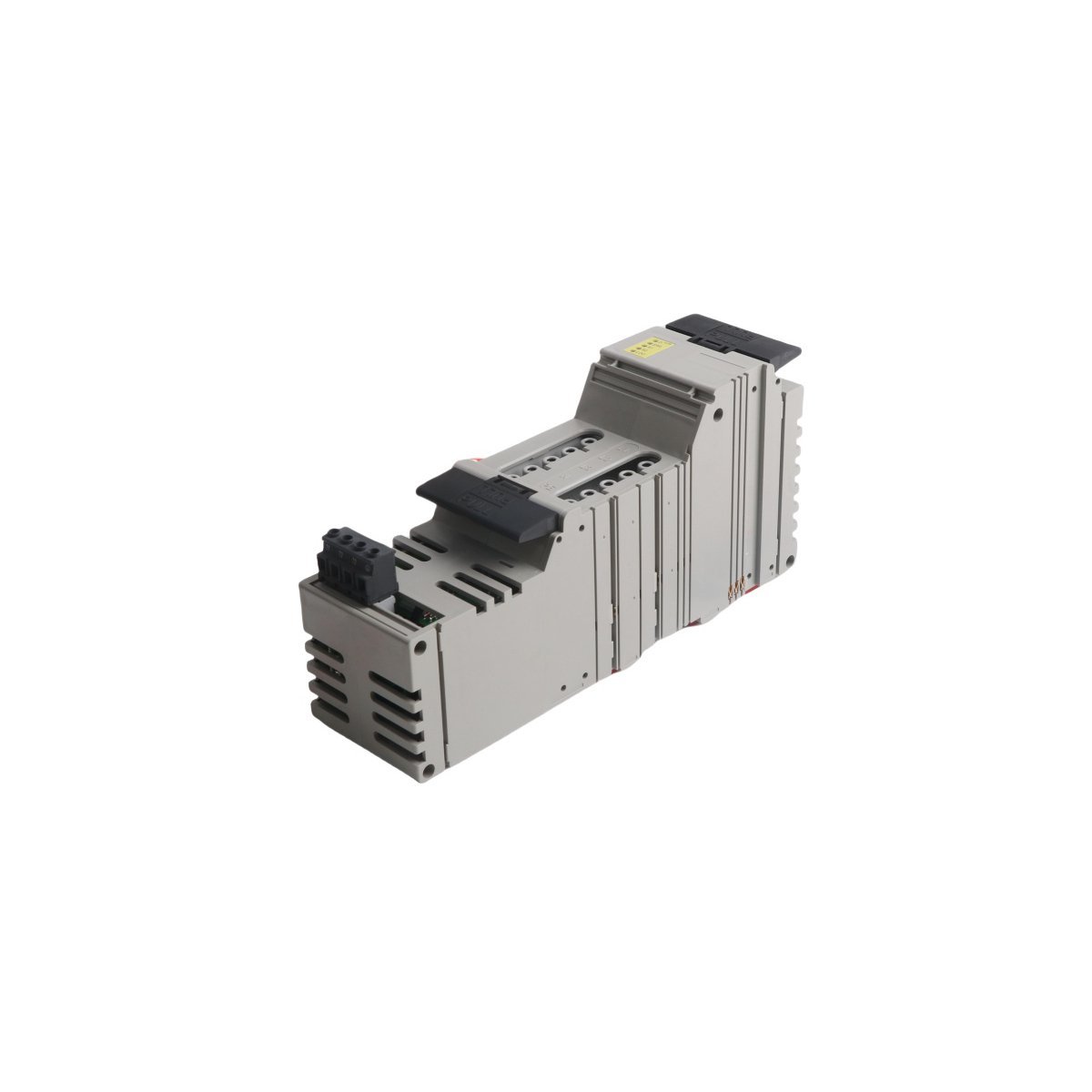

The GE Fanuc IC220STR003, also cataloged as the IC220STR003 Motor Starter, operates as a dedicated hardware component for 3-phase motor direction switching and power output execution within VersaPoint I/O platforms. This component executes forward and reverse motor switching functions across 400 VAC supply circuits, handling power throughput up to 1.5 kW. Internal current sensing provides integrated motor protection against overloads and single-phase failure conditions without external thermal protection relays.

Hardware Specifications

I/O Density Scaling & Deterministic Communications

The IC220STR003 integrates into the modular VersaPoint local bus, supporting compact I/O density scaling inside control enclosures. Internal logic circuits map motor status signals, direction commands, and fault diagnostics directly into the host PLC memory map. Backplane communication latency is minimized via deterministic frame transfer over fieldbus network couplers, allowing rapid fault reporting and status feedback during direction changes.

Frequently Asked Questions

Q: How does the IC220STR003 handle motor phase loss during operation?

A: The module contains internal phase failure monitoring circuits that automatically trip the power output stage upon detecting the loss of any AC phase, preventing unbalanced single-phase operation.

Q: Can direction changes be executed instantly without delaying command execution?

A: The internal power stage handles switching logic, but proper mechanical and electrical interlocking must be maintained via program logic to allow current zero-crossing and avoid field current spikes.

Field Installation Guidelines

1. Lock off the 400 VAC main supply voltage prior to mounting or wiring the starter block.
2. Snap the IC220STR003 securely onto the standard DIN-rail adjacent to preceding VersaPoint modules, ensuring local bus contacts engage correctly.
3. Route 3-phase motor power cables separately from low-voltage logic lines to reduce electromagnetic interference.
4. Verify screw terminal tightness on high-voltage power input (L1, L2, L3) and output terminals (U, V, W).
5. Ground the mounting panel or DIN-rail according to local industrial electrical codes before applying power.
