Description

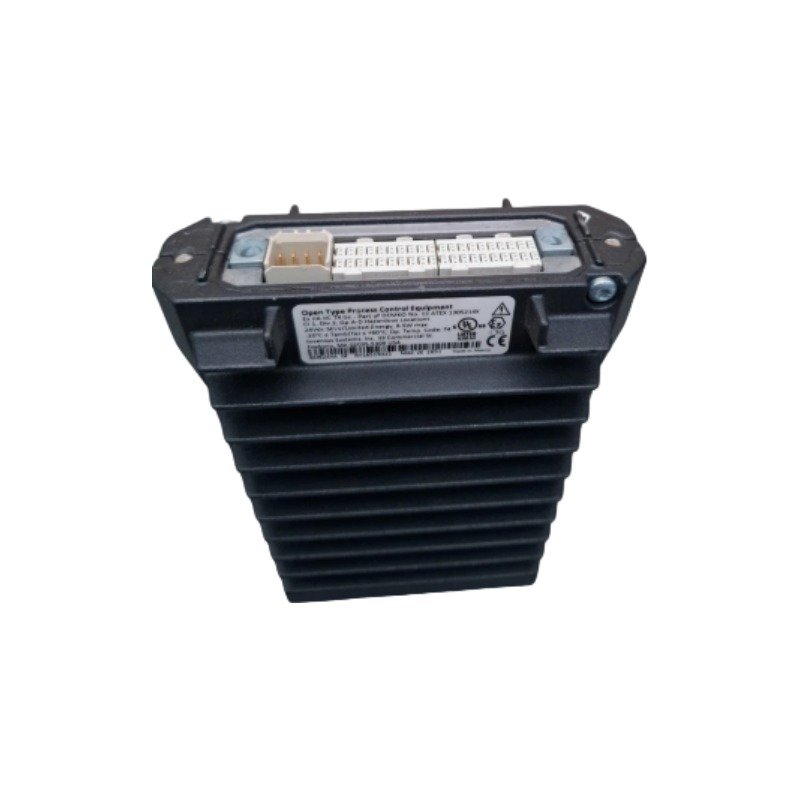

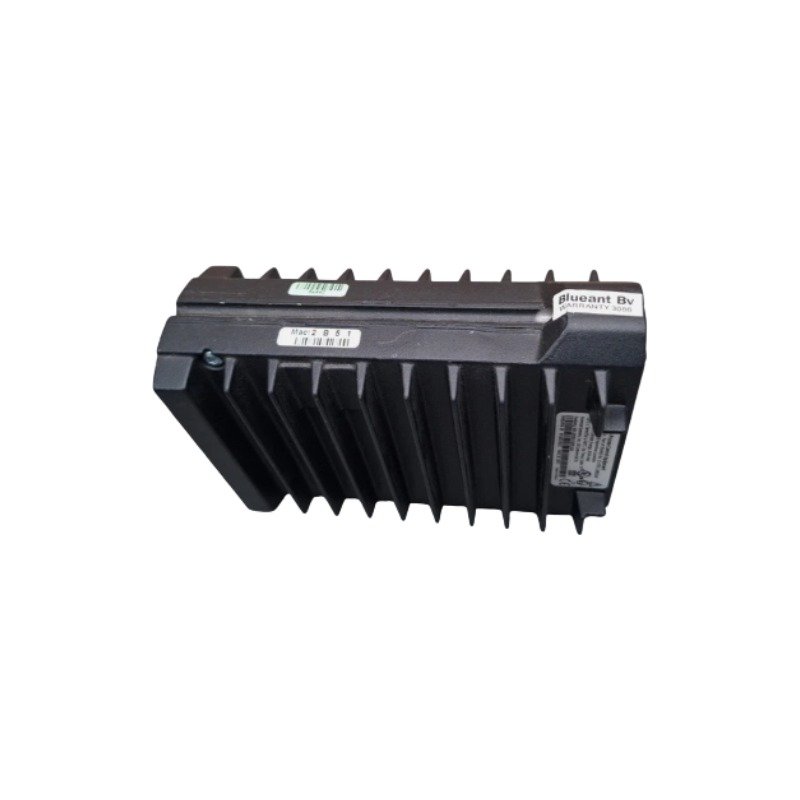

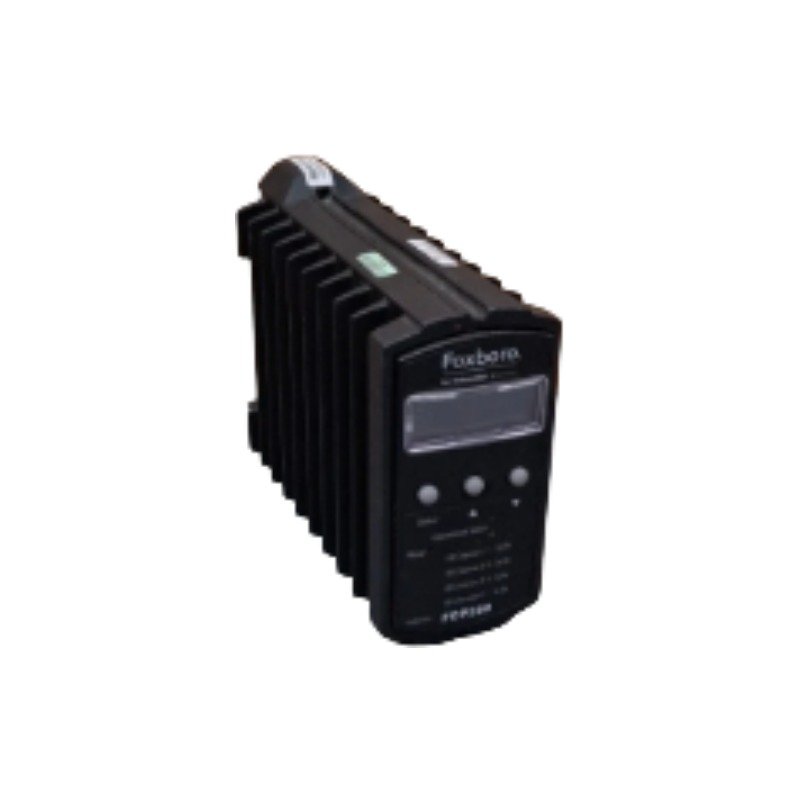

The Foxboro FCP280 RH924YF, also cataloged as the FCP280 Field Control Processor, operates as a dedicated hardware component for real-time algorithm execution and alarm detection within Foxboro I/A Series and EcoStruxure DCS networks. It executes regulatory control, logic sequences, and timing loops directly with field I/O modules. Consequently, the processor streams digitized process parameters over 100 Mbps fiber optic and copper Ethernet backbones.

Hardware Specifications

DCS Loop Execution and Signal Conditioning

The FCP280 RH924YF executes control algorithms while managing dynamic communications across connected fieldbus modules. Specifically, internal routines route 4-20 mA HART loop protocol device queries across field lines, passing diagnostic parameters directly to workstation software without delaying scan cycles. Furthermore, the enclosure design enforces strict channel-to-channel isolation between internal processor components and field wiring terminals. For temperature input loops, connected Fieldbus Modules utilize cold junction compensation (CJC) algorithms at the terminal block interface to ensure analog signal integrity under changing thermal conditions.

Frequently Asked Questions

Q: How does the system handle bumpless failover in a fault-tolerant setup?

A: Installing two FCP280 modules in adjacent baseplate slots establishes high-speed tracking links between units. As a result, the standby processor continuously mirrors memory execution states and assumes control without loop bump upon primary failure.

Q: What communication protocols does the module support for external network integration?

A: The processor natively supports 100 Mbps copper Ethernet, optical fiber links for long-distance connectivity, and RS485 serial communication ports.

Q: Can maintenance personnel replace a faulty processor under power?

A: Yes, in a fault-tolerant pairing, engineers can hot-swap a single module under baseplate power without interrupting active fieldbus I/O scanning or primary controller execution.

Field Installation Guidelines

1. Baseplate Alignment: Slide the FCP280 RH924YF module into the designated baseplate slot until backplane pin blocks engage completely. Subsequently, tighten the mechanical locking screws to prevent connector fatigue from cabinet vibration.
2. Power Wiring Verification: Connect regulated 24 VDC power lines to the baseplate input terminals. Always verify voltage polarity before applying power to prevent internal fuse trip conditions.
3. Network Fiber Installation: Insert clean optical fiber leads into the designated network transceivers. Maintain standard minimum cable bend radii along wireways to prevent optical attenuation.
4. Shielding and Grounding: Connect the baseplate mounting rail to a low-impedance master ground system. Consequently, this maintains robust channel-to-channel isolation across all field signal pathways.
5. Cabinet Ventilation: Verify that enclosure cooling systems maintain ambient temperatures within the specified -20 deg C to +60 deg C operational limits.
