Description

Brief Product Description

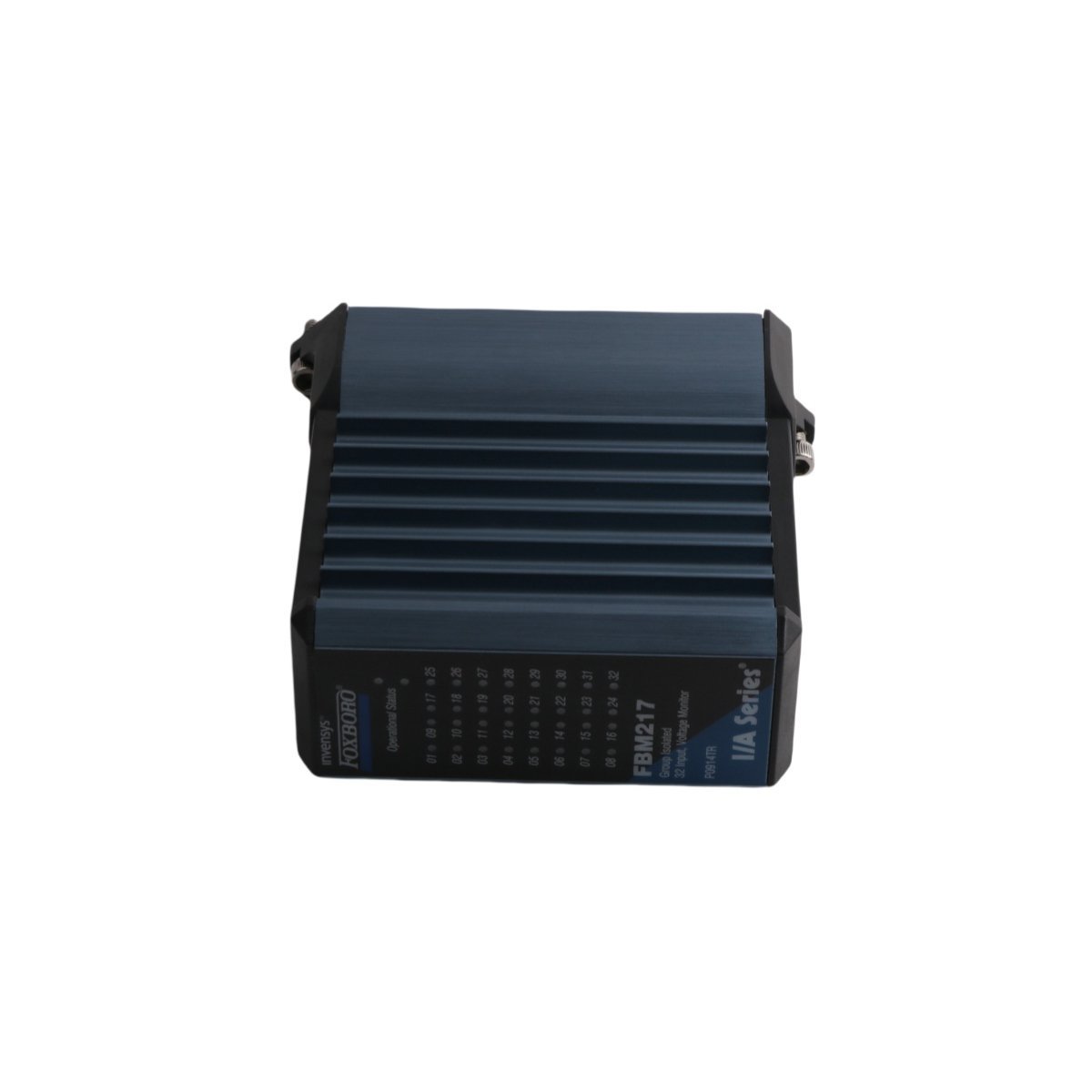

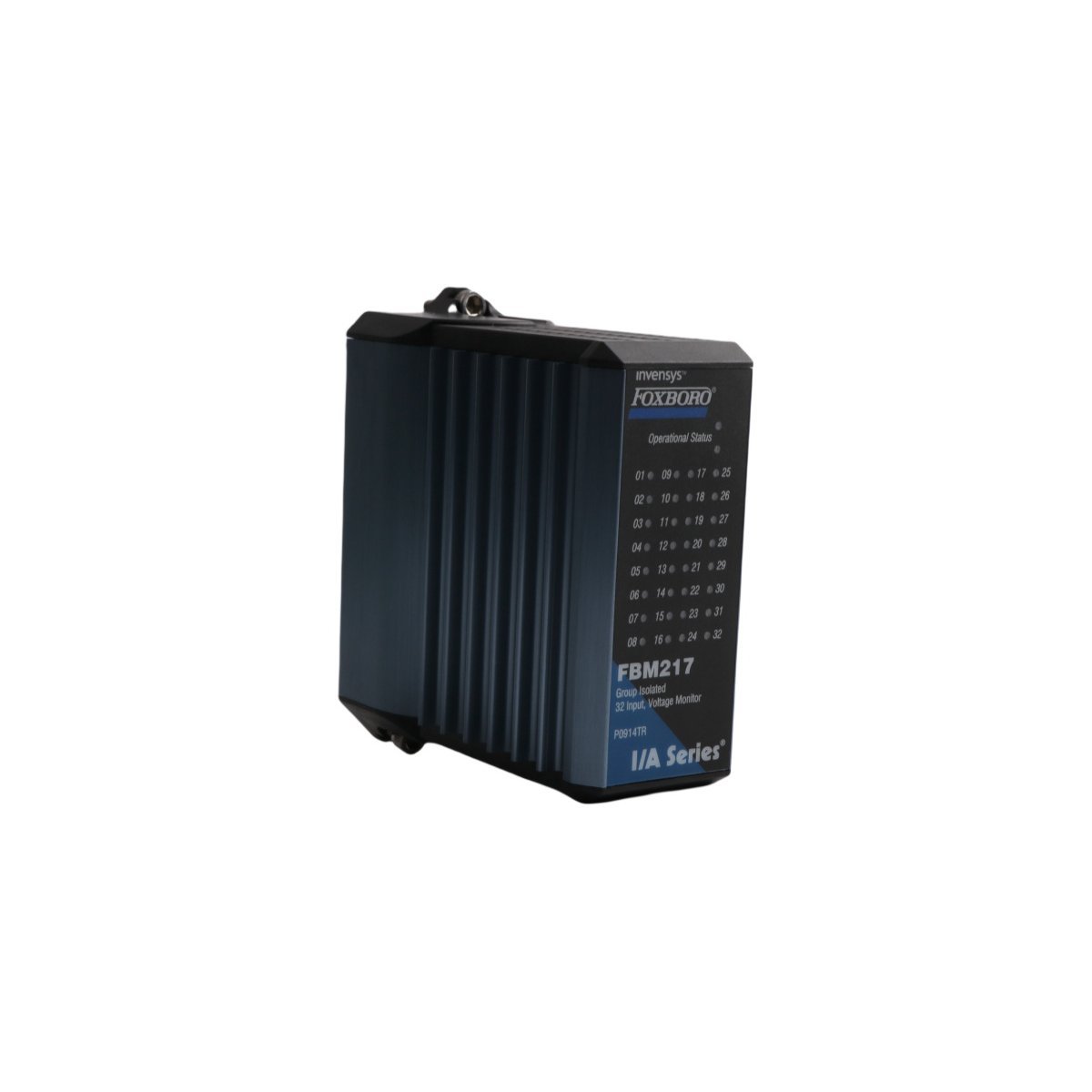

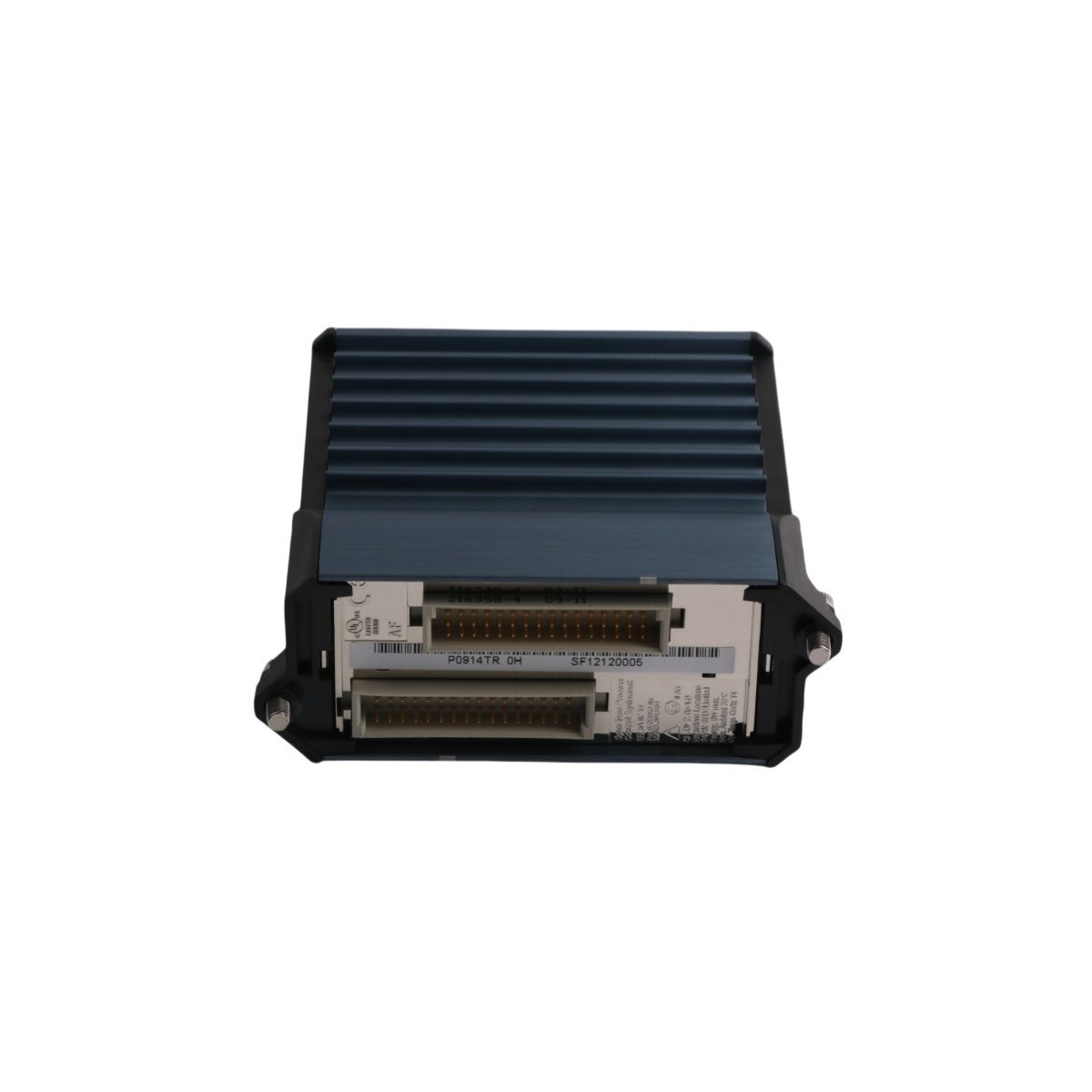

The Foxboro FBM217 P0914TR is a high-density discrete input module for the I/A Series DCS, providing 32 isolated channels for 2-wire field signal monitoring.¹ This versatile interface supports multiple AC and DC voltage ranges through specialized termination assemblies to ensure seamless communication between field sensors and the system Fieldbus.²

Advanced Discrete Signal Processing and Integration

The FBM217 P0914TR serves as a primary interface for gathering discrete status data from field devices within a Foxboro I/A Series Distributed Control System (DCS). By incorporating 32 electrically isolated channels, this module converts external DC voltage signals into digital data for real-time system processing. Furthermore, when users pair the module with specific Termination Assemblies (TAs), the hardware successfully manages various power levels, including 120 VAC, 240 VAC, and up to 125 VDC.³ This adaptability makes the FBM217 an essential tool for monitoring diverse equipment such as limit switches, motor starters, and auxiliary contacts in complex industrial environments.

Redundancy and High-Availability Architecture

Reliability remains a cornerstone of the FBM217 design, as it supports both standalone and redundant configurations. To implement a fault-tolerant setup, operators can install two modules in adjacent slots on a baseplate connected via a redundancy adapter.⁴ In this mode, the system effectively doubles the field input current while the software-driven CINR function block manages synchronized data reads. Consequently, if a single module fails, the redundant partner maintains the signal integrity of the control loop without interruption. This architecture significantly reduces the risk of unplanned shutdowns in critical process industries such as power generation or chemical manufacturing.

Enhanced Safety and Legacy System Support

Safety and durability define the operational profile of the P0914TR module. The associated Termination Assemblies integrate high-voltage attenuation, optical isolation, and current-limiting mechanisms to protect the DCS backplane from field-side electrical surges.⁵ Additionally, the FBM217 offers a clear migration path for aging infrastructure, as it can directly replace legacy 100 Series FBM components like the FBM07 and FBM24.⁶ By utilizing this modern hardware, facilities can upgrade their diagnostic capabilities and response times while retaining existing field wiring, thereby optimizing both performance and lifecycle costs.

Key Technical Characteristics

• High-Density Monitoring: Provides 32 discrete input channels in a compact, modular footprint.⁷
• Multi-Range Compatibility: Detects voltage and contact states across 30V/125V DC and 120V/240V AC ranges.
• Galvanic Isolation: Protects sensitive system electronics from field-side transients via optical isolation.⁸
• Fault-Tolerant Redundancy: Supports bumpless redundancy for high-availability control strategies.
• Flexible Termination: Works with a variety of TAs to provide current limiting and external power support.⁹
• Modernization Ready: Designed to function as a direct upgrade for discontinued 100 Series Foxboro modules.
