Description

Product Overview

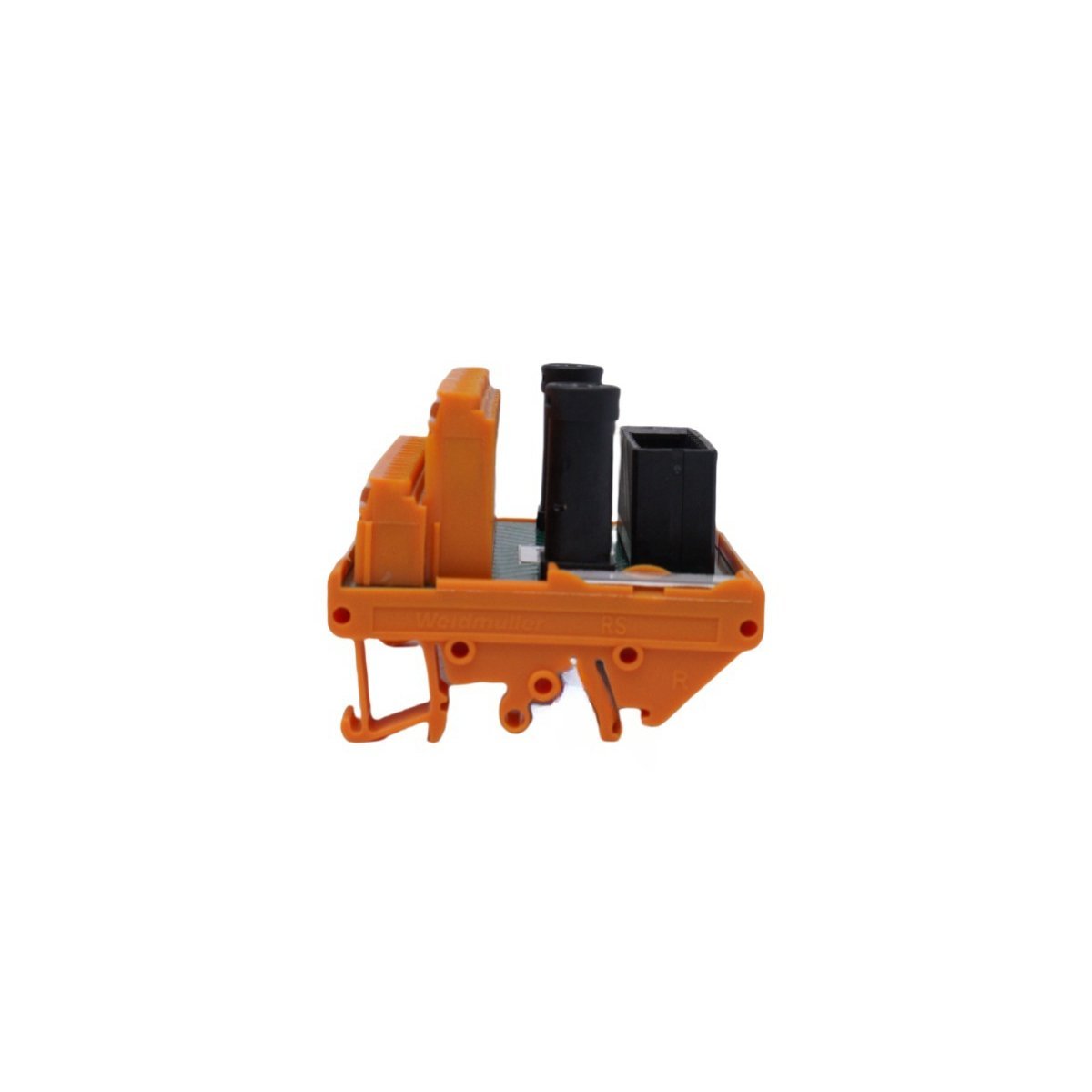

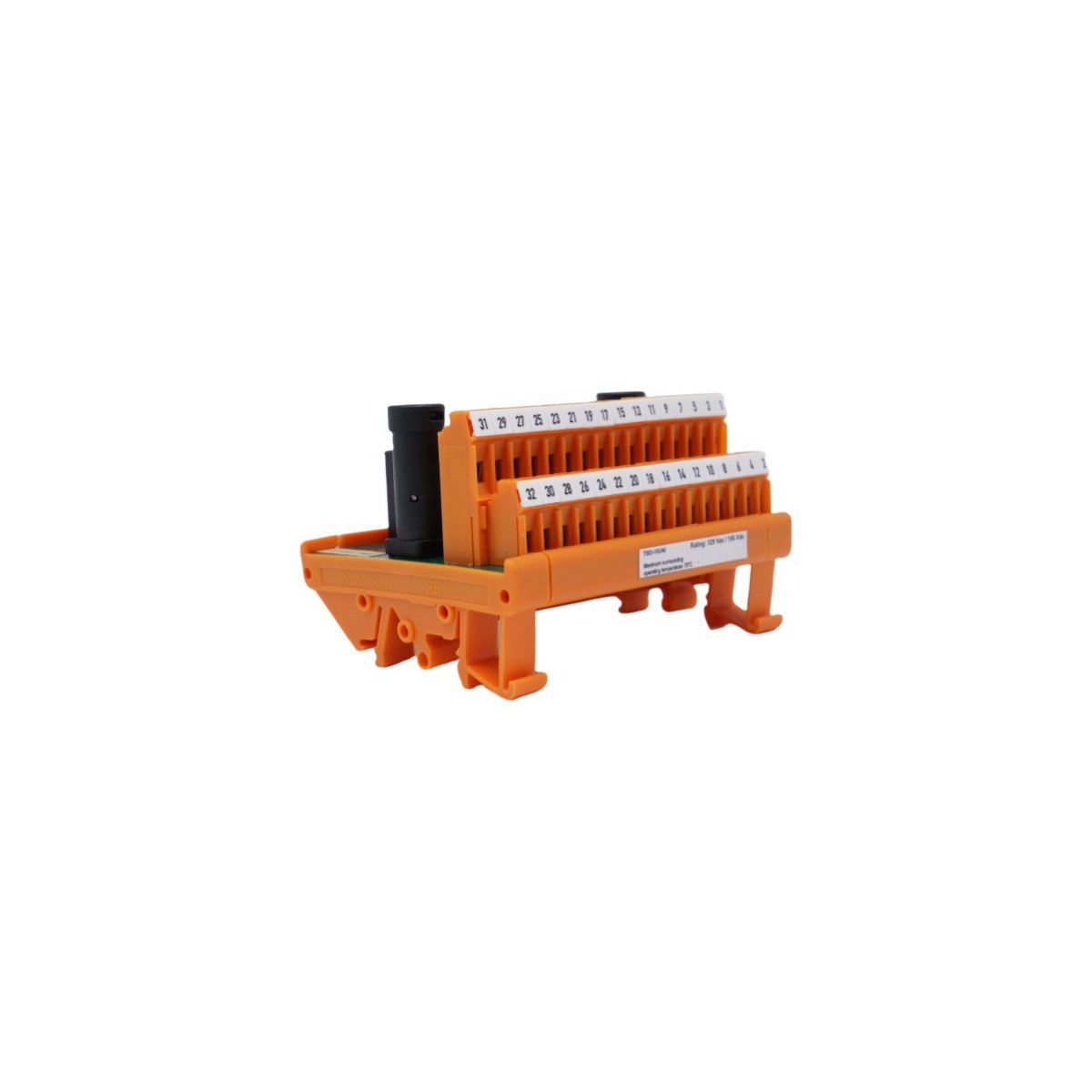

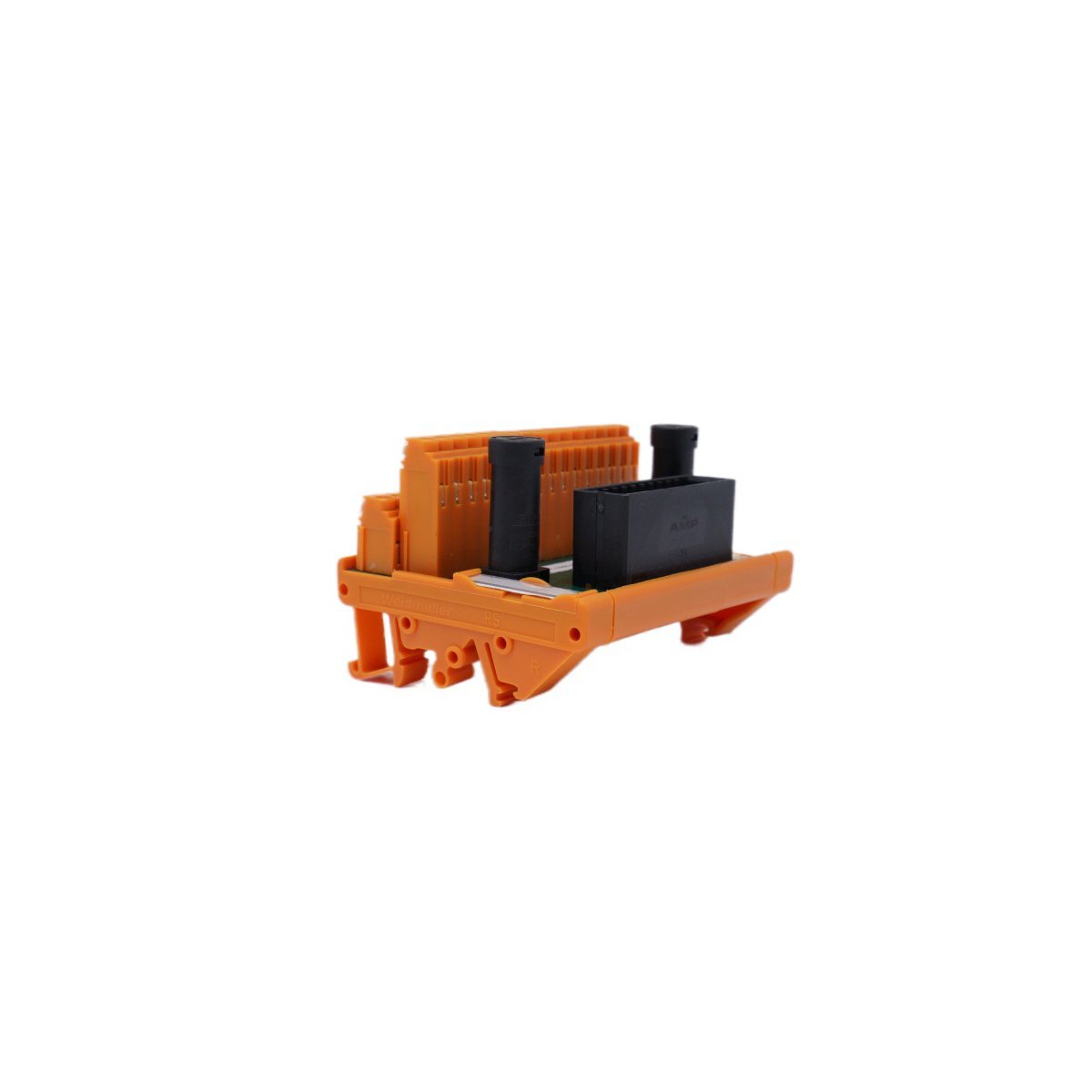

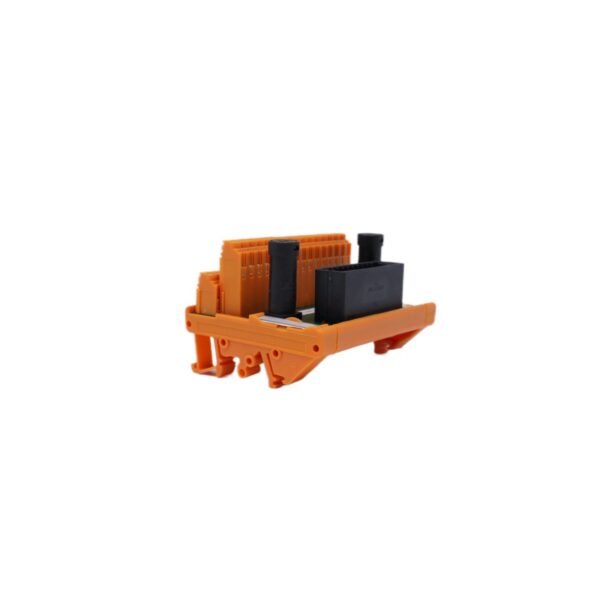

The Honeywell FC-TSDI-16UNI is a specialized Safe Digital Input Field Termination Assembly (FTA) designed for high-integrity safety systems. This 16-channel interface provides a secure connection point for safety-critical field sensors, ensuring reliable signal transmission to the central controller in emergency shutdown and fire and gas applications.

High-Integrity Signal Processing

The FC-TSDI-16UNI serves as a critical bridge between discrete field devices and safety-related I/O processors. By managing 16 high-precision digital input channels, this assembly allows for the monitoring of dry contacts and proximity sensors with a maximum current of 20mA per channel. The “Universal” designation highlights its flexibility in handling various input configurations while maintaining the strict timing and diagnostics required by SIL-rated safety loops. Furthermore, the board architecture prioritizes signal isolation, which effectively shields the internal safety bus from external electrical transients and field-side interference.

Rugged Architecture and Safety Compliance

Honeywell engineered the FC-TSDI-16UNI to function within demanding industrial environments where system uptime is paramount. The module typically resides within a protective enclosure that guards against environmental contaminants, while its internal design simplifies power distribution to field sensors. By consolidating 16 points of termination into a compact 9x7x6cm footprint, the hardware maximizes cabinet space efficiency. The inclusion of high-quality, secure terminal blocks allows technicians to perform rapid wiring during installation, which significantly reduces the risk of connection errors that could compromise the safety loop.

System Integration and Communication

This Field Termination Assembly integrates seamlessly with Honeywell’s broader safety system portfolio, supporting standardized communication protocols for real-time status reporting. The module facilitates effortless data exchange across the network, allowing safety managers to monitor the health of each input channel remotely. Because the FC-TSDI-16UNI adheres to stringent global safety standards, it remains a preferred choice for refineries, chemical plants, and offshore platforms. Its backward compatibility ensures that it can serve as a direct replacement for legacy safety hardware, providing a cost-effective path for system maintenance and modernization.

Technical Characteristics
