Description

Product Overview

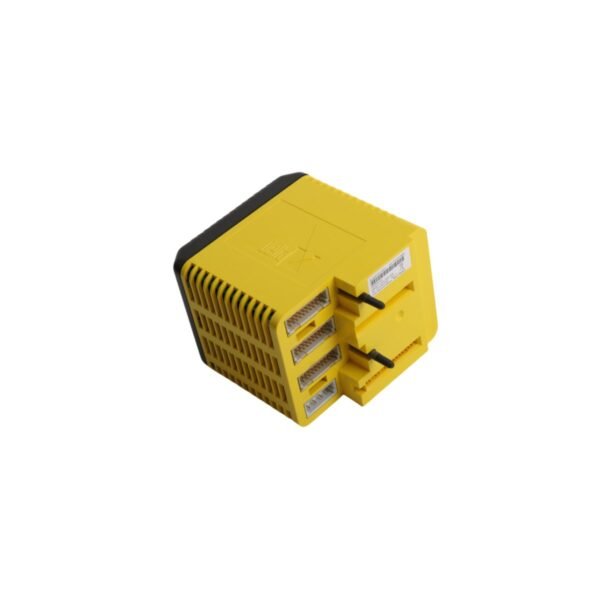

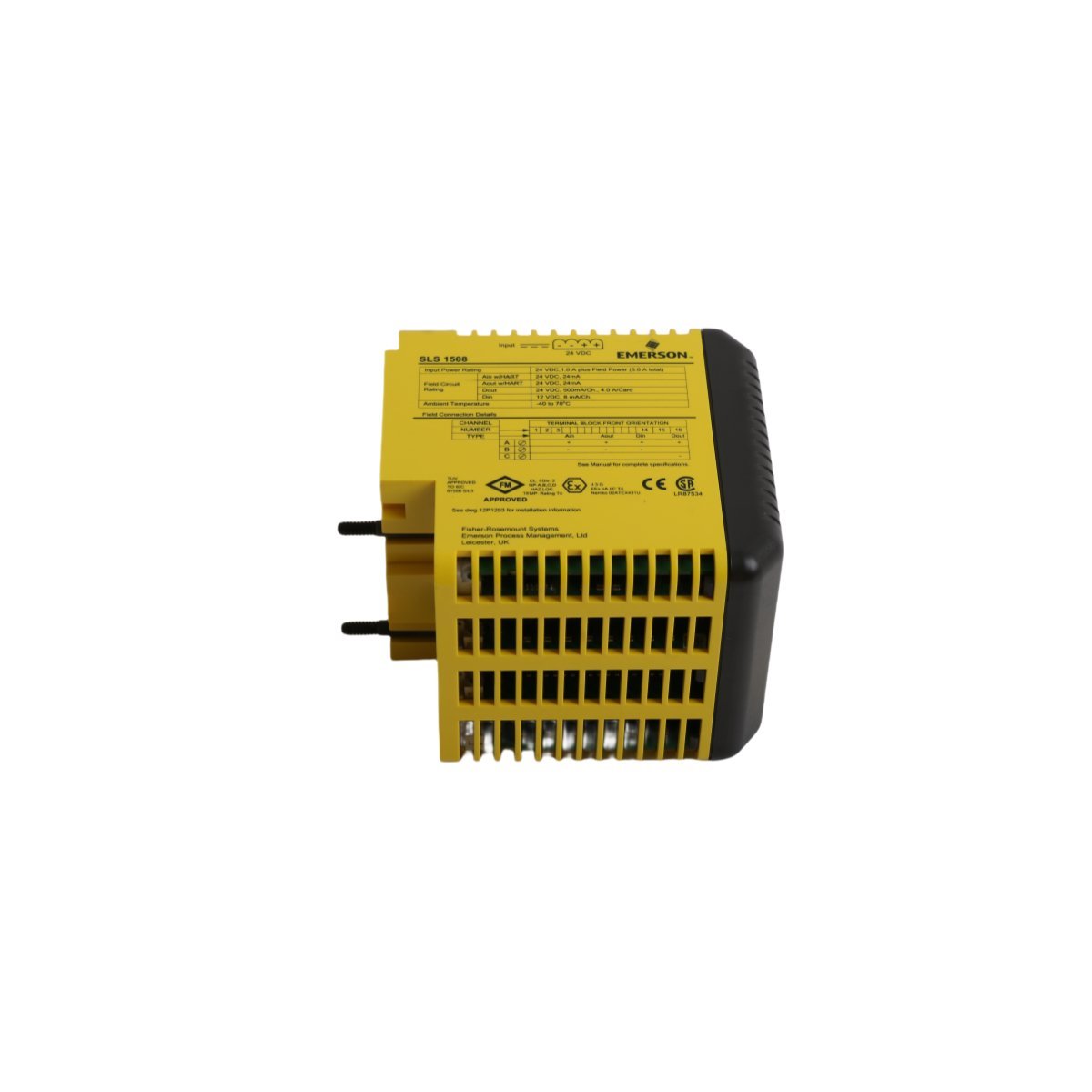

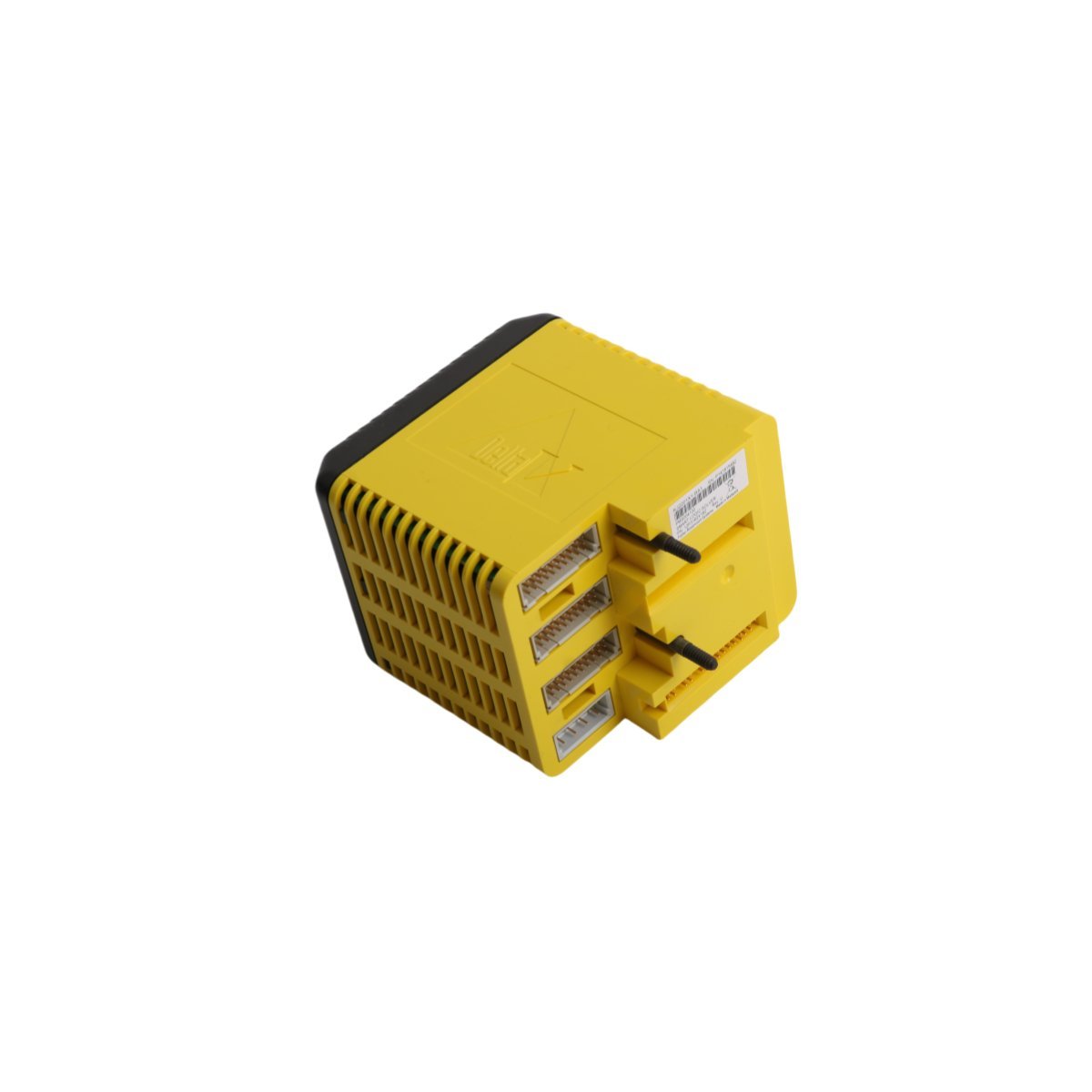

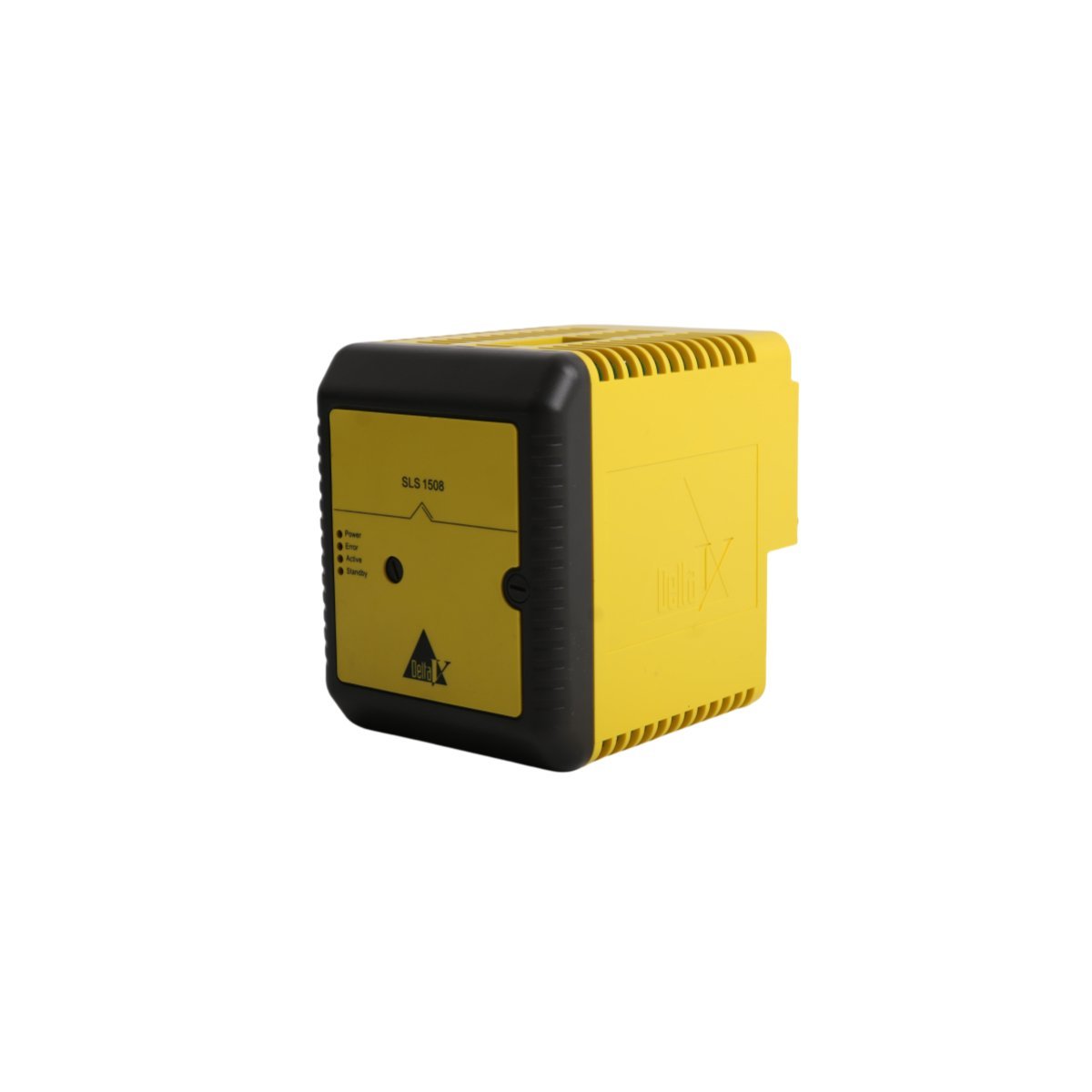

The Emerson SLS1508 (KJ2201X1-BA1 / 12P3162X162) is a dedicated safety logic solver designed for the DeltaV SIS™ process safety system. This module executes critical safety instrumented functions (SIF) to protect industrial personnel, equipment, and the environment from hazardous process excursions.

High-Integrity Safety Logic Execution

The SLS1508 operates as a fundamental component of the DeltaV Safety Instrumented System, providing high-speed logic execution for emergency shutdown (ESD) and burner management systems (BMS). Unlike standard controllers, this module features a hardware-integrated design specifically certified for use in SIL 3 safety applications. It independently processes input signals and determines the appropriate safety action based on configured logic, ensuring that safety functions remain active even if the primary process control network experiences interference. Consequently, the module provides a redundant, fail-safe layer of protection for the most volatile industrial environments.

Advanced Self-Diagnostics and Redundancy

System reliability remains a priority for the SLS1508 architecture. The module performs continuous internal self-testing to detect potential hardware or software faults before they impact the safety loop. If it identifies an internal discrepancy, the logic solver automatically transitions to a safe state to prevent a dangerous failure. Furthermore, when deployed in a redundant pair, the modules synchronize their logic and data states in real-time. This redundancy allows for seamless failover without interrupting the safety function, which maximizes plant uptime while maintaining a rigorous safety posture.

Rugged Design and System Integration

Emerson engineered the KJ2201X1-BA1 to withstand the thermal and electrical stresses typical of refineries and chemical processing plants. The module integrates natively with the DeltaV environment, allowing engineers to use a single engineering toolset for both basic control and safety logic. This unified approach reduces the risk of mapping errors and simplifies the overall system architecture. Additionally, the SLS1508 utilizes the VS3202 SIS Net Terminator to ensure high-speed, noise-immune communication across the safety network, providing a stable foundation for real-time data acquisition and alarming.

Technical Specifications
