Description

Product Overview

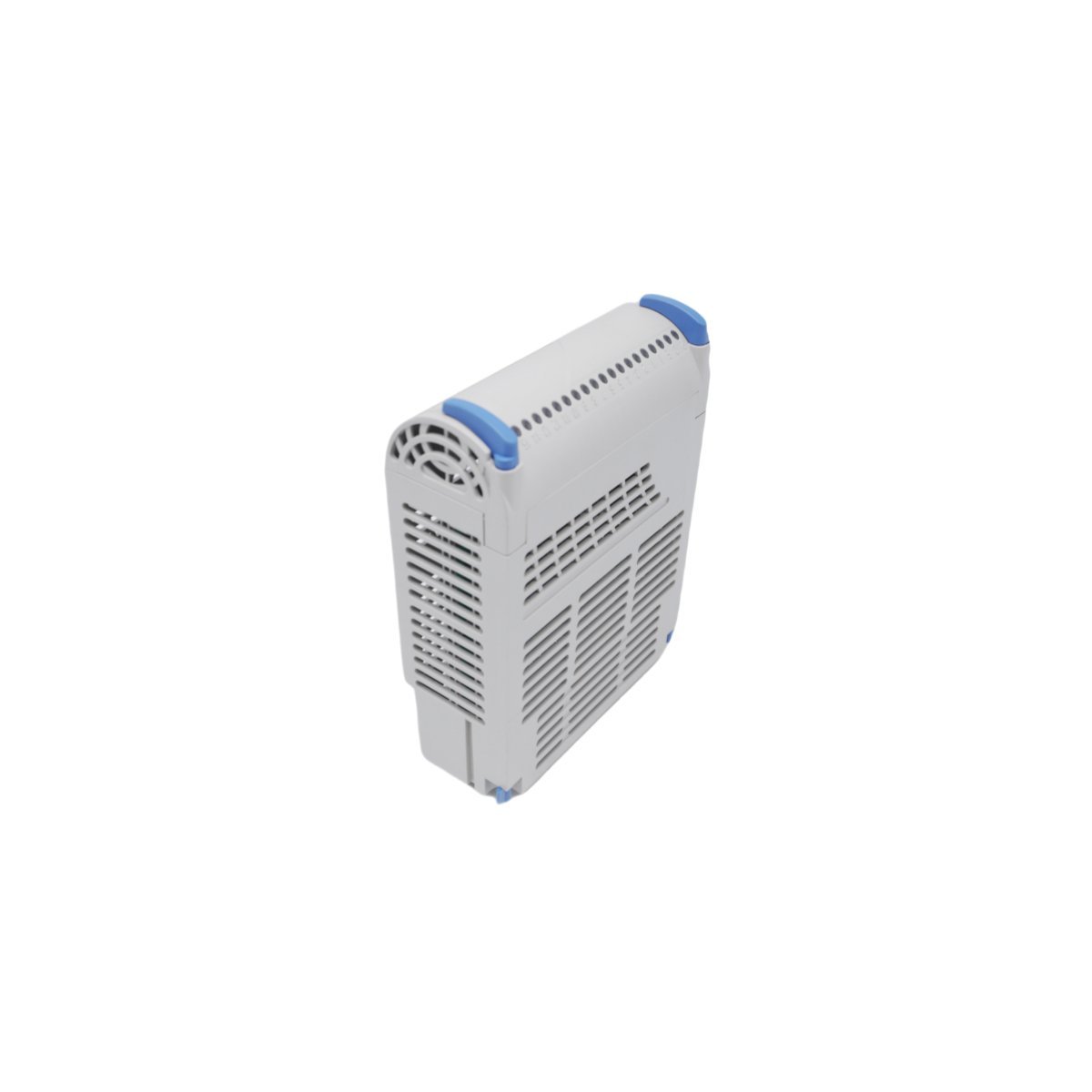

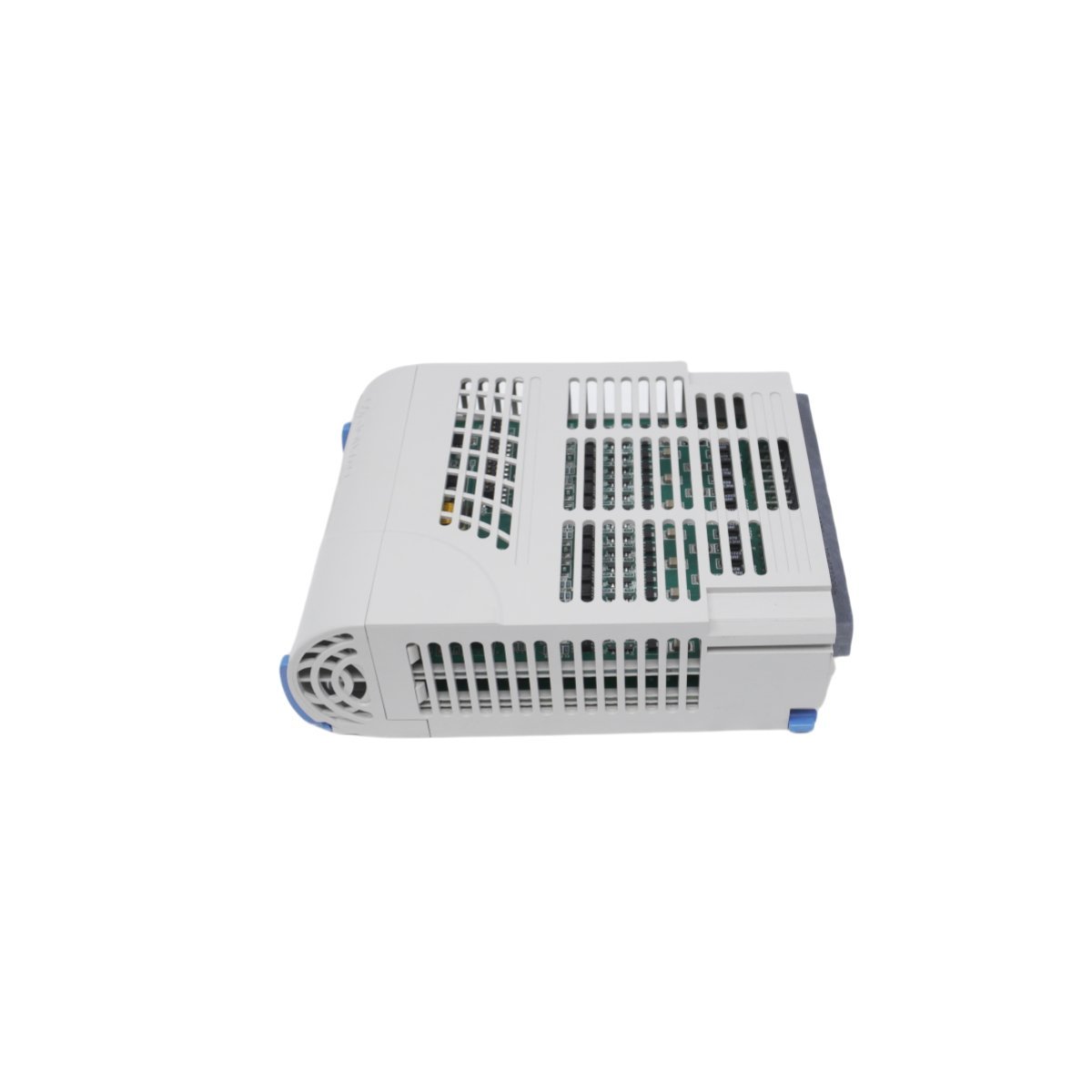

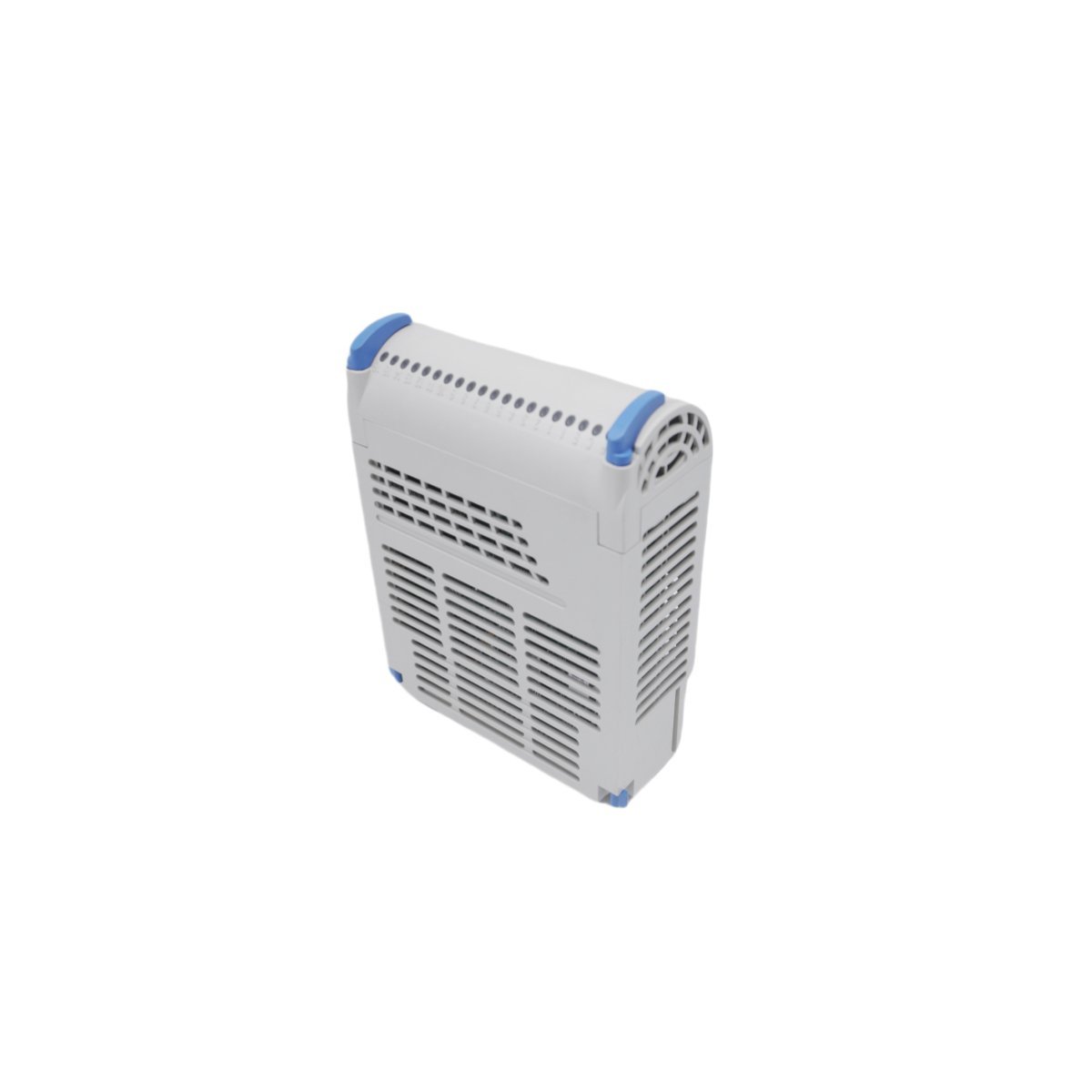

The Emerson 1C31233G04 is a high-speed Sequence of Events (SOE) contact input module designed for the Ovation™ Distributed Control System and DeltaV SIS™ platforms. This specialized digital input card records state changes with millisecond precision, providing critical forensic data for trip analysis and process safety monitoring.

High-Resolution Temporal Data Acquisition

The 1C31233G04 module functions as a primary interface for monitoring discrete field contacts where timing is critical to operational safety. Unlike standard digital input cards, this Sequence of Events module timestamps every state change at the hardware level. This capability allows engineers to reconstruct the exact order of occurrences during a system trip or equipment failure. By capturing data with such high resolution, the module eliminates the ambiguity of scan-cycle limitations, ensuring that safety-instrumented functions (SIF) operate with maximum transparency and accountability.

Ruggedized Architecture and System Safety

Emerson engineered the 1C31233G04 to maintain peak performance within the demanding environments of power generation and water treatment facilities. The module features heavy-duty shielding and isolation to protect the internal logic from electrical noise and field-side surges. Furthermore, the card integrates seamlessly into the Ovation I/O bus, facilitating real-time communication with the controller while simultaneously buffering event data for upstream reporting. This dual-path processing ensures that while the controller executes immediate logic, the historical event log remains complete and accurate for post-event audits.

Advanced Diagnostics and Maintenance Efficiency

Integrated self-diagnostic routines allow the 1C31233G04 to constantly verify its own internal circuitry and the integrity of the input loops. If the module detects a fault, it triggers an immediate system alarm, which enables maintenance teams to address hardware issues before they impact process availability. The user-friendly software interface allows operators to configure debounce timers and filter settings for each individual channel, effectively reducing “chatter” from mechanical field contacts. Ultimately, these features combine to lower operational costs by reducing troubleshooting time and preventing unnecessary emergency shutdowns.

Technical Specifications
