Description

Brief Product Description

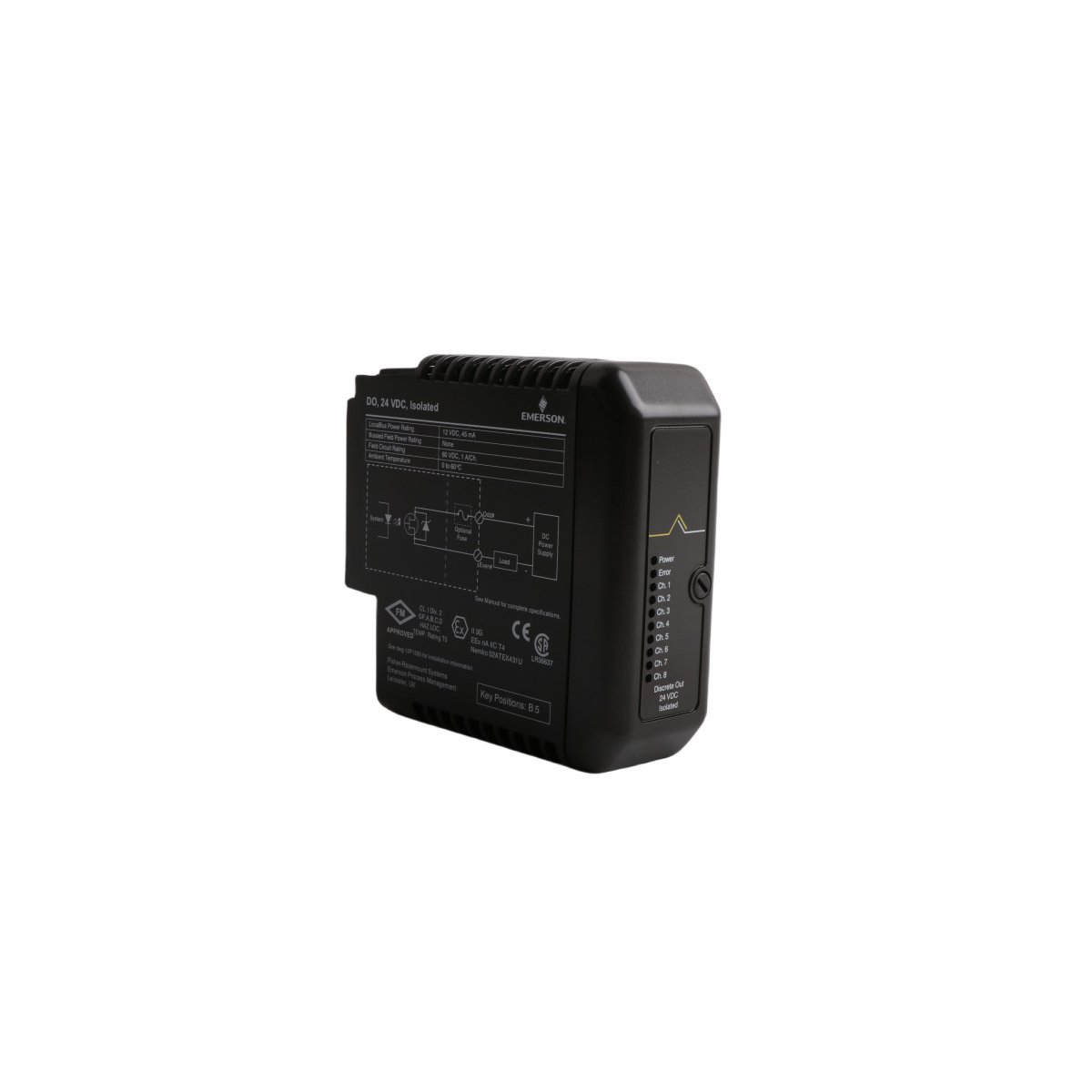

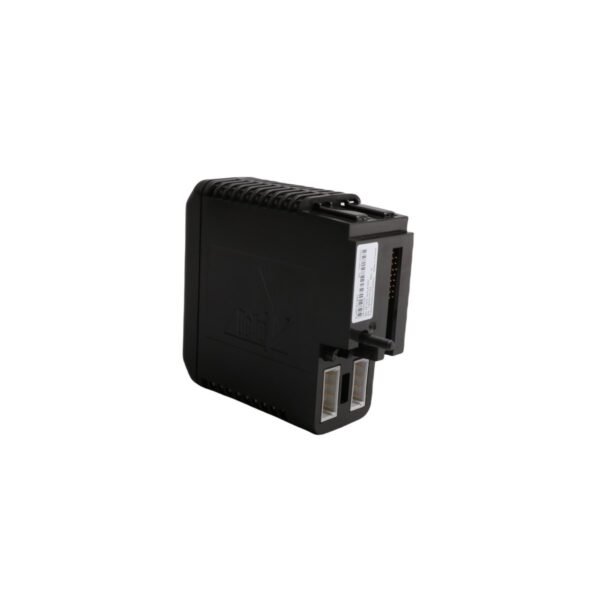

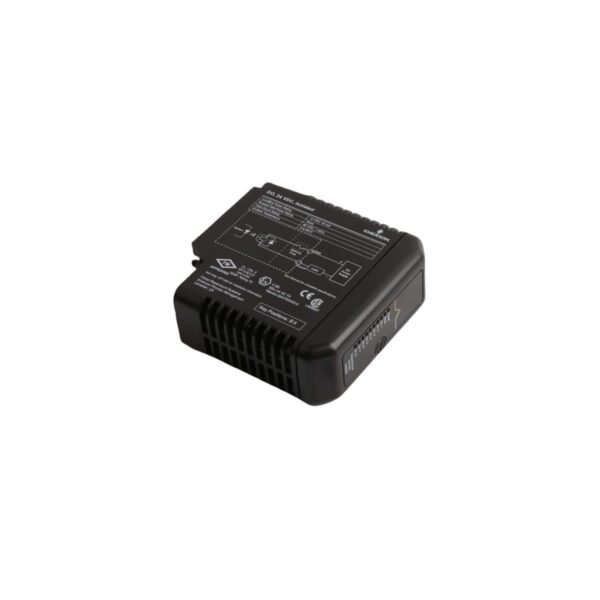

The Emerson KJ3001X1-BG1 is a high-performance input module designed for the DeltaV SIS™ process safety system. It provides critical signal processing and interface capabilities for safety-instrumented functions, ensuring high-integrity data collection from field sensors and switches.

Product Description

Integrated Safety Signal Processing

The Emerson KJ3001X1-BG1, also identified by part numbers 12P0557X162 and VE4002S1T1B1, operates as a fundamental building block within the DeltaV SIS™ architecture. This module specializes in capturing and validating signals from field-mounted safety devices such as emergency ESD pushbuttons, pressure switches, and flame detectors. By executing local logic solver functions, the module ensures that safety-critical data reaches the controller with maximum speed and accuracy. Furthermore, the module facilitates the rigorous requirements of Safety Instrumented Functions (SIF), helping facilities maintain compliance with global safety standards like IEC 61508.

Signal Versatility and System Scalability

Adaptability remains a core strength of the KJ3001X1-BG1 Input Module. The hardware supports a diverse array of input types, allowing engineers to integrate various sensor technologies into a unified safety environment. This multi-input compatibility eliminates the need for complex signal converters, thereby reducing the hardware footprint in the control cabinet. As industrial requirements evolve, the module’s plug-and-play design simplifies system expansion. Operators can scale their safety systems by adding modules without significant reconfiguration, ensuring that the safety infrastructure grows alongside the production facility.

Industrial-Grade Reliability and Diagnostics

Emerson engineered the VE4002S1T1B1 to survive the harsh electrical and thermal conditions common in DCS and safety environments. The module features advanced self-diagnostic capabilities that continuously monitor internal circuitry and external loop integrity. If the module detects a fault, such as a wire break or an internal hardware failure, it immediately communicates the status to the DeltaV diagnostic station. This proactive fault detection prevents “silent failures” in safety loops. Consequently, maintenance teams can resolve issues before they impact plant safety, ensuring continuous protection of personnel and assets.

Technical Specifications
