Description

Technical Functionality and Measurement Principle

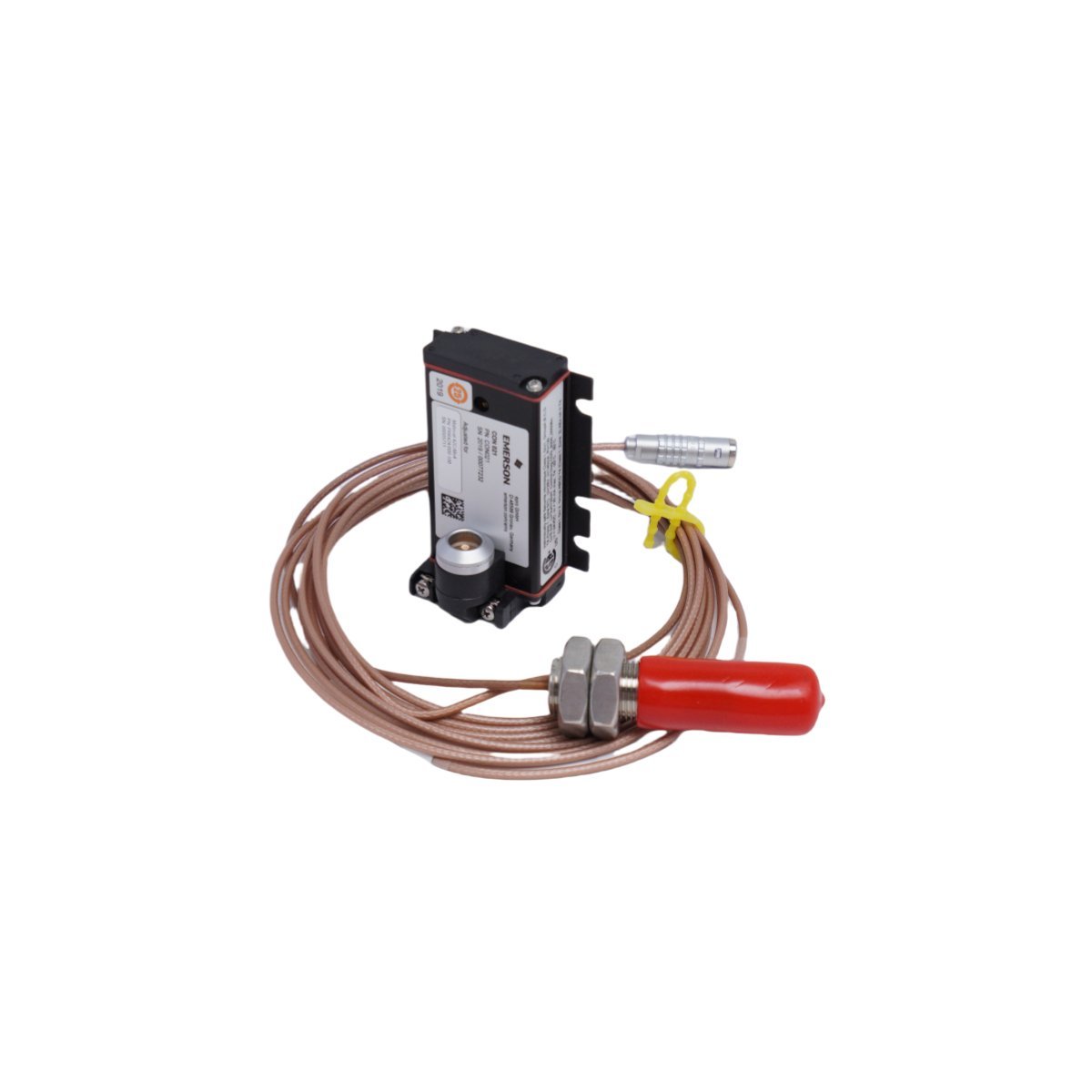

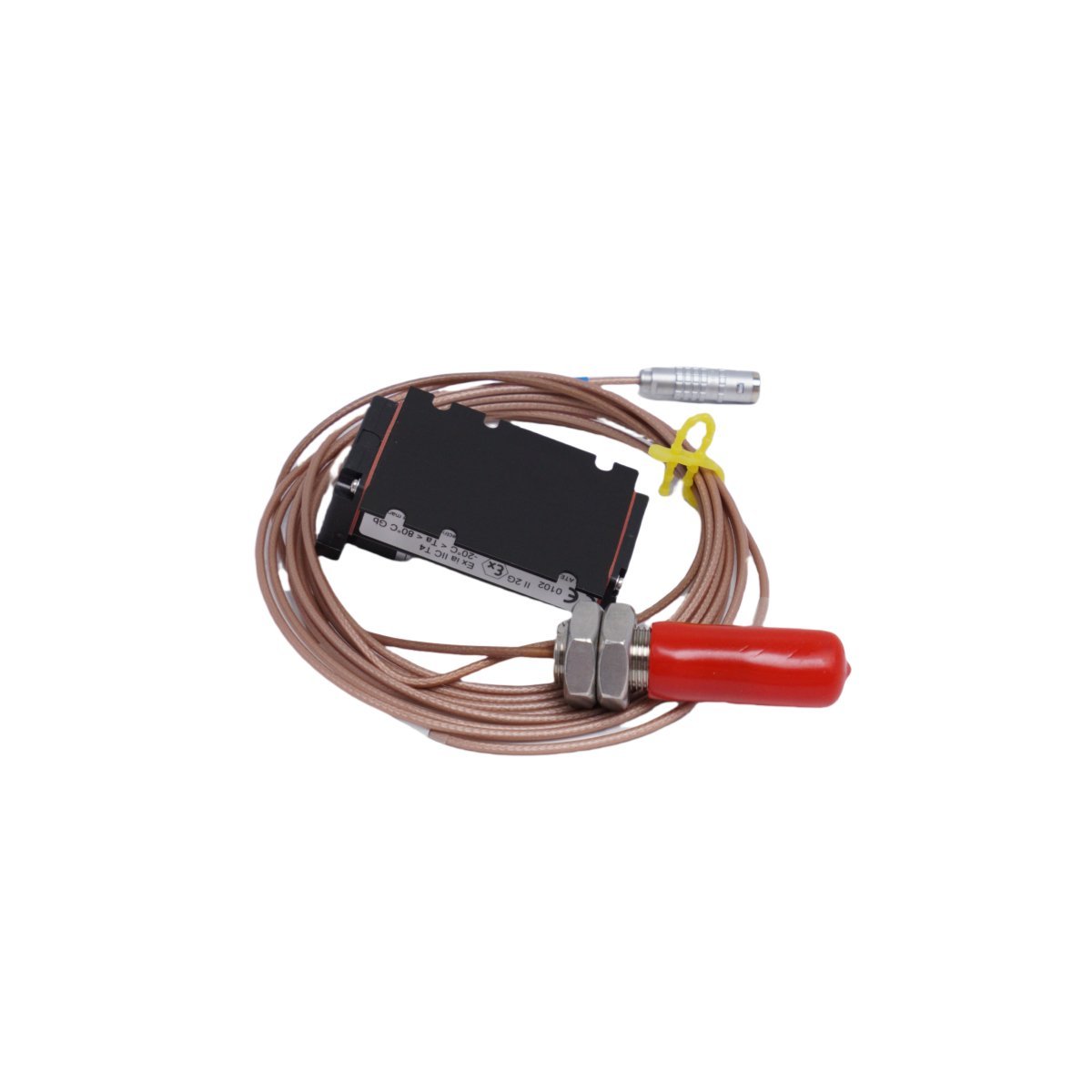

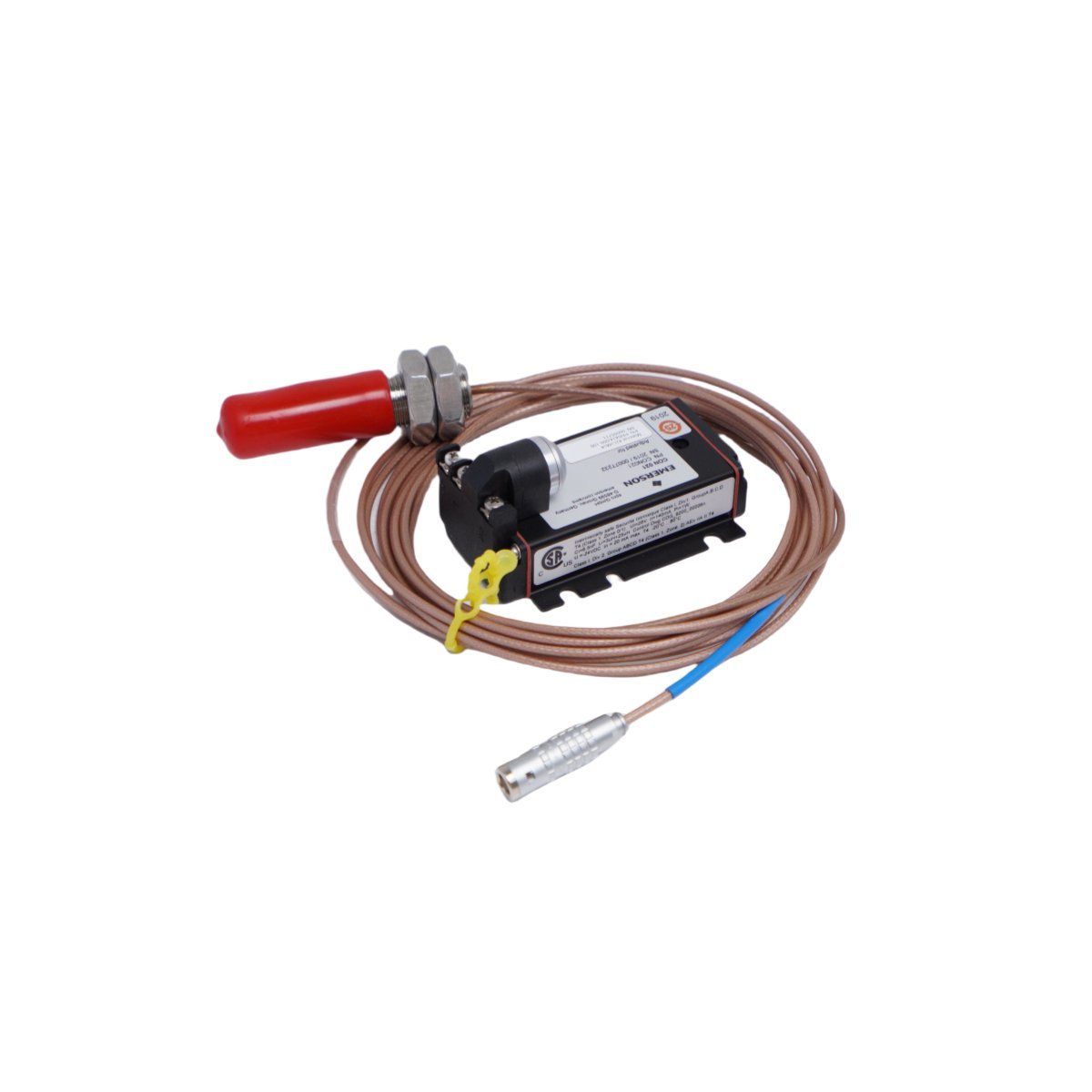

The Emerson PR6424/000-000, part of the specialized Epro product line, operates as a non-contact displacement sensor utilizing eddy current technology. This transducer measures the static and dynamic distance between the sensor tip and a conductive target material, typically a rotating shaft. By generating a high-frequency electromagnetic field, the sensor detects minute variations in distance with extreme precision. Consequently, this allows the system to monitor shaft vibration, axial position, and eccentricity in real-time, providing critical data for machinery protection systems.

Primary Industrial Applications

Maintenance engineers deploy the CON021 series across various high-speed rotating assets to ensure mechanical integrity. Because the sensor operates without physical contact, it eliminates wear and tear while maintaining signal accuracy at high velocities. Key application areas include:

• Steam and gas turbines in power generation facilities
• Centrifugal compressors within oil and gas refineries
• Large-scale industrial pumps and fans in chemical processing
• Hydroelectric generators and gearbox monitoring

Core Technical Specifications

• Manufacturer: Emerson (Epro Series)
• Model Number: PR6424/000-000
• Configuration Code: CON021
• Sensor Type: 8mm Eddy Current Displacement Transducer
• Output Signal: Proportional to gap distance
• Physical Dimensions: 4.1 cm x 12.5 cm x 10.5 cm
• Unit Weight: 0.48 kg
• Manufacturing Origin: USA

Engineering Advantages and Asset Reliability

The PR6424/000-000 features a ruggedized construction specifically engineered to endure the volatile conditions found in industrial plants. The sensor housing resists moisture, oil, and corrosive chemicals, ensuring long-term stability in harsh environments. Furthermore, the transducer integrates seamlessly with condition monitoring platforms like the AMS Suite. By providing early warnings of mechanical imbalance or bearing wear, this sensor empowers operators to transition from reactive repairs to a data-driven predictive maintenance strategy, ultimately extending the lifecycle of expensive capital equipment.
