Description

Product Overview

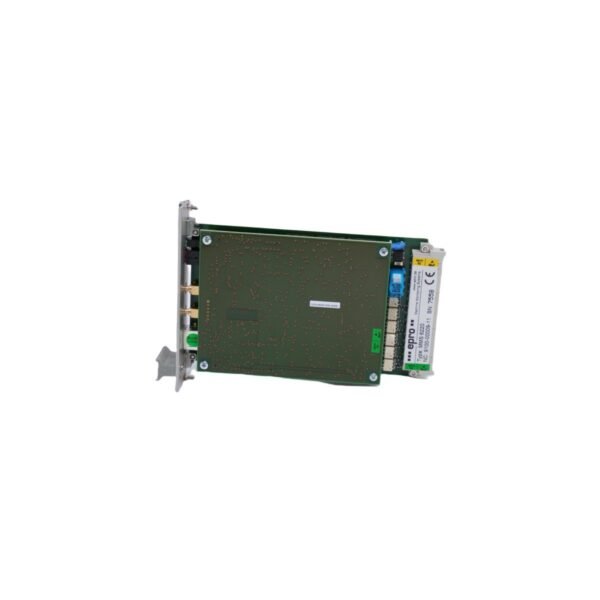

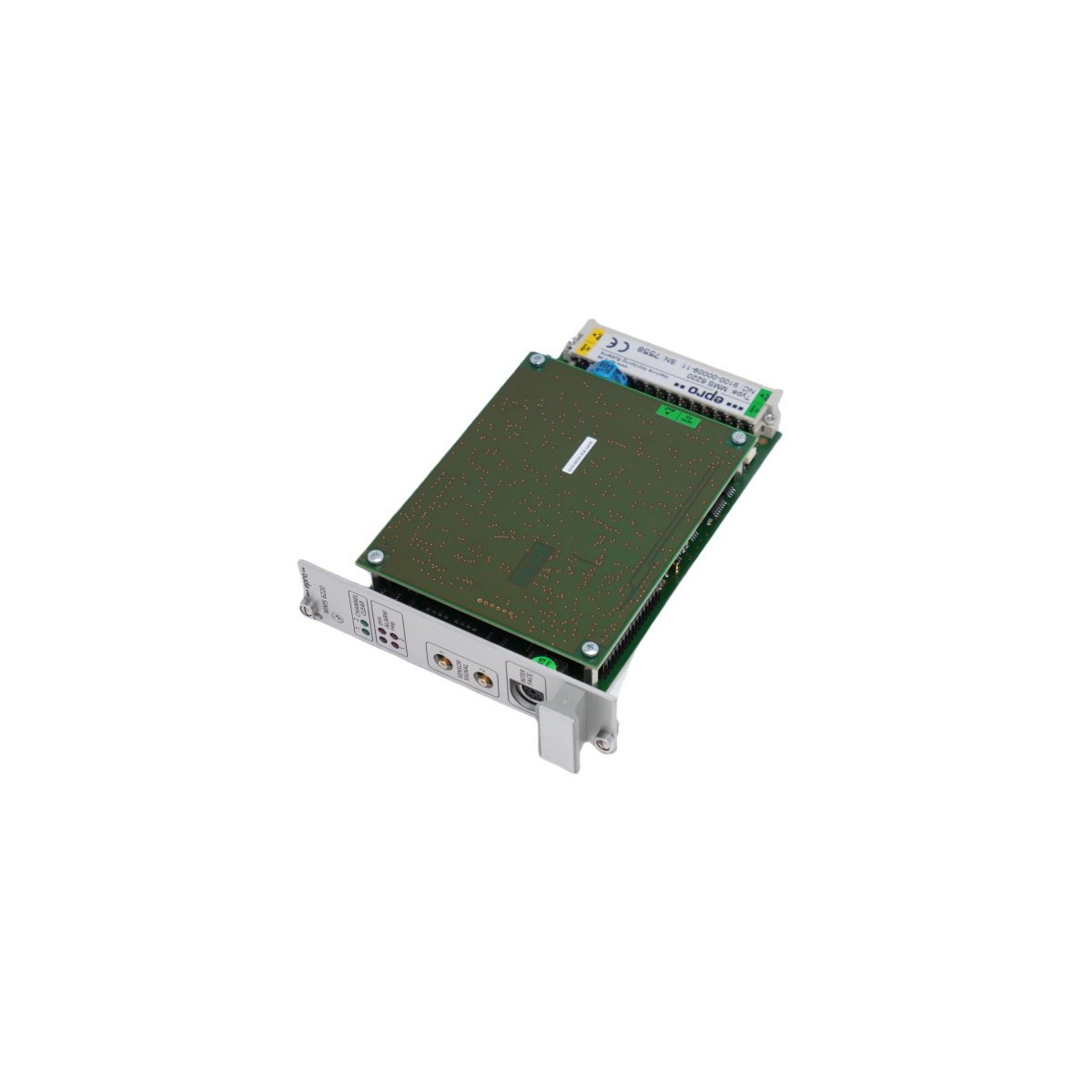

The Emerson EPRO MMS6220 is a specialized, rack-mounted dual-channel shaft eccentricity monitor belonging to the industry-standard MMS 6000 Machine Monitoring System family. This advanced hardware card is dedicated to measuring and tracking geometric deviations within heavy rotating machinery—specifically during critical machine startup (run-up) and thermal stabilization shutdown (run-down) phases.

By analyzing high-frequency data from specialized eddy-current proximity probes, the MMS6220 isolates peak-to-peak calculations and min/max shaft centerline deviations. This real-time analysis provides a vital defensive layer against rotor-to-stator friction, bearing destruction, and structural imbalance faults in steam, gas, and hydro turbines.

Advanced Capabilities and Functional Benefits

• Precise Low-Frequency Calculation: Incorporates dedicated tracking registers engineered for micro-frequency evaluations spanning 0.017 Hz to 70 Hz, allowing accurate eccentricity tracking down to extremely slow rotational speeds (1.02 to 4,200 rpm).
• Galvanically Isolated Proximity Channels: Provides two differential inputs completely decoupled from system power lines. This eliminates ground-loop interference and ensures that adjacent cards in the MMS 6000 rack do not impact signal fidelity.
• Transient Data Logging: Features an onboard memory buffer configured to capture, trend, and retain raw structural parameters during the machine’s critical run-up and run-down profiles for structural order analysis.
• Smart Transducer Health Diagnostics: Employs built-in microcontroller self-tests that continuously scan for open-circuit loop breaks, sensor short-circuits, or out-of-bounds bias voltages.
• Flexible Sensor Interfacing: Natively tuned for optimal electrical impedance matching with the dependable EPRO PR 642X series of eddy current proximity sensors.

Technical Specifications

Electrical Inputs & Performance Limits

• Signal Channels: 2 Independent, fully isolated differential inputs
• Frequency Envelope: 0.017 Hz to 70 Hz (1.02 rpm to 4200 rpm execution)
• Input Stage Impedance: $\ge 100\text{ k}\Omega$
• Signal Dynamic Voltages: 0 to 400 $mV_{peak}$ minimum scale | 0 to 8000 $mV_{peak}$ maximum scale
• Dedicated Transducer Supply: -26.7 V DC Nominal (Input operational limits: -1 V to -23 V DC)
• Output Stage Resilience: Completely open-circuit and short-circuit immune buffered sensor outputs

Physical & Environmental Properties

• Physical Dimensions: 3.1 cm (W) x 19.0 cm (H) x 12.9 cm (D)
• Net Hardware Weight: 0.20 kg (approx. 200 grams)
• Physical Origin: Engineered and manufactured in Germany
• Architecture Class: Distributed Control System (DCS) Machine Protection Card
• Lifecycle Classification: Legacy platform (Phased out by manufacturer Dec 31, 2018)

Device Communication & Software Support

• Local Front Port Interface: Dedicated RS-232 serial connection
• Bus Level Network Route: RS-485 network bus backbone
• Legacy Configuration Host Requirements: * Processor Base: Intel Pentium® 266 MHz or equivalent
  • Serial Hardware: Free COM port equipped with a FIFO 16550 UART chip
  • Memory Allocation: 32 MB RAM minimum | 30 MB free storage space
  • Operating System Base: Windows 95, 98, NT 4.0, 2000, or Windows XP

Industrial Applications

• Steam Turbine Rotor Inspection: Monitoring the bowing or bending of massive steam turbine shafts during cold-start barring/turning cycles to prevent blade rubbing.
• Gas Turbine Thermal Expansion: Tracking shaft centerline shifts as high-temperature gas turbines transition from startup speeds to full base load grid synchronization.
• Hydroelectric Generator Supervision: Continuous monitoring of heavy vertical and horizontal shaft eccentricity on large water turbines subjected to hydraulic thrust variations.
• Turbomachinery Diagnostics: Interfacing with enterprise-level condition monitoring software to run predictive maintenance order-tracking routines based on historical run-up profiles.
