Description

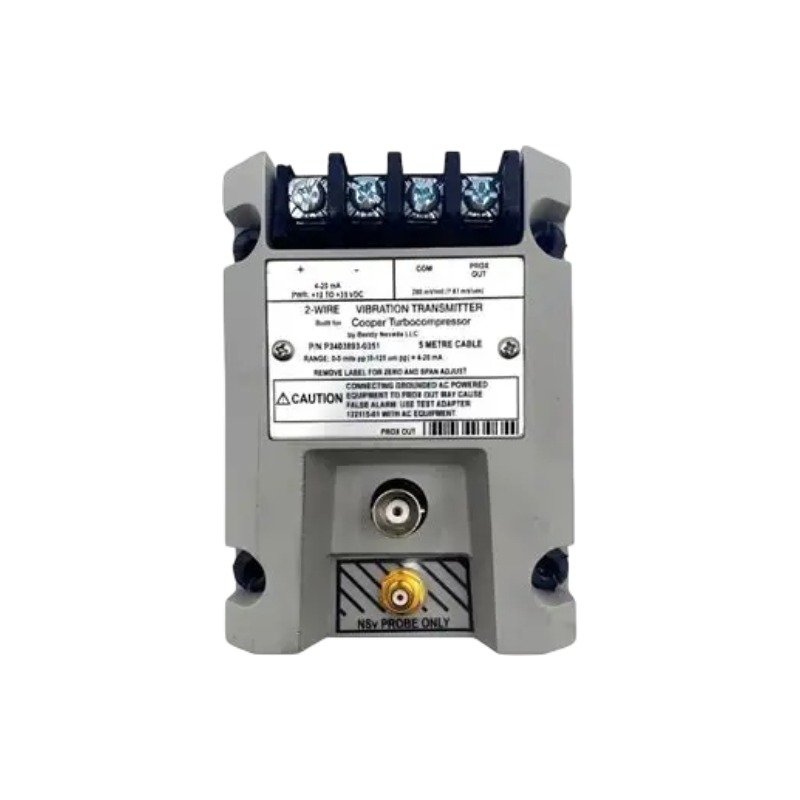

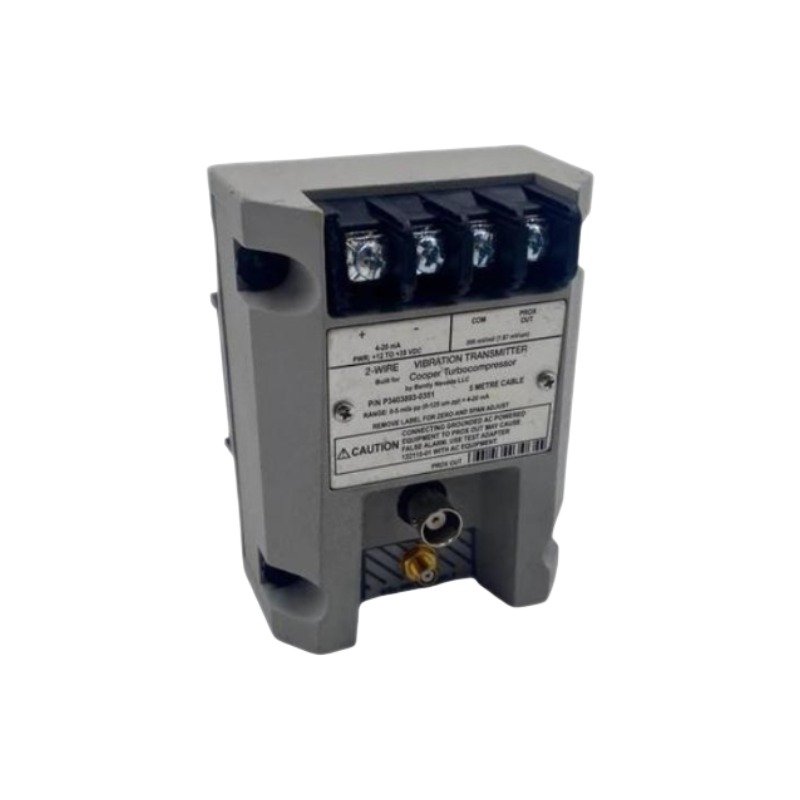

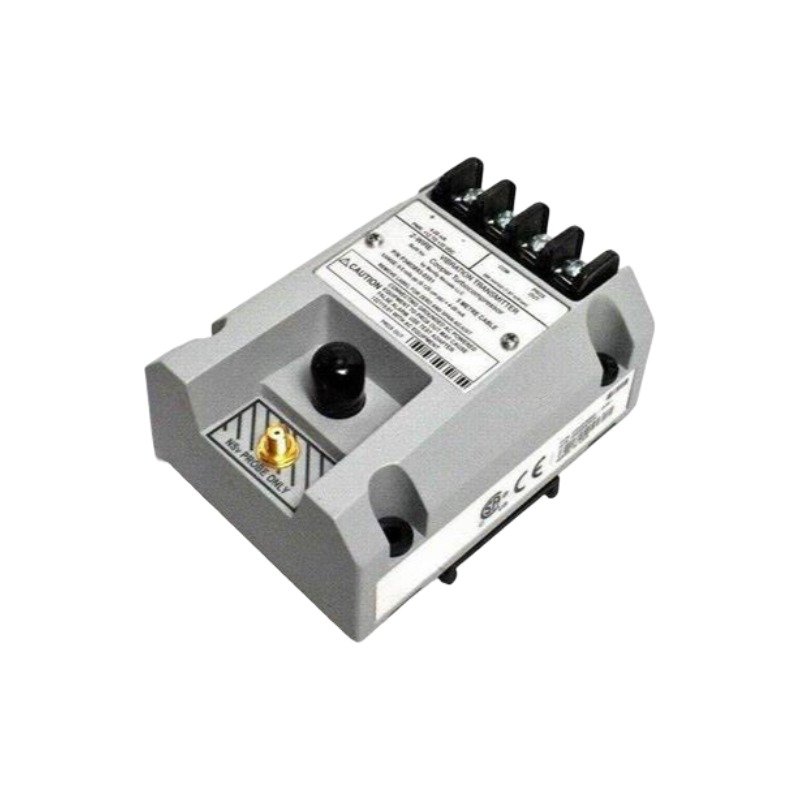

Configured for continuous vibration monitoring and real-time machine condition tracking, the Bently Nevada P3403893-0416 (P3403893-0416 Vibration Transmitter) provides direct physical/electrical execution.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The P3403893-0416 actively transmits a standard 4-20 mA analog current loop proportional to the measured physical vibration level. Specifically, when tracking complex rotor dynamics, the internal circuitry processes raw mechanical motion signals to deliver real-time process variables. Consequently, the external receiver determines the precise scale factor by mapping the 4-20 mA span to the designated engineering units. Additionally, because this hardware utilizes a two-wire loop architecture, the transmitter draws its operating current directly from the 12-35 VDC signal loop. Furthermore, operators must implement appropriate cable shielding techniques during connection to eliminate signal cross-talk suppression issues and prevent electromagnetic interference from distorting the analog current output.

Frequently Asked Questions

Q: Does the P3403893-0416 require a separate, dedicated power cable for operation?

A: No. The instrument utilizes a two-wire, loop-powered design. Therefore, the hardware draws power directly from the 12-35 VDC signal loop, which simultaneously carries the 4-20 mA vibration measurement signal.

Q: How does the transmitter handle external electrical noise during signal transmission?

A: The transmitter outputs a low-impedance 4-20 mA current loop. Consequently, this current loop inherently resists long-distance signal attenuation and electrical noise interference. Additionally, operators must land the cable shield at the receiver chassis ground to optimize noise rejection.

Q: Can the transmitter operate outside the 12-35 VDC voltage range?

A: No. Voltage levels below 12 VDC fail to power the internal electronics. Conversely, voltage levels exceeding 35 VDC will cause immediate physical damage to the internal components. Therefore, operators must maintain the loop power supply strictly within the specified limits.

Field Installation Guidelines

• First, mount the transmitter securely onto the designated machine surface using standard industrial mounting practices. Subsequently, ensure rigid mechanical contact between the transmitter base and the machine casing to guarantee accurate vibration transfer.
• Second, route a shielded, twisted-pair cable from the loop power supply to the transmitter housing. Then, terminate the positive and negative conductors matching the internal terminal block polarity markings.
• Third, maintain the supply voltage strictly between 12 VDC and 35 VDC at the instrument terminals. Otherwise, insufficient or excessive voltage will disrupt loop execution or degrade the hardware.
• Finally, ground the cable shield at the control room rack end only. Consequently, this single-point grounding layout establishes an effective drain path for high-frequency interference and prevents ground loops.
