Description

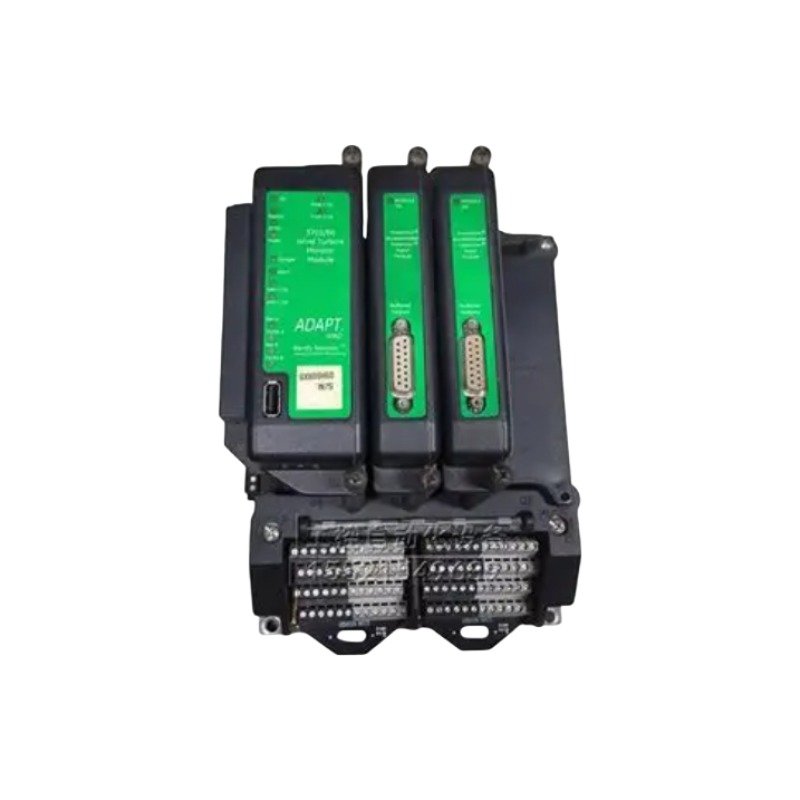

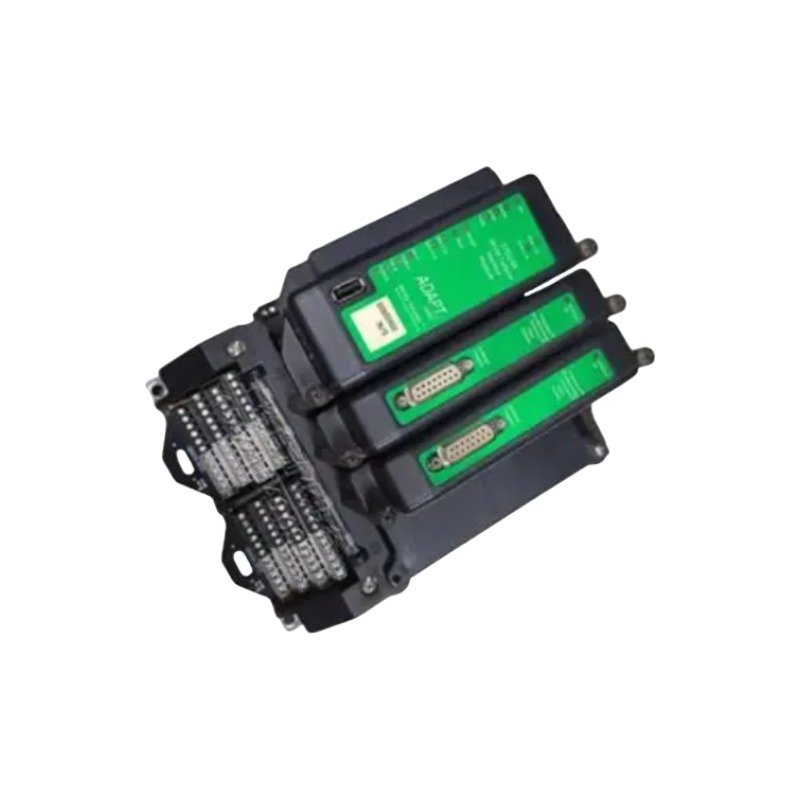

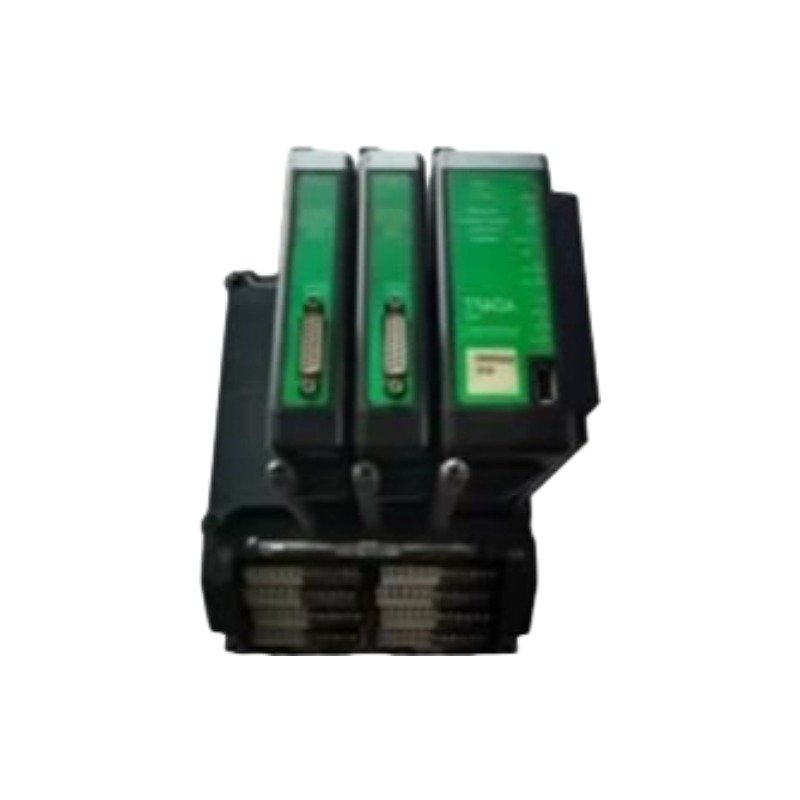

The Bently Nevada 3701/60A, also cataloged as the 3701/60A Wind Turbine Monitor, operates as a dedicated hardware component for dynamic signal acquisition and vibration processing within rotating machinery protection systems.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 3701/60A system processes multiple dynamic signals to execute precise rotor dynamics analysis. Specifically, when engineers connect displacement sensors to the 12 dynamic input channels, they must configure the eddy-current probe scaling manually within the system software to match physical transducer calibrations. Consequently, the processor converts raw voltage inputs into scaled engineering units. Additionally, during startup and steady-state operation, the 2 onboard Keyphasor inputs establish phase reference measurements. Therefore, the hardware tracks precise shaft speed and fractional-revolution phase angles. Furthermore, the module implements cross-talk suppression filters on neighboring channels. Consequently, this filtering isolates high-frequency noise and prevents signal contamination during multi-channel acquisition.

Frequently Asked Questions

Q: How does the 3701/60A manage internal power-up sequencing to prevent system overload?

A: The module regulates incoming 18 Vdc to 36 Vdc power by strictly limiting the initial inrush current to a maximum of 2.7 A for less than 5 ms. Consequently, this internal control prevents voltage sags on the shared system backplane during hot-swap or startup sequences.

Q: What are the distinct functions of the dual Ethernet ports labeled Net A and Net B?

A: Net A operates as a standard DHCP network port for dynamic host configuration. Conversely, Net B functions as a local static IP port. Therefore, this dual layout allows simultaneous connection to an external network and local diagnostic equipment without routing conflicts.

Q: Does the 3701/60A provide buffered outputs for external analytical machinery?

A: Yes. The hardware routes the physical input signals to a front-panel 15-pin DSUB connector with an output impedance of 550 ohm. Consequently, operators can connect external dynamic signal analyzers directly without loading down the primary monitoring loops.

Field Installation Guidelines

• First, mount the module securely into its designated chassis slot to engage the backplane pins properly. Subsequently, tighten all physical retention screws to maintain continuous grounding and mechanical stability under high vibration conditions.
• Second, wire the power supply lines ensuring input voltage stays strictly within the 18 Vdc to 36 Vdc limits. Otherwise, feeding voltage outside this range will halt execution or permanently damage the internal processor board.
• Third, route all dynamic input sensor cables using shielded twisted-pair wiring. Additionally, terminate the cable shields at a single point to prevent ground loops from corrupting the 24-bit Sigma-Delta conversion process.
• Finally, check the integrated LED array during startup. Specifically, verify that the OK LED remains solid green and that neither the Alarm nor Warning LEDs illuminate, which indicates error-free hardware configuration.
