Description

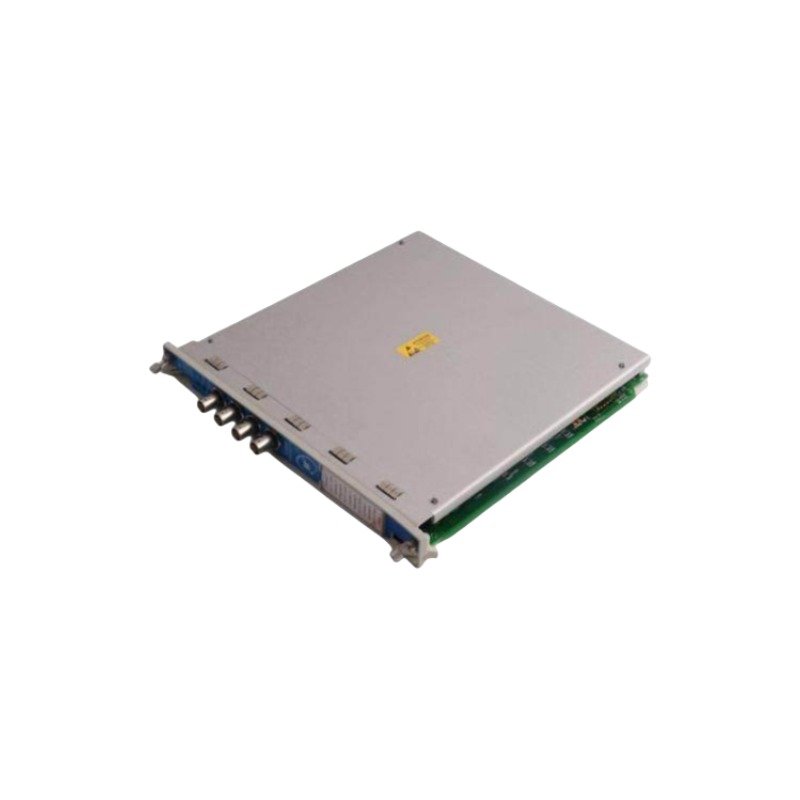

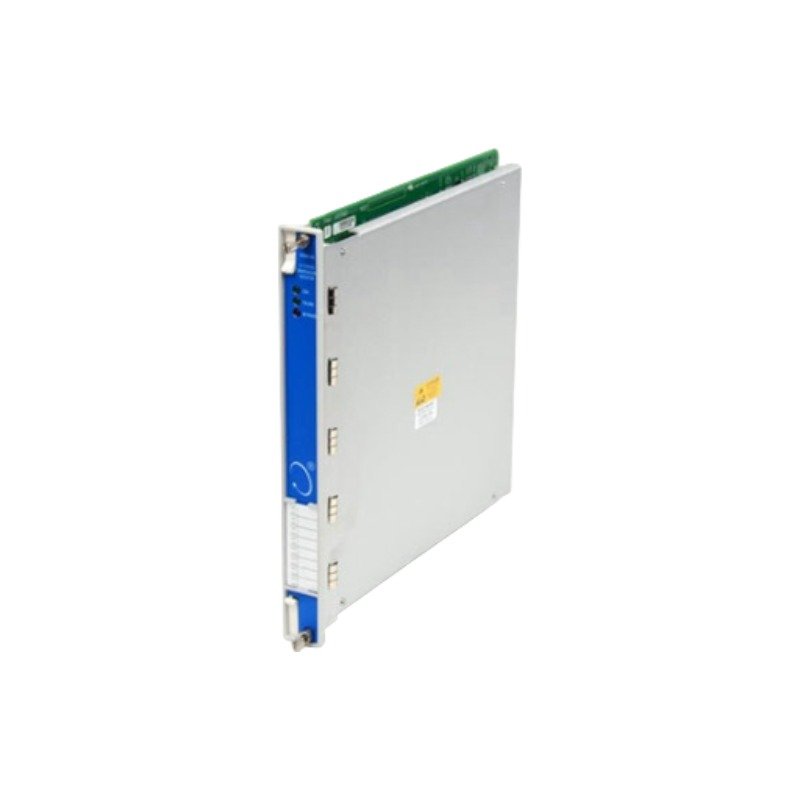

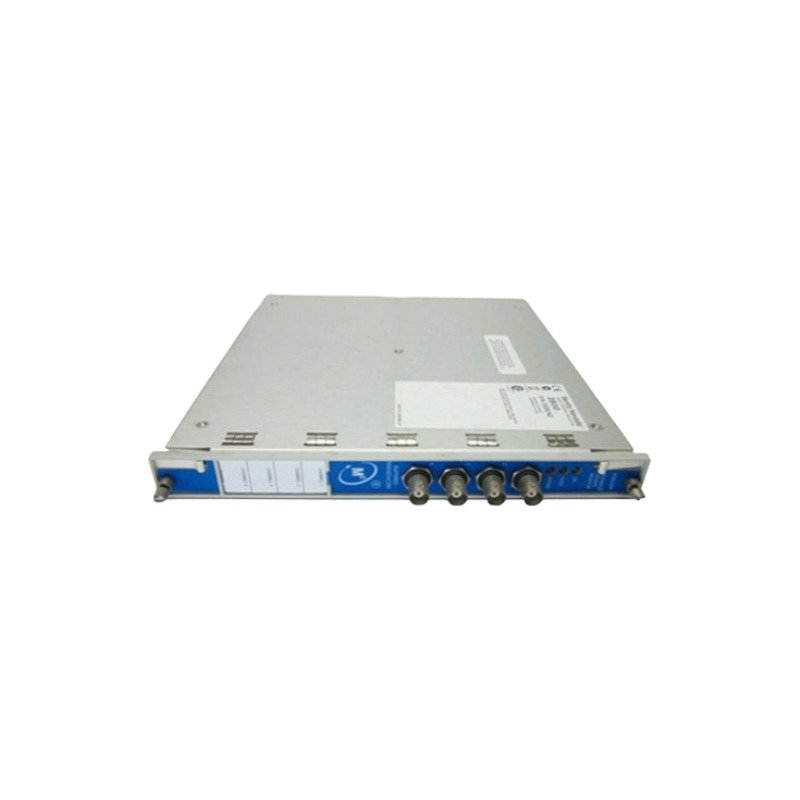

Configured for high-precision dynamic pressure monitoring in reciprocating compressors, the Bently Nevada 176449-07 (3500/77M Cylinder Pressure Monitor) provides direct physical/electrical execution.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 176449-07 module processes high-speed dynamic pressure waveforms to analyze internal thermodynamic processes within reciprocating compressors. Specifically, when tracking compression cycles, the system must interface with dynamic piezoelectric pressure transducers across its 4 input channels. Additionally, while traditional radial vibration monitoring relies on standard eddy-current probe scaling and gap voltage validation (-10 VDC targets) to evaluate rotor dynamics, this module correlates cylinder pressure curves directly with crankshaft angle signals. Consequently, the internal processors convert charge or voltage variations from the piezoelectric sensors into calibrated pressure metrics. Furthermore, the module executes real-time cross-talk suppression. This signal conditioning isolates dynamic pressure spikes on adjacent cylinders, preventing noise contamination from interfering with the diagnostic calculations of individual chambers.

Frequently Asked Questions

Q: How does the 176449-07 execute hot-swap replacement within the 3500 rack?

A: The module supports complete hot-swap capabilities. Consequently, operators can remove or insert the module without shutting down the rack power supply. Therefore, operators must place the associated monitoring channels into Bypass mode before physical extraction to avoid triggering downstream shutdown loops.

Q: What input signal types does the 176449-07 process?

A: The module processes signals from up to 4 piezoelectric pressure transducers. Specifically, it accepts these dynamic high-pressure charge inputs and converts them to user-programmable 4-20 mA analog outputs representing peak pressure parameters.

Q: What is the power requirement and consumption of this specific cylinder pressure monitor?

A: The module requires an external power supply of 24 VDC +/-10%. Additionally, it operates with a maximum physical power consumption of 25 W under full multi-channel load.

Field Installation Guidelines

• First, slide the 176449-07 module into its designated slot in the 3500 rack chassis until the rear connector fully mates with the backplane. Subsequently, tighten the two faceplate screws to secure the physical grounding path.
• Second, connect the piezoelectric transducer cables to the input terminal blocks. Then, route these cables through dedicated conduits to isolate the low-level charge signals from high-voltage motor starters.
• Third, land the cable shields at a single ground point, preferably at the rack terminal end. Otherwise, ground potential differences between the compressor frame and the rack will induce noise, skewing the +0.25% full-scale measurement accuracy.
• Finally, apply 24 VDC +/-10% power to the module and verify the OK LED illuminates steady green. Consequently, this confirms that the internal self-test has passed and execution has initiated successfully.
