Description

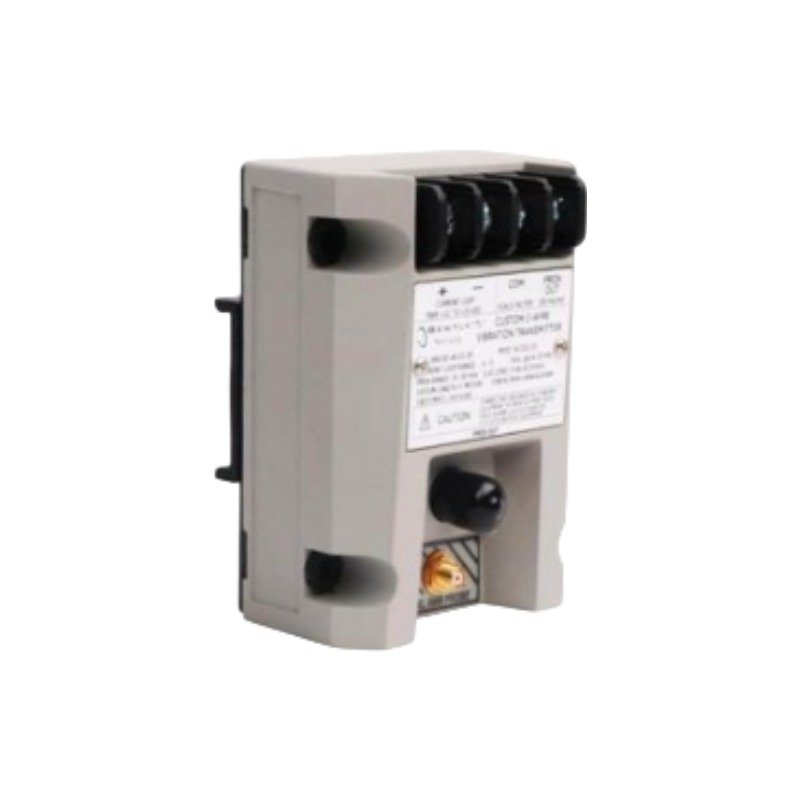

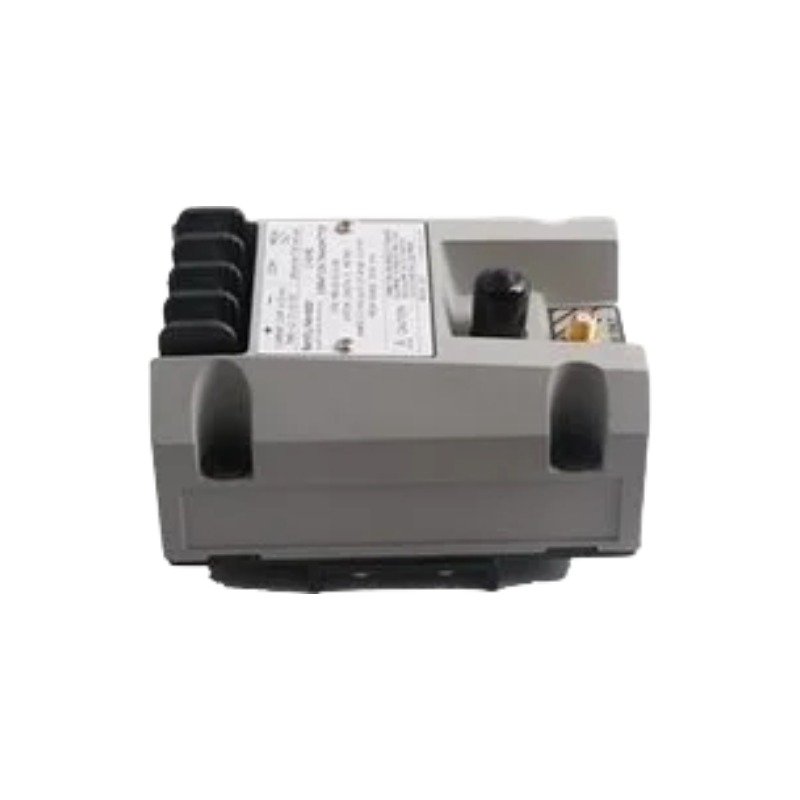

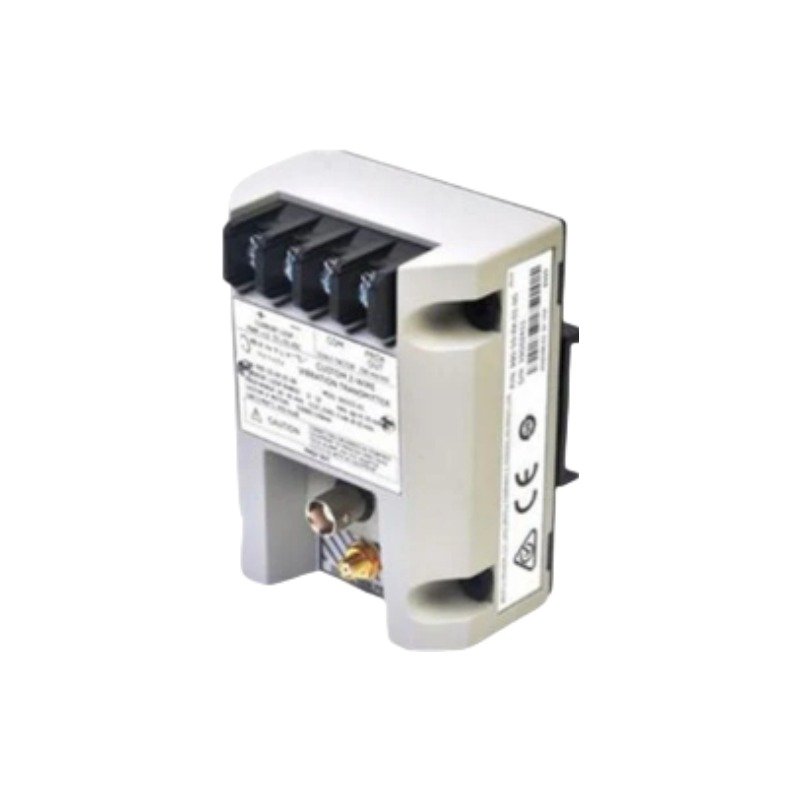

The Bently Nevada 991-25-XX-01-CN serves as the primary 991 Thrust Transmitter utilized to execute non-contacting axial position and thrust displacement measurements across machine monitoring platforms. Specifically, the transmitter conditions high-frequency electrical signals from an eddy-current probe system and subsequently modulates a linear 4-20 mA current loop proportional to the mechanical gap. Consequently, this design executes the direct delivery of critical thrust metrics to distributed control systems (DCS) or programmable logic controllers (PLC) without requiring an intermediate monitoring rack.

Hardware Specifications

Eddy-Current Probe Scaling and Transducer Dynamics

The Bently Nevada 991-25-XX-01-CN utilizes precise eddy-current probe scaling to monitor axial shaft movement and analyze complex rotor dynamics under varying load profiles. During commissioning, engineers perform gap voltage validation (-10 VDC targets) within the specified linear operational range, thereby verifying the exact electrical zero-point. Furthermore, the internal electronics deploy integrated cross-talk suppression circuitry; as a result, the hardware minimizes electromagnetic interference even when multiple sensor lines run through parallel wire conduits.

Frequently Asked Questions

Q: What structural parameters do the “25” and “-CN” designations define in this hardware profile?

A: The “25” designation configures the internal scaling for a 25-0-25 mils full-scale operational range, while the “-CN” suffix indicates localized regulatory approval and certification compliance for the Chinese industrial market.

Q: How does the internal protection circuit handle standard loop wiring faults?

A: The input circuit topology includes diode protection to resist reverse polarity damage. In addition, the system incorporates a fault line interface that drops the loop current below 3.6 mA if an open or shorted probe connection occurs.

Field Installation Guidelines

• Shielding and Grounding: First, terminate the coaxial extension cable shield securely at the transmitter housing terminal block. Afterward, ground the overall 4-20 mA field wiring shield at a single point inside the control room instrument panel to mitigate ground loop noise.
• Conduit Separation: Always route all sensor proximity probe leads and transmitter current loop cables inside dedicated, isolated metal conduits. In addition, avoid running signal wiring parallel to high-voltage AC lines or variable frequency drive (VFD) paths.
• Mechanical Orientation: Install the transmitter housing on a standard 35 mm DIN rail or, alternatively, bolt it directly to a flat panel. For installations in environments with high humidity or chemical exposure, mount the assembly inside an enclosure rated IP54 or higher.
