Description

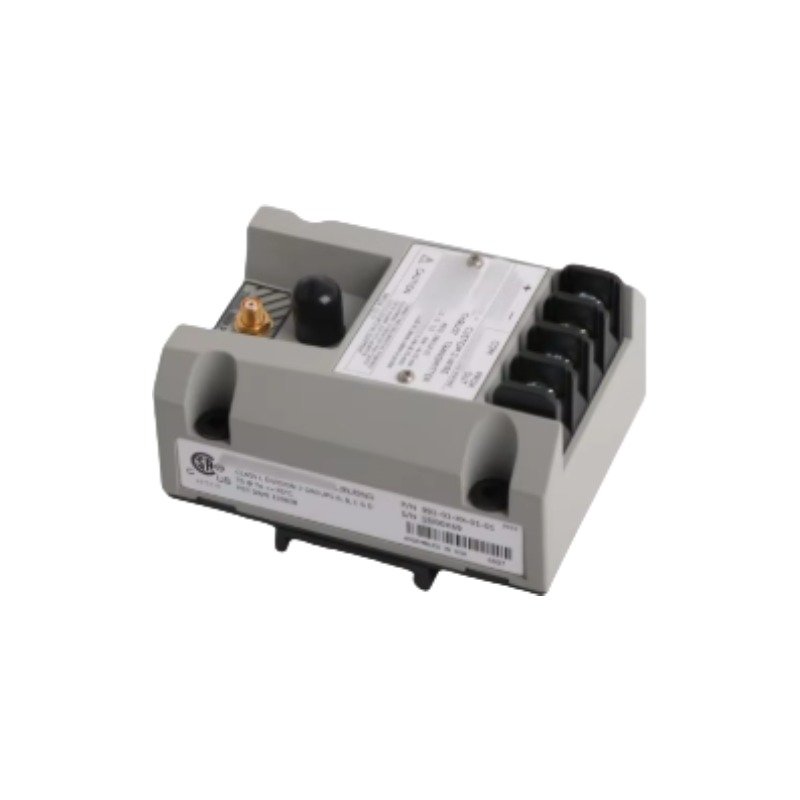

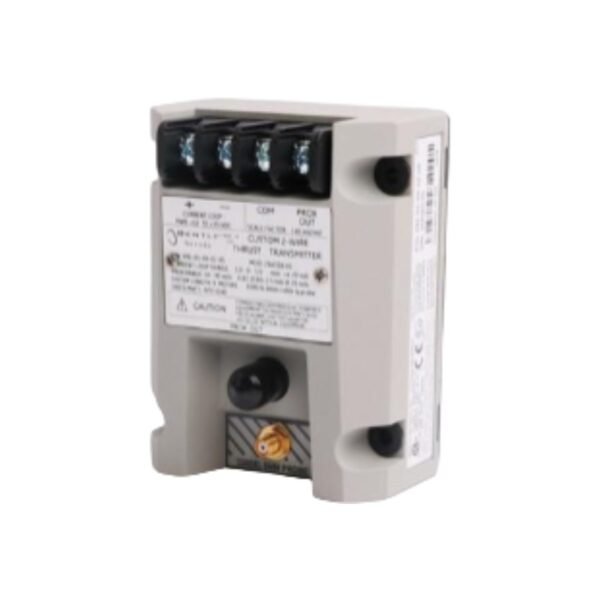

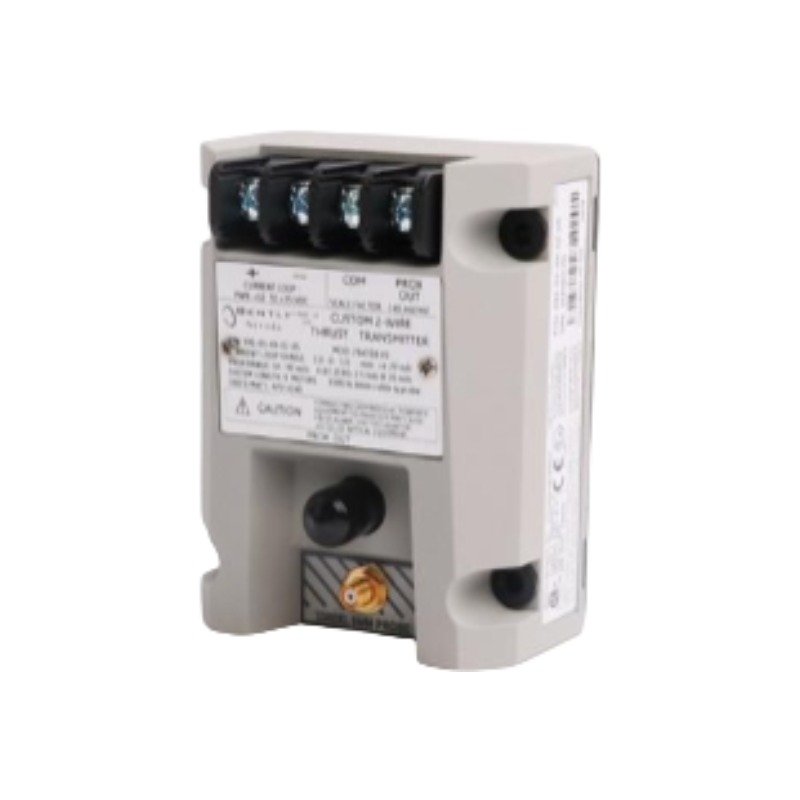

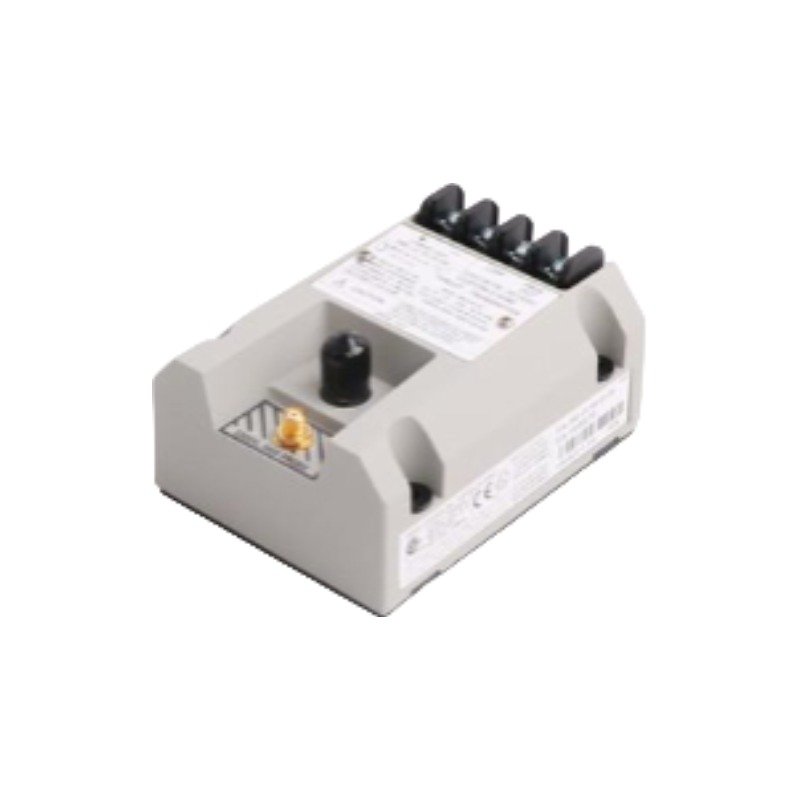

The Bently Nevada 991-01-xx-01-00 mod 284318-01 operates as a loop-powered 991 Thrust Transmitter engineered for non-contacting axial position and thrust displacement measurements. By integrating proximity sensor technology directly into its rugged housing, the device conditions raw radio frequency (RF) signals from an eddy-current probe system into a linear 4-20 mA DC current loop. Consequently, it delivers critical axial position metrics directly to a distributed control system (DCS) or programmable logic controller (PLC) without requiring an intermediate monitoring rack.

Hardware Specifications

Eddy-Current Probe Scaling and Transducer Dynamics

The Bently Nevada 991-01-xx-01-00 mod 284318-01 utilizes precise eddy-current probe scaling optimized for a 3300 NSv proximity probe system, making it ideal for restricted target spaces or counterbore areas. During commissioning, engineers perform gap voltage validation (-10 VDC target at the raw BNC output) within the calibrated linear range to guarantee proper mechanical alignment. The internal electronics provide a raw “Prox Out” linear range with an incremental scale factor of 7.87 V/mm (200 mV/mil), enabling direct thrust waveform and gap voltage monitoring through external diagnostic tools.

Frequently Asked Questions

Q: What specific layout parameters do the options in this hardware configuration define?

A: The “-01” full-scale range code configures the internal scaling for a 25-0-25 mils operational thrust range. The “-xx” denotes the total system length option (matched to either 5.0m or 7.0m probe/cable variants). The “-01” mounting code designates integrated 35 mm DIN-rail mounting clips, and “-00” indicates no specialized agency approvals are selected.

Q: What does the “mod 284318-01” designation indicate for this specific transmitter model?

A: The “mod 284318-01” denotes a specialized manufacturer modification that adapts internal circuitry behavior and environmental potting properties. It optimizes loop performance, structural sealing, and line transient defenses under specific OEM application demands—such as centrifugal compressor packages—while maintaining the baseline 991 technical specifications.

Field Installation Guidelines

• Shielding and Grounding: First, terminate the coaxial extension cable shield securely at the transmitter housing terminal block. Afterward, ground the overall 4-20 mA field wiring shield at a single point inside the control room instrument panel to mitigate ground loop noise.
• Conduit Separation: Always route all sensor proximity probe leads and transmitter current loop cables inside dedicated, isolated metal conduits. In addition, avoid running signal wiring parallel to high-voltage AC lines or variable frequency drive (VFD) paths.
• Mechanical Orientation: Install the transmitter housing on a standard 35 mm DIN rail or, alternatively, bolt it directly to a flat panel. For installations in environments with high humidity or chemical exposure, the potted housing provides robust defense, but mounting inside an enclosure rated IP54 or higher is recommended.
