Description

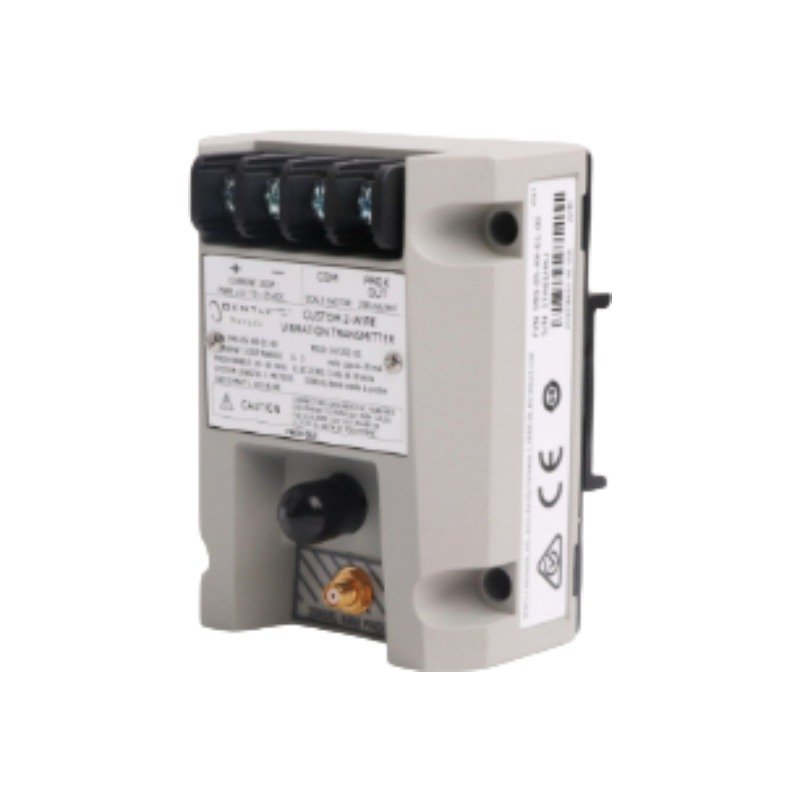

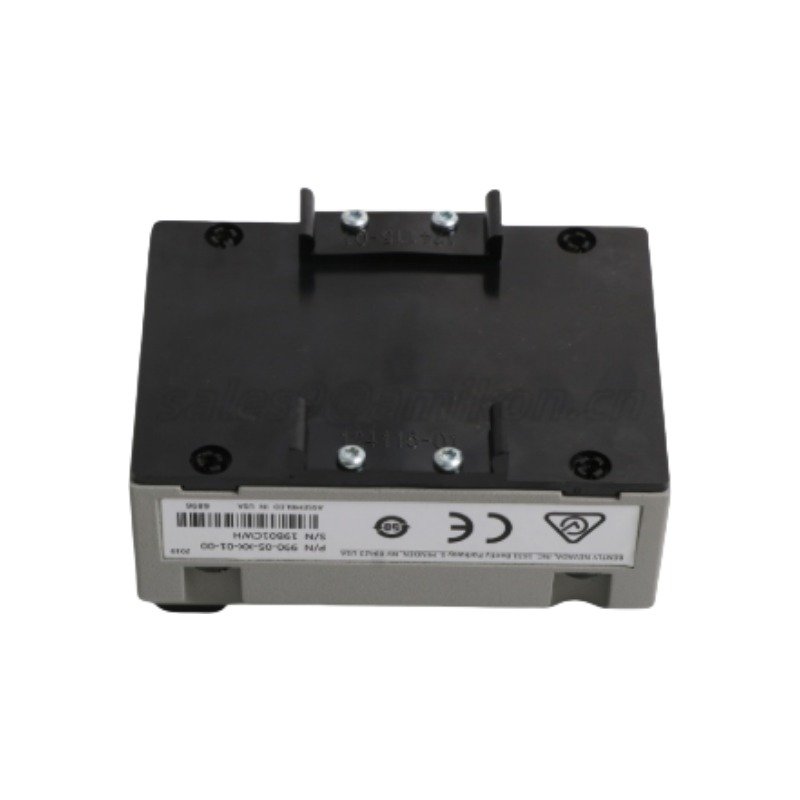

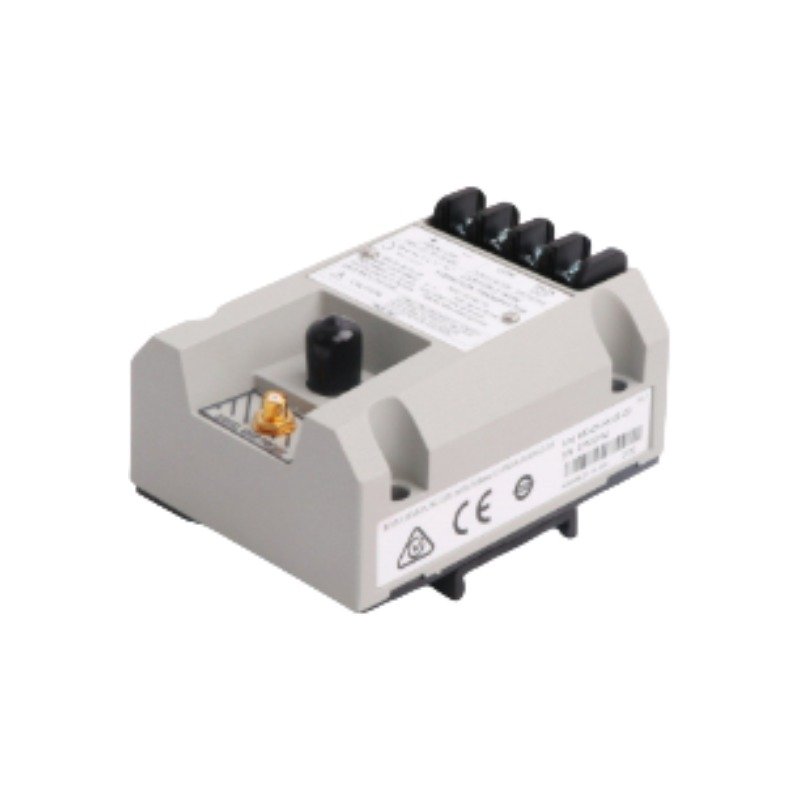

The Bently Nevada 990-05-xx-01-00, also cataloged as the 990 Proximity Transmitter, serves as the primary 990 Product Type utilized to execute non-contacting shaft displacement and vibration measurements across machine monitoring platforms. The hardware processes high-frequency electrical signals from an eddy-current probe system and modulates a linear 4-20 mA current loop proportional to the mechanical gap. It provides a direct interface between rotating machinery components and distributed control systems (DCS) or programmable logic controllers (PLC) without intermediate monitoring instrumentation.

Hardware Specifications

Eddy-Current Probe Scaling and Transducer Dynamics

The Bently Nevada 990-05-xx-01-00 relies on precise eddy-current probe scaling to convert physical gap fluctuations into electrical signals for the analysis of complex rotor dynamics. Field calibration requires gap voltage validation (-10 VDC targets) within the specified linear operational range to verify the electrical zero-point. The internal electronics contain dedicated cross-talk suppression circuitry, which prevents electromagnetic interference and signal degradation when multiple transmitters or probe lines run through shared channels or are mounted in close proximity on the machine casing.

Frequently Asked Questions

Q: What is the significance of the “mod 165335-01” designation on this 990 transmitter?

A: The “mod 165335-01” indicates a specific mechanical or electrical modification to the base hardware architecture, which alters the standard target material calibration or structural dimensions to accommodate specialized machine monitoring criteria.

Q: Is the 4-20 mA loop protected against reverse polarity installation errors?

A: Yes. The input and loop circuit topology includes diode protection to prevent damage to internal components if the 12 to 35 VDC power supply leads are inadvertently reversed during field wiring installation.

Field Installation Guidelines

• Shielding and Grounding: Terminate the coaxial extension cable shield securely at the transmitter housing terminal block. Ground the overall 4-20 mA field wiring shield at a single point inside the control room instrument panel to mitigate ground loop noise.
• Conduit Separation: Route all sensor proximity probe leads and transmitter current loop cables in dedicated, isolated metal conduits. Keep signal wiring separated from high-voltage AC lines or variable frequency drive (VFD) output paths to maintain signal integrity.
• Environmental Considerations: For installations in environments with high humidity, chemical exposure, or outdoor placement, mount the transmitter assembly inside an enclosure rated IP54 or higher.
