Description

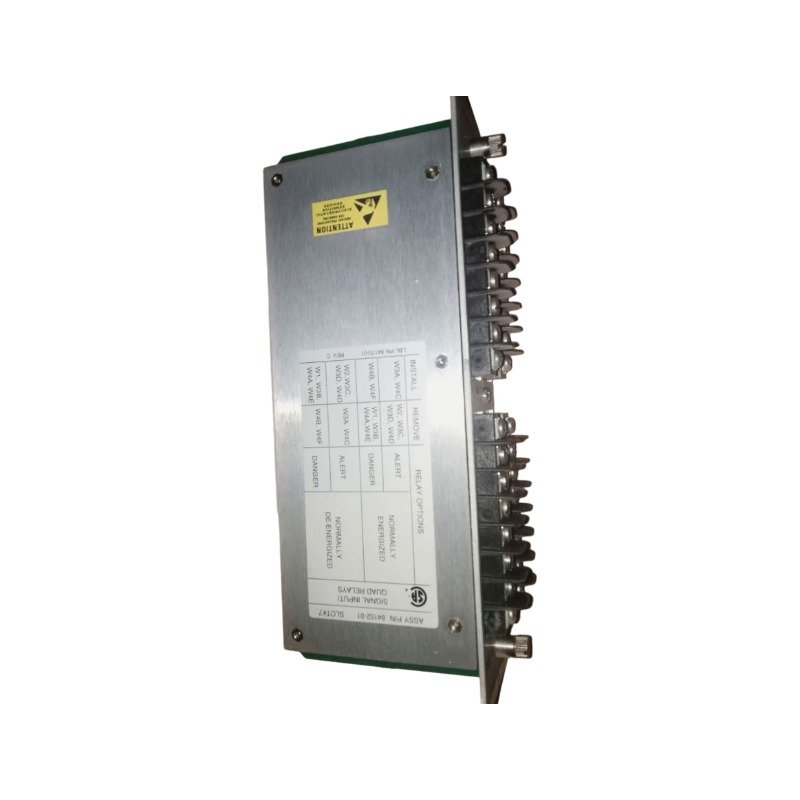

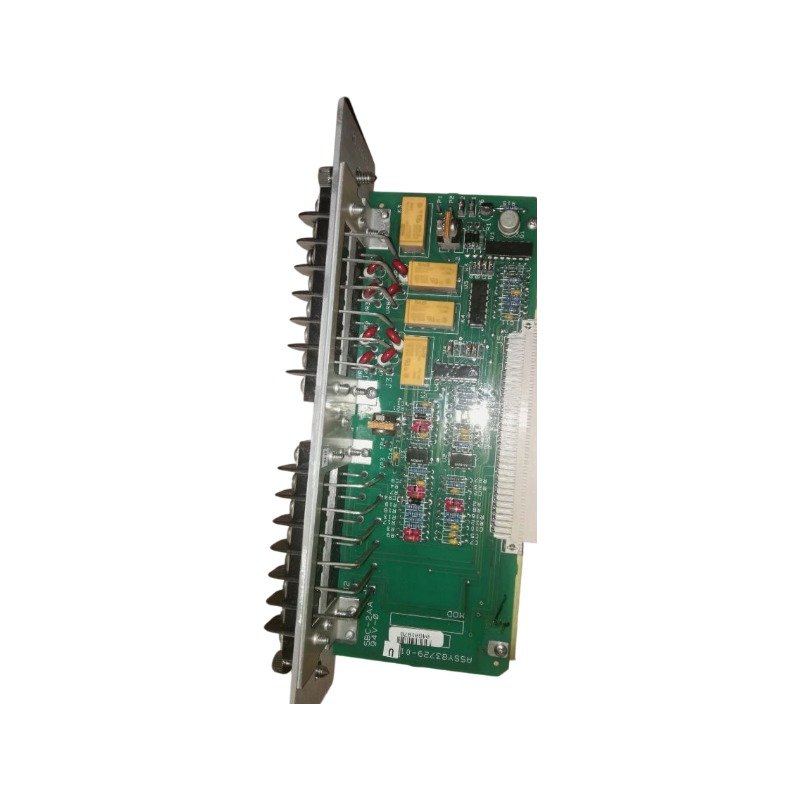

The Bently Nevada 84170-01, also cataloged as the 84170-01 Signal Input Quad Relay Module, operates as a dedicated hardware component for machinery protection alert routing within 3300 Series monitoring platforms. Specifically, this backplane-mounted execution card intercepts processed trip commands directly from front-panel vibration or axial position monitors. Consequently, the board actuates four independent physical relay channels to initiate automated emergency machinery shutdowns or activate external alarm annunciators. Furthermore, this hardwired interface establishes direct, deterministic electrical paths to eliminate software latencies during critical asset protection events.

Hardware Specifications

Eddy-Current Probe Scaling and Mechanical Validation

Because this module controls the final physical shutdown loops, its internal electrical stability directly affects the integrity of surrounding instrumentation. Any unexpected power surges or ground variations through the relay contacts can induce noise backward into the rack backplane, potentially disrupting eddy-current probe scaling and overall sensor linearity in adjacent slots. To prevent this, the Bently Nevada 84170-01 incorporates internal galvanic isolation and heavy trace shielding to keep dynamic transducer signals clean.

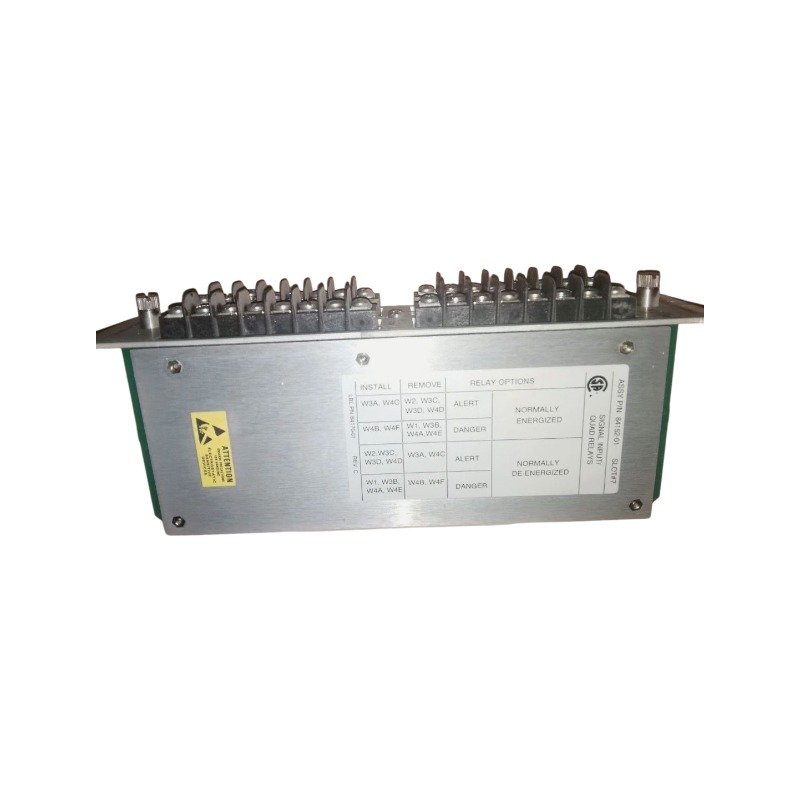

During system commissioning, field engineers perform gap voltage validation on the corresponding proximity loops to confirm a stable -10 VDC baseline before arming the relay circuits. Technicians utilize the module-level jumpers to define the fail-safe state execution, configuring each relay for either Normally Energized (NE) or Normally De-energized (NDE) operation. When configured in the NE state, any complete loss of rack operating power instantly drops the relay contacts, executing an automatic fail-safe trip that protects the rotating machine from unmonitored operation.

Frequently Asked Questions

Q: Can you replace the 84170-01 module while the 3300 rack is powered and online?

A: No, you must de-energize the rack or explicitly bypass all downstream trip circuits before removing this module. Pulling the relay card under load interrupts the armed protection circuits, which can cause an inductive arc across the backplane connectors or trigger an accidental machinery shutdown.

Q: How do the contact ratings change if the relay loop switches an inductive load instead of a resistive load?

A: Switching inductive loads like heavy solenoids or trip coils creates high-voltage counter-electromotive force (EMF) when the contacts open. This action significantly accelerates contact erosion, so you must de-rate the contacts to 2 A or install external arc-suppression diodes across the load to maintain the standard operational lifespan.

Field Installation Guidelines

• Confirm that the 3300 monitor rack is fully de-energized and that all automated voting logic is safely bypassed before inserting the module into its chassis slot.
• Strip all field-side relay wiring back by exactly 7 mm, ensuring that no uninsulated or loose copper strands extend past the edge of the terminal clamping block.
• Secure the terminal block connections using a 3.5 mm flathead torque screwdriver, tightening each terminal screw to a maximum specification of 0.5 Nm.
• Maintain a minimum physical separation distance of 50 mm between the high-voltage relay output cables and the low-voltage analog transducer input cables within the enclosure wiring trays.
• Connect the common ground bus bar directly to a clean, low-impedance instrument earth point, keeping the relay shield isolated on the field device side to prevent cross-talk loops.
