Description

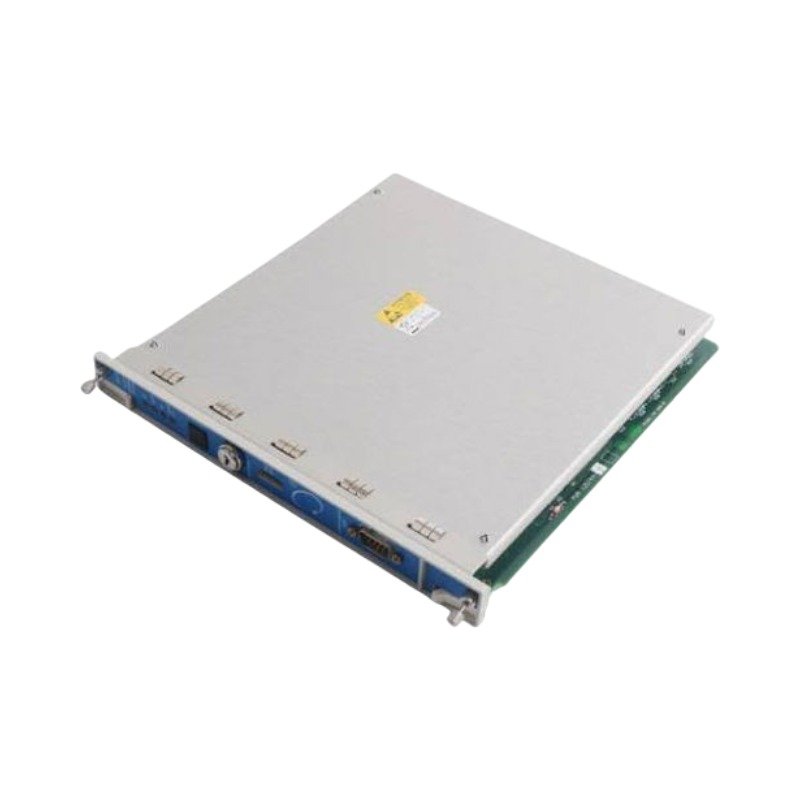

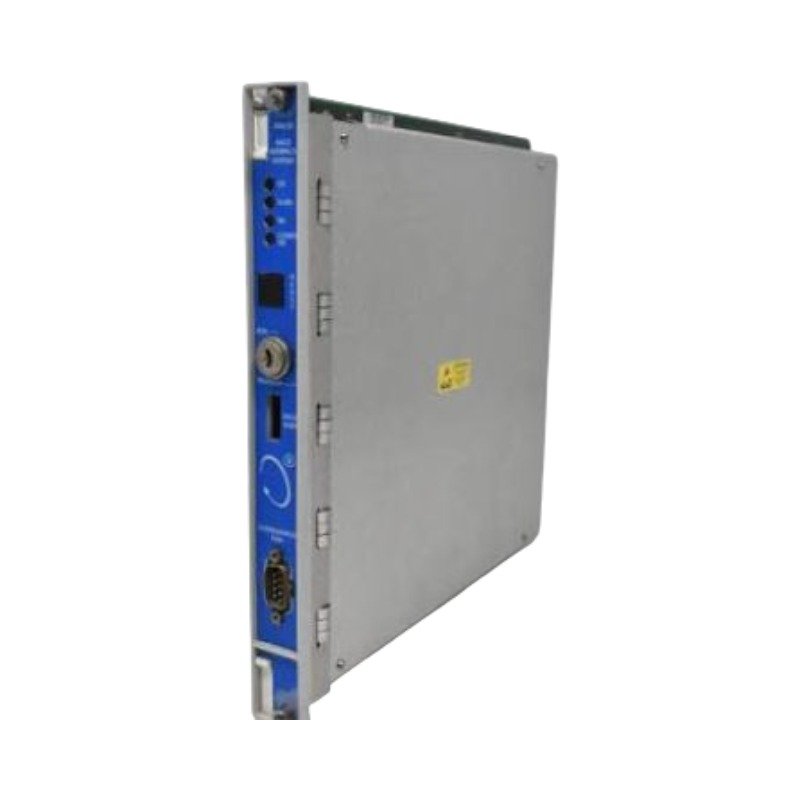

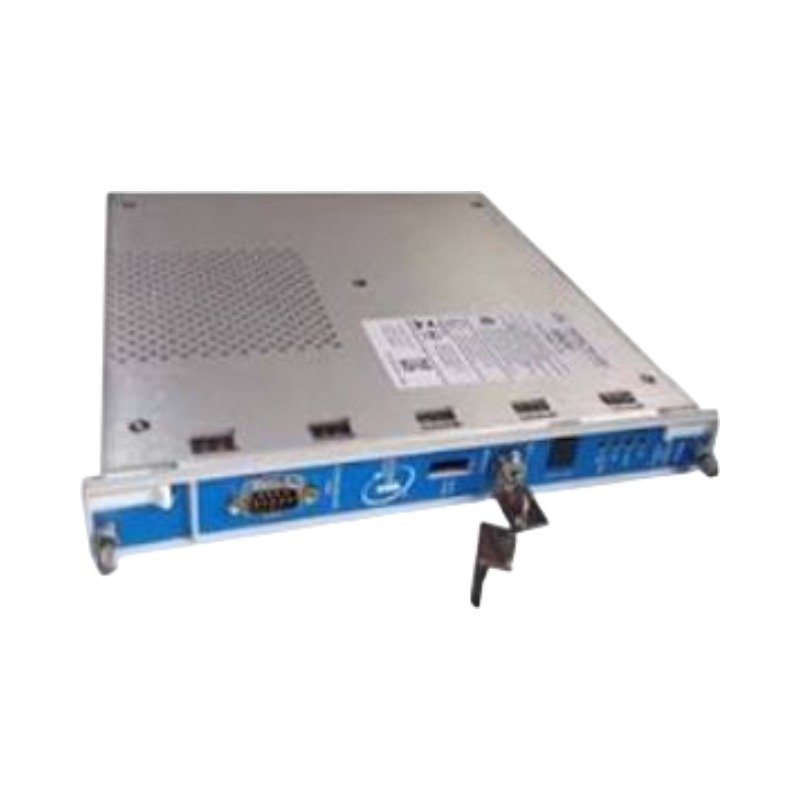

The Bently Nevada 125744-01, also cataloged as the 125744-01 Proximity Transducer Interface Module, operates as a dedicated hardware component for dynamic displacement processing within 3500 Series machinery protection networks. Specifically, this rack-mounted termination module routes the high-frequency analog signals generated by proximity sensors directly into the main monitoring backplane. Consequently, the hardwired connection passes raw vibration and position waveforms while maintaining a continuous electrical path for real-time digital filtering. Furthermore, the passive structural layout ensures maximum signal throughput accuracy with negligible phase insertion loss across all operating frequencies.

Hardware Specifications

Eddy-Current Probe Scaling and Mechanical Validation

Because this module handles high-frequency displacement signals, its internal structural layout directly impacts eddy-current probe scaling and overall sensor linearity. Any impedance anomalies or unshielded paths within the terminal circuitry degrade the calibrated 200 mV/mil scaling factor required by standard proximity probes. To prevent this, the Bently Nevada 125744-01 isolates each channel via tight traces to maintain high cross-talk suppression between adjacent sensor loops.

During system commissioning, field engineers perform gap voltage validation to ensure the transducer operates in its linear range. Technicians hook a digital multimeter directly to the front-panel coaxial buffered ports or the rear terminal blocks to verify a stable -10 VDC target, representing the exact center point of the electrical clearance gap. This physical monitoring architecture allows troubleshooting of rotor dynamics and shaft centerline movement without interrupting the online machinery protection loops.

Frequently Asked Questions

Q: Can field technicians remove or replace the 125744-01 module while the 3500 rack remains powered?

A: No, you must de-energize the monitoring system or place the associated protection channels into bypass mode before extracting this module. Pulling the interface card under load breaks the proximity loop connection, which immediately triggers an open-circuit fault and can initiate an accidental machinery shutdown.

Q: How does the module prevent electrical noise from corrupting the dynamic vibration readings?

A: The module incorporates a dedicated low-impedance ground plane that links the individual cable shields together. This design successfully drains electromagnetic interference to instrument ground before the noise can modulate the low-voltage DC signals coming from the field proximitors.

Field Installation Guidelines

• Confirm that the 3500 chassis is completely de-energized and that all automated shutdown voting logic is bypassed before sliding the card into the rear slot.
• Strip the field proximitor cables back by exactly 6 mm, ensuring that no stray copper strands remain exposed outside the terminal block shell.
• Secure the wire connections into the removable terminal blocks using a small flathead screwdriver, tightening the screws to a maximum specification of 0.4 Nm.
• Maintain a physical separation of at least 300 mm between the low-voltage sensor input wiring and high-voltage AC utility lines to prevent inductive noise coupling.
• Ground the outer cable shield at the 125744-01 terminal block only, leaving the field sensor end completely floating to eliminate potential ground loops.
