Description

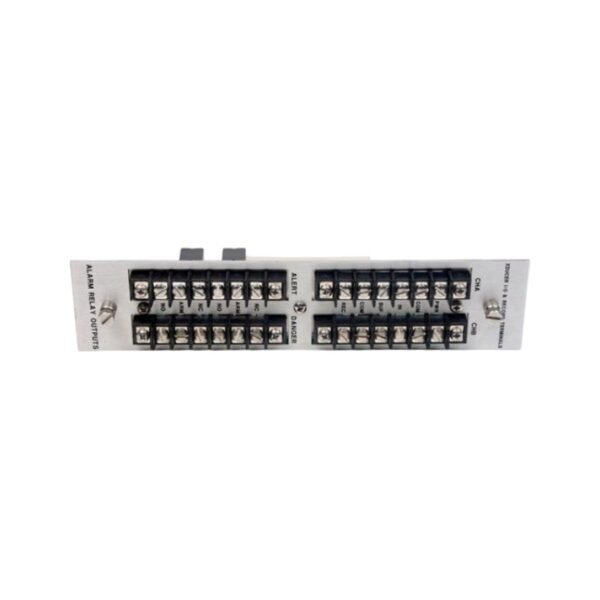

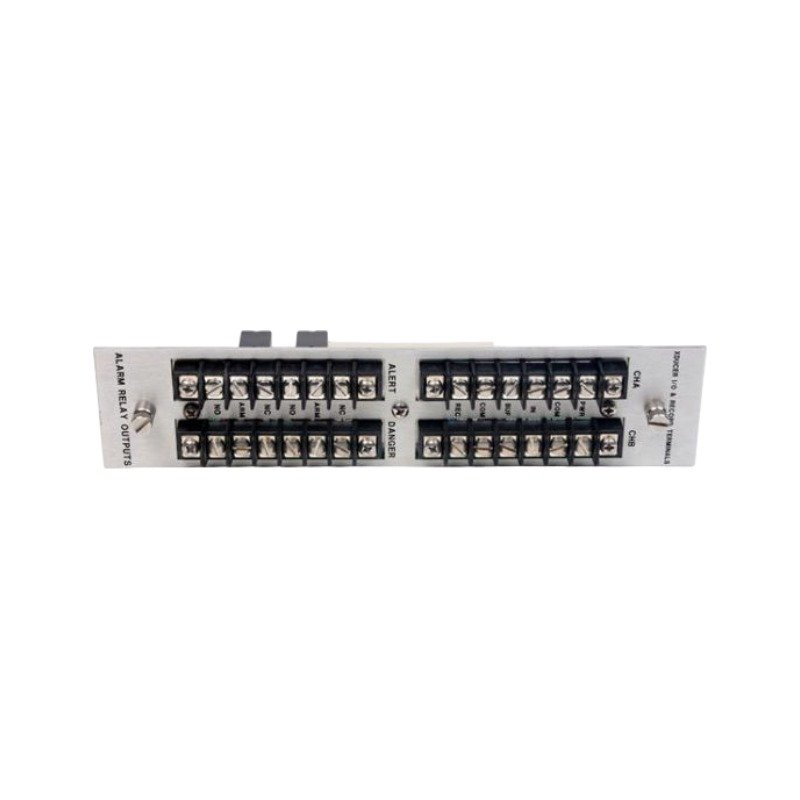

Configured for discrete signal acquisition and alarm relay actuation in 3300 Machinery Protection System networks, the Bently Nevada 81545-01 (81545 Terminal Module) provides direct physical/electrical execution.

Hardware Specifications

Rotor Dynamics Cross-Talk Suppression

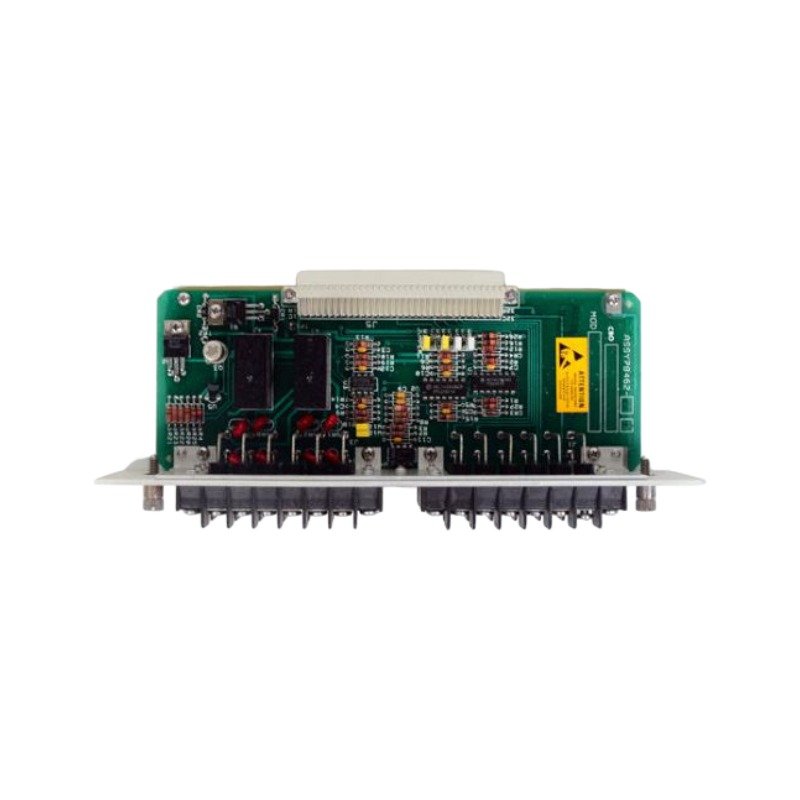

To protect critical vibration loops tracking high-velocity rotor dynamics, this module incorporates hardware-driven cross-talk suppression paths. Specifically, the board architecture routes raw transducer (XDCR) signals and recorder outputs through independent, isolated traces. This design blocks inductive noise from spreading between channels, allowing adjacent modules to perform accurate gap voltage validation down to target -10 VDC baselines. Furthermore, the galvanic isolation barrier prevents field-side ground loops from penetrating the digital backplane bus, ensuring pristine data capture for complex eddy-current probe scaling metrics.

Frequently Asked Questions

Q: Which specific front-mount modules utilize the 81545-01 rear terminal card?

A: The 81545-01 interfaces primarily as the designated rear I/O termination layer for legacy 3300 series monitors. Specifically, it supports the 3300/20 Dual Thrust Position Monitor, 3300/25 Dual Acceleration Monitor, and 3300/45 Dual Differential Expansion Monitor.

Q: Can engineers hot-swap this rear terminal block while the main rack is fully energized?

A: No, field personnel must power down the specific chassis slot or the entire rack before removing the rear I/O card. Because the screw terminals handle active 5 Amp relay contact lines and raw sensor power distribution, disconnecting the card-edge interface under load risks causing electrical arcing or accidental machinery trips.

Field Installation Guidelines

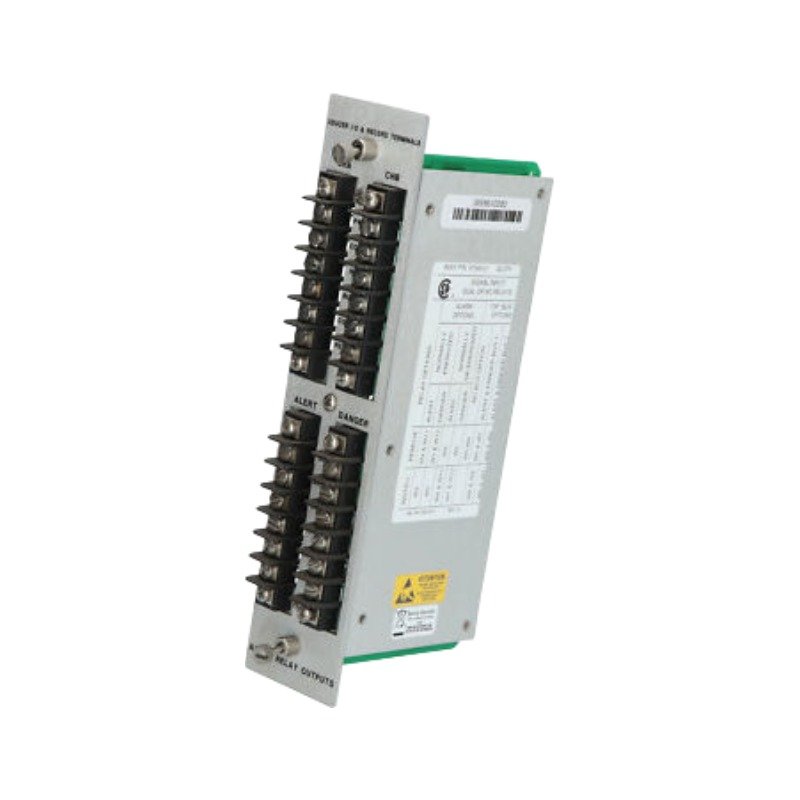

Technicians must install the 81545-01 module into the rear slot of the 3300 instrument chassis directly matching the corresponding front-mounted monitor module. First, confirm that the backplane card-edge alignment rails remain clear of dirt or particulate accumulation. Next, slide the module firmly into the slot until the gold-plated edge fingers fully seat inside the chassis backplane connector. Afterward, tighten the upper and lower captive mounting screws to achieve structural grounding. When executing field wiring, terminate transducer lines via the dedicated high-retention screw terminals and route recorder outputs separately from AC power lines. Finally, verify that the outer shields of the transducer cables ground at the chassis hub to eliminate stray electromagnetic frequency induction.
