Description

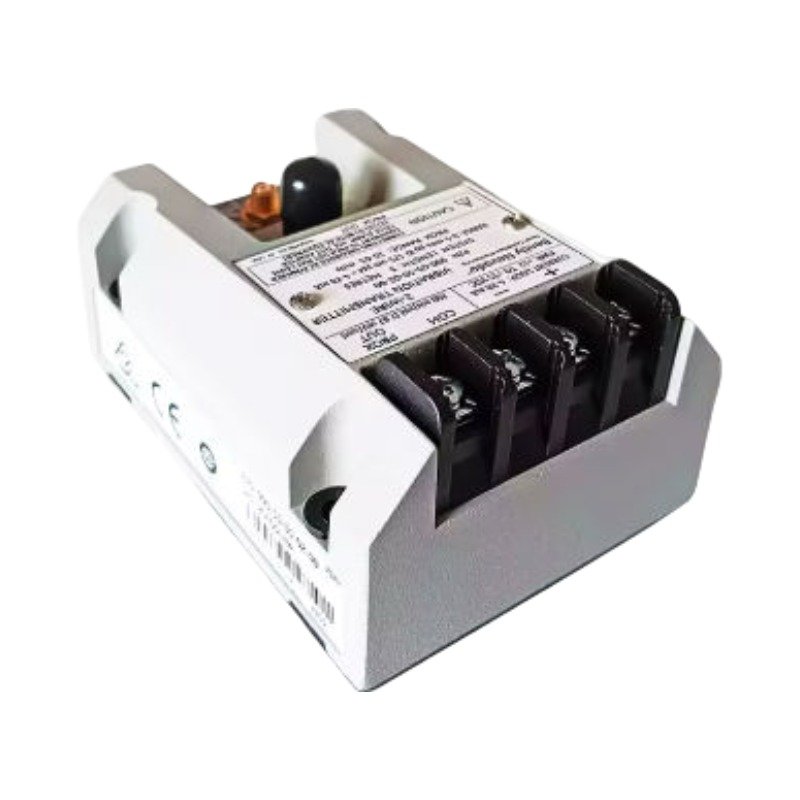

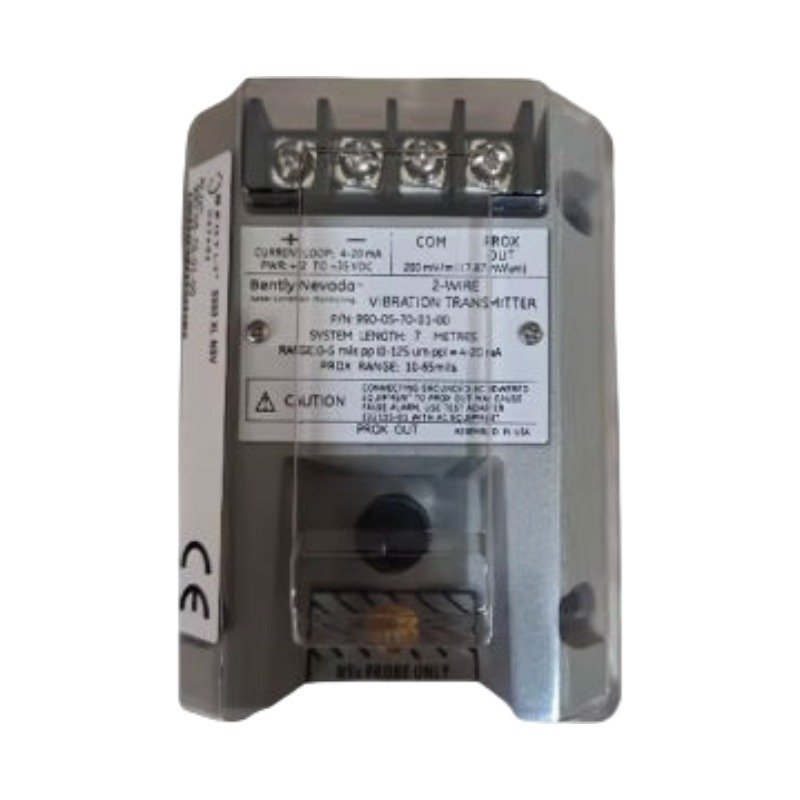

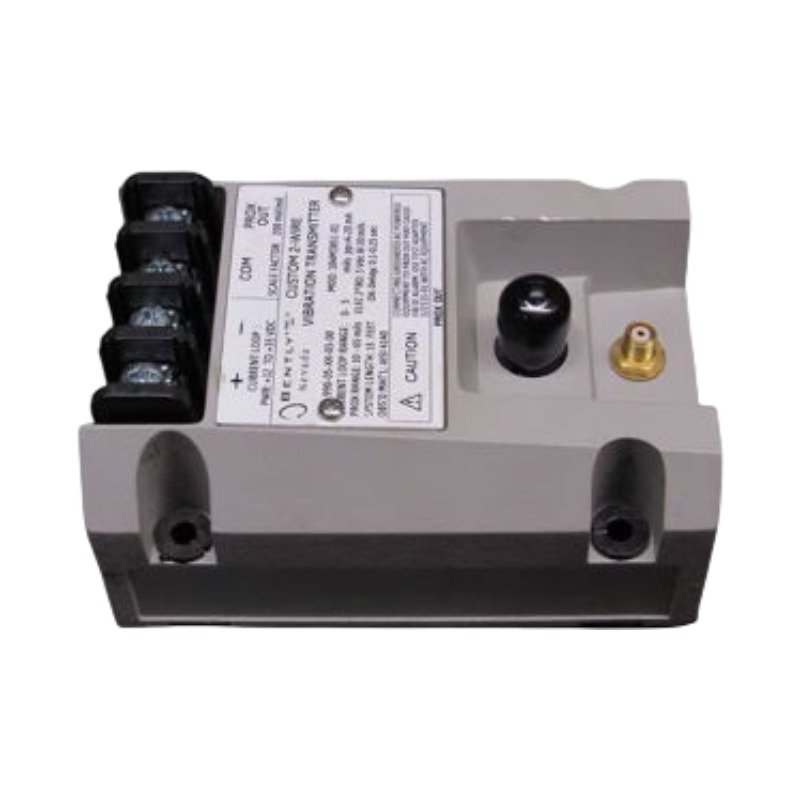

The Bently Nevada 792414506-04, also cataloged as the 792414506-04 Vibration Transmitter, serves as the primary 792414506 Vibration Transmitter utilized to execute real-time machine casing vibration processing across industrial machinery platforms.

Hardware Specifications

Hardware-Level Signal Conditioning and Rotor Dynamics Transmission

The internal circuit assembly filters and rectifies high-frequency structural acceleration vectors received from housing-mounted sensors. Consequently, the module updates a continuous, linearized 4-20 mA analog tracking signal, accelerating raw field data delivery to host control platforms. While adjacent proximity sensors carry out eddy-current probe scaling and continuous gap voltage validation (-10 VDC targets), this standalone loop-powered transmitter bypasses centralized rack hardware altogether to supply basic casing velocity metrics. Furthermore, the robust metal architecture achieves comprehensive cross-talk suppression by stabilizing internal signal pathways, ensuring high-frequency electromagnetic field lines do not distort concurrent rotor dynamics trend logging.

Frequently Asked Questions

Q: Can the 792414506-04 transmitter drive a 4-20 mA control loop directly over long field distances?

A: Yes, because the output is a low-impedance 4-20 mA analog current loop rather than a raw voltage wave, the transmitter can drive industrial instrumentation cables up to 300 meters without experiencing significant signal attenuation or line drop errors.

Q: How do technicians alter the full-scale velocity or acceleration metrics on this transmitter?

A: The 792414506-04 configuration parameters are fixed during manufacturing based on the chosen dash suffix option (-04). Technicians cannot field-adjust or reprogram the internal scale values; changing the full-scale range requires physical unit replacement.

Field Installation Guidelines

• Enclosure Mechanical Grounding: Thread the transmitter housing directly into a rigid mechanical stud structure on the machinery casing to guarantee unattenuated high-frequency vibration transmission.
• Cable Gland Strain Relief: Fasten the external cable gland assembly tightly to verify the IP67 moisture block and prevent structural wire pulling from damaging internal screw terminals.
• Shield Line Termination: Terminate the continuous wire shield solely at the destination programmable logic controller (PLC) or distributed control system (DCS) ground bus. Do not ground the shield at the transmitter body, preventing inductive ground loops.
• Conduit Moisture Mitigation: Install external field conduits with a distinct low-point drop loop immediately preceding the entry fitting to ensure that ambient condensation runs away from the junction point.
