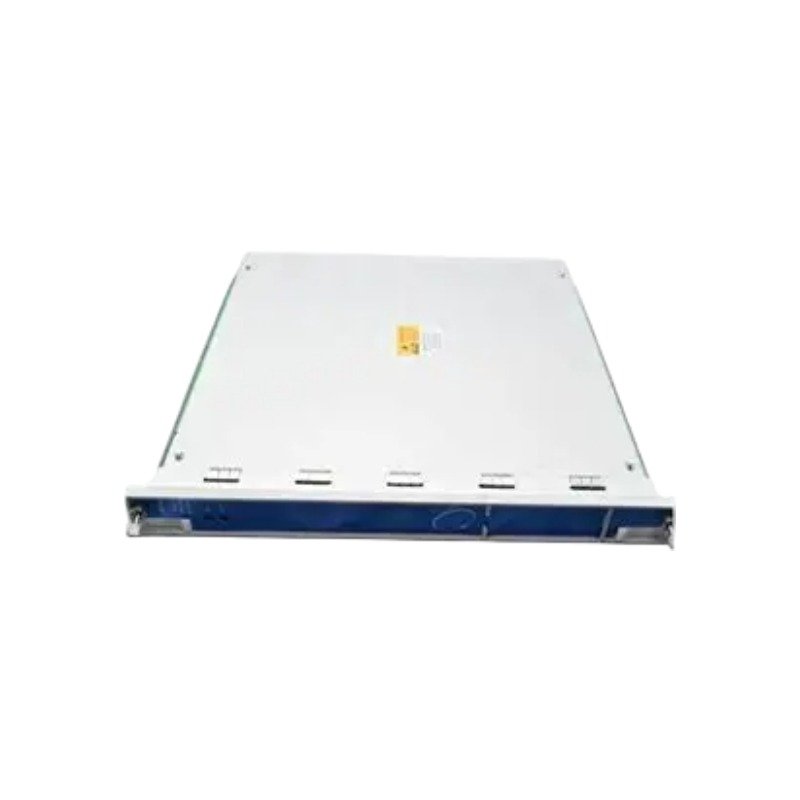

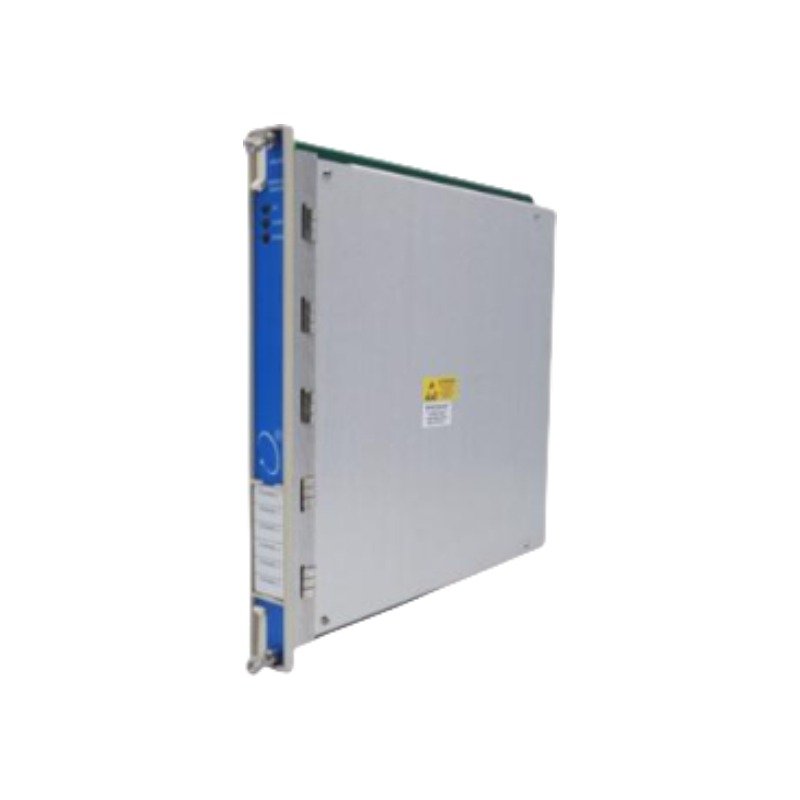

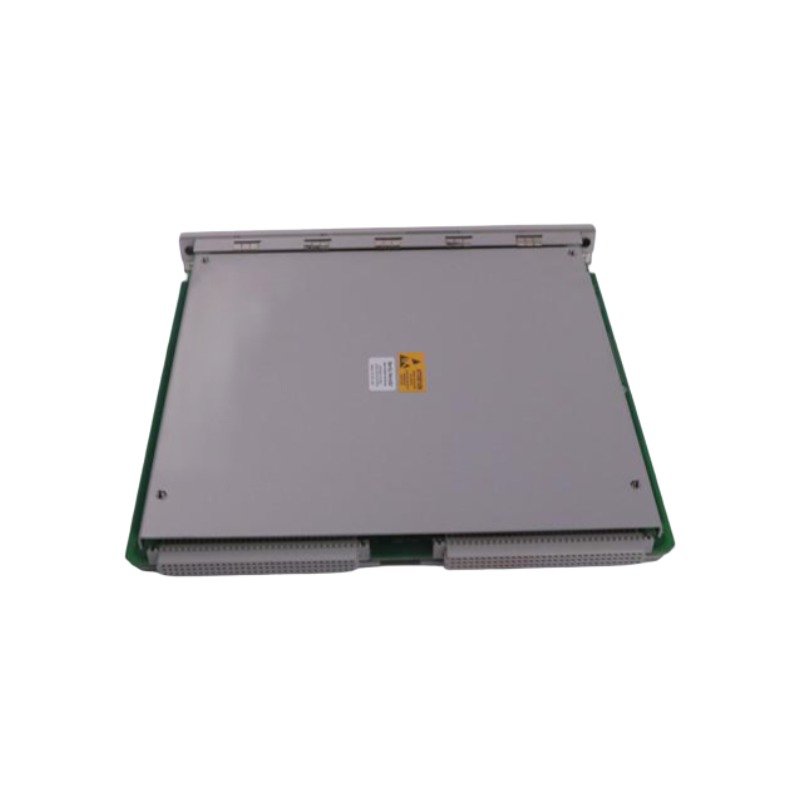

Bently Nevada 3500/94 161264-01 Display Monitor Module

Bently Nevada_Logo
Category: SKU: 3500/94 161264-01 Tags: ,
0 reviews

The Bently Nevada 3500/94 161264-01 is a Display Monitor Module for 3500 rack systems. Available Brand New, Original Stock with Global Shipping.

Description

The Bently Nevada 3500/94 161264-01, also cataloged as the 161264-01 Display Monitor Module, operates as a dedicated hardware component for localized data visualization within 3500 Machinery Protection System platforms. This full-height module collects system parameters from the rack backplane to drive external industrial display interfaces. Consequently, the hardware delivers real-time machinery data tracking without loading the primary machinery protection control loops.

Hardware Specifications

ParameterSpecification
Model3500/94 (Main Board: 161264-01)
BrandBently Nevada
OriginUnited States
Weight0.73 kg
Dimensions241.3 x 24.4 x 241.8 mm
Operating Temp-30 to +65 deg C
Power Consumption4.6 watts maximum
Interface TypeSerial Touch and Video Router
Rack Slot LocationAny full-height front monitor slot (except Slots 1 and 2)
Video OutputHigh-resolution analog RGB output
Isolation Rating500 VDC structural backplane isolation

Eddy-Current Probe Scaling and Rotor Dynamics

The processing board actively translates dynamic digital parameters into comprehensive graphical charts, which display direct information regarding machine components regulated by eddy-current probe scaling. When technicians perform field calibration routines, the module functions as a diagnostic checkpoint for gap voltage validation (-10 VDC targets). In addition, the internal graphics processor maintains robust cross-talk suppression during high-throughput screen refreshes. This performance safety measure ensures that plotting complex orbit trajectories or tracking real-time rotor dynamics never introduces processing latency into adjacent API-670 compliant trip circuits.

Frequently Asked Questions

Q: How does the 161264-01 module interface with a touch screen control panel?

A: The hardware routes serial touch command data through a dedicated RS232 port on the accompanying rear I/O module. Therefore, operators can navigate rack data screens directly from the industrial monitor face.

Q: Can this module reside in the same chassis slot as a Transient Data Interface (TDI)?

A: No, the 161264-01 module requires its own dedicated full-height slot allocation. Slot 1 must remain reserved exclusively for the 3500/22M TDI module.

Field Installation Guidelines

  1. Guide the 161264-01 main processor card carefully into any unpopulated front-facing full-height monitor slot of the 3500 rack housing.
  2. Link the specialized multi-conductor interface cable directly from the corresponding rear I/O card to the external display panel before applying power.
  3. Keep the analog video cable assembly under 6.0 meters (20 feet) in length to prevent signal degradation or pixel jitter on the monitor screen.
  4. Route all display communication cables through independent conduit runs to isolate low-voltage data from high-current electrical lines.
  5. Secure both faceplate locking fasteners into the chassis frame to ensure a low-impedance connection to the system earth ground.

Additional information

Weight0.73 kg
Dimensions60 × 50 × 55 mm
