Description

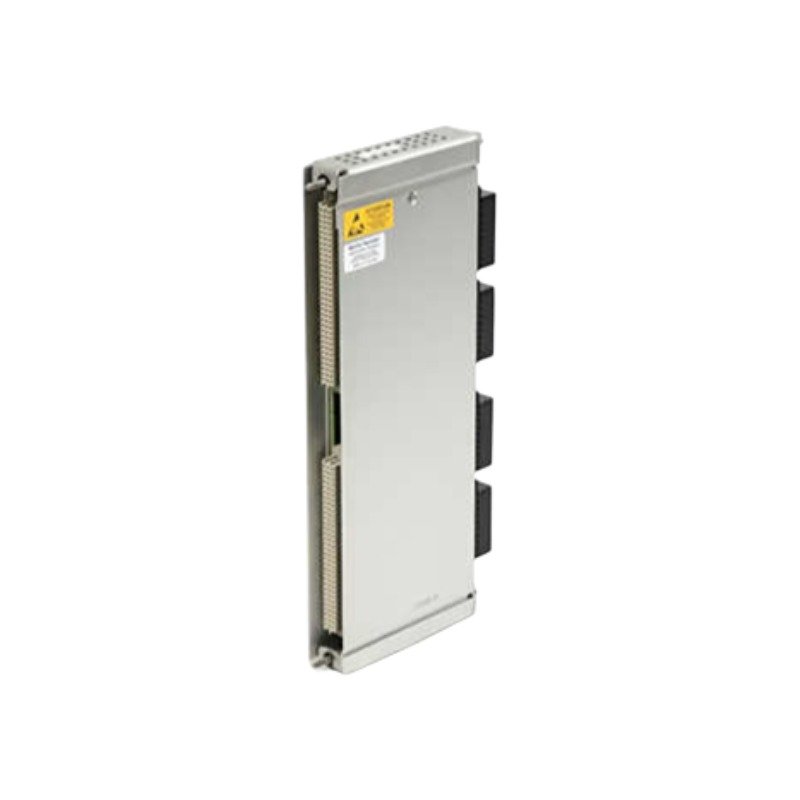

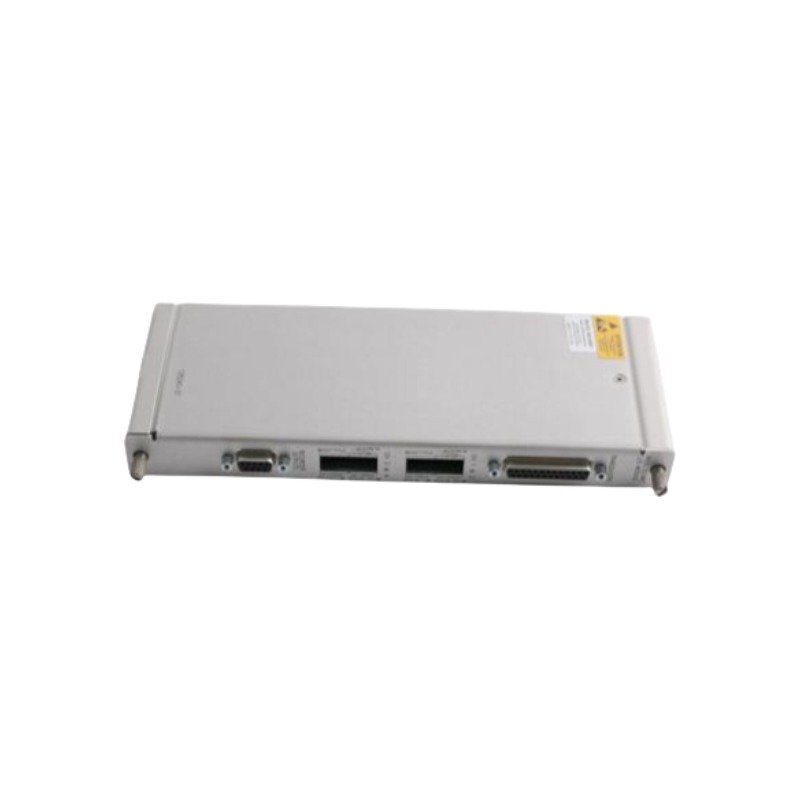

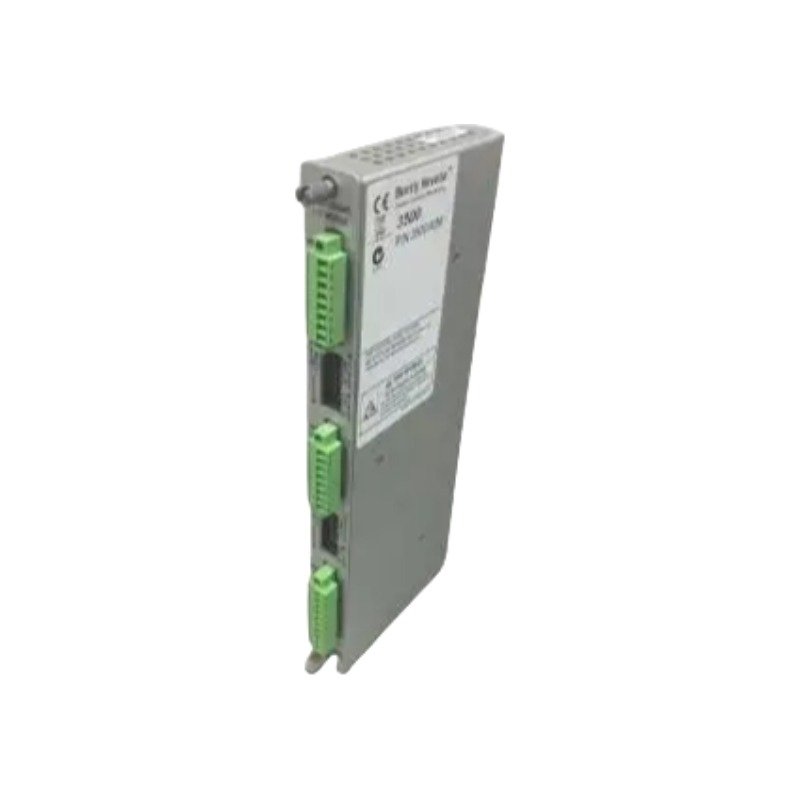

The Bently Nevada 3500/42M 128240-01, also cataloged as the 3500/42M Monitor, serves as the primary 128240-01 Proximitor Seismic Monitor Module utilized to execute continuous vibration and position monitoring across 3500 Machinery Protection System platforms. The module conditions four channels of raw transducer inputs to verify mechanical health indicators against automated threshold logic.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The module samples high-frequency analog streams regulated by standard eddy-current probe scaling matrices, converting voltage shifts of 7.87 V/mm (200 mV/mil) into real-time displacement values. During field configuration, verification routines demand strict gap voltage validation to ensure the connected proximity probe registers standard -10 VDC targets at equilibrium. The internal processor applies advanced filtering algorithms to isolate rotor dynamics while enforcing strict cross-talk suppression between adjacent cards, ensuring high-frequency seismic acceleration loops do not corrupt the radial or axial position protection loops.

Frequently Asked Questions

Q: Can the 3500/42M 128240-01 monitor accept a mix of proximity and seismic sensors simultaneously?

A: Yes. The four channels are software-configurable in pairs, allowing channels 1 and 2 to process proximity inputs while channels 3 and 4 process seismic inputs within the same physical hardware module.

Q: What is the maximum distance allowed between the 128240-01 monitor module and its external I/O termination block?

A: When utilizing external termination wiring, the standard multi-conductor interface cable linking the main monitor card to the external block must not exceed a maximum length of 30 meters (100 feet).

Field Installation Guidelines

1. Guide the 128240-01 monitor card along the chassis rails from the front of the 3500 rack until the backplane connector pins seat completely.
2. Terminate all sensor shield lines at the designated chassis ground studs on the rear I/O module to eliminate ambient industrial noise interference.
3. Configure the designated channel pair parameters within the 3500 Rack Configuration Software prior to changing the module state from bypass to active monitoring.
4. Utilize the front-panel coaxial buffered outputs with standard BNC test equipment to verify dynamic signals without interrupting the active alarm loops.
5. Torquing both front faceplate retention fasteners to the factory frame specification is required to maintain the electrical ground reference loop.
