Description

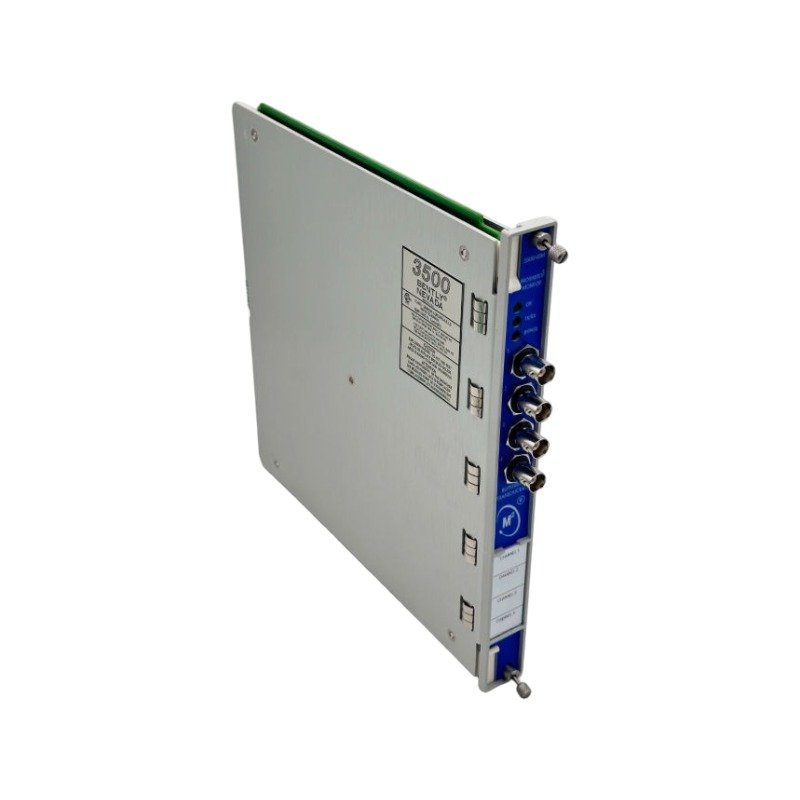

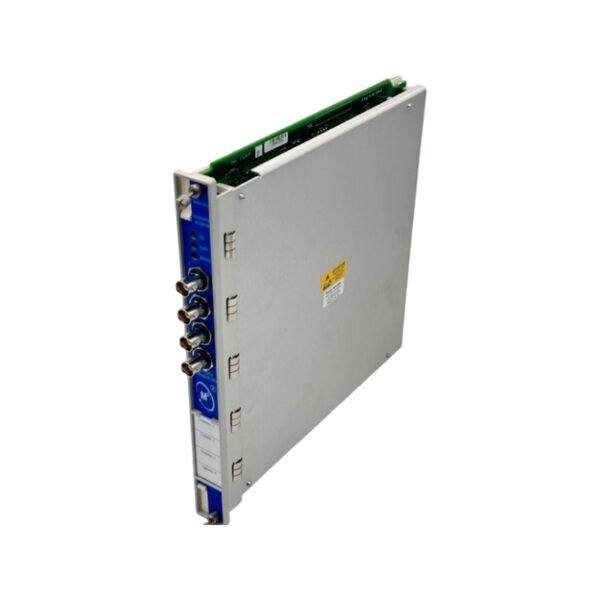

The Bently Nevada 3500/72M, also cataloged as the 3500/72M Recip Rod Position Monitor, operates as a dedicated hardware component for measuring dynamic and static rod position within 3500 Machinery Protection System platforms. This 4-channel device processes inputs from proximity transducers to provide continuous monitoring for reciprocating compressors.

Hardware Specifications

Mechanical Monitoring & Rotor Dynamics Validation

The 3500/72M module facilitates high-precision rod position analysis by conditioning signals from field-side proximity transducers. Initially, the monitor captures raw gap voltages; subsequently, it processes these inputs to derive critical dynamic and static measurements. Engineers must calibrate the transducer gap voltage targets (-10 VDC nominal) to ensure accurate position tracking during machine cycles. Furthermore, the monitor utilizes fixed filtering (1 Hz to 600 Hz for peak-to-peak) to isolate essential reciprocating dynamics from background mechanical noise. Consequently, the system compares these conditioned parameters against user-programmable alarm setpoints, ensuring that compressor wear is detected before reaching critical thresholds.

Frequently Asked Questions

Q: How are alarms managed within the 3500/72M monitoring configuration?

A: Technicians utilize the 3500 Rack Configuration Software to set alert thresholds for each measured value and danger setpoints for any two of the active measured values.

Q: What is the purpose of the 0.09 Hz gap filter?

A: The 3 dB at 0.09 Hz gap filter provides precise low-frequency signal conditioning, which allows the monitor to differentiate between steady-state rod position and high-speed dynamic reciprocating movement.

Field Installation Guidelines

Installation requires inserting the 3500/72M module into the appropriate 3500 rack slot until the backplane connector fully seats. Once installed, secure the front-panel thumb screws to ensure robust electrical grounding through the rack chassis. Technicians must verify that the proximity probe signal leads are correctly terminated at the I/O module to maintain proper gap voltage validation. Before the system enters active protection, configure the input parameters via the 3500 software to match the specific physical sensor distance. Finally, conduct a system loop check to confirm that the rod position data displays accurately within the monitoring station.
