Description

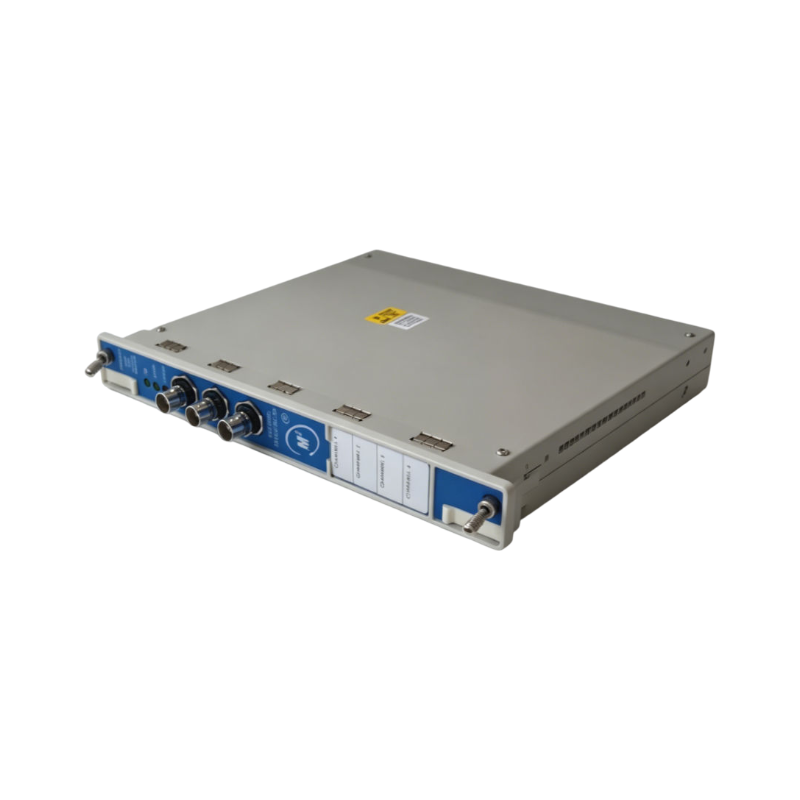

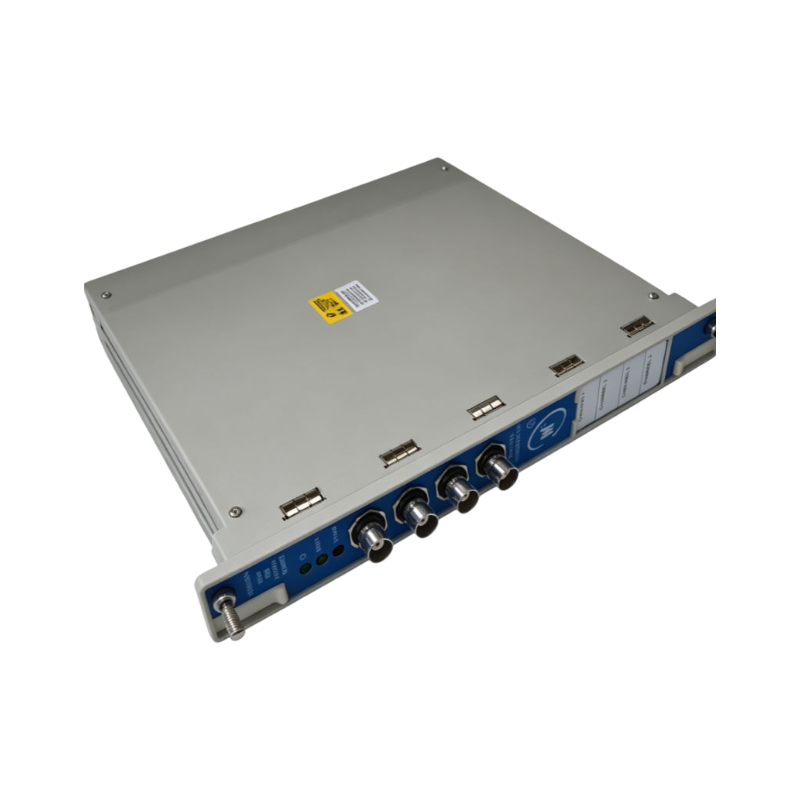

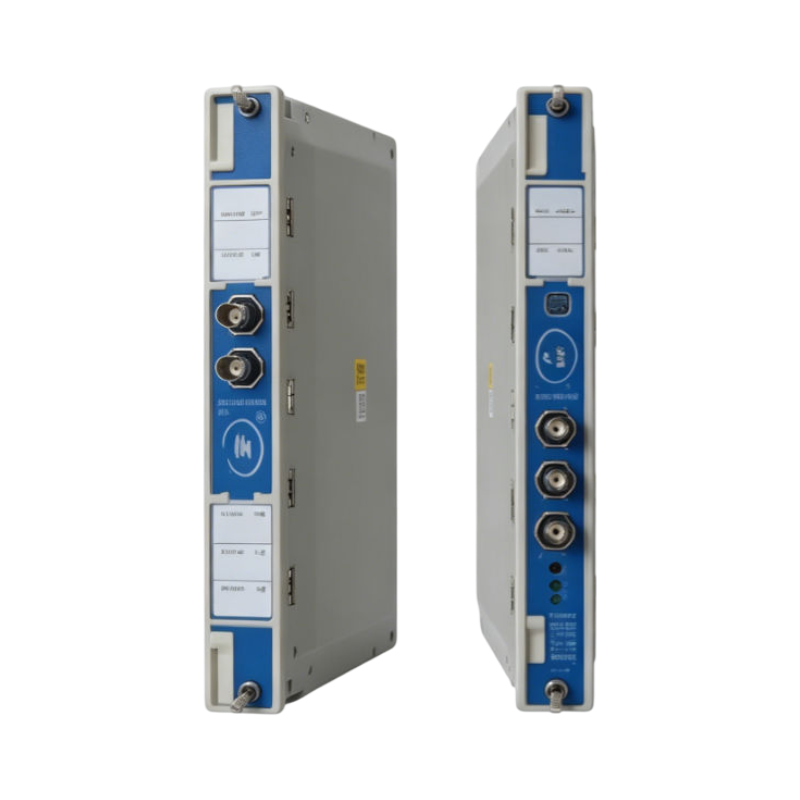

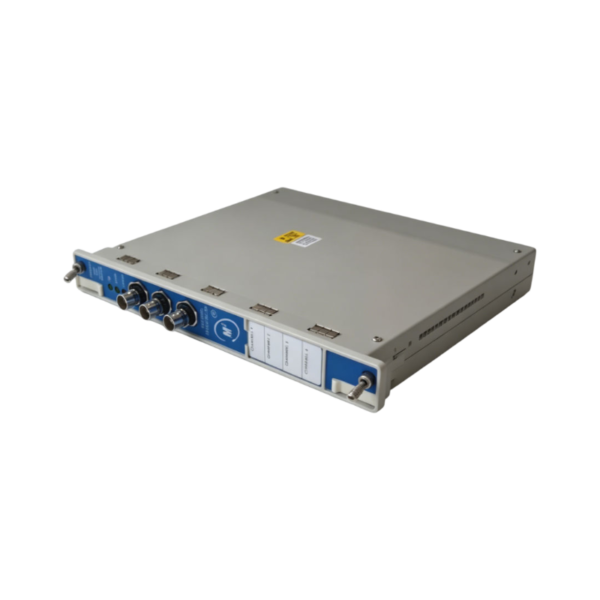

The Bently Nevada 3500/72M 140734-08, also cataloged as the 140734-08 Recip Rod Position Monitor, operates as a dedicated hardware component for reciprocating compressor rod position monitoring and dynamic signal conditioning within Bently Nevada 3500 series machinery protection systems.

Hardware Specifications

Mechanical Monitoring and TSI Integration

The 3500/72M module processes proximity transducer inputs to perform high-resolution displacement measurement. The hardware requires precise eddy-current probe scaling to correlate transducer output voltage with physical rod position. During commissioning, technicians must verify the gap voltage; specifically, the transducer signal must align within the linear range of the probe. Engineers typically target -10 VDC at the mid-gap position to ensure accurate rotor dynamics interpretation. Furthermore, the module incorporates cross-talk suppression circuitry. This component effectively isolates signals from adjacent reciprocating compressor channels, ensuring that high-frequency mechanical transients do not induce spurious alarm triggers.

Frequently Asked Questions

Q: Can technicians hot-swap the 3500/72M module while the rack operates?

A: Yes, the module supports hot-swapping within the 3500 rack system. However, ensure that the slot power remains stable and verify that the module seats fully into the backplane to avoid intermittent connection errors.

Q: How does the module handle transducer signal loss?

A: If the input signal exceeds the configured voltage range or drops below the defined gap threshold, the module triggers a Transducer OK fault. Consequently, the logic disables associated alarms to prevent false machine trips.

Q: Is the firmware on the 140734-08 field-upgradable?

A: Yes, users manage module firmware updates via the 3500 Rack Configuration Software. Before starting, confirm that the Rack Interface Module (RIM) version supports the specific firmware revision intended for deployment.

Field Installation Guidelines

• Physical Mounting: Slide the module into a dedicated slot within the 3500 rack. Actuate the front panel levers fully to engage the backplane pins, as this secures mechanical grounding to the rack chassis.
• Wiring: Route all proximity transducer inputs using shielded twisted-pair cabling. Terminate the shield exclusively at the I/O module end to minimize electromagnetic interference (EMI).
• Grounding: Connect all power supplies to a common ground reference to eliminate potential ground loops. Additionally, verify that the rack-to-earth ground connection complies with local electrical codes for instrumentation systems.
• Gap Adjustment: Execute manual gap validation through the 3500 Configuration Software before you enable logic relays. Ensure the probe tip sits at the manufacturer-specified distance from the compressor rod to achieve the -10 VDC target.
