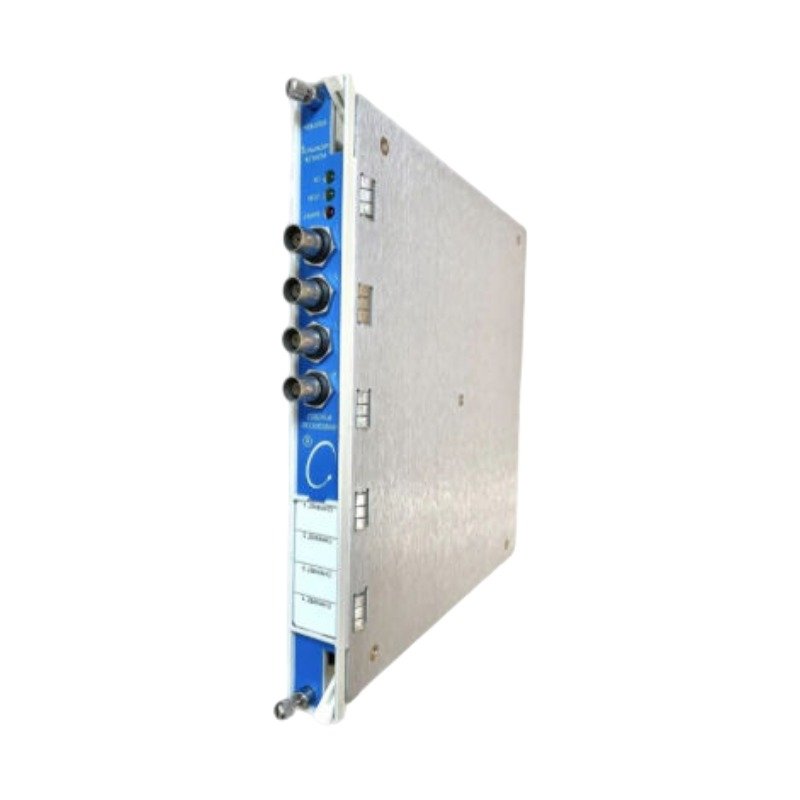

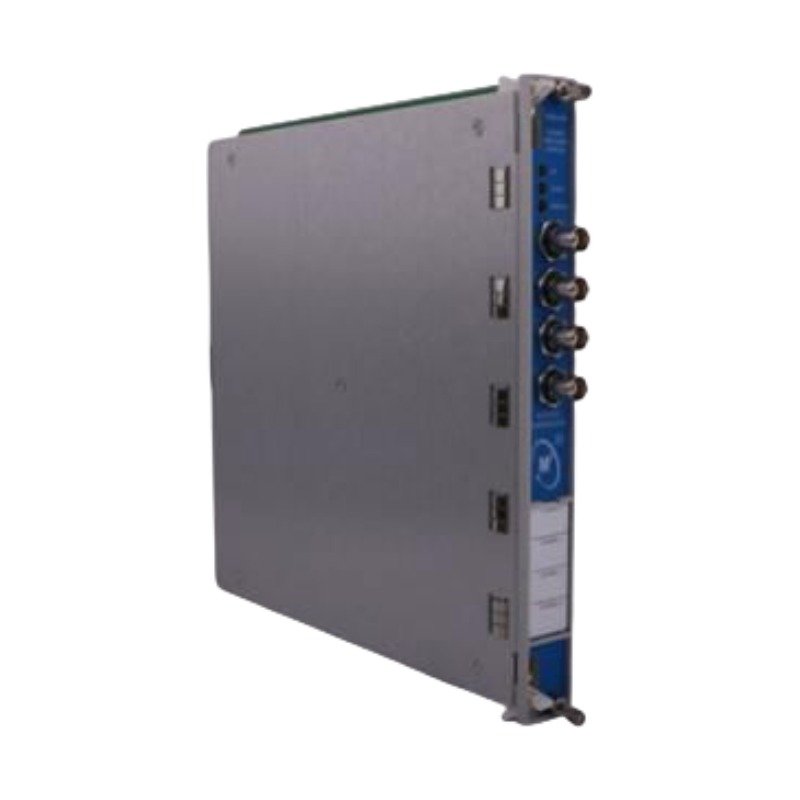

Bently Nevada 3500/64M 140734-05 Dynamic Pressure Monitor Module
The 140734-05 Bently Nevada 3500/64M module provides 4-channel dynamic pressure signal processing. We supply brand new, original stock hardware with global shipping.
Description
The Bently Nevada 3500/64M 140734-05, also cataloged as the 3500/64M Dynamic Pressure Monitor, operates as a dedicated hardware component for continuous machinery protection by acquiring and processing high-frequency dynamic pressure data within the Bently Nevada 3500 Machinery Protection System.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/64M 140734-05 |
| Brand | Bently Nevada |
| Origin | United States |
| Weight | 0.91 kg |
| Dimensions | 241.3 mm x 24.4 mm x 241.8 mm |
| Operating Temp | -30 deg C to +65 deg C |
| Channel Count | 4 independent programmable channels |
| Transducer Sensitivity | 100 mV/psi (1.45 mV/mBar) |
| Recorder Outputs | 4-20 mA proportional analog loops |
Eddy-Current Probe Scaling and Rotor Dynamics
The 3500/64M module continuously digitizes dynamic pressure pulsations from combustion chambers or gas pipelines, but engineers frequently link this hardware with proximity chains to evaluate complete rotor dynamics during fluid-induced instability events. Consequently, technicians execute precise eddy-current probe scaling within the rack software to calibrate adjacent radial vibration channels. This configuration process directly stabilizes the voltage tracking window across the active sensor plane.
Simultaneously, the internal signal processing hardware applies aggressive cross-talk suppression pathways across all four input nodes. This structural filtration blocks high-frequency harmonic interference generated by adjacent sensor cables. Furthermore, maintenance personnel perform periodic gap voltage validation on related machinery components. This step verifies that the static DC bias rests close to the designated -10 VDC baseline, which indicates that the probe remains operational within its linear sensing boundaries.
Frequently Asked Questions
Q: How do operators adjust the internal filter profiles on the 3500/64M 140734-05 monitor?
A: Operators configure the bandpass corner frequencies and activate the independent notch filters by transmitting parameters directly through the 3500 Rack Configuration Software via the system faceplate interface.
Q: Can the 3500/64M 140734-05 module supply power directly to field-mounted sensors?
A: Yes, the module contains internal power distribution paths that deliver a 3-wire -24 VDC supply or a 2-wire 3.3 mA constant current source depending on the specific hardware configurations assigned to each channel termination point.
Field Installation Guidelines
- Slide the 3500/64M main card into its assigned front slot of the 3500 chassis until the rear header pins engage the backplane fully, and then torque the faceplate retaining screws.
- Direct all high-temperature pressure transducer cables through dedicated low-voltage cable trays to isolate the signal paths from electromagnetic field sources.
- Secure the individual braided cable shields straight to the centralized chassis ground bus bar, while keeping the field-side terminations floating to eliminate ground loops.
- Verify that the cable entry fittings achieve at least 5-thread engagement when routing the external field wiring assemblies through rigid NPT conduit adapters into the I/O block enclosure.
Additional information
| Weight | 0.9 kg |
|---|---|
| Dimensions | 60 × 50 × 40 mm |
