Description

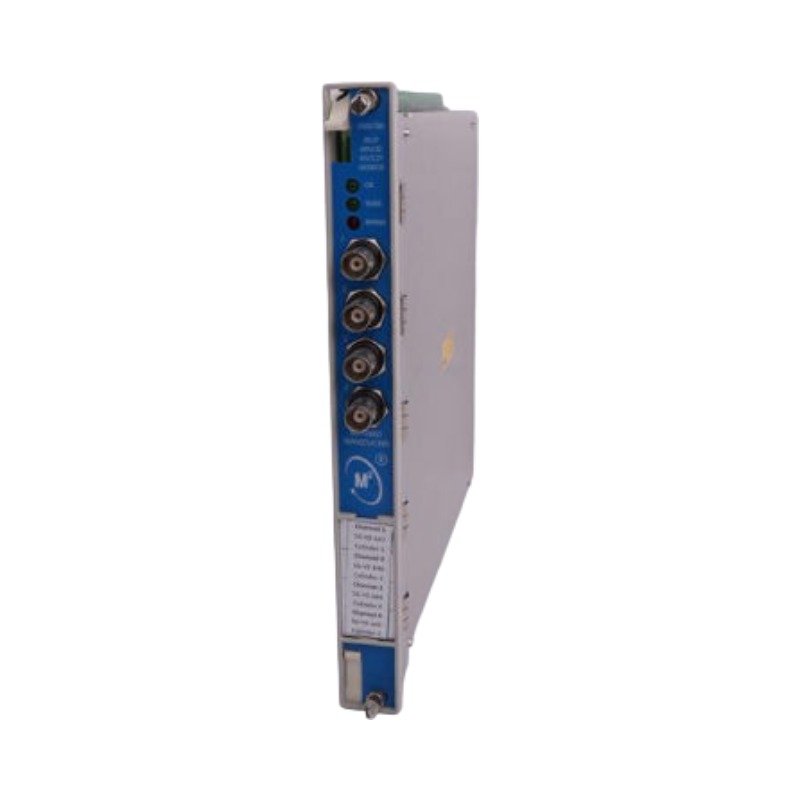

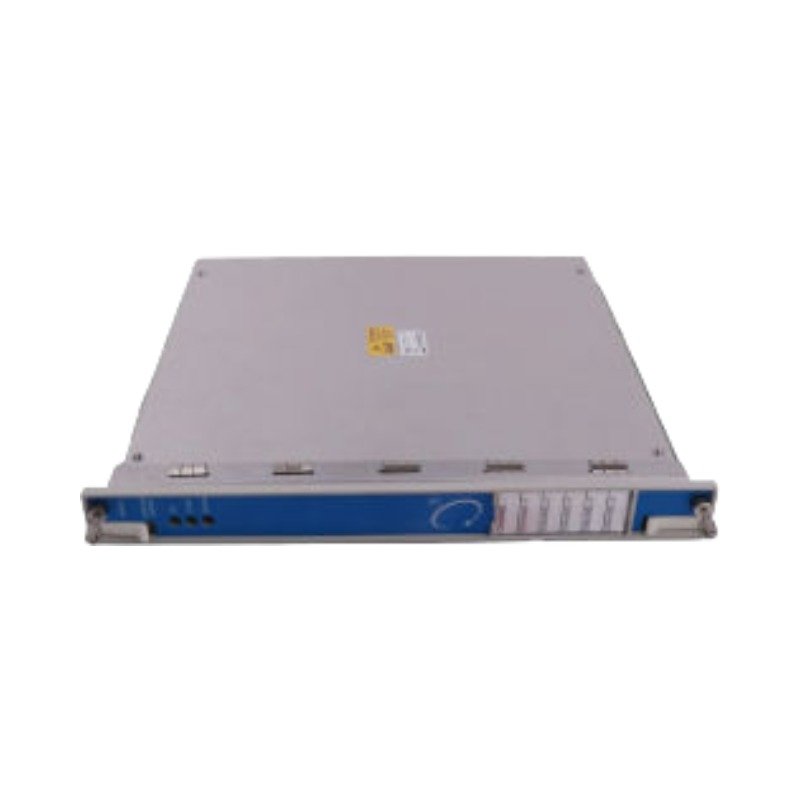

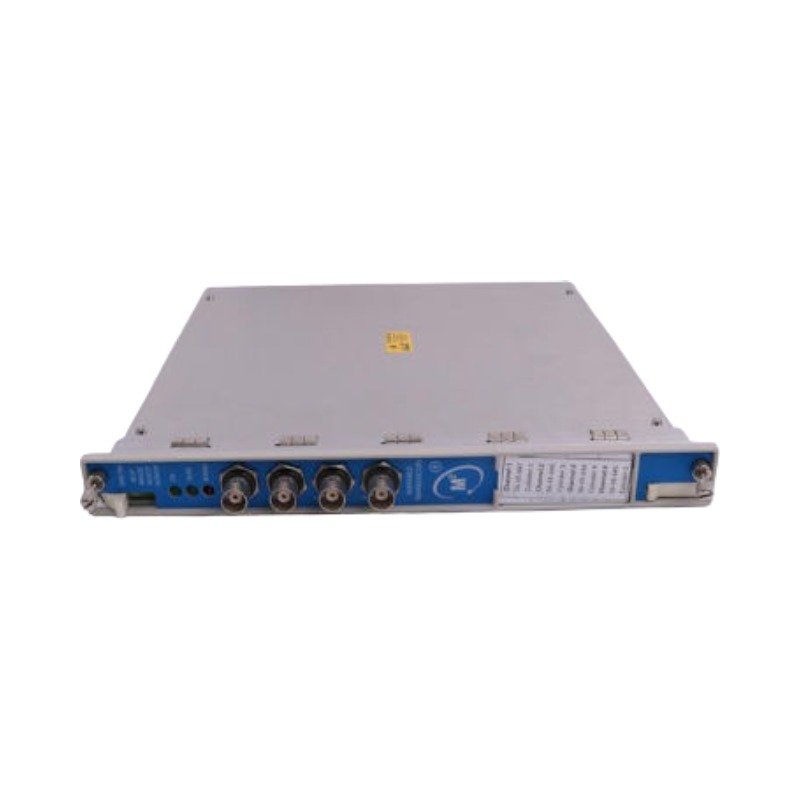

The Bently Nevada 3500/70M 176449-09, also cataloged as the 3500/70M Reciprocating Impulse Velocity Monitor, serves as the primary 3500/70M hardware block utilized to execute multi-channel crankcase and crosshead vibration tracking across Bently Nevada 3500 Machinery Protection System platforms.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 176449-09 main processor module continuously extracts dynamic vibration indices from specialized reciprocating compressor components to evaluate complex mechanical health. Because this architecture targets crosshead and rod locations, technicians must apply exact eddy-current probe scaling through the 3500 configuration terminal interface. Consequently, this alignment translates incoming millivolt deviations straight into highly accurate mechanical displacement parameters.

Simultaneously, the internal filter stages implement hardware-driven cross-talk suppression pathways. This suppression blocks electromagnetic transients when routing parallel sensor pairs inside the same frame partition. Furthermore, operators manage routine gap voltage validation across the active channels during baseline maintenance intervals. This explicit evaluation ensures that the system confirms the static DC bias rests near the designated -10 VDC point, which preserves the strict tracking window required to record asymmetric rod impacts and structural dynamics.

Frequently Asked Questions

Q: What primary programmable signal functions does the 3500/70M 176449-09 module execute?

A: The module executes four separate signal-conditioning algorithms, which are Impulse Acceleration, Acceleration 2, Recip Velocity, and Low Frequency Recip Velocity. Engineers program these functions in pairs across channels 1 through 4.

Q: How does the 176449-09 module deliver proportional current data to external supervisory platforms?

A: The module supplies integrated recorder outputs that generate a +4 to +20 mA analog signal. This current loop maps proportionally to a user-selected static value from each individual channel to interface with external recorders or DCS ports.

Field Installation Guidelines

1. Insert the 176449-09 main board directly into a front guide slot of the 3500 chassis until the rear multi-pin array snaps securely into the system backplane assembly.
2. Tighten the module faceplate screws completely to verify structured grounding and to achieve proper physical thermal bonding to the rack frame.
3. Keep the high-frequency seismic and proximity sensor leads isolated inside independent low-voltage routing channels to eliminate inductive noise fields from high-power distribution lines.
4. Check that all cable conduits linked to the rear companion I/O termination block establish at least 5-thread engagement when using standard NPT mechanical adapters.
