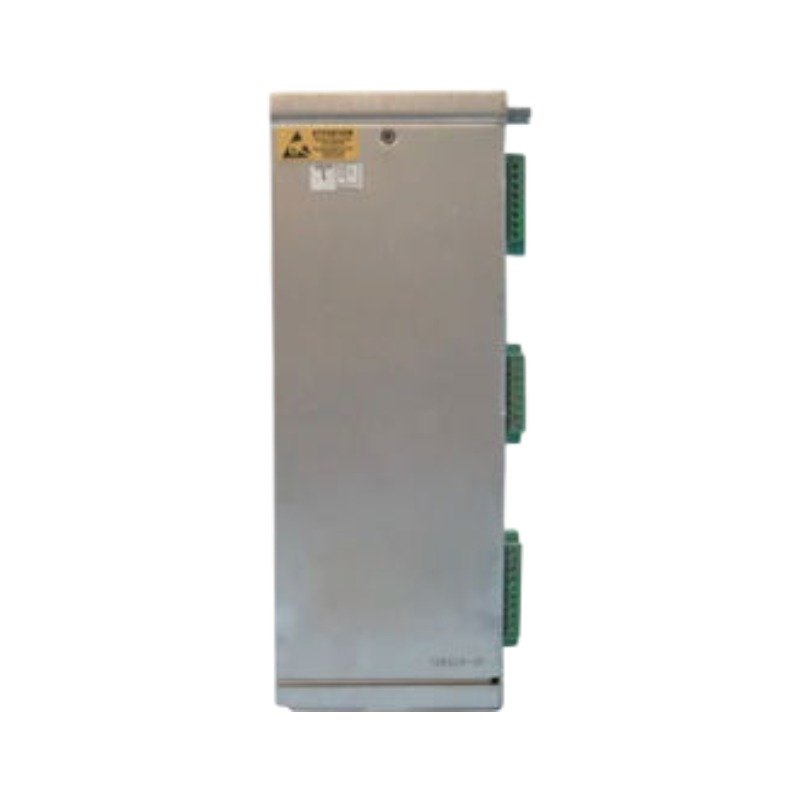

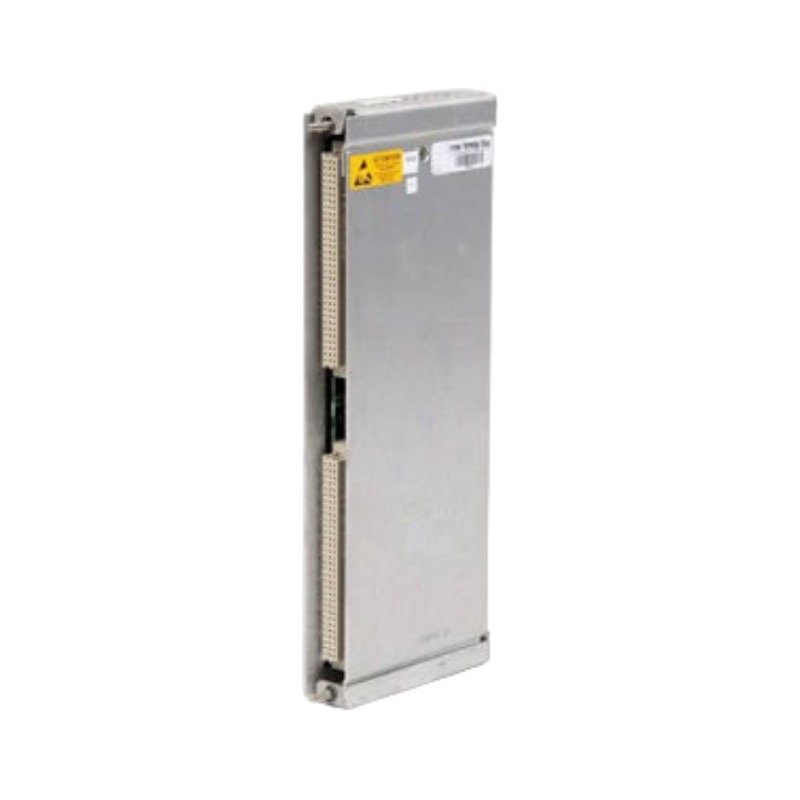

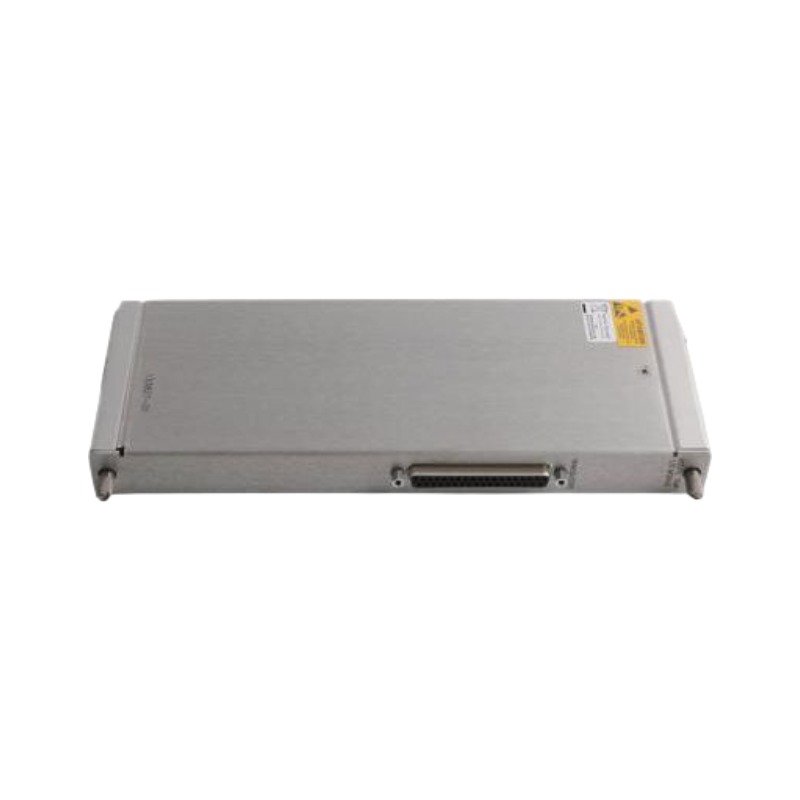

Bently Nevada 3500/60 133827-01 RTD/TC I/O Module

The Bently Nevada 3500/60 133827-01, also cataloged as the 3500/60 I/O Module, serves as the primary 3500/60 I/O module utilized to execute high-density temperature data acquisition across Bently Nevada 3500 series machinery protection platforms. This component facilitates the direct physical interface between field-mounted RTD or TC sensors and the host rack, where it processes raw thermal signals for alarm setpoint evaluation.

Hardware Specifications

Bently Nevada TSI and Mechanical Monitoring Integrity

Engineers design the 133827-01 module specifically to maintain high signal integrity within turbine supervisory instrumentation (TSI) environments. Because thermocouple loops often encounter external electromagnetic interference, the isolated version effectively provides 250 Vdc of channel-to-channel isolation. This mechanism prevents ground loops that otherwise skew sensor readings. Technicians must routinely validate the scaling of these inputs. Furthermore, proper eddy-current probe scaling and wire shielding ensure the system consistently identifies potential rotor dynamics anomalies. By maintaining these strict electrical thresholds, the module guarantees that the 3500 rack accurately monitors bearing health before the machine reaches critical trip states.

Frequently Asked Questions

Q: Does the system support Triple Modular Redundant (TMR) configurations with this module?

A: Yes, the module fully supports TMR deployments. When users install three modules in adjacent slots, the system employs two distinct voting tiers to ensure operational accuracy while simultaneously preventing single-point failures.

Q: Can the user mix different sensor types on a single non-isolated module?

A: Yes, the non-isolated version permits a combination of RTD and TC inputs. The operator simply defines the specific measurement type for each individual channel within the 3500 Rack Configuration Software.

Field Installation Guidelines

• Slide the module firmly into the designated rack slot, ensuring the backplane connectors align perfectly before engaging the front panel levers.
• Terminate the field wiring using shielded, twisted-pair cables, and connect the shield to the rack’s common grounding point to mitigate noise.
• Configure the channels through the 3500 Rack Configuration Software by selecting the corresponding RTD or TC input type, as the system does not auto-detect sensor varieties.
• Verify the loop integrity by measuring the resistance across the inputs before powering on the rack; this step prevents potential over-voltage damage to the module circuitry.
