Description

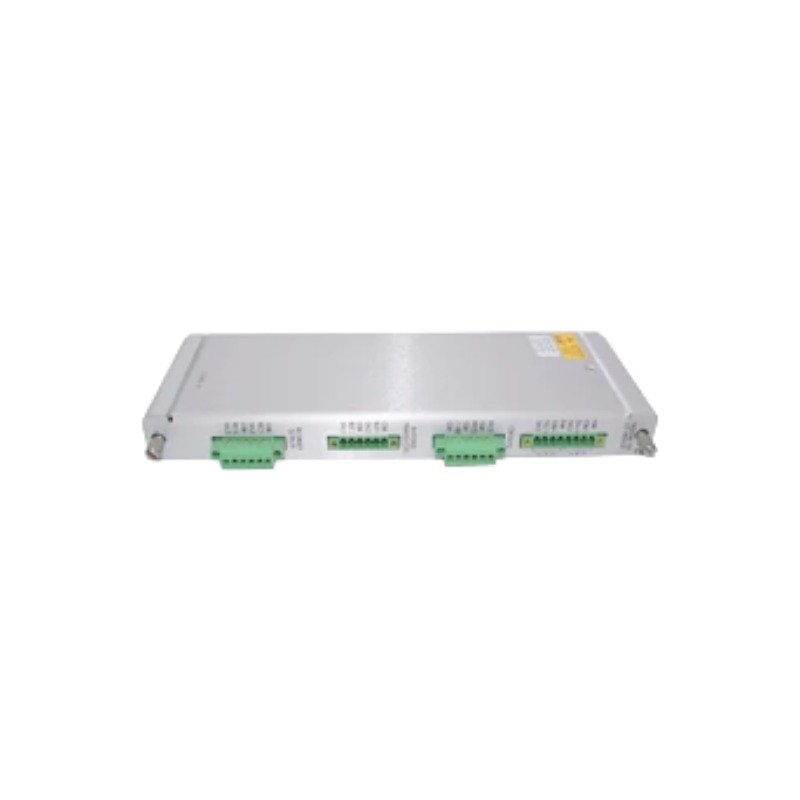

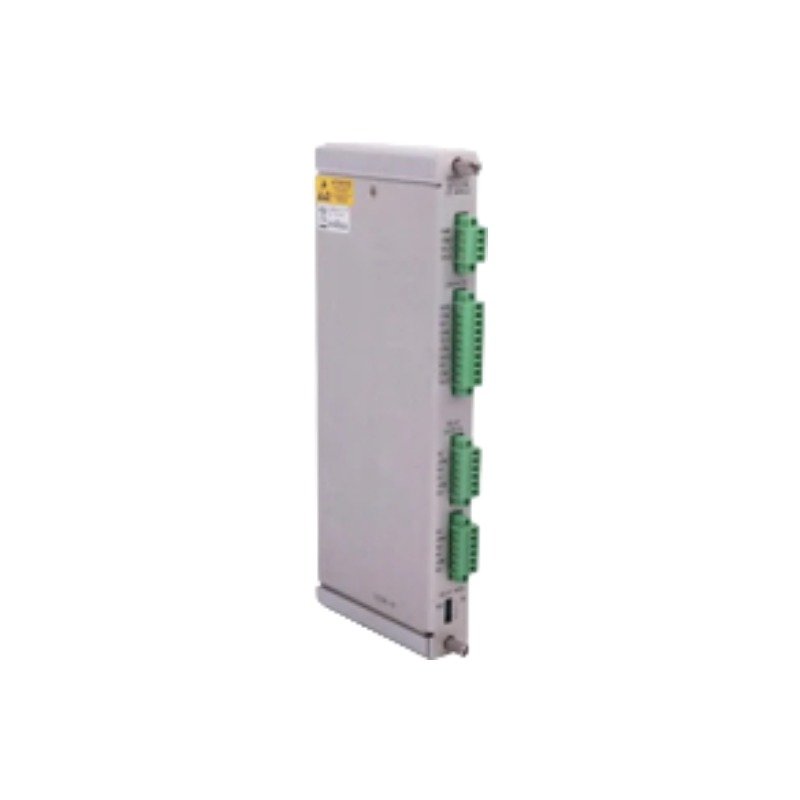

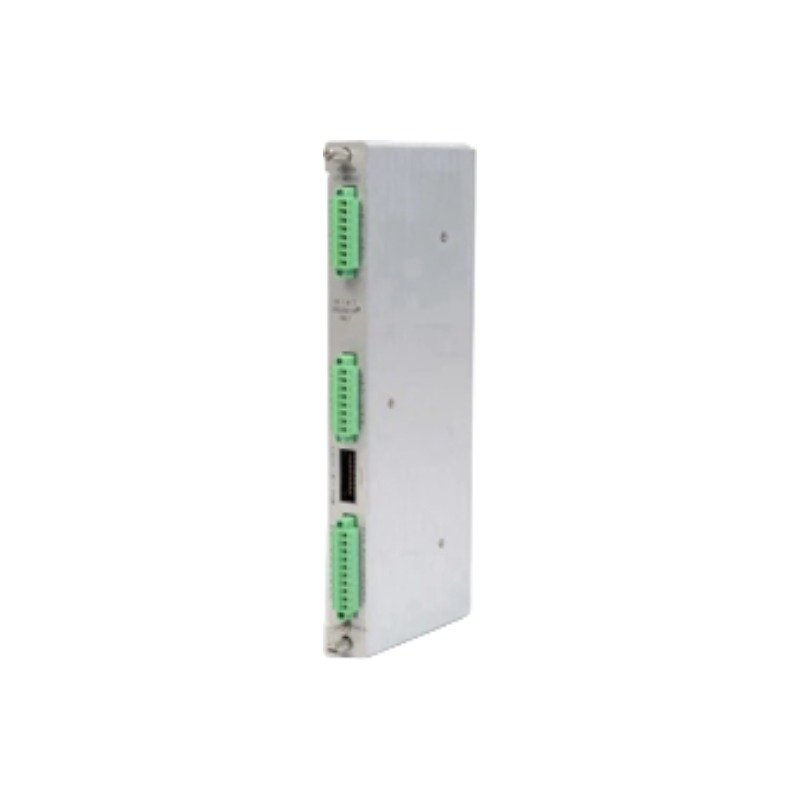

The Bently Nevada 124240-01 serves as the primary 124240-01 Input/Output Module utilized to execute vibration monitoring across 3500 Series Machinery Protection System platforms. The hardware module conditions incoming analog sensor streams directly from the field terminal block, transferring converted mechanical metrics over the system backplane to feed the core monitoring processing loops.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module processes multi-channel physical vibration waveforms to map dynamic rotor dynamics under harsh processing environments. The input circuitry works directly with external sensor networks, applying strict parameter limits to maintain accurate eddy-current probe scaling configurations. The internal hardware traces implement extensive shielding structures to maximize cross-talk suppression benchmarks; consequently, this arrangement prevents high-frequency transient interference from shifting the analog signals during continuous gap voltage validation (-10 VDC targets) operations.

Frequently Asked Questions

Q: Does the 124240-01 module permit hot-swap insertion or extraction while the 3500 rack remains actively powered?

A: Yes, the module supports hot-swapping within the 3500 chassis architecture. However, disconnecting the module under power instantly interrupts the active sensor loops; subsequently, this action forces the main monitor module to register a channel fault condition.

Q: How does the 124240-01 hardware respond if the input voltage drops below the 18 VDC minimum limit?

A: When input voltage drifts below the 18 VDC operating threshold, internal diagnostic sensors clamp the analog conversion paths. The module subsequently executes a hardware shutdown sequence, thereby forcing the associated monitoring logic into a safe state.

Field Installation Guidelines

• Slide the 124240-01 hardware into the designated full-height rear slot of the 3500 rack system, ensuring the multi-pin backplane mating block seats flush before securing the panel screws.
• Route all transducer field wiring through independent low-voltage conduits; accordingly, this physical isolation maintains cross-talk suppression parameters and protects the signals from power cable interference.
• Terminate the incoming coaxial cable shield drain wires strictly at the centralized chassis earth terminal, ensuring the sensor side remains isolated to prevent parasitic ground loop currents.
