Description

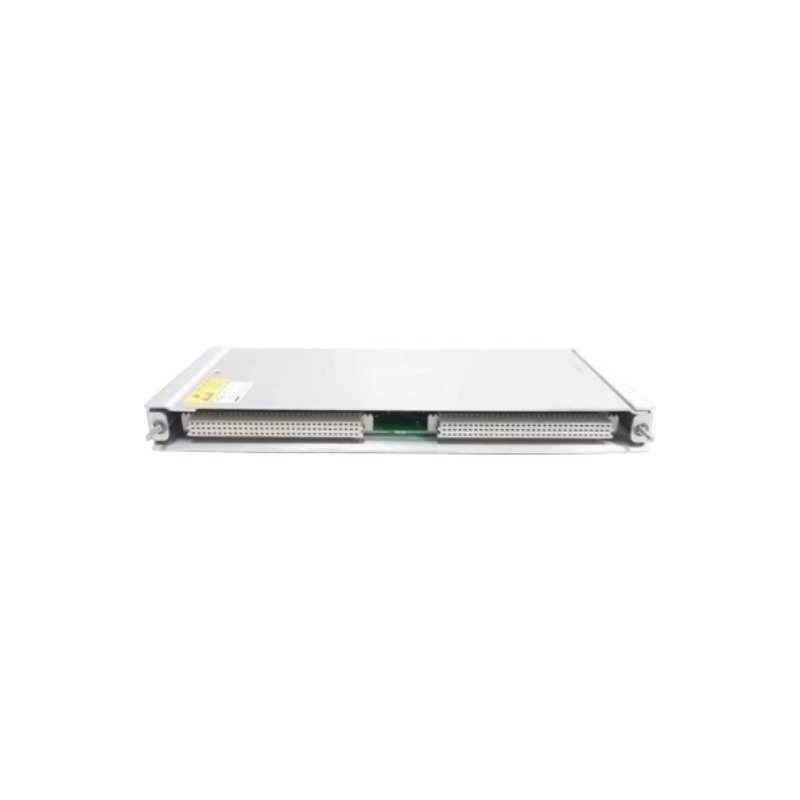

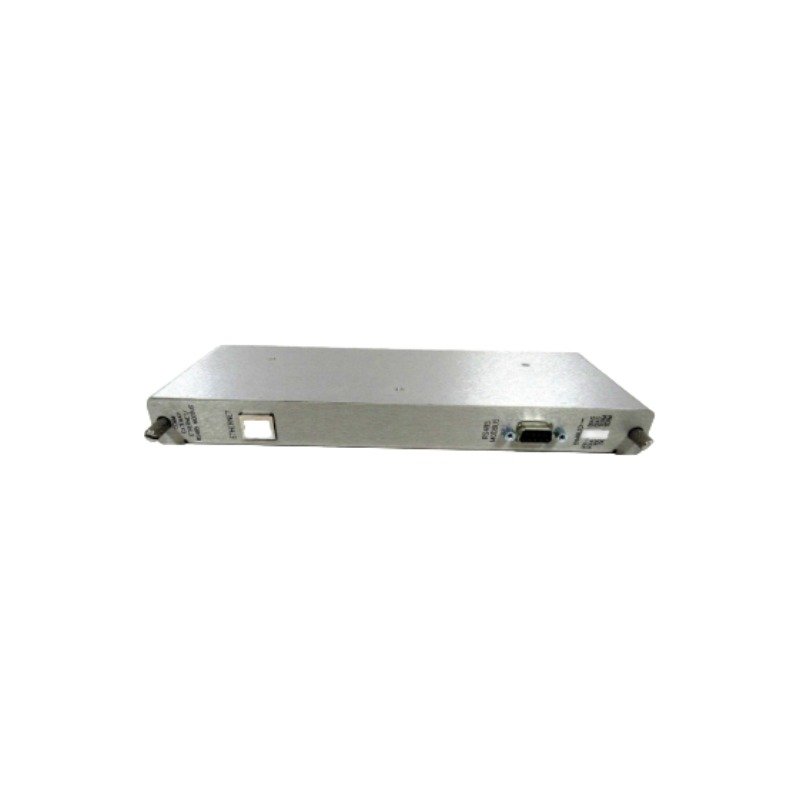

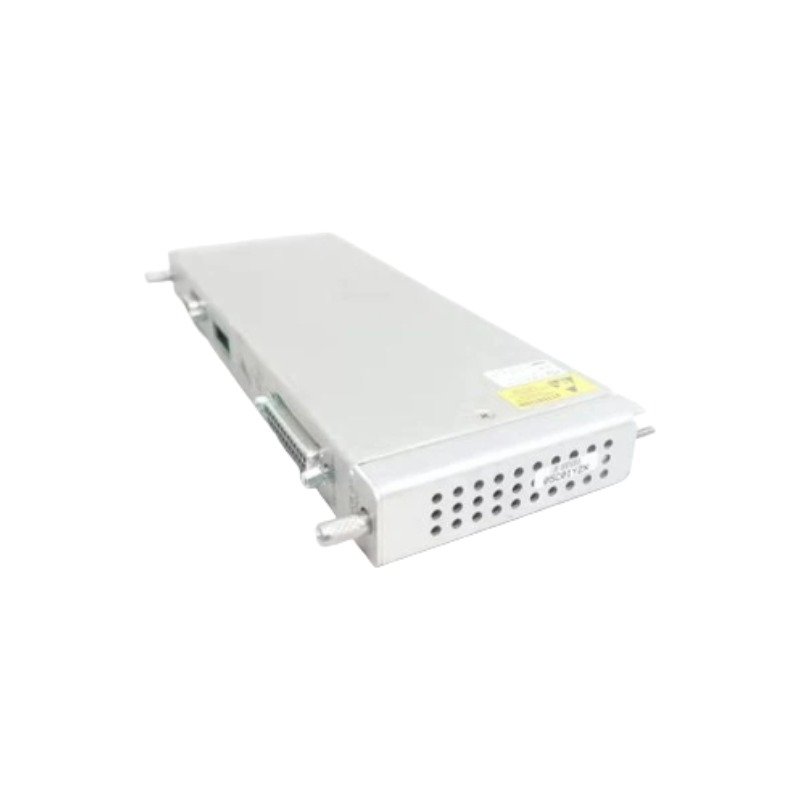

Configured for industrial data acquisition and control integration in automation infrastructures, the Bently Nevada 135183-01 (135183-01 Industrial I/O Module) provides direct physical/electrical execution. The hardware assembly operates as an Ethernet/RS232 Modbus I/O module to facilitate continuous digital data exchange across dual Ethernet nodes and serial channels, converting localized telemetry variables into structured Modbus registers for upper-level processing networks.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module handles multipoint data acquisition arrays necessary for mapping critical machinery status trends alongside dynamic rotor dynamics metrics. To ensure high-frequency network packets do not introduce induction noise into adjacent transducer instrumentation, the internal board design enforces physical track separation for cross-talk suppression. The communications processor filters digital transmission lines smoothly, guaranteeing that network polling cycles via Modbus do not disrupt low-level backplane routines or conflict with concurrent sensor instrumentation tasks such as eddy-current probe scaling configurations or continuous gap voltage validation (-10 VDC targets).

Frequently Asked Questions

Q: Does the 135183-01 module permit hot-swap insertion or extraction while the automation network is active?

A: No. Hot-swapping the 135183-01 module while active can cause communication timeouts on the Modbus loop and potentially induce bus fault errors across the linked serial or dual Ethernet networks. Power down the interface bracket before hardware replacement.

Q: How are the dual Ethernet ports configured on the 135183-01 hardware interface?

A: The dual Ethernet ports provide physical network connectivity for redundant architecture routing or separate subnet integration, ensuring that a physical failure on one network link does not isolate the device from data acquisition controllers.

Field Installation Guidelines

• Mount the 135183-01 module into a standard 19-inch rack enclosure layout, using designated mounting screws to ensure complete structural stability and chassis earthing.
• Route all Modbus RS232 serial lines and Ethernet cables away from high-voltage motor control circuits to satisfy cross-talk suppression criteria and maintain clean data signal transitions.
• Terminate all communication cable shields at a single centralized instrumentation ground point inside the cubicle, keeping the field drop ungrounded to prevent ground loop currents from introducing packet drops.
