Description

Brief Product Description

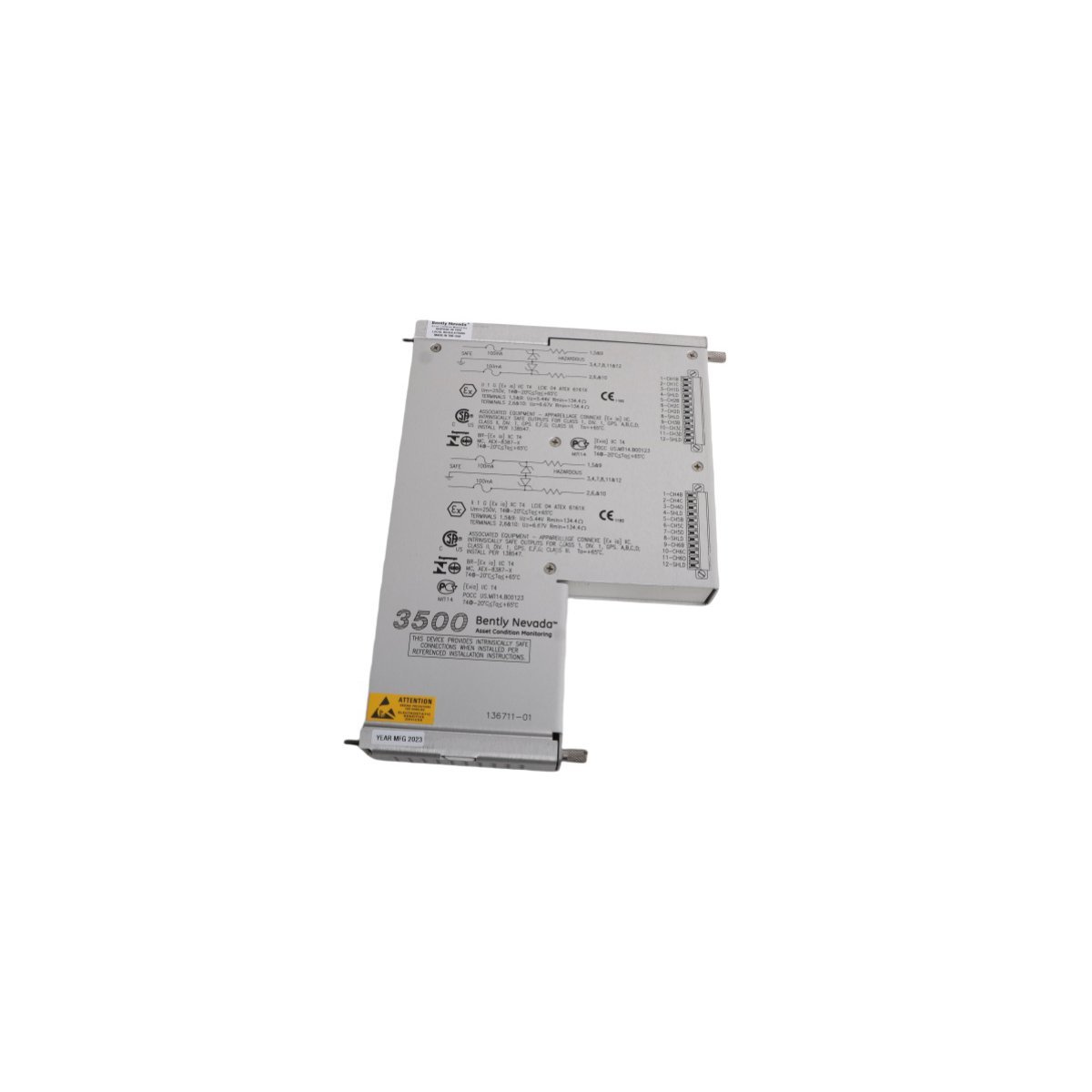

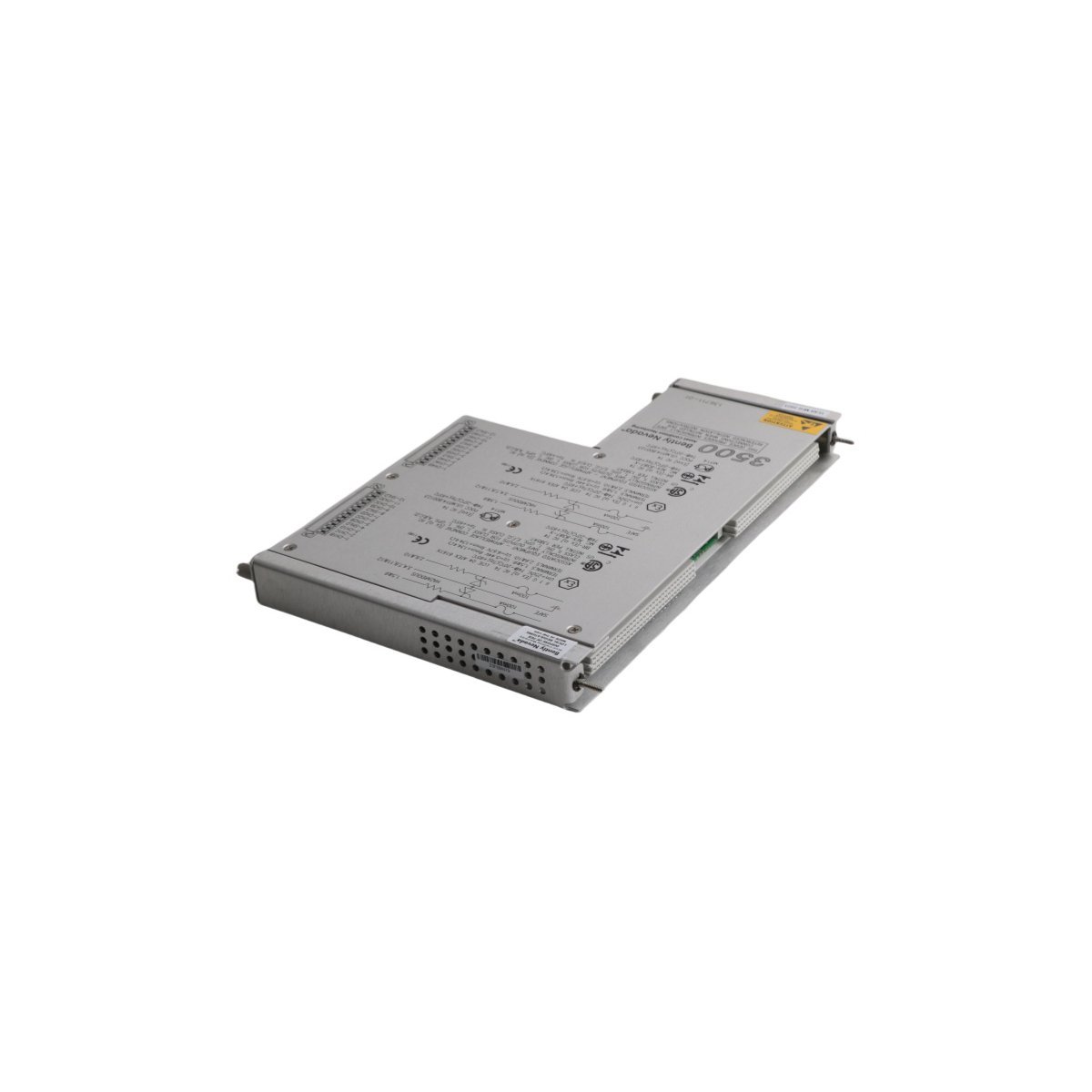

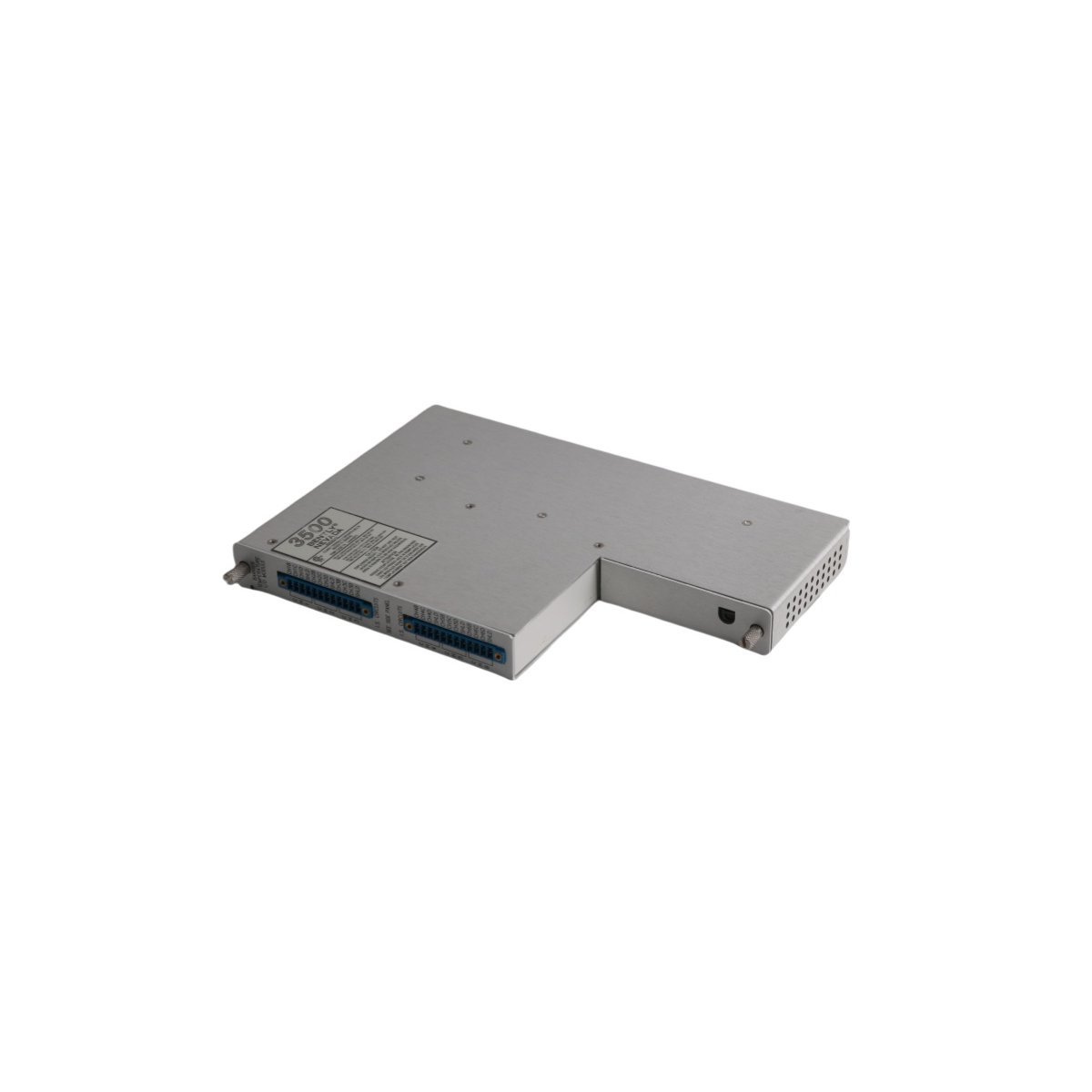

The Bently Nevada 3500/60-01-05 136711-01 is a high-precision temperature monitoring interface designed to process Resistance Temperature Detector (RTD) and Thermocouple (TC) inputs.¹ This module features integrated safety barriers and internal terminations, ensuring reliable machinery protection for critical assets like gas turbines and centrifugal compressors.²

Product Description

Integrated Temperature Monitoring and Safety

The Bently Nevada 136711-01 serves as the specialized I/O interface for the 3500/60 Thermal Monitor module, facilitating the direct connection of temperature sensors to the 3500 machinery protection rack. Because this specific version includes integrated internal barriers, it provides essential galvanic isolation for signals originating in hazardous areas. The module translates low-level signals from various RTD and Thermocouple types into digital data, allowing the system to monitor bearing temperatures, stator windings, and exhaust gases with extreme accuracy. By consolidating these functions into a single interface, the module reduces the need for external signal conditioning hardware.

High-Reliability Data Processing

Reliability remains a core attribute of the 3500/60-01-05 architecture. The module employs advanced digital signal processing to filter out industrial noise while maintaining a rapid 100ms response time for alarm triggering. Furthermore, the unit performs continuous self-diagnostics to detect open circuits, short circuits, or transducer failures instantaneously. This proactive monitoring approach ensures that protection logic only executes based on valid data, significantly reducing the risk of false trips in power generation or petrochemical facilities. Consequently, engineers trust this module to protect high-speed rotating equipment where thermal instability could lead to catastrophic failure.

Robust Construction for Demanding Environments

Designed to exceed API 670 standards, the 136711-01 maintains signal integrity across a wide operating temperature range of -40°C to +85°C. The internal termination design simplifies cabinet wiring by providing direct screw terminals for field leads, which enhances the physical security of the connections. Additionally, the module supports intelligent waveform capture, enabling the system to record comprehensive thermal profiles during alarm events for post-failure analysis. These technical characteristics make it the preferred choice for offshore platforms, nuclear plants, and other asset-intensive environments where equipment uptime is non-negotiable.

Technical Specifications
