Description

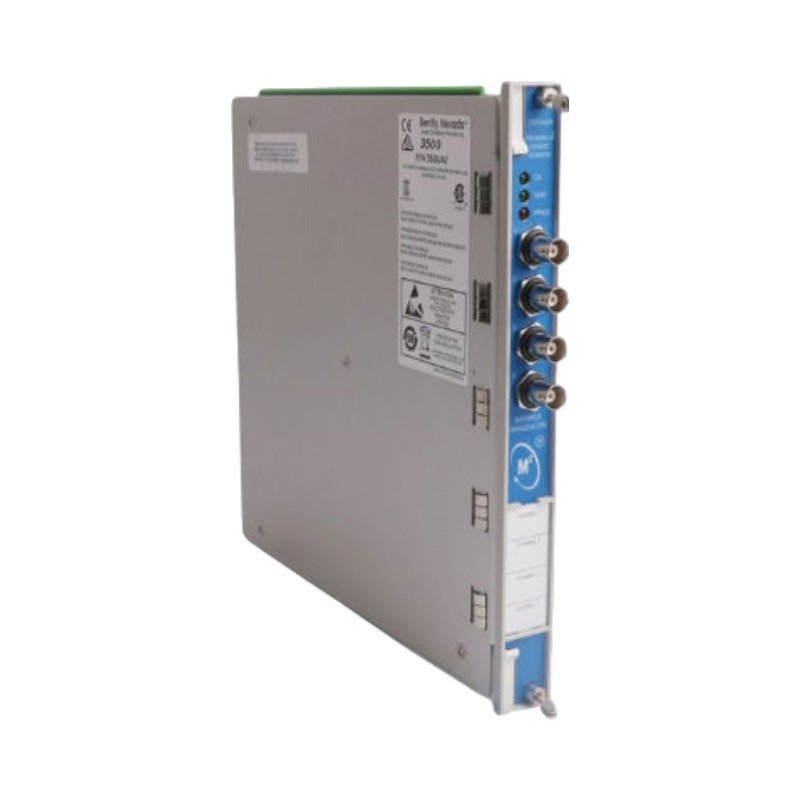

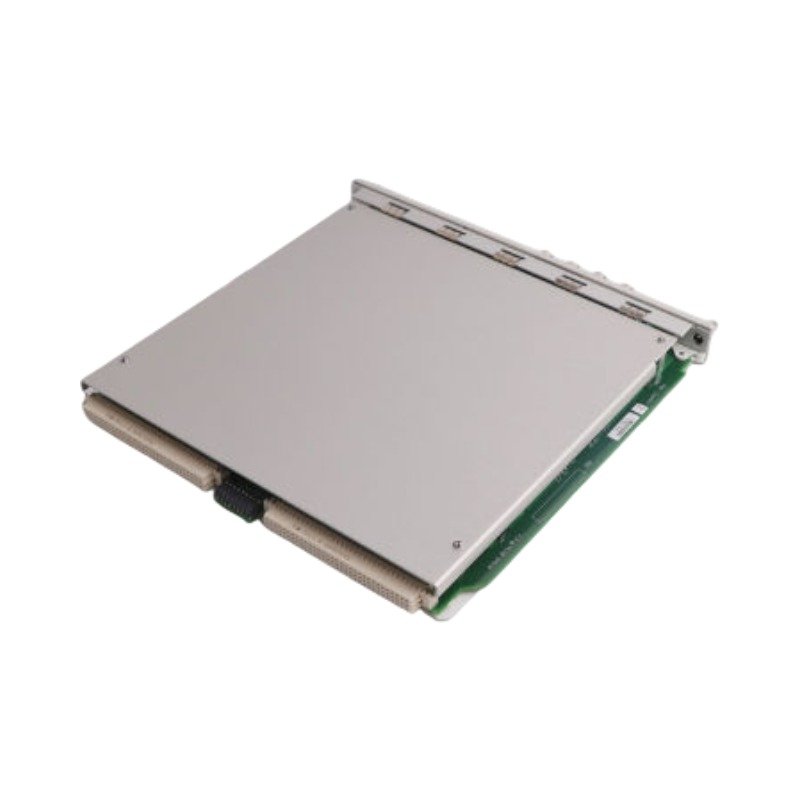

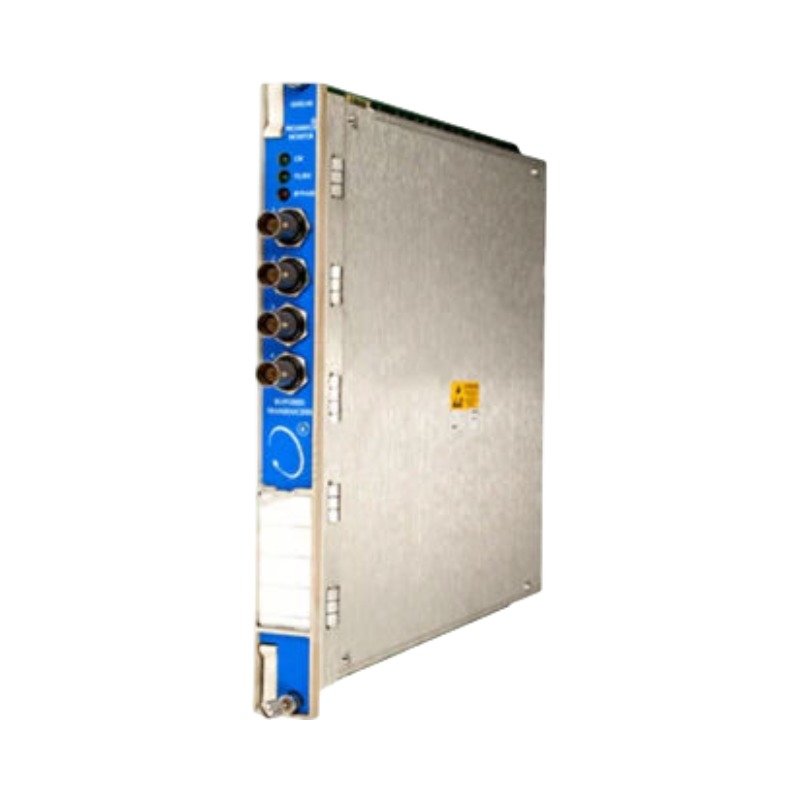

The Bently Nevada 3500/42M, also cataloged as the 3500/42M Proximity/Seismic Monitor Module, operates as a dedicated hardware component for continuous machinery vibration monitoring within 3500 System networks.

Hardware Specifications

Mechanical Monitoring & TSI Integration

The 3500/42M module provides essential data for advanced rotor dynamics analysis by processing continuous signals from proximity probes and seismic sensors. Technicians must perform precise eddy-current probe scaling during the configuration process to ensure accurate correlation between electrical signals and physical displacement units. Furthermore, the module facilitates reliable gap voltage validation; engineers should verify that probe gaps align with the standard -10 VDC target to maintain linear operation. By implementing these calibration standards, operators effectively achieve cross-talk suppression and protect critical rotating assets from excessive vibration or transient mechanical instabilities.

Frequently Asked Questions

Q: What is the benefit of the specified output impedance?

A: The 550 Ω output impedance ensures proper signal matching and load-driving capability for external monitoring equipment. You must verify that your receiving device impedance matches this specification to maintain signal integrity over long cable runs.

Q: How does the module handle transducer power?

A: The module provides a regulated -24 Vdc supply to power connected transducers. You should confirm that your sensor load does not exceed the module’s supply capacity to prevent voltage sag and inaccurate measurement data.

Field Installation Guidelines

• Insertion: Slide the module into the designated 3500 rack slot. Ensure that you seat the unit firmly against the backplane to prevent intermittent electrical connections.
• Shielding: Use high-quality shielded cabling for all transducer inputs. You must ground these shields at the instrumentation cabinet entry point to minimize interference and signal noise.
• Thermal Management: Install the module in a well-ventilated enclosure to maintain the operating temperature below 65 deg C. Although the module consumes only 7.7 W, proper airflow prevents localized heat buildup.
• Validation: Use the 3500 Rack Configuration Software to confirm that the transducer power and input scaling match your field hardware before you place the machine into service.
