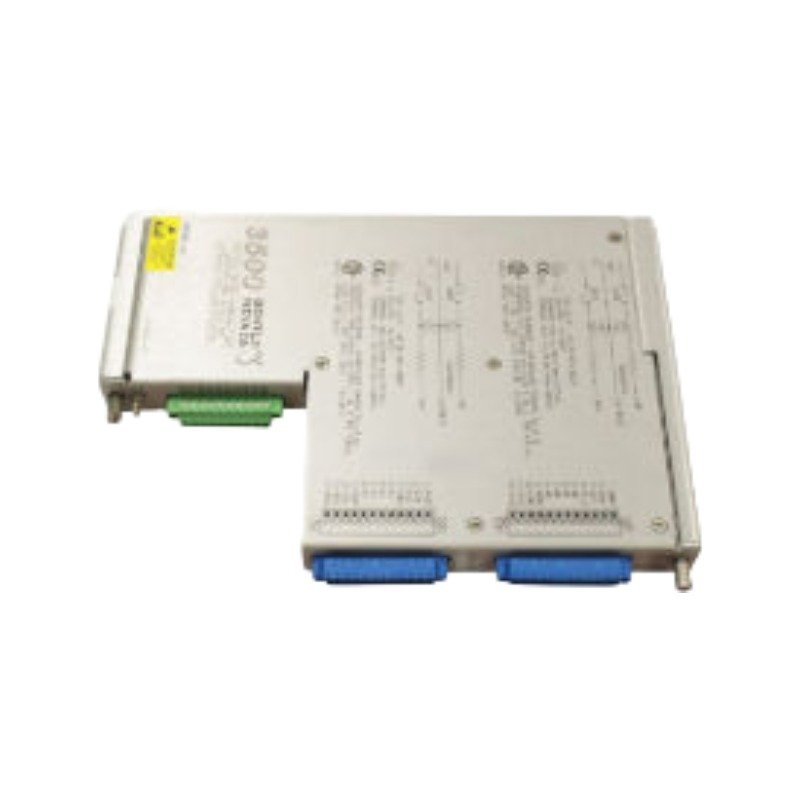

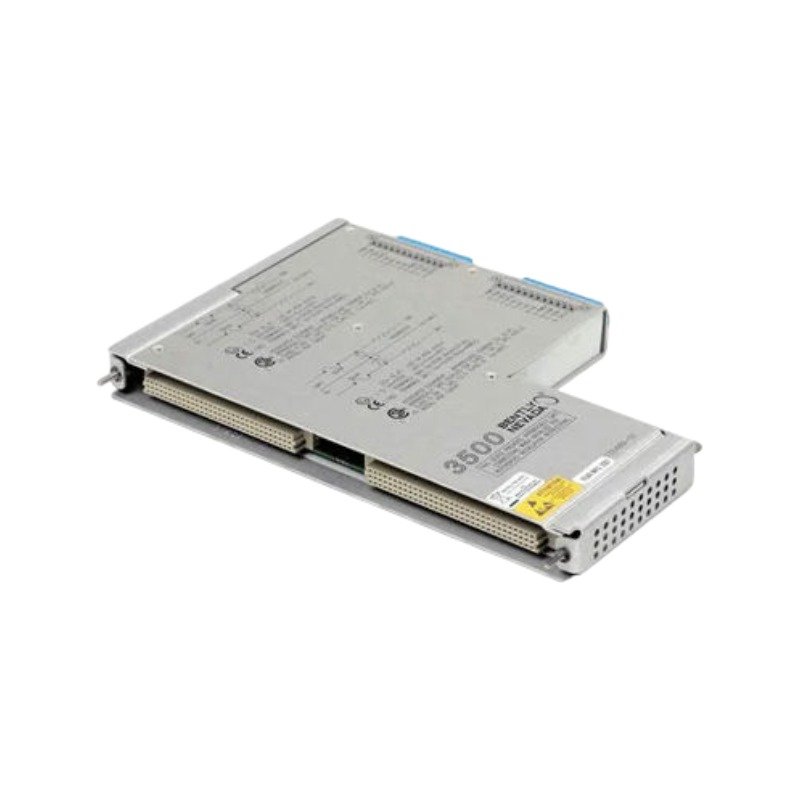

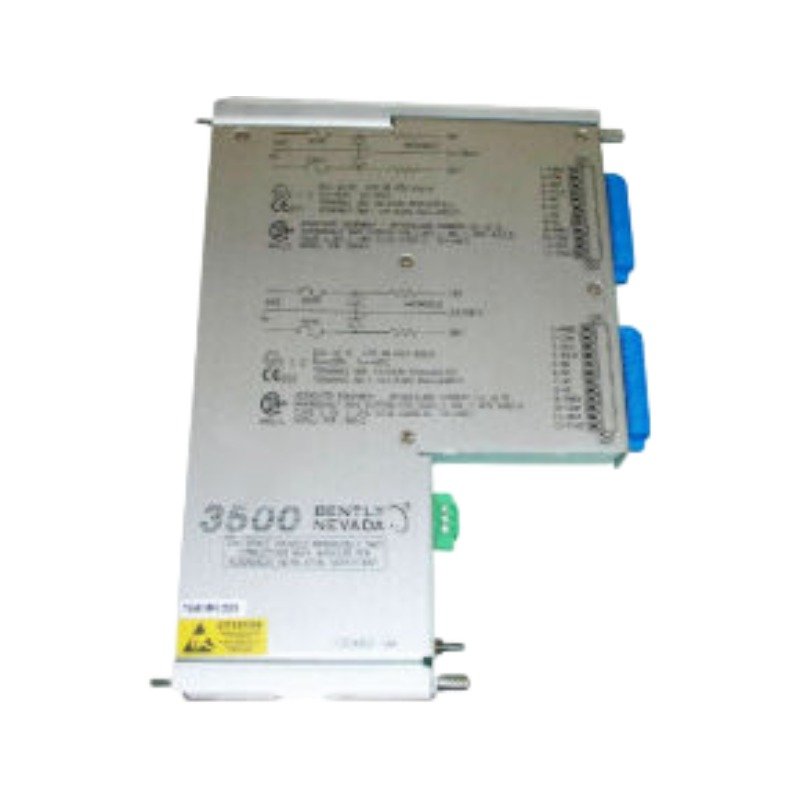

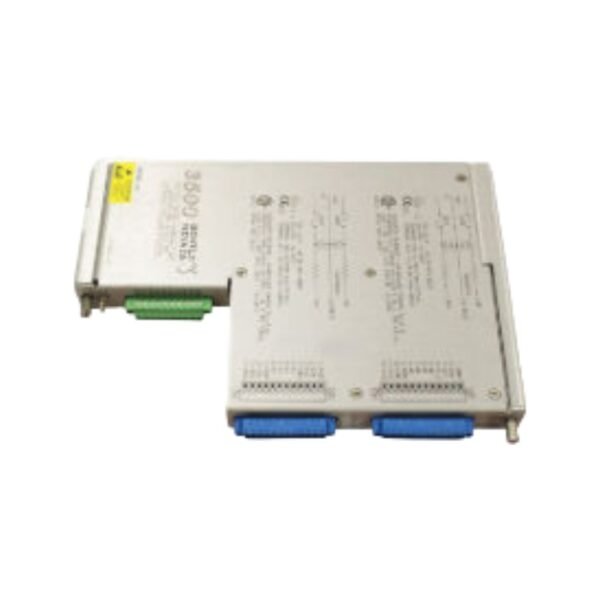

Bently Nevada 3500/42 135489-02 Proximitor Seismic Monitor

The Bently Nevada 3500/42 135489-02, also cataloged as the 3500/42 I/O Module, operates as a dedicated hardware component for signal processing and machinery monitoring within 3500 Series system platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring & TSI Integration

The 3500/42 architecture facilitates precise rotor dynamics oversight by actively managing diverse sensor inputs. Achieving accurate eddy-current probe scaling remains critical, as developers must realize that deviations from the -10 VDC target gap voltage often induce non-linear signal responses. Furthermore, the module design prioritizes cross-talk suppression across multi-channel inputs to maintain data fidelity. Consequently, engineers must verify that input signals align correctly within the system software; this verification step effectively prevents diagnostic errors during high-speed rotation monitoring.

Frequently Asked Questions

Q: Does the 3500/42 support multiple signal types simultaneously?

A: Yes, the module accepts 4-20 mA and 0-10 V inputs. You must ensure that the I/O configuration in the 3500 Rack Configuration Software matches the physical input source to prevent signal clipping or measurement inaccuracies.

Q: How should I manage field wiring in high-noise environments?

A: You should utilize shielded cables for all analog inputs. Additionally, you must ground the cable shield at the I/O module common terminal to mitigate electromagnetic interference and ensure stable signal transmission.

Field Installation Guidelines

• Placement: Insert the module into the designated slot of the 3500 rack. Ensure the locking tabs engage fully, as this stabilizes the backplane bus connection.
• Terminations: Verify that you crimp wire ferrules properly before you insert them into the terminal block. Moreover, avoid excessive force when you tighten connections to maintain the terminal interface integrity.
• Environmental Protection: While the module sustains temperatures up to 85 deg C, you should provide adequate ventilation within the cabinet. This practice prevents localized thermal hotspots and slows component aging.
• Validation: Confirm that you apply the correct scaling factors during the commissioning phase. By aligning the electrical input values with the physical monitored parameter, you ensure accurate displacement readings.
