Description

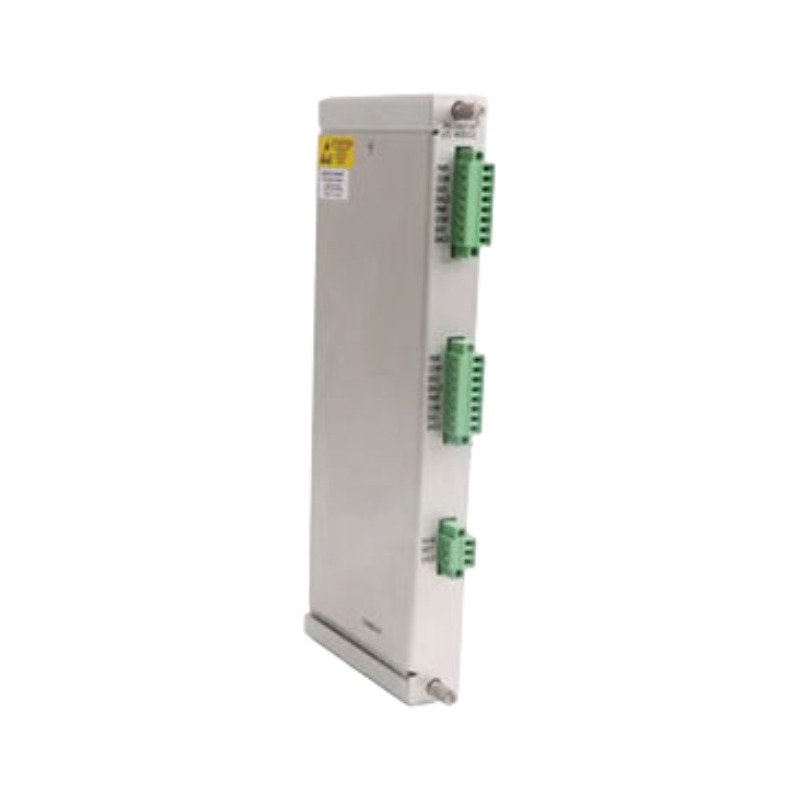

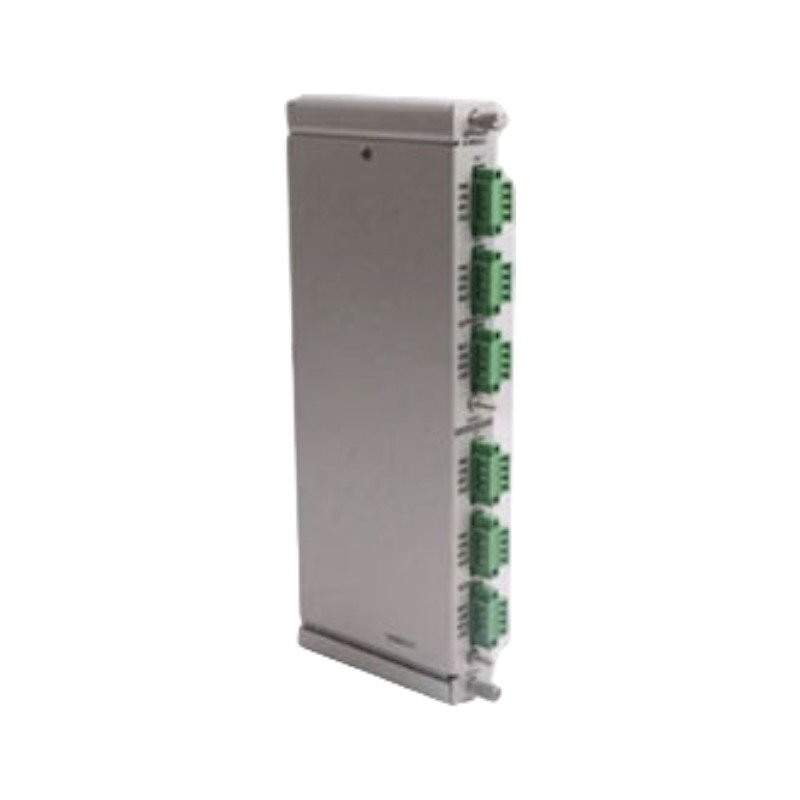

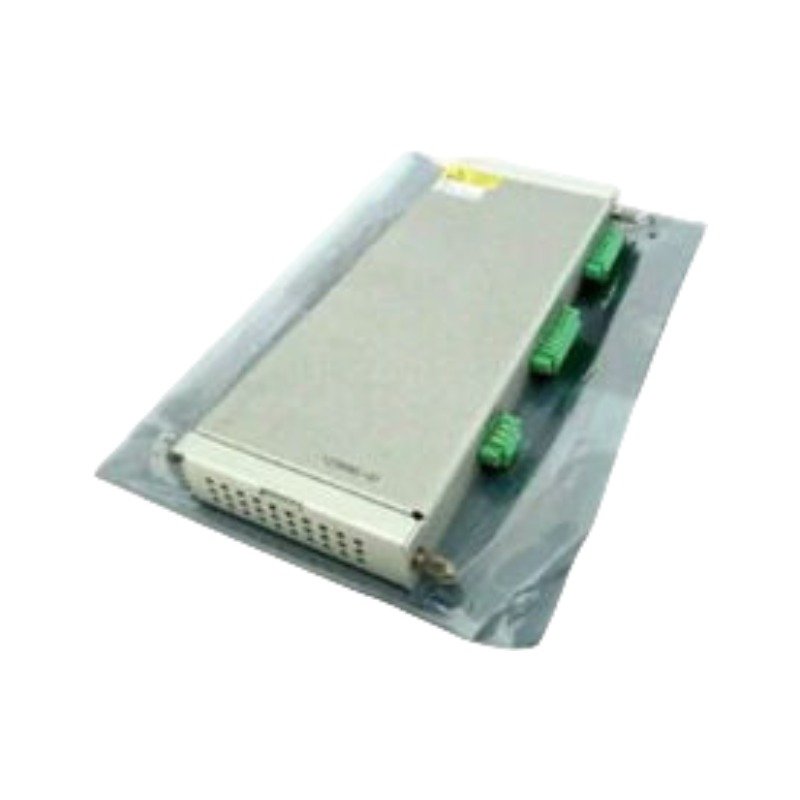

The Bently Nevada 3500/40-03-01, also cataloged as the 3500/40 Proximitor Monitor Module, operates as a dedicated hardware component for proximity transducer signal acquisition and machinery vibration measurement within the Bently Nevada 3500 Monitoring System.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Interface

The Bently Nevada 3500/40-03-01 Proximitor Monitor Module directly processes proximity transducer signals and performs signal conditioning within the 3500 rack architecture. The module supports eddy-current probe measurement applications by receiving displacement-related electrical signals from compatible proximity transducers and converting them into monitored machinery parameters.

Furthermore, the module supports rotor dynamics monitoring by maintaining channel-level signal processing for shaft vibration and position measurements. The Proximitor Monitor design allows the monitoring system to evaluate rotating equipment conditions through configured measurement channels and system-level processing functions.

The module installation requires correct field wiring, probe configuration, and rack integration. Therefore, technicians must verify signal routing, shielding practices, and connector engagement before placing the monitoring channel into operation.

Frequently Asked Questions

Q: What function does the 3500/40-03-01 Proximitor Monitor Module perform?
A: The module processes proximity transducer signals and provides vibration and position measurement functions within the Bently Nevada 3500 Monitoring System.

Q: How is the 3500/40-03-01 installed?
A: The module installs into a compatible 3500 rack slot and connects to the system through the rack backplane interface.

Q: What wiring practices apply to proximity transducer connections?
A: Technicians should separate probe signal cables from power conductors, maintain proper cable shielding, and verify field wiring according to the approved installation documentation.

Field Installation Guidelines

Install the Bently Nevada 3500/40-03-01 Proximitor Monitor Module into the assigned 3500 rack position with rack power removed. Next, align the module connector with the backplane interface and confirm that the module seats completely.

Connect proximity transducer wiring according to the system wiring configuration. In addition, route instrumentation cables separately from high-current and switching circuits to reduce electrical interference.

After completing the installation, verify channel configuration, probe connection status, and signal response. Finally, confirm that the monitoring system receives valid measurement data before returning the equipment to service.
