Description

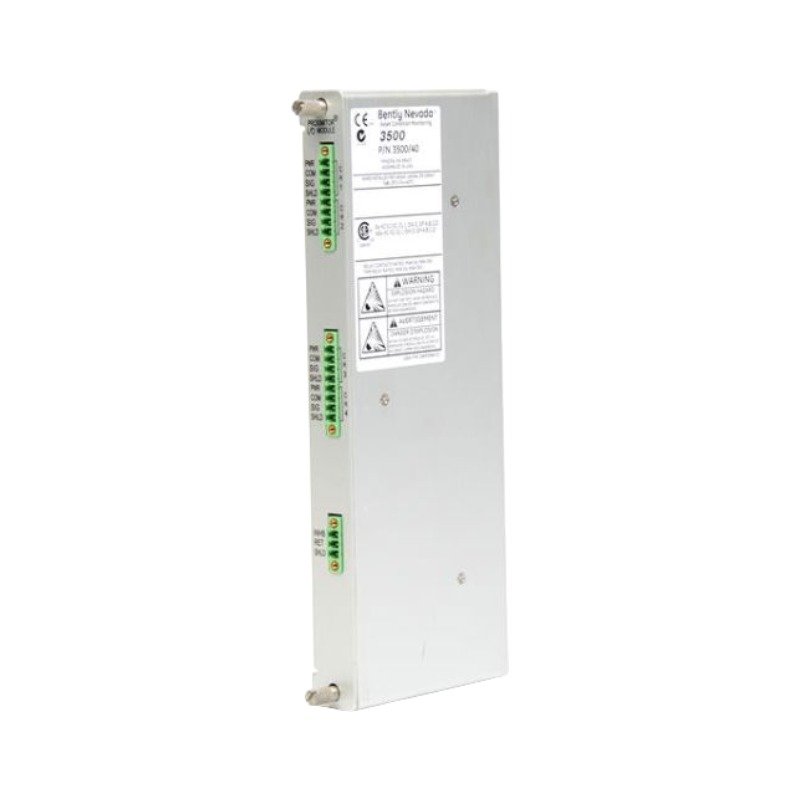

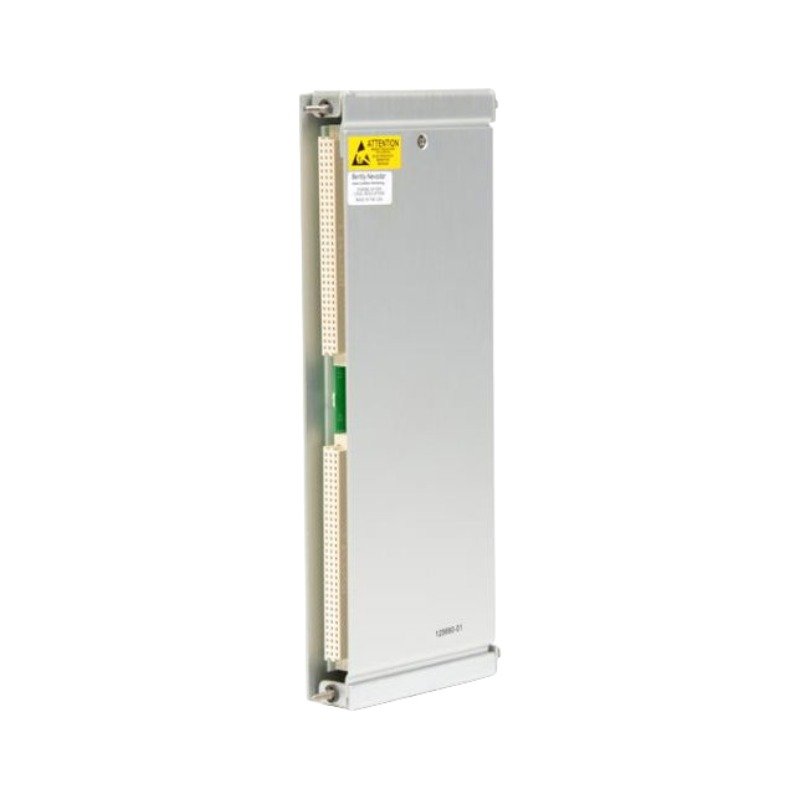

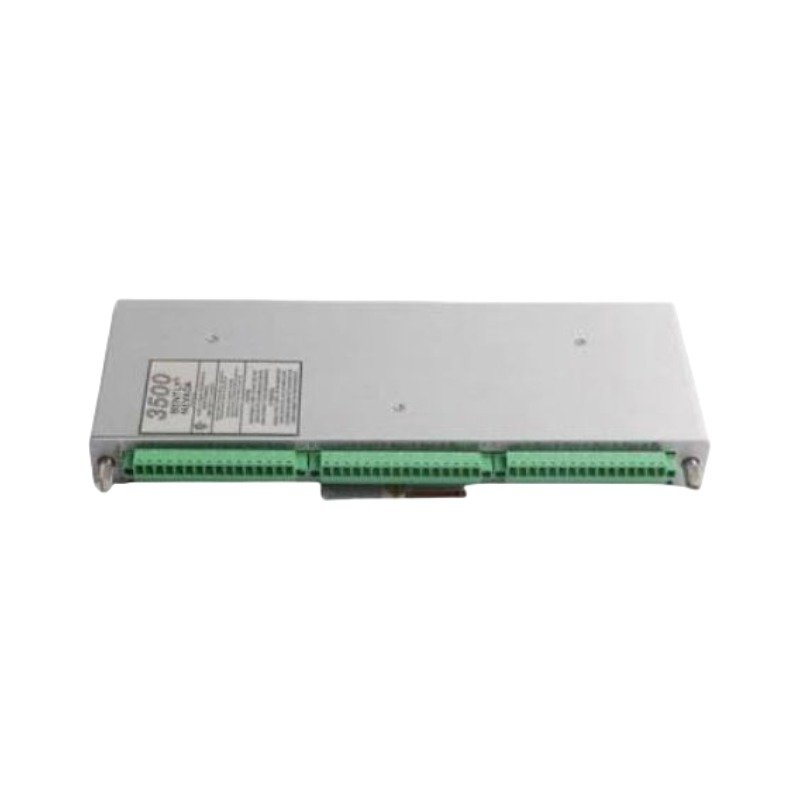

The Bently Nevada 3500/40M, also cataloged as the 3500/40M Proximitor Monitor Module, operates as a dedicated hardware component for proximity transducer signal termination and vibration measurement interface processing within the Bently Nevada 3500 Monitoring System.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Interface

The Bently Nevada 3500/40M Proximitor Monitor Module directly interfaces with proximity transducer circuits through Euro Style Connectors and processes eddy-current probe measurement signals within the 3500 rack environment. The module supports configured probe scaling functions by maintaining the electrical relationship between transducer output signals and monitored shaft displacement values.

Furthermore, the module supports rotor dynamics monitoring by providing a structured interface between field proximity sensors and the 3500 monitoring system. The Proximitor ET Block design simplifies field signal termination and provides direct connection capability for compatible proximity measurement circuits.

The module operates across an industrial temperature range and maintains operation under high humidity conditions. Therefore, correct environmental installation, cable routing, and connector engagement remain necessary for stable signal acquisition and machinery monitoring performance.

Frequently Asked Questions

Q: What connector type does the 3500/40M Proximitor Monitor Module use?
A: The module uses Euro Style Connectors for Proximitor ET Block field signal connection.

Q: What environmental temperature range supports module operation?
A: The module operates from -30 deg C to +65 deg C and supports storage from -40 deg C to +85 deg C.

Q: What humidity condition can the module withstand?
A: The module supports 95% humidity, noncondensing conditions.

Field Installation Guidelines

Install the Bently Nevada 3500/40M Proximitor Monitor Module into the assigned 3500 rack position after removing rack power. Next, verify that the module connector aligns correctly with the rack backplane and confirm complete mechanical seating.

Connect field proximity transducer wiring through the Euro Style Connector interface according to the approved system wiring configuration. In addition, route instrumentation cables separately from power conductors to minimize electromagnetic interference.

Maintain proper cable shielding and grounding practices during installation. After completing field connections, verify probe wiring, channel configuration, and measurement response before enabling machinery monitoring functions.
