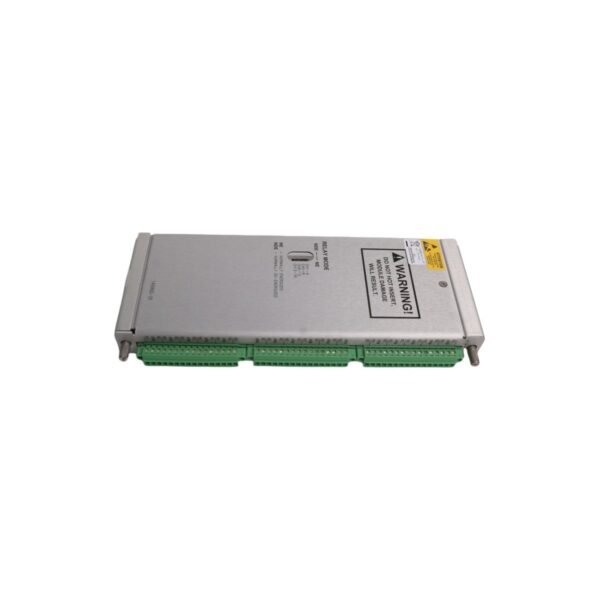

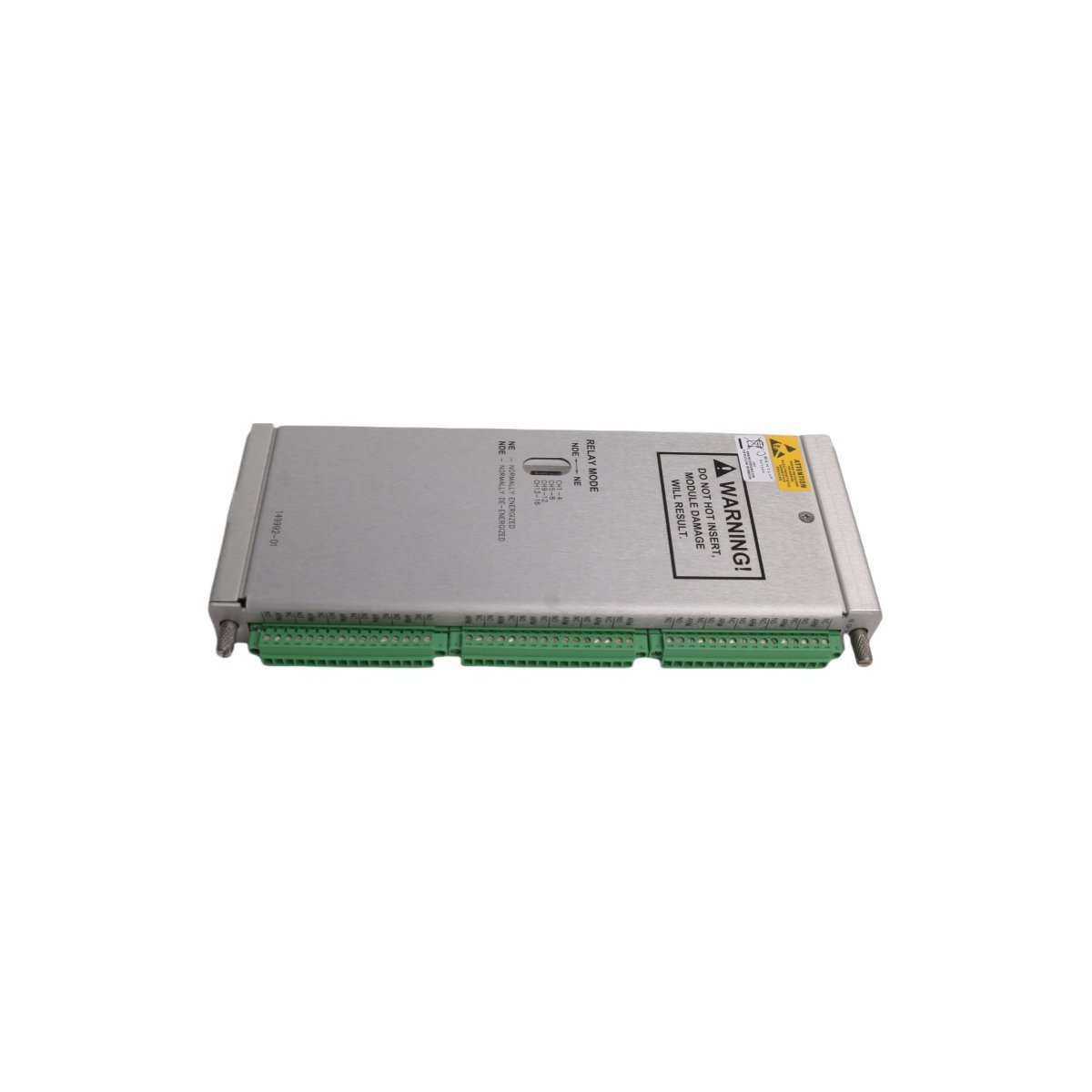

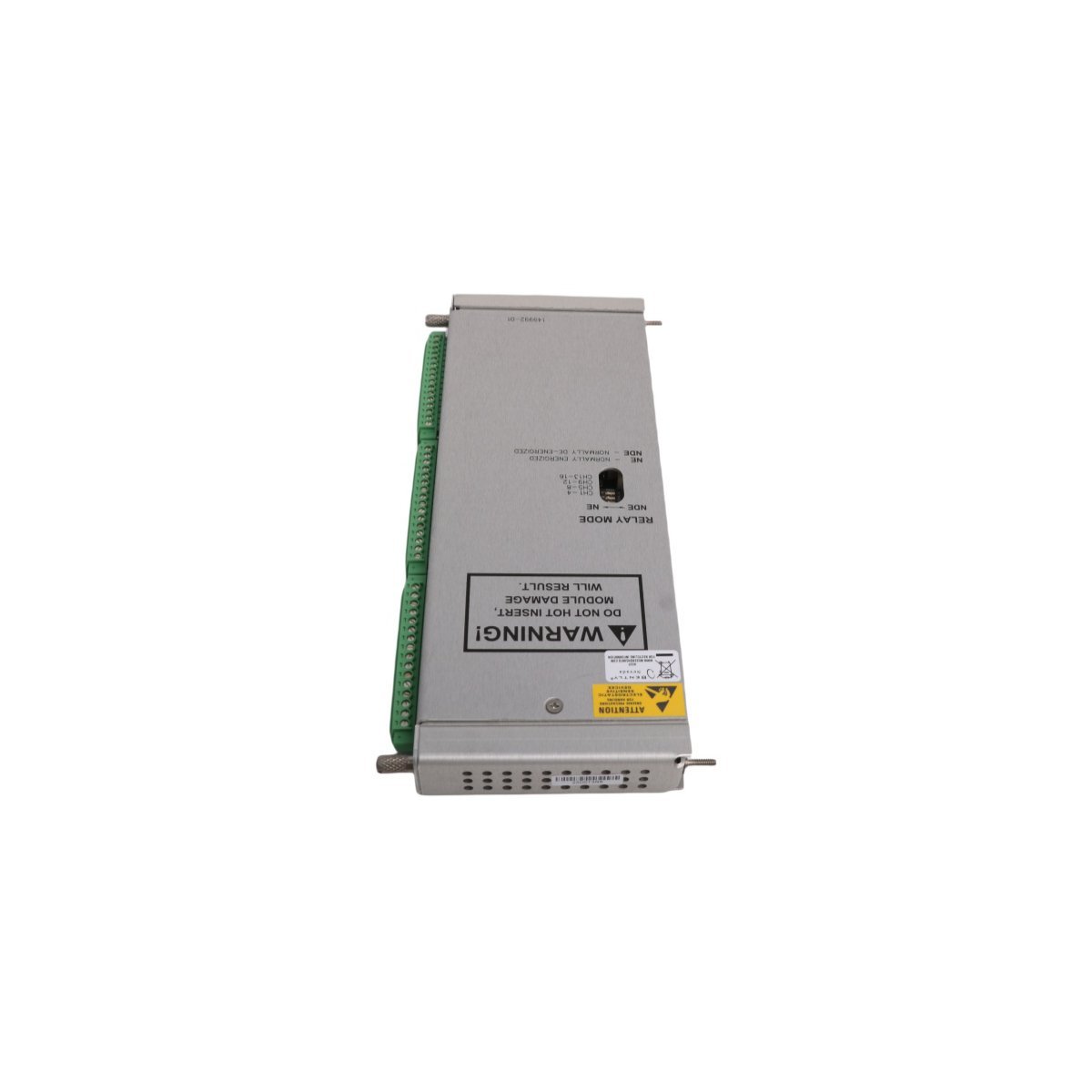

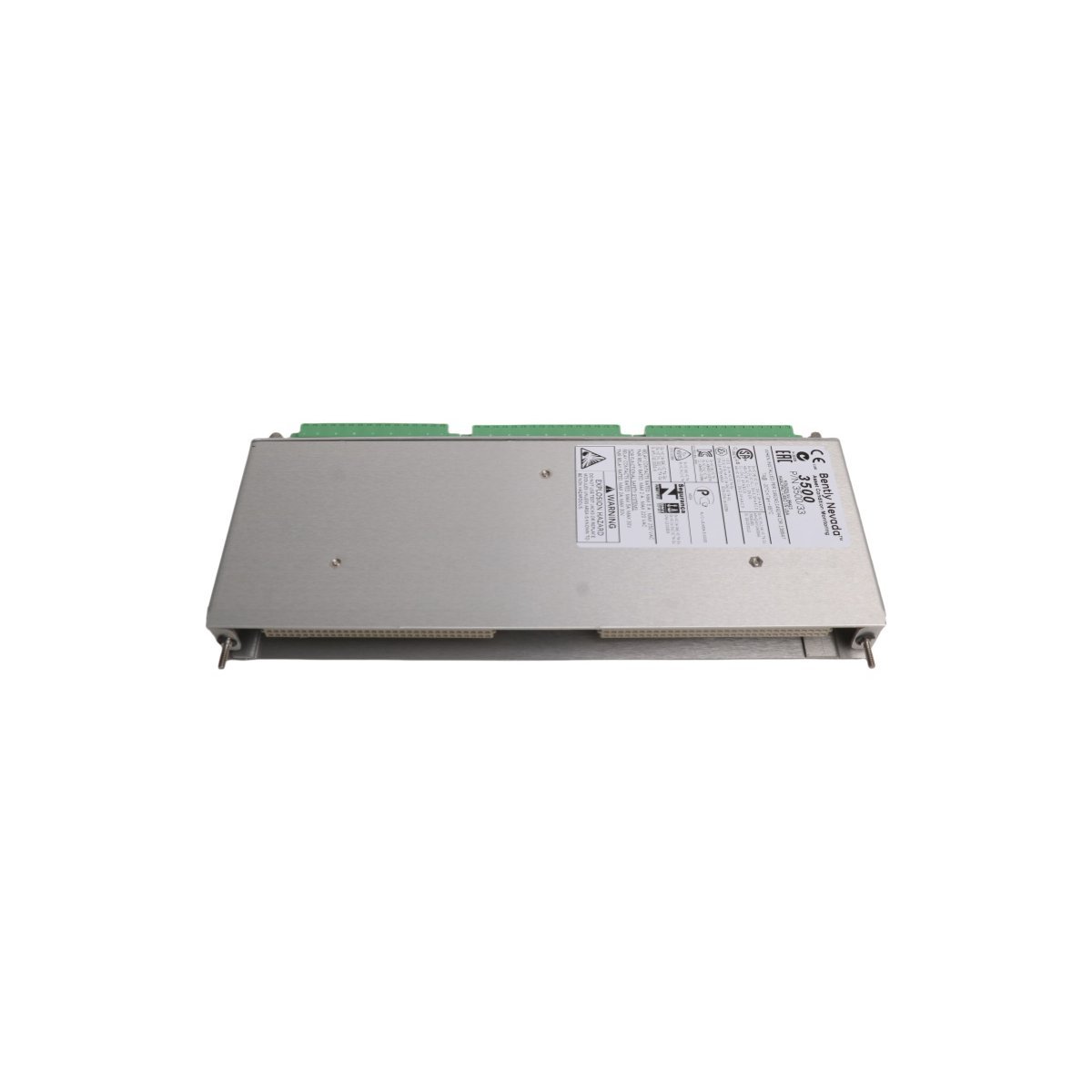

Bently Nevada 3500/33-03-00 149992-03 16-Channel Low Current Relay Module

The Bently Nevada 3500/33-03-00, also known by spare part number 149992-03, is a high-density output module for the 3500 series. This unit provides 16 independent channels to trigger remote alarms or control interfaces. While other modules focus on high-power switching, this version is built for low-current signal tasks. Consequently, it prioritizes data precision and efficient rack space usage.

Advanced Alarm Voting and System Logic

One primary advantage of this module is its “Logic Drive” technology. It communicates with other cards across the system backplane to manage relay activation. Because of this integration, the 149992-03 can execute complex AND/OR voting logic. These relay states update instantly when a threshold is hit. Therefore, the system ensures the rapid response times needed to protect high-speed turbines and compressors.

Technical Specifications

This module uses industrial-grade parts to maintain stable performance in tough conditions. Please review these specifications for your installation needs:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model: 3300/33
• Part Number: 149992-03
• Output Count: 16 Relay Channels
• Relay Type: Single-pole, double-throw (SPDT)
• Optimization: Low-power signal switching
• Slot Requirement: Full-height 3500 rack slot
• Operating Temperature: -30°C to +65°C
• Weight: 0.5 kg
• Dimensions: 2.6 cm x 11.3 cm x 24.2 cm

Strategic Applications in Machinery Protection

Reliability engineers often choose this module for facilities requiring extensive remote monitoring. Due to the 16-channel design, it is a staple in power plants and oil refineries. The module translates “Alert” and “Danger” statuses into signals for SCADA systems. Furthermore, its high density maximizes rack space. This efficiency simplifies the wiring for large industrial protection systems.

Diagnostics and Operational Safety

Beyond switching, the 149992-03 features a continuous self-test routine. If a hardware fault occurs, the “Module OK” status changes immediately to alert users. Additionally, the low-current design reduces heat within the rack. This lower temperature extends the life of nearby monitoring cards. Ultimately, this combination of diagnostics and efficiency makes the 3500/33-03-00 a standard for asset safety.
