Description

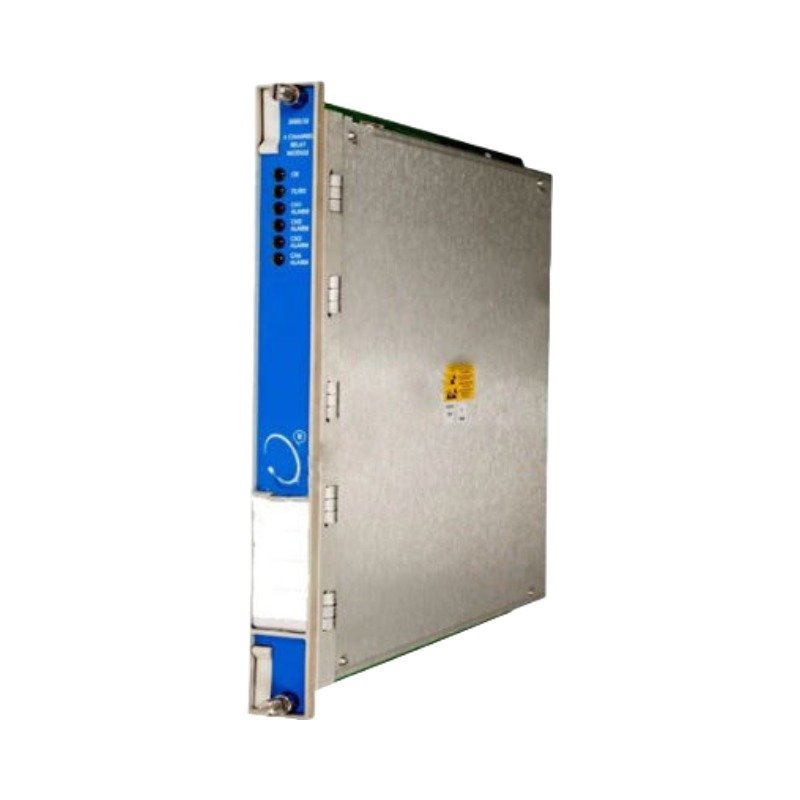

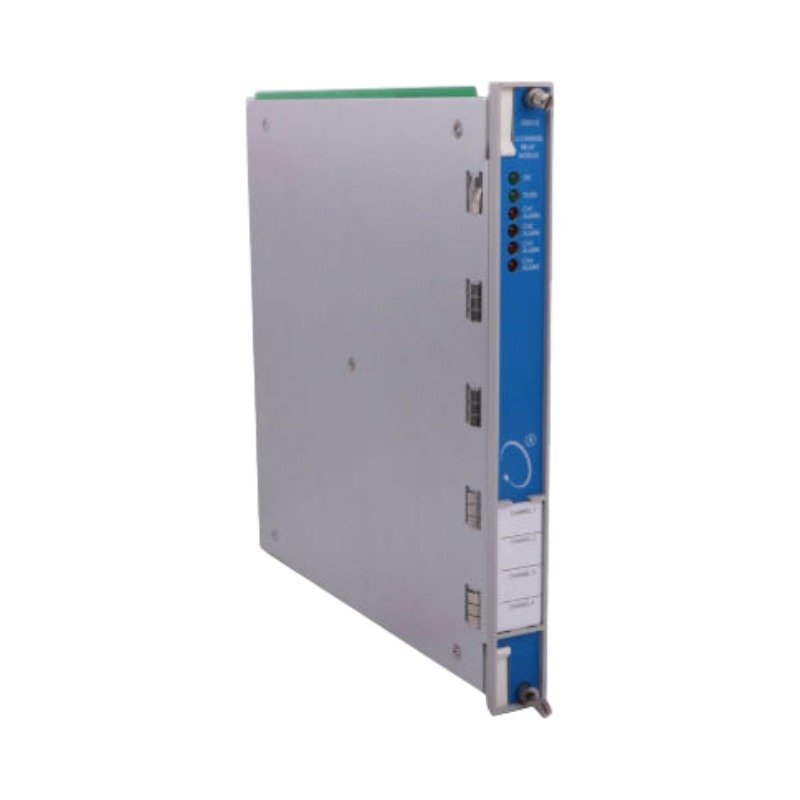

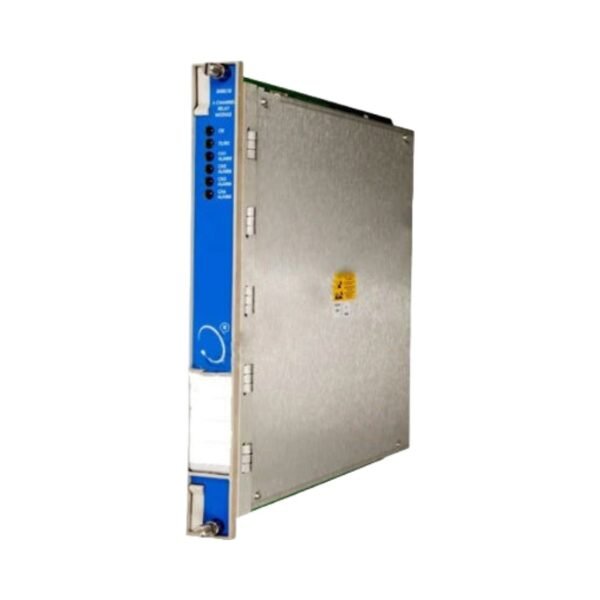

The Bently Nevada 3500/32M, also cataloged as the 3500/32M 4-Channel Relay Module, operates as a dedicated hardware component for emergency shutdown execution within 3500 Monitoring Systems. This full-height module utilizes highly configurable logic matrices to actuate physical relay contacts, translating electronic alarm violations directly into physical control circuit overrides.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The module receives digital alarm states processed over the backplane bus, responding to conditions derived from precise eddy-current probe scaling configurations on upstream monitor cards. When an monitored channel violates preset limits, the relay logic triggers emergency machine trips based on baseline gap voltage validation (-10 VDC targets) data. The onboard processor monitors steady-state alarm flags continuously without distorting raw rotor dynamics waveforms flowing along parallel diagnostic channels. Advanced circuit-board traces insulate the coil actuation lines, enforcing comprehensive cross-talk suppression to block inductive voltage spikes from entering sensitive analog input loops.

Frequently Asked Questions

Q: How does the “M” designation alter the functionality of this relay card compared to legacy 3500 relay modules?

A: The “M” suffix indicates a highly programmable architecture that permits individual relay linking to independent voting logic structures via 3500 Configuration Software, contrasting with standard non-M cards that restrict grouping options.

Q: What physical state do the relay contacts assume if the 3500/32M experiences a complete hardware power failure?

A: Technicians determine this behavior during system design by choosing between Normally De-energized and Normally Energized configuration options; the latter enforces a fail-safe execution trip if power drops.

Field Installation Guidelines

• Chassis Partitioning: Install the module into any available universal monitor slot position from slot 3 through slot 14 within the 3500 chassis enclosure.
• Terminal Block Wiring: Strip individual field loop conductors exactly 7 mm before securing them into the rear terminal connector block screws to ensure insulation integrity.
• Arc Suppression Requirements: Mount external clamping diodes across inductive DC loads, or varistors across AC loads, to protect the silver alloy relay contacts against localized electrical degradation.
