Description

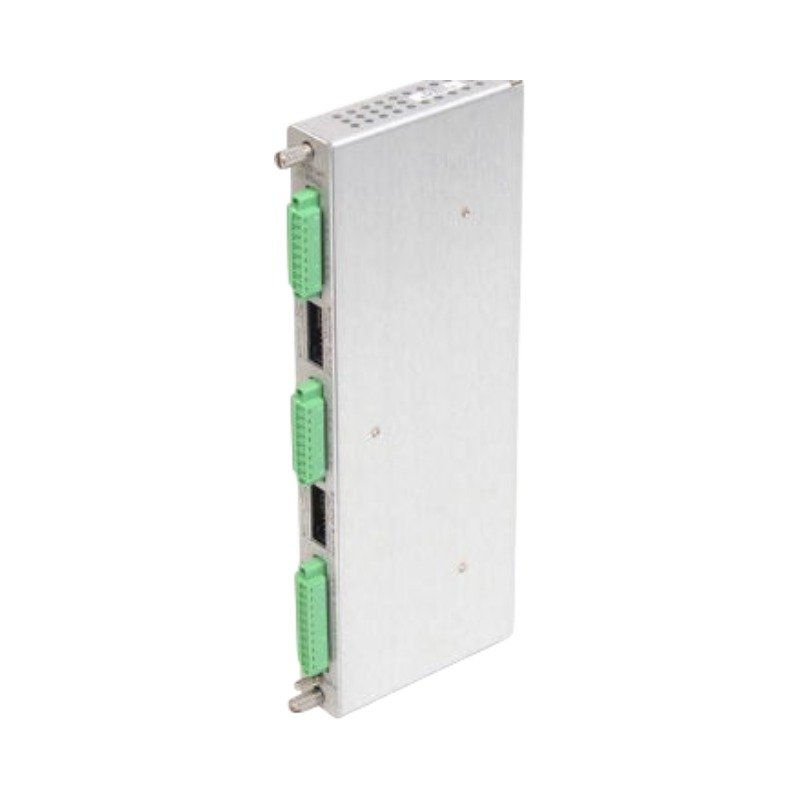

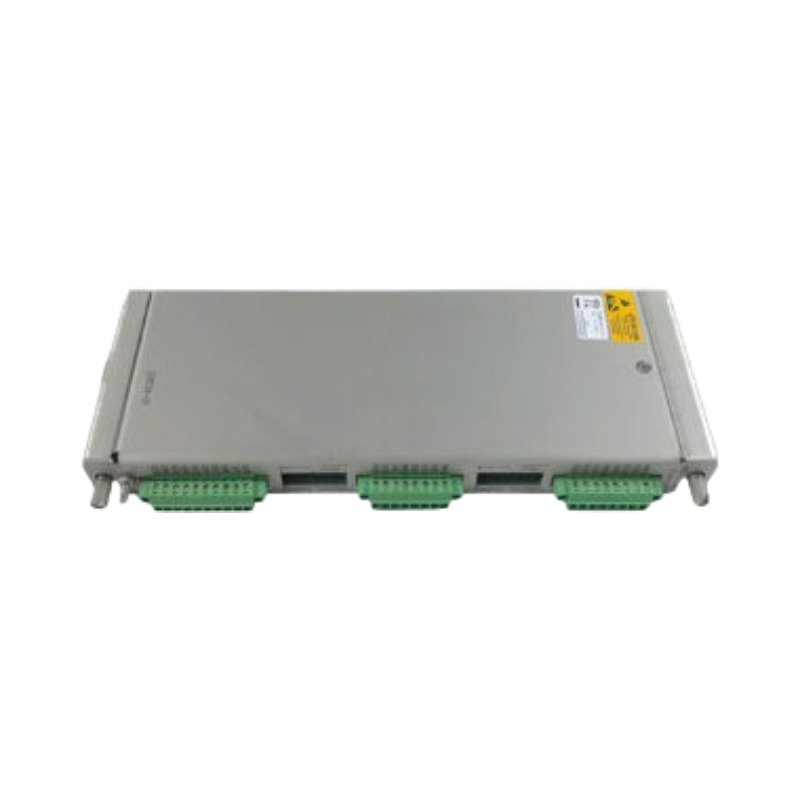

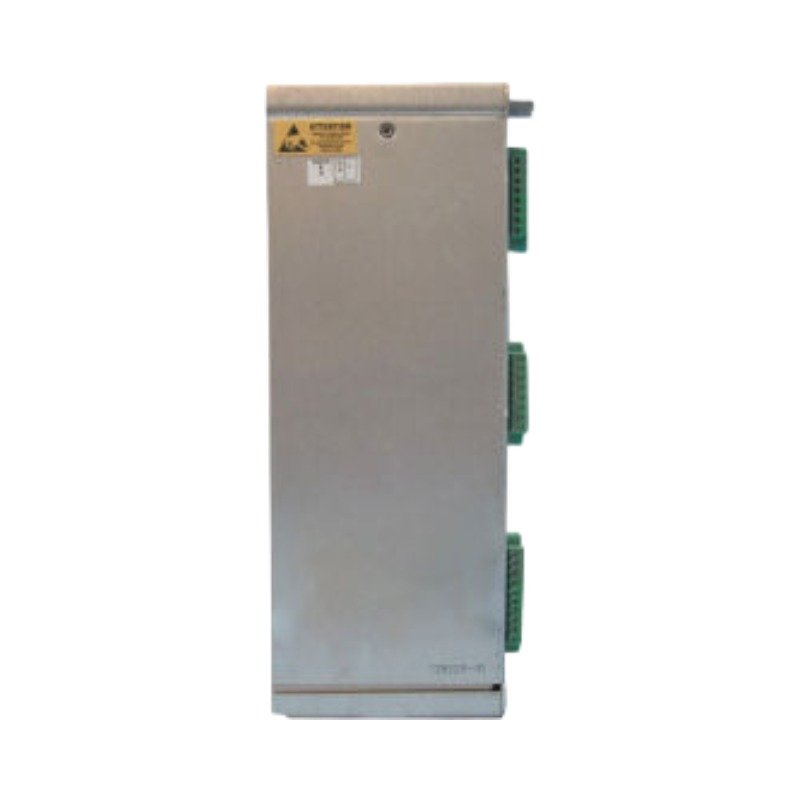

The Bently Nevada 3500/42M 128229-01, also cataloged as the 3500/42M Proximity Monitor, operates as a dedicated hardware component for continuous machinery protection by continuously acquiring and processing dynamic vibration and position signals within the Bently Nevada 3500 Machinery Protection System.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 3500/42M module performs real-time digitizing of inputs from Proximitor eddy-current probe systems. Engineers must execute eddy-current probe scaling during initial software configuration to match the specific millivolt-per-mil (mV/mil) or millivolt-per-micrometer (mV/um) scale factor of the transducer. Correct scaling ensures accurate tracking of rotor dynamics, including relative shaft vibration, axial position, and eccentricities. Furthermore, the internal processing algorithms utilize cross-talk suppression to eliminate adjacent channel interference when multiple probes target the same rotor plane. Field technicians must complete gap voltage validation to ensure that the static DC bias rests near the -10 VDC target, which confirms that the probe operates in the center of its linear calibration range.

Frequently Asked Questions

Q: How do technicians perform gap voltage validation on the 3500/42M 128229-01 module?

A: Technicians verify the gap voltage by measuring the DC voltage between the proximal sensor output and the common ground using a standard digital multimeter, or by reading the static current value directly through the 3500 Configuration Software interface to ensure the value falls near the -10 VDC target.

Q: Can the 3500/42M 128229-01 monitor handle hot-swap replacement during system operation?

A: Yes, the 3500/42M main card supports live hot-swap replacement within the 3500 rack frame without requiring a system shutdown, provided that the technician places the specific monitor slot into bypass mode beforehand to prevent accidental relay trips on associated machinery.

Field Installation Guidelines

1. Insert the main 3500/42M module firmly into the front slot of the 3500 chassis until the chassis latches click into place, and secure the front panel screws.
2. Route the coaxial or shielded twisted-pair transducer cables through dedicated low-voltage wireways to prevent electromagnetic interference from surrounding high-voltage power lines.
3. Terminate the cable shields directly at the 3500 rack system ground bus bar, and maintain complete isolation at the transducer terminal housing to prevent ground loops.
4. Verify that the physical layout provides at least 5-thread engagement if installing through NPT conduit fittings to the corresponding I/O termination block.
