Description

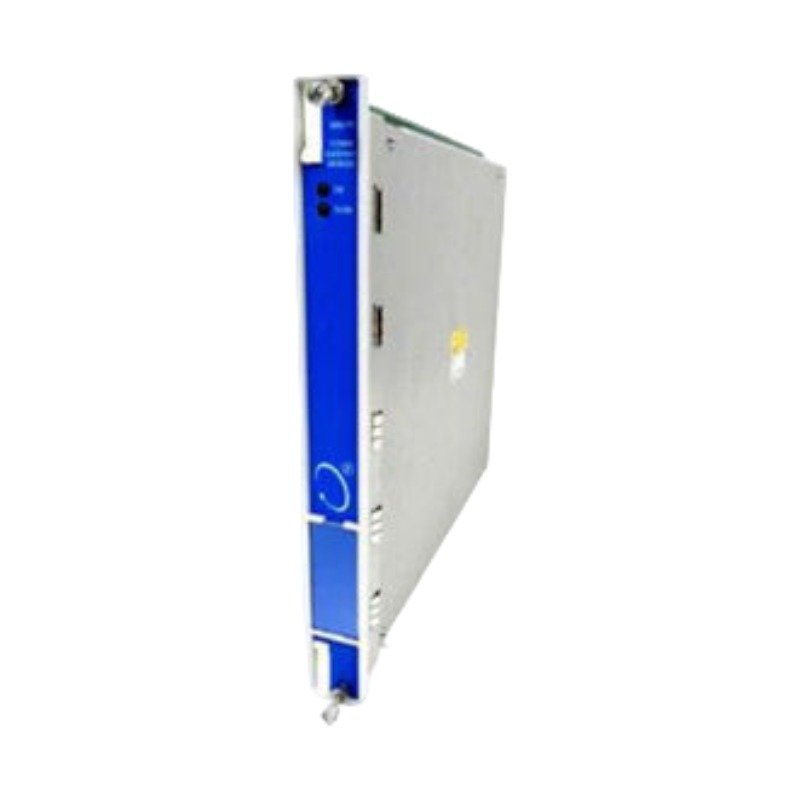

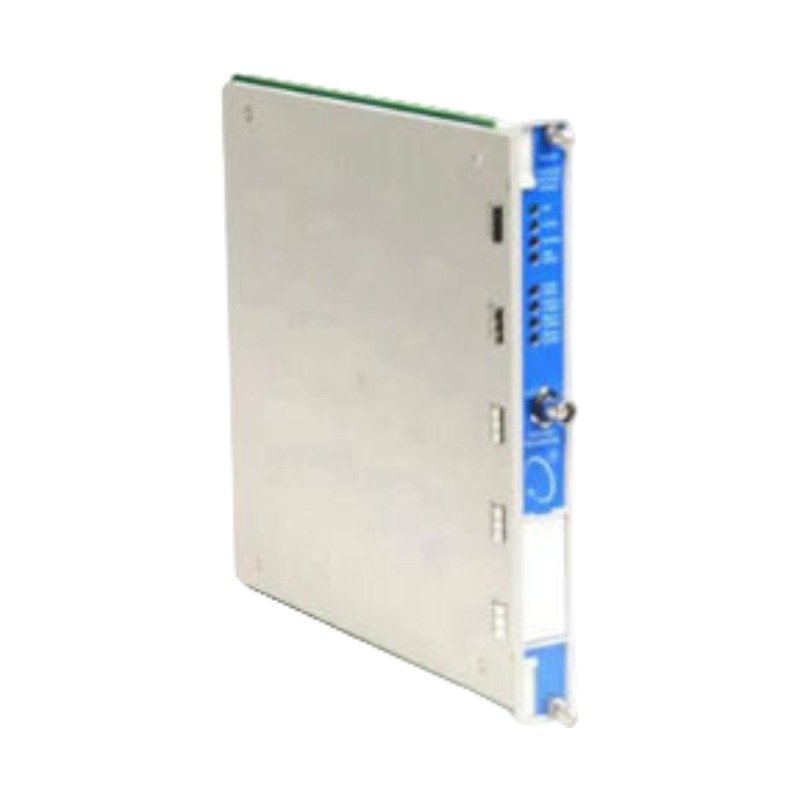

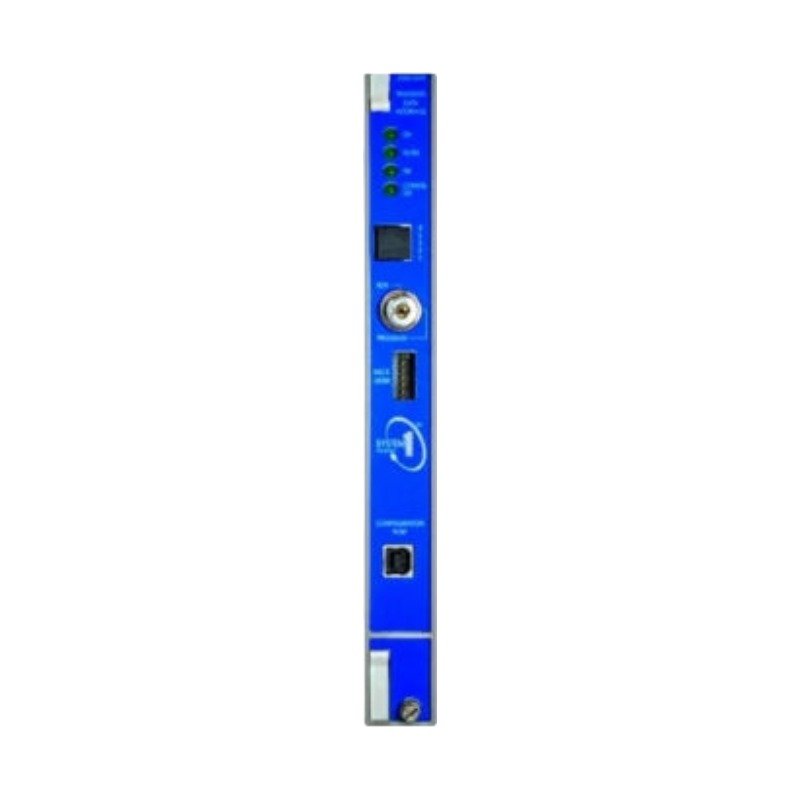

The Bently Nevada 3500/22 164466-01, also cataloged as the 3500/22 Transient Data Interface, operates as a dedicated hardware component for steady-state and transient machinery dynamic data acquisition within the Bently Nevada 3500 Machinery Protection System.

Hardware Specifications

Eddy-Current Probe Scaling & Rotor Dynamics

The 3500/22 module processes dynamic signals directly from proximity transducer systems to capture critical rotor dynamics during startup, coast-down, and steady-state operation. The internal digital signal processors execute eddy-current probe scaling protocols automatically based on configuration profiles, converting raw voltage fluctuations into physical displacement values. To prevent cross-talk suppression failures across adjacent channels, the hardware isolates the high-frequency carrier signals. Engineers must perform gap voltage validation to ensure the static DC voltage remains within the targeted -10 VDC nominal linear range, which confirms correct sensor positioning relative to the shaft journal before collecting transient waveform data.

Frequently Asked Questions

Q: Does the 3500/22 164466-01 support online hot-swap operations within a live 3500 rack?

A: Yes. You can insert or remove the module while the rack is powered up; however, removing the Transient Data Interface temporarily interrupts configuration communications and transient data buffering for the entire rack.

Q: How does the module handle switching latencies in a redundant configuration?

A: When you install the module in a redundant pair topology, the standby interface continuously mirrors the internal state variables of the primary unit, resulting in a bumpless hardware switchover latency of less than 100 milliseconds upon primary path failure detection.

Field Installation Guidelines

• Locate the dedicated slot immediately adjacent to the rack power supplies (typically slot 1, next to the Power Supply modules) for correct backplane address mapping.
• Ensure the chassis ground wire connects to the dedicated rack ground stud using a minimum 14 AWG copper wire to prevent ground loops from corrupting high-frequency dynamic signals.
• Route all raw transducer field wiring through separate grounded metal conduits or shielded trays, keeping them isolated from high-voltage AC power cabling to suppress electromagnetic interference.
• Verify the insertion depth manually before tightening the two integrated panel retaining screws to ensure full backplane connector engagement and avoid pin deflection.
