Description

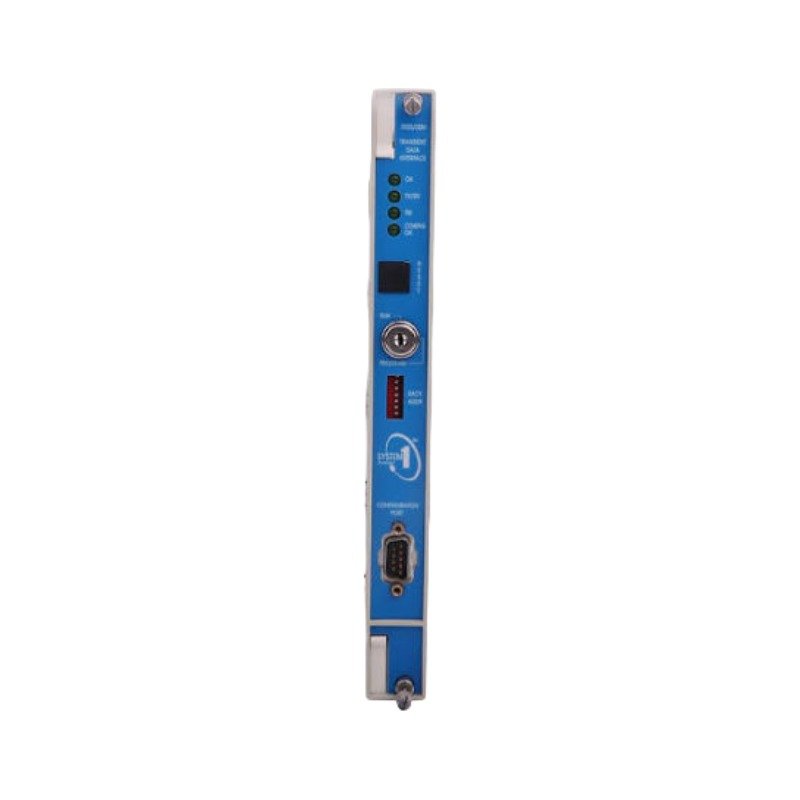

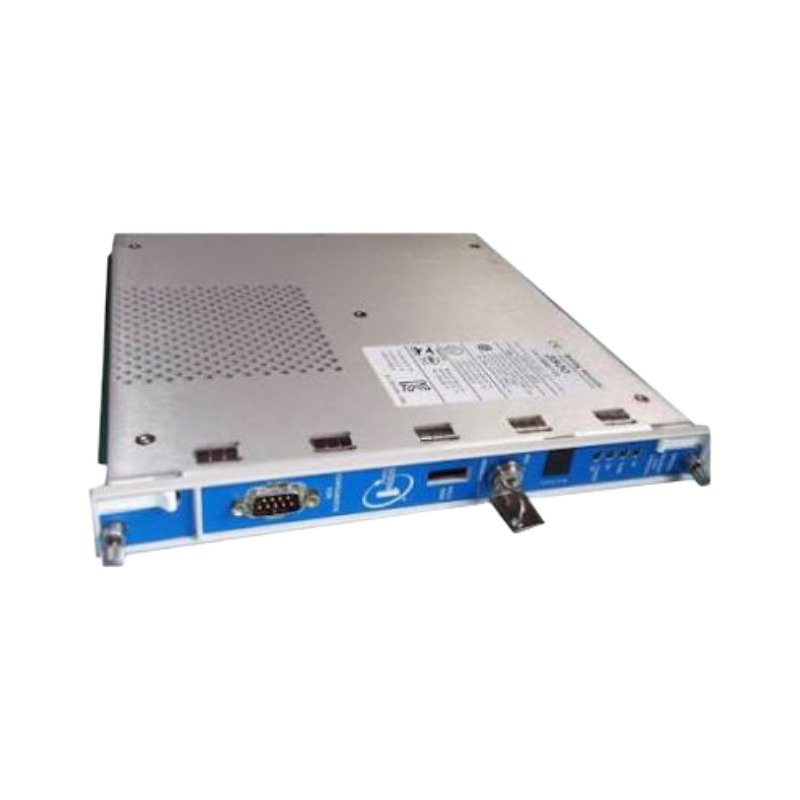

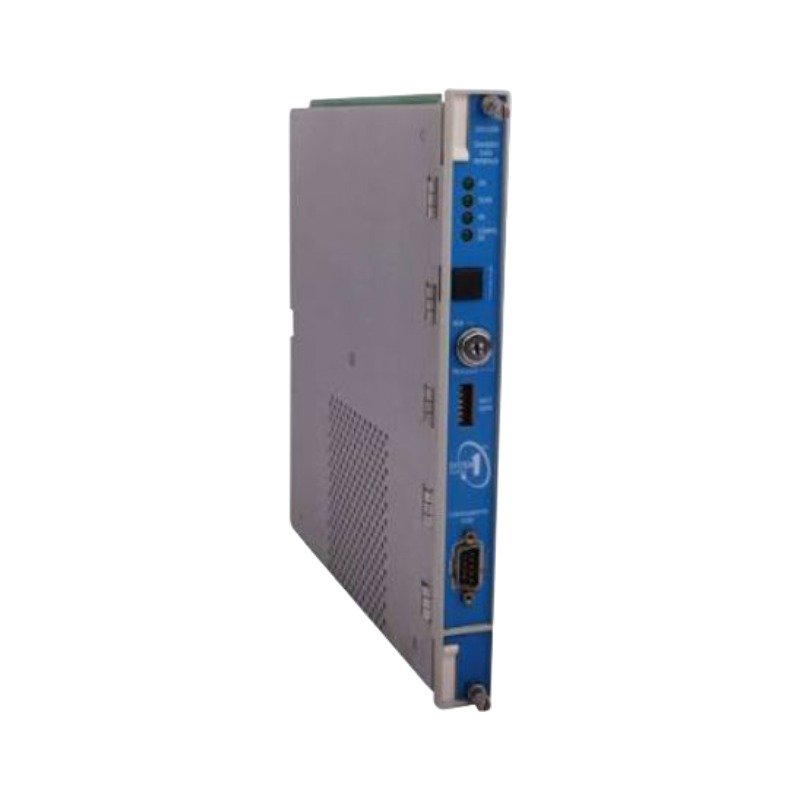

The Bently Nevada 3500/22-01-01-01, also cataloged as the 3500/22 Transient Data Interface, serves as the primary 3500/22 Transient Data Interface utilized to execute steady-state and transient machinery dynamic data acquisition across Bently Nevada 3500 Machinery Protection System platforms.

Suffix Breakdown & Model Matrix

The 3500/22-AXX-BXX-CXX option matrix defines the physical hardware interfaces, communication protocols, and agency approval levels for the module configuration.

• A01: Standard Transient Data Interface (TDI) module with USB interface and localized data buffering capabilities.
• B01: 10Base-T/100Base-TX Ethernet and RS232/RS422/RS485 Modbus I/O module interface.
• C01: CSA/FM Class I, Division 2, Groups A, B, C, and D hazardous area certification options.

Hardware Specifications

Eddy-Current Probe Scaling & Rotor Dynamics

The 3500/22-01-01-01 interface conditions high-frequency dynamic signals from proximity transducer systems to evaluate critical rotor dynamics during machinery startup, steady-state operation, and coast-down periods. Consequently, the internal software algorithms manage eddy-current probe scaling protocols automatically, converting incoming voltage fluctuations into accurate physical displacement and velocity metrics. To protect against noise pollution, the differential input stages isolate individual data channels to ensure robust cross-talk suppression between adjacent channels. Field personnel must verify the gap voltage validation to ensure the static DC signal targets the specific -10 VDC linear range, which confirms that the physical proximity probes are correctly calibrated prior to logging transient waveforms.

Frequently Asked Questions

Q: Does the 3500/22-01-01-01 support online hot-swap operations within a live 3500 rack?

A: Yes. You can insert or remove the module while the rack is powered up; however, removing the Transient Data Interface temporarily interrupts configuration communications and transient data buffering for the entire rack.

Q: How does the module handle switching latencies in a redundant configuration?

A: When you install the module in a redundant pair topology, the standby interface continuously mirrors the internal state variables of the primary unit, resulting in a bumpless hardware switchover latency of less than 100 milliseconds upon primary path failure detection.

Field Installation Guidelines

• Locate the dedicated slot immediately adjacent to the rack power supplies (typically slot 1, next to the Power Supply modules) for correct backplane address mapping.
• Ensure the chassis ground wire connects to the dedicated rack ground stud using a minimum 14 AWG copper wire to prevent ground loops from corrupting high-frequency dynamic signals.
• Route all raw transducer field wiring through separate grounded metal conduits or shielded trays, keeping them isolated from high-voltage AC power cabling to suppress electromagnetic interference.
• Verify the insertion depth manually before tightening the two integrated panel retaining screws to ensure full backplane connector engagement and avoid pin deflection.
