Description

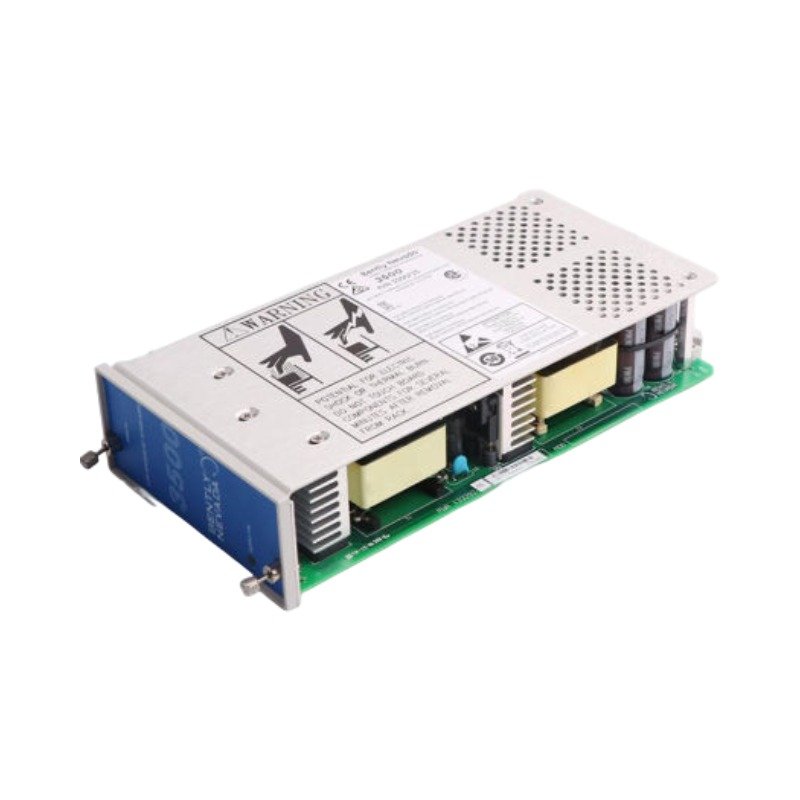

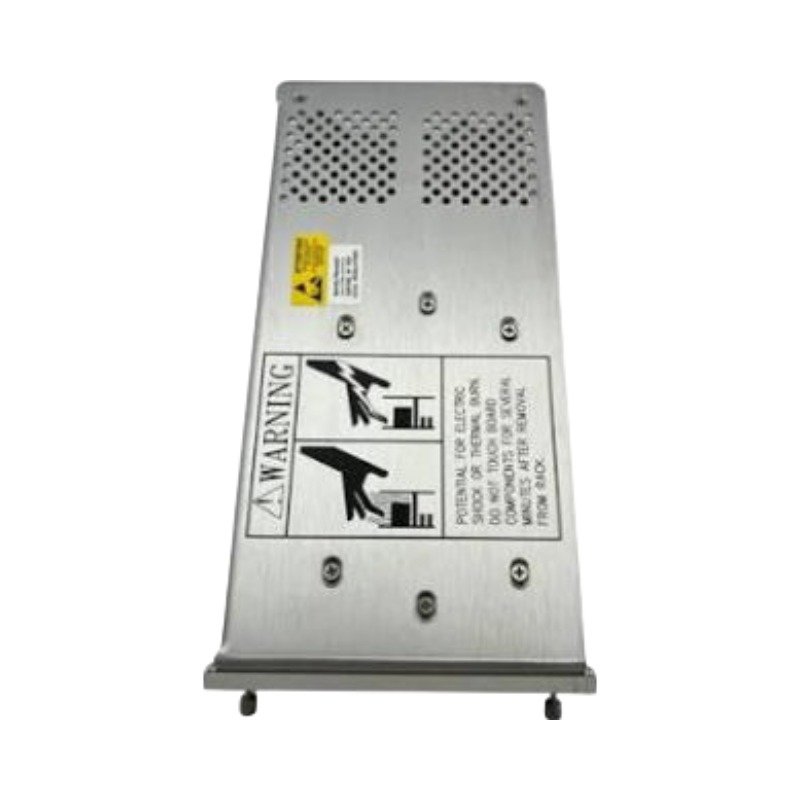

The Bently Nevada 3500/15, also cataloged as the 3500/15 Power Supply Module, operates as a dedicated hardware component for continuous input power conversion and regulation within Bently Nevada 3500 System Racks. This half-high module installs directly into the designated power slots on the left side of the chassis to supply regulated DC operating voltages. The integrated power distribution circuitry converts external line sources into stabilized backplane power, ensuring deterministic hardware execution across all installed monitoring cards without requiring secondary internal converters.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The Bently Nevada 3500/15 enforces rigid electrical stability for delicate Turbine Supervisory Instrumentation (TSI) circuits. The internal power regulation topology integrates aggressive electrical noise filtering to maintain strict cross-talk suppression between neighboring slots hosting high-frequency proximity probe networks. When conditioning raw input power, the module references the central chassis ground, preserving accurate gap voltage validation against the targeted -10 VDC baseline used by proximity sensors. This active filtering prevents line-side switching harmonics from distorting the high-speed rotor dynamics telemetry needed to calculate exact shaft centerlines and sub-synchronous vibration vectors.

Frequently Asked Questions

Q: How does the 3500/15 handle power redundancy inside the system rack?

A: The 3500/05 chassis accommodates two 3500/15 modules simultaneously for a redundant configuration. The internal backplane treats the lower supply as primary and automatically manages instantaneous load transfer to the upper backup module within less than 2 microseconds if the primary unit experiences an input drop or internal component failure.

Q: Can an engineer mix AC and DC input versions within the same redundant rack?

A: Yes. The 3500/15 backplane interface allows combinations of distinct input voltage types, such as pairing a 115 VAC line supply with a 24 VDC backup battery bank, provided each supply uses its respective lower or upper rear I/O module matching its hardware specifications.

Field Installation Guidelines

• Rear I/O Module Matching: Install the corresponding rear I/O power input module into the back of the rack directly behind the front 3500/15 power supply slide-in card. Do not attempt to supply power until verifying that the front module rating perfectly matches the rear connector labels.
• Signal Shielding and Earth Grounding: Connect a dedicated low-impedance copper conductor (minimum 4 mm squared cross-section) from the Earth terminal on the rear power I/O block straight to the plant instrument ground grid. Maintain separate paths from high-power safety grounds to prevent noise injection into the TSI electronics.
• Terminal Fastening: Torque all primary power input terminal screw connections to exactly 0.56 Nm (5 in-lb) to prevent high-resistance contact points under continuous machinery vibration.
