Description

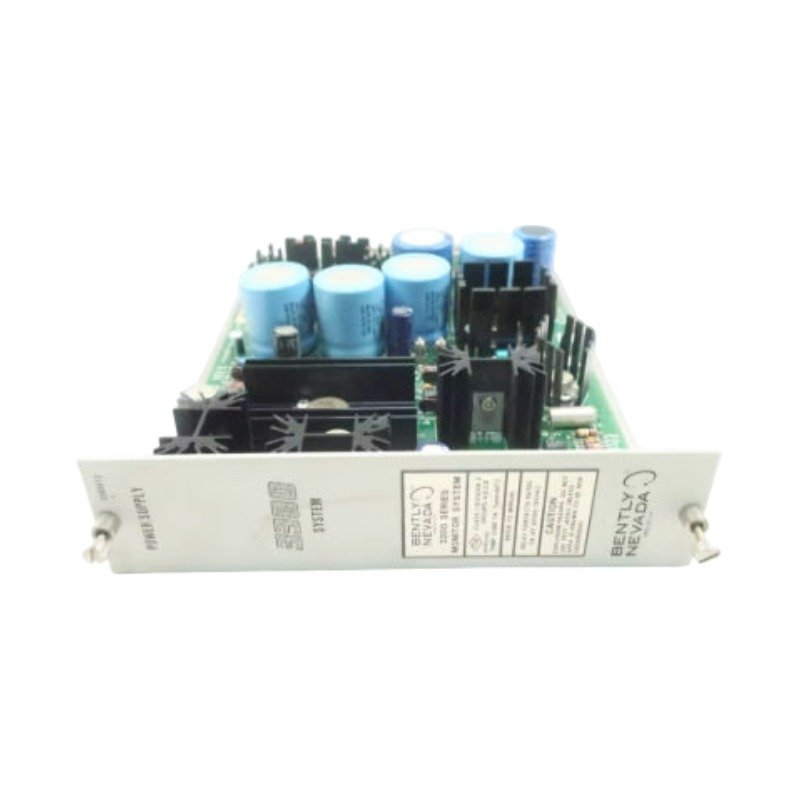

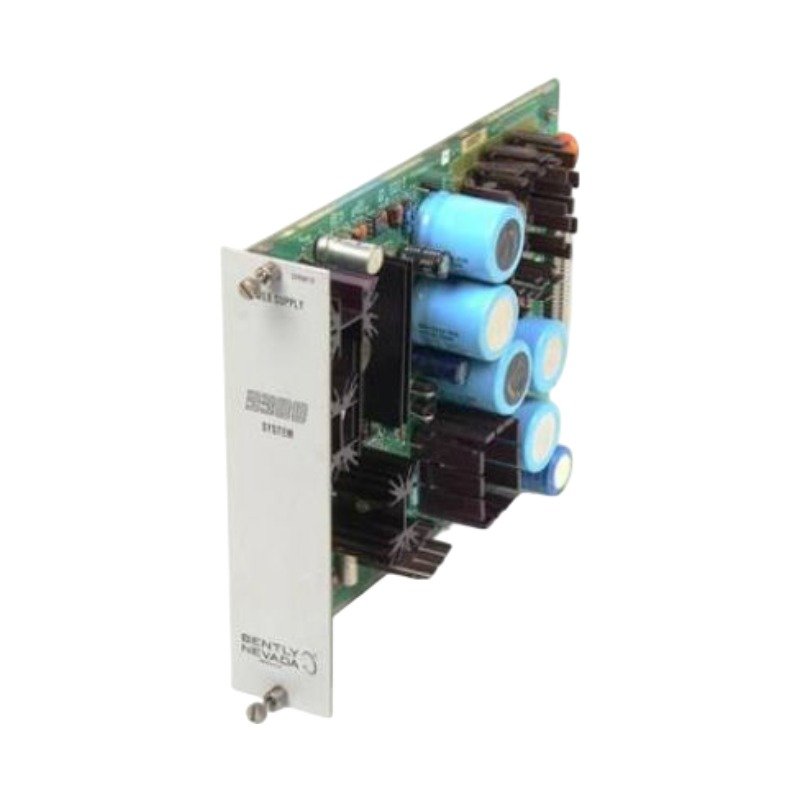

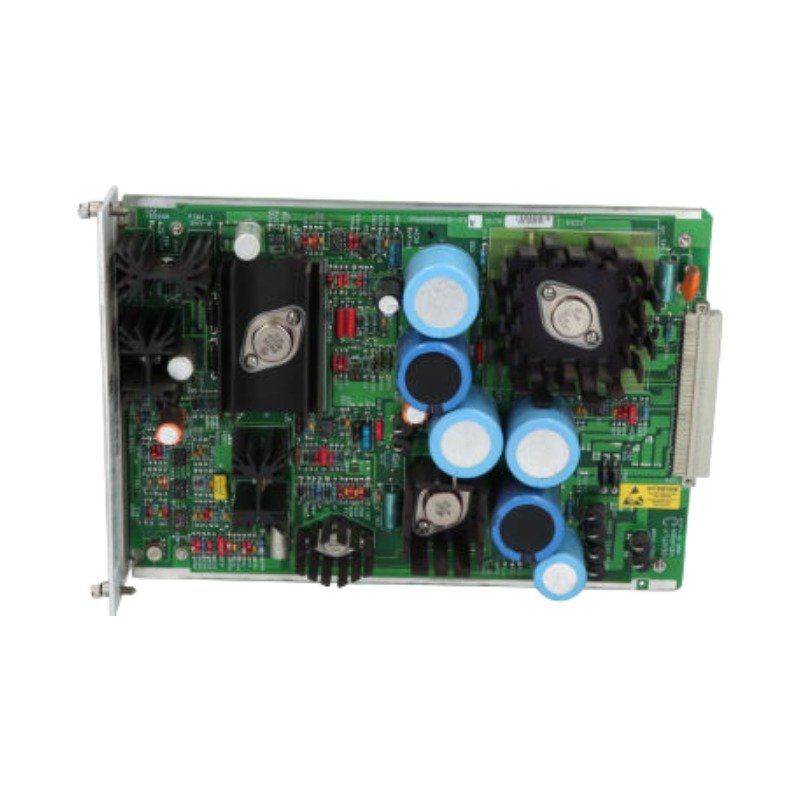

The Bently Nevada 3300/12, also cataloged as the 3300/12 AC Power Supply, operates as a dedicated hardware component for regulated DC distribution within 3300 Machinery Protection System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This power module drives the continuous electrical infrastructure across the rack backplane during dynamic rotor dynamics assessment. Specifically, the internal conditioning loops transform incoming raw AC mains voltage into steady, isolated DC rails. Subsequently, this clean power bus feeds up to 12 adjacent monitoring modules to enable precise eddy-current probe scaling and transducer tracking. Furthermore, the engineering layout utilizes an integrated line noise filter. Consequently, this component enforces cross-talk suppression against external grid transients. Therefore, the stabilized DC output preserves steady conditions for gap voltage validation operations, ensuring that voltage baselines remain centered at the required -10 VDC targets without rack-induced drift.

Frequently Asked Questions

Q: How do you adjust the transducer output voltage baseline between -24 VDC and -18 VDC?

A: You change the configuration via plug-in jumpers on the circuit board assembly. Subsequently, this programming alters the internal reference rail to match either 3300/7200 series transducers (-24 VDC) or older 3000 series transducers (-18 VDC).

Q: What function does the integrated OK relay execute during a power interruption?

A: The OK relay operates in a normally energized state during normal operation. Consequently, a loss of primary AC power or an internal component failure drops out the relay contacts instantly, allowing an external annunciator to log a system fault.

Field Installation Guidelines

First, slide the power supply module into the left-most rack location, designated strictly as position 1 in the 3300 chassis. Subsequently, tighten the front panel screws to secure the unit and establish full electrical engagement with the backplane connectors. Always isolate incoming primary AC power wiring from low-voltage transducer cables. Consequently, this physical separation prevents electromagnetic noise injection into the measurement loops. Finally, connect the primary Power Input Module (PIM) ground terminal directly to the plant instrument earth grid; this action creates a low-impedance path that shields internal monitoring circuits from common-mode ground currents.
